In today’s interconnected world, the need to shield devices from electromagnetic interference (EMI) is more critical than ever. Whether in aerospace, telecommunications, medical devices, or other demanding fields, effective EMI shielding is essential to maintaining the integrity and reliability of electronic systems. At Leader Tech, we understand that EMI challenges continue to evolve.
Our commitment to innovation drives us to find new, reliable solutions to support engineers and designers. A prime example of this dedication is our latest advancement in Beryllium Copper (BeCu) fingerstock gaskets, the Reverse Bend fingerstock gasket. This design addresses specific application needs while maintaining the trusted performance that has made BeCu a go-to material for EMI shielding.
Addressing EMI Needs with BeCu Fingerstock Solutions
- Beryllium Copper has long been regarded as one of the most effective materials for EMI shielding due to its unique combination of high electrical conductivity, resilience, and mechanical strength. BeCu fingerstock gaskets address several recurring challenges that engineers face when designing EMI shields:
- High Conductivity for Effective Shielding: One of the core benefits of BeCu is its excellent conductivity, which is crucial for blocking EMI. By providing a reliable conductive path, BeCu gaskets prevent interference from penetrating enclosures and disrupting sensitive components.
- Durability in Harsh Environments: BeCu is also highly resistant to corrosion and fatigue, making it suitable for use in environments exposed to temperature fluctuations, moisture, and vibration. This durability ensures long-term EMI protection without compromising on performance.
- Mechanical Resilience: One of the standout qualities of BeCu fingerstock is its incredible resilience under consistent mechanical stress. These gaskets are designed to withstand repeated compression and release, maintaining their shape and function over countless cycles. This sturdiness makes BeCu an ideal choice in applications where components experience continuous movement or require reliable contact under varying conditions. Unlike many other materials that degrade or lose elasticity with time, BeCu maintains its structural integrity, offering engineers a dependable solution for applications where consistency is critical.
These attributes make BeCu fingerstock gaskets a staple for engineers who need reliable EMI shielding solutions across a range of industries and applications.

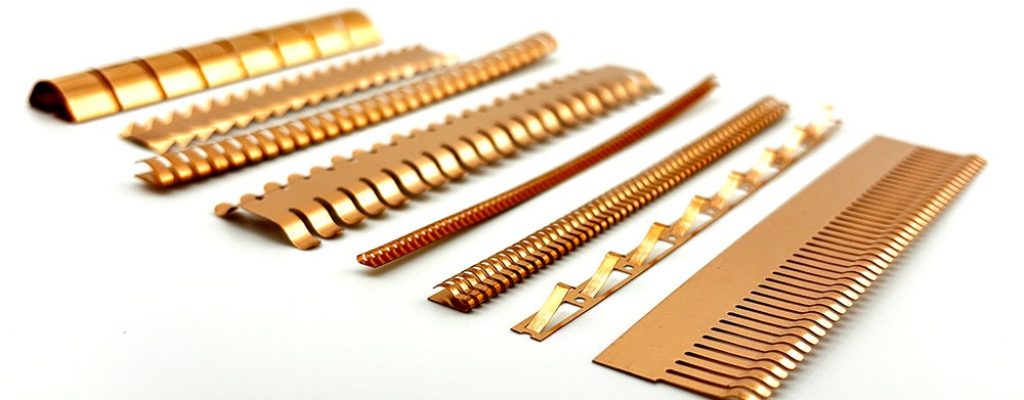

Leader Tech’s Trusted BeCu Fingerstock Gaskets
For decades, Leader Tech has provided the industry with high-quality BeCu fingerstock gaskets designed to meet precise specifications. Our gaskets are manufactured with tighter tolerances than standard sheet metal, ensuring dependable performance in environments with strict EMI requirements. Our BeCu gaskets are available in a wide variety of standard styles and sizes, covering compression ranges from .002 inches to .410 inches, and using materials as thin as .002 inch for soft gaskets that meet applications with low compression force requirements.
Leader Tech also offers customization options, designing and manufacturing spring contacts and gaskets in various metals, including Aluminum, Stainless Steel, HyMu80, Phos-bronze, Brass, and Cold Rolled Steel, with a range of plating options. This flexibility allows engineers to specify gaskets that meet their unique design and performance needs without compromising on quality or reliability.
Introducing the Reverse Bend Fingerstock Gasket
Leader Tech’s commitment to solving complex EMI challenges is reflected in our latest product innovation – the Reverse Bend Beryllium Copper CD/CT Clip (20-38RBCD/20-38RBCT). This new design features a unique “reverse bend” in the contact fingers, enhancing performance in specific applications by bending in the opposite direction compared to traditional fingerstock configurations. Here’s how this design addresses specialized needs:
Enhanced Compression Range: The reverse bend design offers increased adaptability, ensuring reliable compression across diverse gap sizes. This flexibility allows for consistent, stable contact pressure, even under mechanical stress, making it ideal for applications where precision and durability are critical.
Improved Contact Reliability: The distinctive bend design ensures consistent, stable contact over extended periods, maintaining performance even through environmental fluctuations. This makes it especially valuable for applications demanding long-term dependability.
Reduced Installation Force: The design lowers the required force during installation, significantly reducing stress on delicate components. This ensures safer handling, minimizes potential damage, and streamlines the overall assembly process, making it ideal for complex, high-density electronic setups.
These enhancements make the Reverse Bend fingerstock gasket particularly beneficial for high-performance applications, especially where installation spaces are limited, or precise configurations are required.
Applications and Benefits of Reverse Bend Gaskets
The Reverse Bend fingerstock gasket is ideally suited for applications that demand precise and reliable EMI shielding, such as:
Edge Mounting on Circuit Cards: For edge-mounted applications, the Reverse Bend gasket provides both EMI shielding and electrostatic discharge (ESD) protection, with carefully customized configurations that include specific clip sizes, lance requirements, and finger configurations.
Shielded Cabinets and Enclosures: In shielded cabinets, gaskets are essential for maintaining EMI integrity by creating a secure conductive barrier. This prevents interference, protecting sensitive equipment and ensuring consistent reliability, making these enclosures vital in applications where stability is critical.
Reliable ESD Contacts: Acting as ESD contacts, these gaskets protect sensitive electronic components from harmful static discharge, preventing potential damage. By effectively managing electrostatic buildup, they ensure accurate measurements and prolong device reliability in demanding applications.
Leader Tech’s Custom Solutions for Advanced Shielding Needs
In addition to our standard and advanced BeCu gaskets, Leader Tech is dedicated to providing custom shielding solutions tailored to individual application requirements. Beyond Beryllium Copper, we offer gaskets in a variety of materials like Aluminum, Stainless Steel, and HyMu80, along with diverse plating options to enhance performance in specific environments. This flexibility ensures that our products meet the precise needs of engineers, regardless of the application’s demands.
Leader Tech’s Reverse Bend Beryllium Copper fingerstock gasket exemplifies our commitment to advancing EMI shielding solutions. With a design that addresses the unique challenges of today’s high-performance applications, this gasket enhances our BeCu product lineup, delivering reliable performance in even the most demanding environments. As EMI requirements continue to grow, Leader Tech is here to provide engineers with innovative, adaptable solutions that not only meet current challenges but anticipate future needs. Whether it’s traditional fingerstock or our new Reverse Bend design, Leader Tech remains a trusted partner for all EMI shielding applications.
If your project could benefit from the reliability of BeCu or other advanced shielding solutions, reach out to our team to discover how Leader Tech’s range of products can be tailored to meet your specific needs.
