Beryllium Copper Fingerstock

PCI Series

Home » Enclosure Shielding » Beryllium Copper Fingerstock » PCI | Contact

PCI Series:

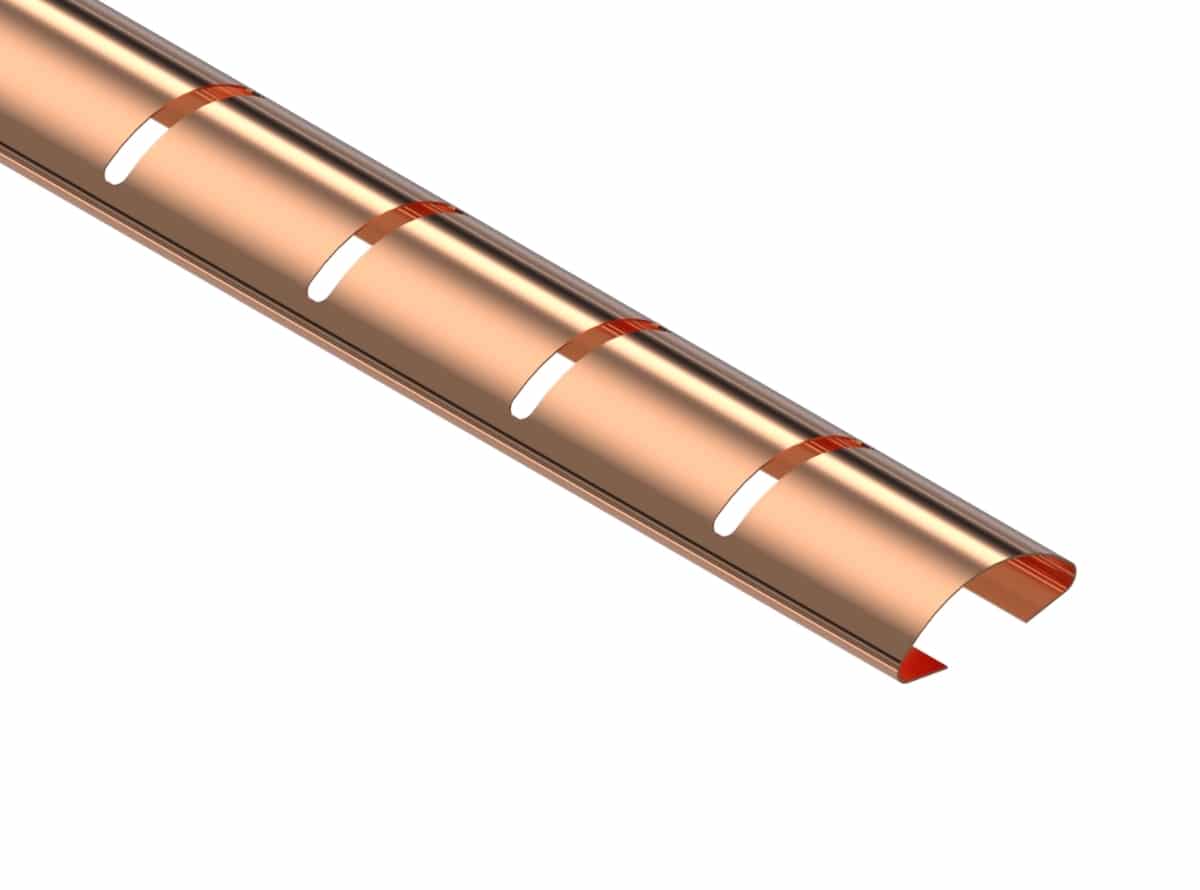

High performance Compact PCI Gaskets designed for easy card insertion in rack mount
applications. This gasket is available in two different sizes to accommodate different customer
extrusions. They are available in both Copper Beryllium and Stainless Steel.

Options

PP = plating code from plating code table below

X.XXX = Desired length

“SS” -Stainless Steel

Imperial
Metric

Leader Tech Part Number	A (in)	B (in)	C (in)	D (in)	F (in)	G (in)	T (in)	Max Length (in)	Fingers at Max Length	Adhesive
7-19PCI-PP-X.XXX	70,00	180,00	50,00	10,00	180,00	20,00	20,00	18	90	N
7-19PCI-SS-X.XXX	70,00	180,00	50,00	10,00	180,00	20,00	20,00	18	90	N
8-19PCI-PP-X.XXX	70,00	190,00	50,00	20,00	180,00	20,00	20,00	18	90	N
8-19PCI-SS-X.XXX	70,00	190,00	50,00	20,00	180,00	20,00	20,00	18	90	N

Leader Tech Part Number	A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	G (mm)	T (mm)	Max Length (mm)	Fingers at Max Length	Adhesive
7-19PCI-PP-X.XXX	178,00	457,00	127,00	25,00	457,00	51,00	51,00	457	90	N
7-19PCI-SS-X.XXX	178,00	457,00	127,00	25,00	457,00	51,00	51,00	457	90	N
8-19PCI-PP-X.XXX	178,00	483,00	127,00	51,00	483,00	51,00	51,00	457	90	N
8-19PCI-SS-X.XXX	178,00	483,00	127,00	51,00	483,00	51,00	51,00	457	90	N

Plating Code	Plating	Specification
BD	As Heat treated	As Heat Treated with Nitrogen
AU	Gold	ASTM B488, TYPE I, CODE C, CLASS 1.25
AG	Silver, Bright	ASTM B700, TYPE 2, GRADE B, CLASS N
MAG	Silver, Matte	ASTM B700, TYPE 2, GRADE A, CLASS N
CDC	Cadmium Chromate, Clear	ASTM B766, CLASS 5, TYPE III
CDY	Cadmium Chromate, Yellow	ASTM B766, CLASS 5, TYPE II
NI	Electroless Nickel RoHS	ASTM B733, SC1, CLASS 1
SN	Tin, Bright	ASTM B545, CLASS A
ST	Tin, Matte	ASTM B545, CLASS A
SNPB	Tin Lead	ASTM B579, SC2
SU	Solderable Unplated	-
ZINC	Zinc, Clear	ASTM B633, SC1, TYPE III
ZNY	Zinc, Yellow	ASTM B633, SC1, TYPE II
