UT3 | Twist:

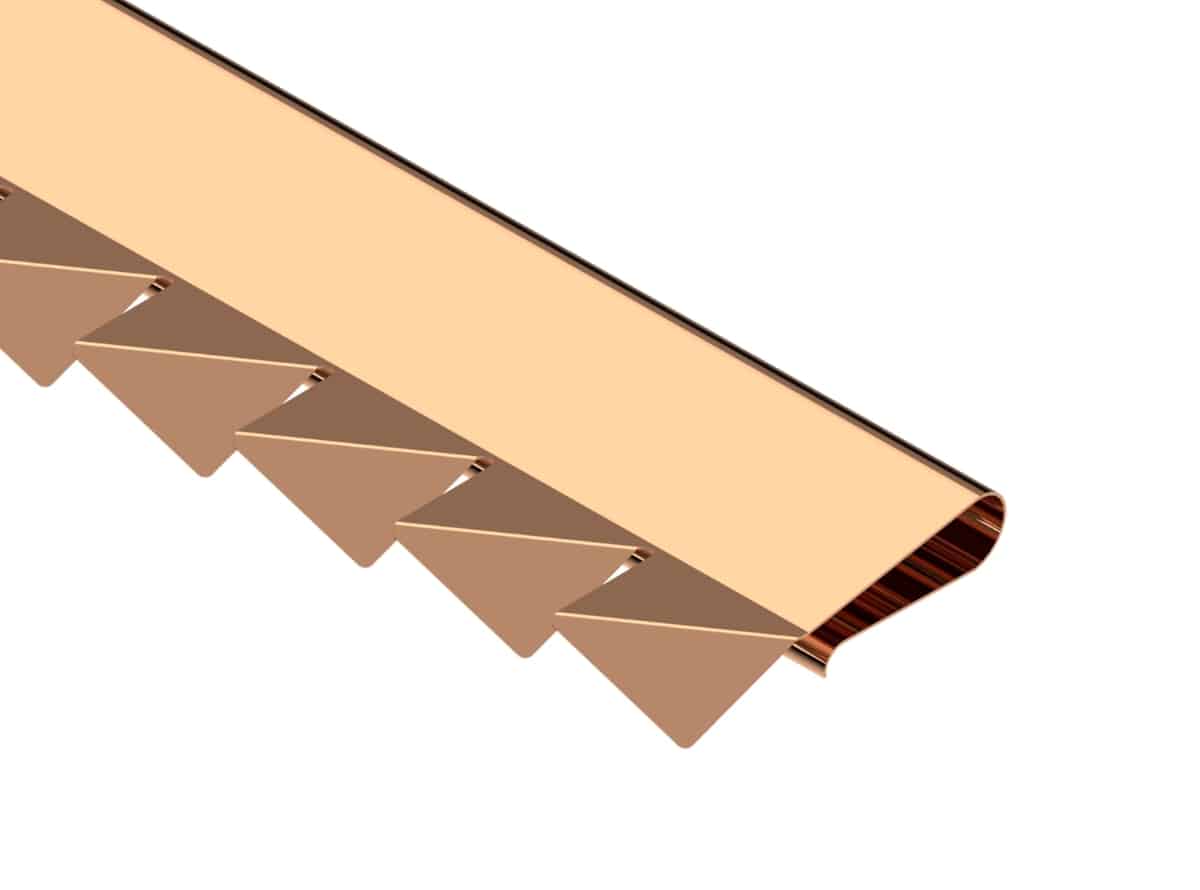

The Twist series gaskets are designed for demanding compression applications. This series can compress to material thickness and provide excellent shielding performance. Profiles include standard flat, right angle, double twist, and clip-on.

Options

PP = plating code from plating code table below

X.XXX = Desired length

Imperial
Metric

Leader Tech Part Number	A (in)	B (in)	C (in)	D (in)	E (in)	F (in)	G (in)	T (in)	Max Length (in)	Fingers at Max Length	Adhesive	Lance Type
6-34UT3-050-PP-X.XXX	0.070	0.380	0.220	N/A	0.050	0.150	0.015	0.0030	16	97	N	N/A
6-34UT3-050-DL-PP-X.XXX	0.070	0.380	0.220	1.000	0.050	0.150	0.015	0.0030	16	97	N	D
6-34UT3-070-PP-X.XXX	0.070	0.380	0.220	N/A	0.070	0.150	0.015	0.0030	16	97	N	N/A
6-34UT3-070-DL-PP-X.XXX	0.070	0.380	0.220	1.000	0.070	0.150	0.015	0.0030	16	97	N	D

Leader Tech Part Number	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	T (mm)	Max Length (mm)	Fingers at Max Length	Adhesive	Lance Type
6-34UT3-050-PP-X.XXX	1.78	9.65	5.59	N/A	1.27	3.81	0.38	0.076	406	97	N	N/A
6-34UT3-050-DL-PP-X.XXX	1.78	9.65	5.59	25.40	1.27	3.81	0.38	0.076	406	97	N	D
6-34UT3-070-PP-X.XXX	1.78	9.65	5.59	N/A	1.78	3.81	0.38	0.076	406	97	N	N/A
6-34UT3-070-DL-PP-X.XXX	1.78	9.65	5.59	25.40	1.78	3.81	0.38	0.076	406	97	N	D

Plating Code	Plating	Specification
BD	As Heat treated	As Heat Treated with Nitrogen
AU	Gold	ASTM B488, TYPE I, CODE C, CLASS 1.25
AG	Silver, Bright	ASTM B700, TYPE 2, GRADE B, CLASS N
MAG	Silver, Matte	ASTM B700, TYPE 2, GRADE A, CLASS N
CDC	Cadmium Chromate, Clear	ASTM B766, CLASS 5, TYPE III
CDY	Cadmium Chromate, Yellow	ASTM B766, CLASS 5, TYPE II
NI	Electroless Nickel RoHS	ASTM B733, SC1, CLASS 1
SN	Tin, Bright	ASTM B545, CLASS A
ST	Tin, Matte	ASTM B545, CLASS A
SNPB	Tin Lead	ASTM B579, SC2
SU	Solderable Unplated	-
ZINC	Zinc, Clear	ASTM B633, SC1, TYPE III
ZNY	Zinc, Yellow	ASTM B633, SC1, TYPE II
