Thermal Interface Material

Thermal Interface Materials

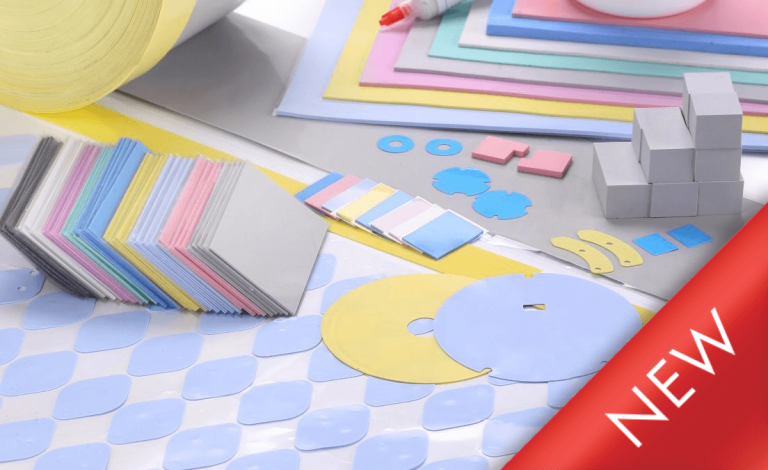

Thermal Interface Materials are a reliable heat transfer media which conform to surface gaps and irregularities to fill the air gaps and conduct heat from a heat source to another surface, or heat sink. Where space exists between two mating surfaces varies, whether from different shapes or rough surface textures, a thermal transfer concern is often present. Available in a wide variety of shapes, sizes, and thermal conductivities, thermal gap fillers are a cost-effective solution for some of the most difficult and delicate thermal situations in a broad range of applications. Please note that the that the value of our products increase with their performance. Please contact sales@leadertechinc.com for custom quotes.

Selecting the right Thermal Interface Material (TIM) is crucial for efficient heat transfer between components in electronic devices. Here are the top 20 considerations for selecting TIMs:

1. Thermal Conductivity: High thermal conductivity is essential for effective heat transfer.
2. Compatibility: Ensure the TIM is compatible with the materials it will be in contact with, such as the CPU and heat sink.
3. Thickness: The thickness of the TIM can impact heat transfer, so choose an appropriate thickness.
4. Application Method: Consider the ease of applying the TIM, whether it’s pre-applied or needs manual application.
5. Electrically Insulating: Determine if electrical insulation is necessary to prevent short circuits.
6. Thermal Resistance: Low thermal resistance is critical for efficient heat dissipation.
7. Temperature Range: Ensure the TIM can handle the operating temperature range of the device.
8. Bonding Strength: Evaluate the adhesive properties to ensure the TIM stays in place.
9. Wettability: Some TIMs spread out evenly when applied, which can improve contact and heat transfer.
10. Curing Time: If the TIM requires curing, consider the time it takes to achieve optimal performance.
11. Reusability: Determine if the TIM can be reused or if it’s a one-time use material.
12. Compressibility: TIMs should be able to conform to irregular surfaces and variations in component heights.
13. Aging and Durability: Check if the TIM’s properties change over time, affecting its longevity.
14. Thermal Stability: Ensure the TIM can withstand temperature fluctuations without degradation.
15. Toxicity: Consider the safety of the TIM, especially in applications where it may come into contact with skin or air.
16. Availability: Ensure the TIM is readily available for your specific application.
17. Cost: Budget constraints can influence TIM selection.
18. Regulatory Compliance: Make sure the TIM complies with relevant regulations and standards.
19. Particle Migration: Some TIMs contain particles that may migrate over time, potentially causing electrical issues.
20. Customization: Assess if a custom TIM formulation is necessary to meet specific project requirements.

The choice of TIM depends on the unique thermal management needs of your electronic device, so carefully evaluate these factors to select the most suitable material for your application.
