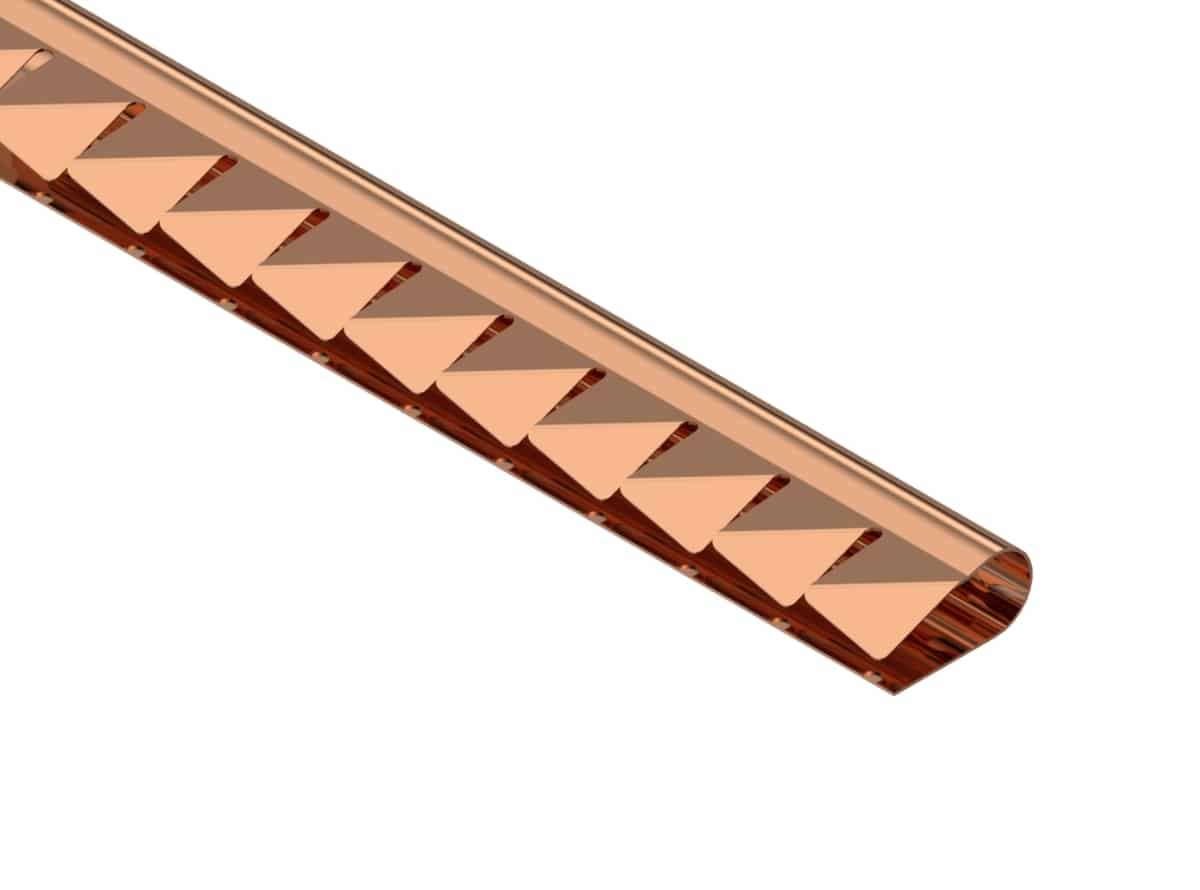

UT Twist Fingerstock Gasket
UT Twist Fingerstock Gaskets are engineered to provide reliable EMI shielding, electrical grounding, and conductive contact in demanding electronic applications. Manufactured from high-performance beryllium copper, these gaskets deliver exceptional spring properties, long service life, and consistent electrical conductivity.
The UT Twist profile features a unique twist-style finger design that creates multiple contact points across mating surfaces. This configuration helps maintain electrical continuity while minimizing electromagnetic interference and radio frequency interference in electronic enclosures, cabinets, access panels, and communication equipment.
UT Twist Fingerstock Gaskets are commonly used in aerospace, military, telecommunications, medical devices, industrial controls, and high-performance electronics where reliable EMI shielding and grounding are essential. Their durable construction allows them to withstand repeated compression cycles while maintaining excellent shielding effectiveness.
Options
PP = plating code from plating code table below
X.XXX = Desired length
| Leader Tech Part Number | A (in) | B (in) | C (in) | D (in) | F (in) | G (in) | T (in) | Max Length (in) | Adhesive | Lance Type |
|---|---|---|---|---|---|---|---|---|---|---|
| Leader Tech Part Number | A (in) | B (in) | C (in) | D (in) | F (in) | G (in) | T (in) | Max Length (in) | Adhesive | Lance Type |
| 3-23UT-040-PP-X.XXX | 0.030 | 0.150 | N/A | 0.040 | 0.080 | 0.015 | 0.0030 | 16 | N | N/A |
| 3-23UT-040-DL-PP-X.XXX | 0.030 | 0.150 | N/A | 0.040 | 0.080 | 0.015 | 0.0030 | 16 | N | N/A |
| 3-23UT-070-PP-X.XXX | 0.030 | 0.150 | N/A | 0.070 | 0.080 | 0.015 | 0.0030 | 16 | N | N/A |
| 3-23UT-070-DL-PP-X.XXX | 0.030 | 0.150 | 1.000 | 0.070 | 0.080 | 0.015 | 0.0030 | 16 | N | D |
| 6-34UT-040-PP-X.XXX | 0.070 | 0.220 | N/A | 0.040 | 0.150 | 0.015 | 0.0030 | 16 | N | N/A |
| 6-34UT-040-DL-PP-X.XXX | 0.070 | 0.220 | 1.000 | 0.040 | 0.150 | 0.015 | 0.0030 | 16 | N | N/A |
| 6-34UT-070-PP-X.XXX | 0.070 | 0.220 | N/A | 0.070 | 0.150 | 0.015 | 0.0030 | 16 | N | N/A |
| 6-34UT-070-DL-PP-X.XXX | 0.070 | 0.220 | 1.000 | 0.070 | 0.150 | 0.015 | 0.0030 | 16 | N | D |
| Leader Tech Part Number | A (mm) | B (mm) | C (mm) | D (mm) | F (mm) | G (mm) | T (mm) | Max Length (mm) | Fingers at Max Length | Adhesive | Lance Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Leader Tech Part Number | A (mm) | B (mm) | C (mm) | D (mm) | F (mm) | G (mm) | T (mm) | Max Length (mm) | Fingers at Max Length | Adhesive | Lance Type |
| 3-23UT-040-PP-X.XXX | 0.76 | 3.81 | N/A | 1.02 | 2.03 | 0.38 | 0.076 | 405.0 | 168 | N | N/A |
| 3-23UT-040-DL-PP-X.XXX | 0.76 | 3.81 | N/A | 1.02 | 2.03 | 0.38 | 0.076 | 405.0 | 168 | N | N/A |
| 3-23UT-070-PP-X.XXX | 0.76 | 3.81 | N/A | 1.78 | 2.03 | 0.38 | 0.076 | 405.0 | 168 | N | N/A |
| 3-23UT-070-DL-PP-X.XXX | 0.76 | 3.81 | 25.40 | 1.78 | 2.03 | 0.38 | 0.076 | 405.0 | 168 | N | D |
| 6-34UT-040-PP-X.XXX | 1.78 | 5.59 | N/A | 1.02 | 3.81 | 0.38 | 0.076 | 406.15 | 97 | N | N/A |
| 6-34UT-040-DL-PP-X.XXX | 1.78 | 5.59 | 25.40 | 1.02 | 3.81 | 0.38 | 0.076 | 406.15 | 97 | N | N/A |
| 6-34UT-070-PP-X.XXX | 1.78 | 5.59 | N/A | 1.78 | 3.81 | 0.38 | 0.076 | 406.15 | 97 | N | N/A |
| 6-34UT-070-DL-PP-X.XXX | 1.78 | 5.59 | 25.40 | 1.78 | 3.81 | 0.38 | 0.076 | 406.15 | 97 | N | D |
| Plating Code | Plating | Specification |
|---|---|---|
| BD | As Heat treated | As Heat Treated with Nitrogen |
| AU | Gold | ASTM B488, TYPE I, CODE C, CLASS 1.25 PRECEDED BY AN UNDERCOAT OF AT LEAST .000047" OF COPPER PER SAE-AMS2418 AND AT LEAST .000047" OF NICKEL PER SAE-AMS-QQ-N-290 |
| AG | Silver, Bright | ASTM B700, TYPE 2, GRADE B, CLASS N .0001" MIN PRECEDED BY A NICKEL UNDERCOAT AT LEAST .000039" THICK PER SAE-AMS-QQ-N-290 |
| MAG | Silver, Matte | ASTM B700, TYPE 2, GRADE A, CLASS N .0001" MIN PRECEDED BY A NICKEL UNDERCOAT AT LEAST .000039" THICK PER SAE-AMS-QQ-N-290 |
| CDC | Cadmium Chromate, Clear | ASTM B766, CLASS 5, TYPE III |
| CDY | Cadmium Chromate, Yellow | ASTM B766, CLASS 5, TYPE II |
| NI | Electroless Nickel RoHS | ASTM B733, TYPE IV, SC1, CLASS 1 |
| SN | Tin, Bright | ASTM B545, CLASS A PRECEDED BY A NICKEL UNDERCOAT AT LEAST .00005" THICK PER SAE-AMS-QQ-N-290 |
| ST | Tin, Matte | ASTM B545, CLASS A PRECEDED BY A NICKEL UNDERCOAT AT LEAST .00005" THICK PER SAE-AMS-QQ-N-290 |
| SNPB | Tin Lead | ASTM B 579, SC2 PRECEDED BY AN UNDERCOAT OF AT LEAST .000098" OF COPPER PER SAE-AMS2418 AND AT LEAST .000098" OF NICKEL PER SAE-AMS-QQ-N-290 |
| SU | Solderable Unplated | - |
| ZNC | Zinc, Clear | ASTM B633, SC1, TYPE III |
| ZNY | Zinc, Yellow | ASTM B633, SC1, TYPE II |
