Top Adhesive Rectangular Ferrite Plate Saddle Beads

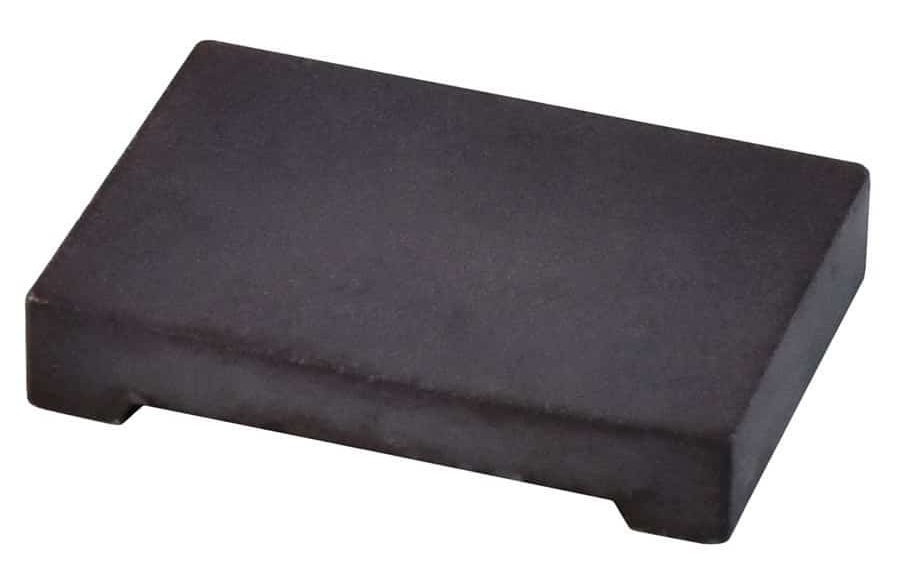

Top Adhesive Rectangular Ferrite Plate Saddle Beads help absorb radio frequency interference directly at the source before resonance and harmonic effects are transferred to neighboring components. These plate-shaped saddle beads feature a central opening that extends outward, allowing them to easily straddle cables, conductors, and printed circuit board components.
The integrated adhesive on the top surface provides secure attachment to electronic assemblies, enclosure surfaces, and other application-specific mounting locations. This configuration offers convenient installation while positioning the ferrite close to the source of unwanted interference.
How Top Adhesive Rectangular Ferrite Saddle Beads Work
Top Adhesive Rectangular Ferrite Plates use ferrite material to introduce magnetic coupling and impedance near the source of unwanted radio frequency interference. When positioned over a cable, conductor, or PCB component, the ferrite absorbs high-frequency noise before it can spread to nearby components or affect overall system performance.
The central opening extending to the outer edge allows the ferrite plate to straddle the interference source without requiring the cable or conductor to be disconnected. The top adhesive mounting surface secures the ferrite to the appropriate assembly or supporting surface without the need for additional mounting hardware.
Depending on the size, material, and installation configuration, rectangular ferrite plates typically provide approximately 30% to 40% of the impedance produced by fully enclosed ferrite styles.
Benefits of Top Adhesive Rectangular Ferrite Saddle Beads
Top Adhesive Rectangular Ferrite Plates offer several performance and installation advantages:
- Absorb RFI directly at the source.
- Help prevent resonance and harmonic effects from reaching neighboring components.
- Introduce magnetic coupling and impedance for localized noise suppression.
- Easily straddle cables, conductors, and PCB components.
- Allow installation without disconnecting the cable or conductor.
- Provide convenient top adhesive mounting.
- Eliminate the need for additional mounting hardware.
- Accommodate space-constrained electronic designs.
- Help improve system performance and signal integrity.
- Provide secure placement within electronic assemblies.
The rectangular plate configuration and top adhesive mounting surface make these ferrites particularly useful for targeted suppression where component placement, available space, or assembly requirements limit other ferrite options.
Applications
Top Adhesive Rectangular Ferrite Plates are commonly used in:
- Printed circuit board assemblies.
- Cables and conductors.
- Telecommunications equipment.
- Industrial control systems.
- Medical electronic devices.
- Power supplies and converters.
- Consumer electronics.
- Networking and data communication equipment.
- Embedded electronic systems.
- Aerospace and defense electronics.
Because these applications frequently contain closely positioned components and potential sources of high-frequency noise, placing the ferrite directly over the interference source can help reduce the transfer of unwanted RFI throughout the system.
Why Choose Leader Tech?
Leader Tech provides ferrite suppression solutions designed to address unwanted electromagnetic and radio frequency interference in modern electronic systems. Our Top Adhesive Rectangular Ferrite Plates combine localized RFI absorption with a practical shape and integrated mounting surface that can be positioned directly over cables, conductors, and PCB components.
Leader Tech’s applications engineers can help identify the appropriate ferrite material, plate size, impedance performance, and mounting configuration for specific noise suppression requirements.
