Alternate Finger Slot Mount Fingerstock Gasket

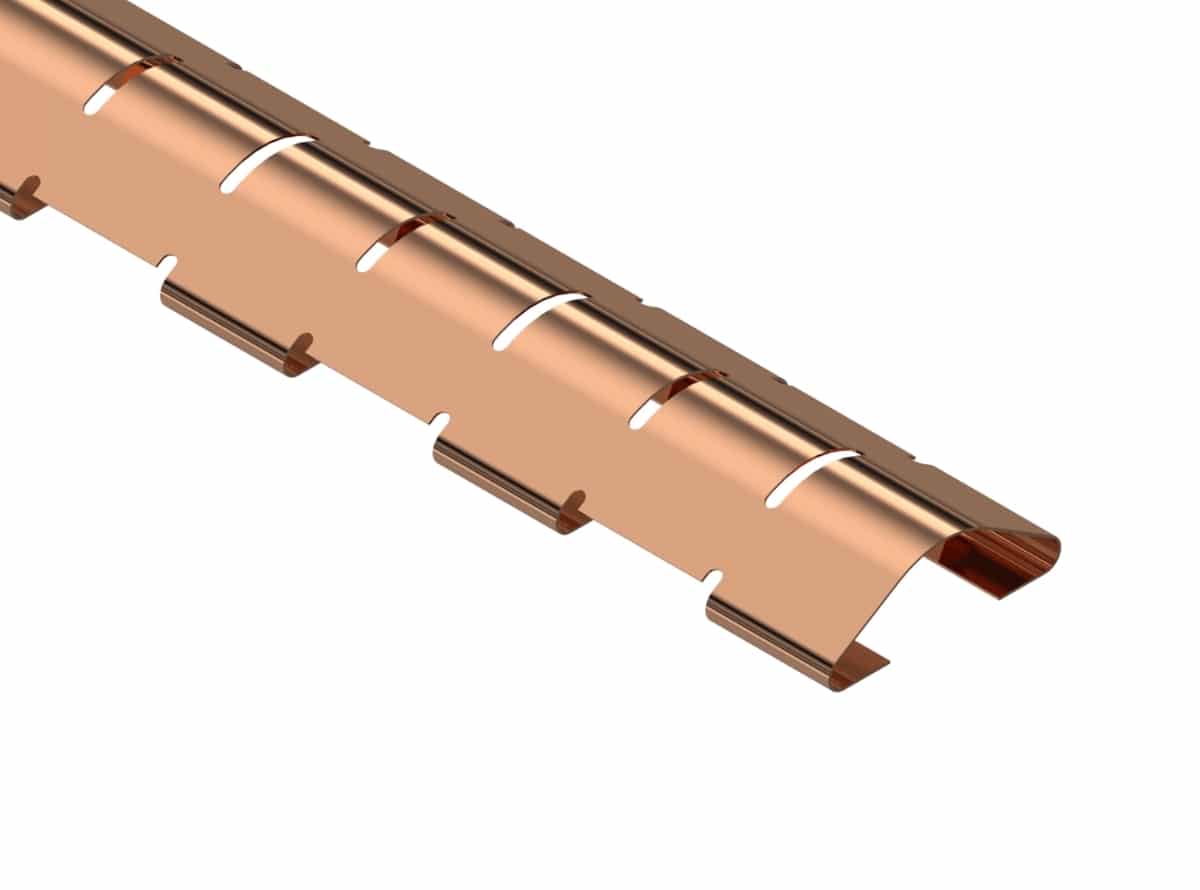

Alternate Finger Slot Mount Fingerstock Gaskets provide effective EMI/RFI shielding, grounding, and electrical contact for electronic enclosures, cabinets, and chassis assemblies. Designed to clip into slots or slide onto mounting tracks, these beryllium copper fingerstock gaskets offer secure installation and long-term performance.
The alternating finger design delivers reliable spring contact while maintaining consistent electrical continuity across enclosure seams. In shorter lengths, these gaskets are commonly used as ESD contacts, while longer lengths provide high-performance EMI shielding for access panels and removable covers.
Manufactured from high-strength beryllium copper, Alternate Finger Slot Mount gaskets offer excellent conductivity, corrosion resistance, and durability in demanding commercial, industrial, aerospace, and telecommunications applications.
Leader Tech offers a variety of sizes, plating options, and custom configurations to meet specific EMI shielding and grounding requirements.
Options
PP = plating code from plating code table below
X.XXX = Desired length
| Leader Tech Part Number | A (in) | B (in) | C (in) | D (in) | F (in) | G (in) | N (in) | O (in) | P (in) | T (in) | Max Length (in) | Fingers at Max Length | Adhesive |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Leader Tech Part Number | A (in) | B (in) | C (in) | D (in) | F (in) | G (in) | N (in) | O (in) | P (in) | T (in) | Max Length (in) | Fingers at Max Length | Adhesive |
| 11-32AF-PP-X.XXX | 0.110 | 0.320 | 0.080 | 0.020 | 0.169 | 0.018 | 0.090 | 0.260 | 0.040 | 0.0040 | 16 | 85 | N |
| 11-S-32AF-PP-X.XXX | 0.110 | 0.320 | 0.080 | 0.020 | 0.169 | 0.018 | 0.090 | 0.260 | 0.040 | 0.0020 | 16 | 85 | N |
| 11-32AF3-PP-X.XXX | 0.110 | 0.320 | 0.080 | 0.020 | 0.169 | 0.018 | 0.090 | 0.260 | 0.040 | 0.0040 | 16 | 85 | N |
| 11-S-32AF3-PP-X.XXX | 0.110 | 0.320 | 0.080 | 0.020 | 0.169 | 0.018 | 0.090 | 0.260 | 0.040 | 0.0020 | 16 | 85 | N |
| 11-32AF4-PP-X.XXX | 0.110 | 0.320 | 0.080 | 0.020 | 0.169 | 0.018 | 0.090 | 0.260 | 0.040 | 0.0040 | 16 | 85 | N |
| 11-S-32AF4-PP-X.XXX | 0.110 | 0.320 | 0.080 | 0.020 | 0.169 | 0.018 | 0.090 | 0.260 | 0.040 | 0.0020 | 16 | 85 | N |
| 22-60AF-PP-X.XXX | 0.220 | 0.600 | 0.140 | 0.040 | 0.250 | 0.032 | 0.140 | 0.520 | 0.070 | 0.0050 | 16 | 57 | N |
| 22-S-60AF-PP-X.XXX | 0.220 | 0.600 | 0.140 | 0.040 | 0.250 | 0.032 | 0.140 | 0.520 | 0.070 | 0.0030 | 16 | 57 | N |
| 22-60AF3-PP-X.XXX | 0.220 | 0.600 | 0.140 | 0.040 | 0.250 | 0.032 | 0.140 | 0.520 | 0.070 | 0.0050 | 16 | 58 | N |
| 22-S-60AF3-PP-X.XXX | 0.220 | 0.600 | 0.140 | 0.040 | 0.250 | 0.032 | 0.140 | 0.520 | 0.070 | 0.0030 | 16 | 58 | N |
| Leader Tech Part Number | A (mm) | B (mm) | C (mm) | D (mm) | F (mm) | G (mm) | N (mm) | O (mm) | P (mm) | T (mm) | Max Length (mm) | Fingers at Max Length | Adhesive |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Leader Tech Part Number | A (mm) | B (mm) | C (mm) | D (mm) | F (mm) | G (mm) | N (mm) | O (mm) | P (mm) | T (mm) | Max Length (mm) | Fingers at Max Length | Adhesive |
| 11-32AF-PP-X.XXX | 2.79 | 8.13 | 2.03 | 0.51 | 4.29 | 0.46 | 2.29 | 6.60 | 1.02 | 0.10 | 403.00 | 85.00 | N |
| 11-S-32AF-PP-X.XXX | 2.79 | 8.13 | 2.03 | 0.51 | 4.29 | 0.46 | 2.29 | 6.60 | 1.02 | 0.05 | 403.00 | 85.00 | N |
| 11-32AF3-PP-X.XXX | 2.79 | 8.13 | 2.03 | 0.51 | 4.29 | 0.46 | 2.29 | 6.60 | 1.02 | 0.10 | 403.00 | 85.00 | N |
| 11-S-32AF3-PP-X.XXX | 2.79 | 8.13 | 2.03 | 0.51 | 4.29 | 0.46 | 2.29 | 6.60 | 1.02 | 0.05 | 403.00 | 85.00 | N |
| 11-32AF4-PP-X.XXX | 2.79 | 8.13 | 2.03 | 0.51 | 4.29 | 0.46 | 2.29 | 6.60 | 1.02 | 0.10 | 403.00 | 85.00 | N |
| 11-S-32AF4-PP-X.XXX | 2.79 | 8.13 | 2.03 | 0.51 | 4.29 | 0.46 | 2.29 | 6.60 | 1.02 | 0.05 | 403.00 | 85.00 | N |
| 22-60AF-PP-X.XXX | 5.59 | 15.24 | 3.56 | 1.02 | 6.35 | 0.81 | 3.56 | 13.21 | 1.78 | 0.13 | 407.00 | 57.00 | N |
| 22-S-60AF-PP-X.XXX | 5.59 | 15.24 | 3.56 | 1.02 | 6.35 | 0.81 | 3.56 | 13.21 | 1.78 | 0.08 | 407.00 | 57.00 | N |
| 22-60AF3-PP-X.XXX | 5.59 | 15.24 | 3.56 | 1.02 | 6.35 | 0.81 | 3.56 | 13.21 | 1.78 | 0.13 | 415.00 | 58.00 | N |
| 22-S-60AF3-PP-X.XXX | 5.59 | 15.24 | 3.56 | 1.02 | 6.35 | 0.81 | 3.56 | 13.21 | 1.78 | 0.08 | 415.00 | 58.00 | N |
| Plating Code | Plating | Specification |
|---|---|---|
| BD | As Heat treated | As Heat Treated with Nitrogen |
| AU | Gold | ASTM B488, TYPE I, CODE C, CLASS 1.25 PRECEDED BY AN UNDERCOAT OF AT LEAST .000047" OF COPPER PER SAE-AMS2418 AND AT LEAST .000047" OF NICKEL PER SAE-AMS-QQ-N-290 |
| AG | Silver, Bright | ASTM B700, TYPE 2, GRADE B, CLASS N .0001" MIN PRECEDED BY A NICKEL UNDERCOAT AT LEAST .000039" THICK PER SAE-AMS-QQ-N-290 |
| MAG | Silver, Matte | ASTM B700, TYPE 2, GRADE A, CLASS N .0001" MIN PRECEDED BY A NICKEL UNDERCOAT AT LEAST .000039" THICK PER SAE-AMS-QQ-N-290 |
| CDC | Cadmium Chromate, Clear | ASTM B766, CLASS 5, TYPE III |
| CDY | Cadmium Chromate, Yellow | ASTM B766, CLASS 5, TYPE II |
| NI | Electroless Nickel RoHS | ASTM B733, TYPE IV, SC1, CLASS 1 |
| SN | Tin, Bright | ASTM B545, CLASS A PRECEDED BY A NICKEL UNDERCOAT AT LEAST .00005" THICK PER SAE-AMS-QQ-N-290 |
| ST | Tin, Matte | ASTM B545, CLASS A PRECEDED BY A NICKEL UNDERCOAT AT LEAST .00005" THICK PER SAE-AMS-QQ-N-290 |
| SNPB | Tin Lead | ASTM B 579, SC2 PRECEDED BY AN UNDERCOAT OF AT LEAST .000098" OF COPPER PER SAE-AMS2418 AND AT LEAST .000098" OF NICKEL PER SAE-AMS-QQ-N-290 |
| SU | Solderable Unplated | - |
| ZNC | Zinc, Clear | ASTM B633, SC1, TYPE III |
| ZNY | Zinc, Yellow | ASTM B633, SC1, TYPE II |
