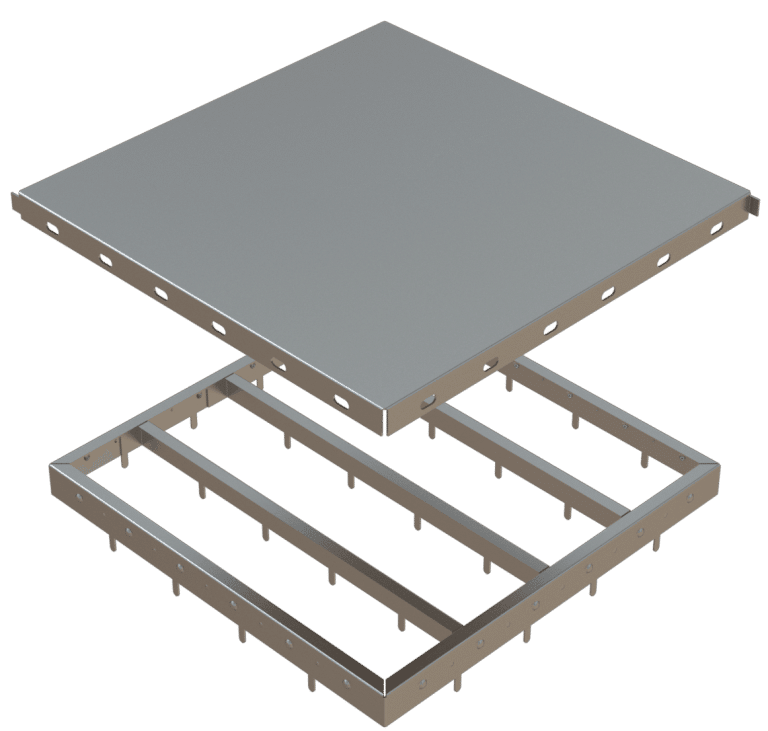

Slot-Lok Pro Welded PCB Shielding
Leader Tech’s Slot-Lok Pro Welded Multi Cavity shields support advanced PCB applications. They provide multiple isolated shielding compartments for better high-frequency EMI/RFI protection.
In addition, these board-level shielding solutions use welded corner construction. They also support flexible multi-cavity designs. As a result, they help contain electromagnetic interference and reduce signal leakage.
The welded multi-cavity design provides strong structural support. At the same time, it allows engineers to isolate sensitive components within compact PCB layouts. Therefore, these shields work well for applications that need reliable EMI protection and better signal control.
Furthermore, the shields use RoHS-compliant materials. These materials provide reliable shielding performance and corrosion resistance. They also offer strong solderability for demanding electronic applications.
Please feel free to contact sales@leadertechinc.com for additional technical support and product information.
These PCB shielding solutions work well in telecommunications, aerospace electronics, medical devices, automotive systems, and RF communication equipment. Therefore, they suit compact applications that need isolated EMI protection and flexible board-level shielding.
Features & Benefits:
- Welded partitions
- Mouse holes, notches, ventilation, and standoffs
- Welded fence assembly
- Custom packaging with tape and reel or vacuum trays
- Short lead times
- Flexible designs with engineering support
- Square, rectangular, and custom shapes
- Through-hole or surface-mount options
- Locking and grounding dimples
- Low-cost production tooling for high quantities
- Optional pick spot for automated pick-and-place systems
- Removable cover for component access
- Tape and reel or tray packaging options
- Clinch nuts and threaded fasteners
- Thermal, absorber, and insulator options
- Pin pitch matching for existing legacy shields
- Multiple-level shields
- RoHS-compliant materials
Slot-Lok Pro Welded Multi Cavity Specifications
- Material Thickness: .010” (,25), .012” (,31) or .015” (,38)
- Std Material: Alloy 770 (UNS C77000)
- Cover Retention: 1.5 – 2.5 lb./linear inch
- Shielding Effectiveness: up to 60 dB
Options
- Pre-Tin plated steel to the material options
Edge Options
Corner Configuration
Ventilation Holes
Pick Spot
Dimple & Slots
Pull Tabs
Why Choose Slot-Lok Pro PCB Shields?
Slot-Lok Pro PCB shields provide a practical way to protect sensitive components from unwanted EMI and RFI. In addition, the multi-cavity design lets engineers separate components within the same PCB area.
For example, engineers can use individual cavities to shield components that may interfere with nearby circuits. This approach can also help reduce signal leakage between sensitive areas of a board.
Furthermore, the welded construction provides strong mechanical support. At the same time, the flexible design allows different cavity shapes and sizes to meet specific PCB requirements.
Because every PCB layout has different needs, Leader Tech supports custom shield designs. Therefore, engineers can select the shape, size, mounting style, and cavity layout that best fit their application.
In addition, Slot-Lok Pro shields support both through-hole and surface-mount applications. They can also include features such as grounding dimples, locking dimples, removable covers, and pick spots.
As a result, these shields offer flexible options for PCB designs that require reliable EMI protection, component isolation, and efficient assembly.
