Beryllium Copper Fingerstock

FSV | Folded

Home » Enclosure Shielding » Beryllium Copper Fingerstock » FSV | Folded

FSV | Folded:

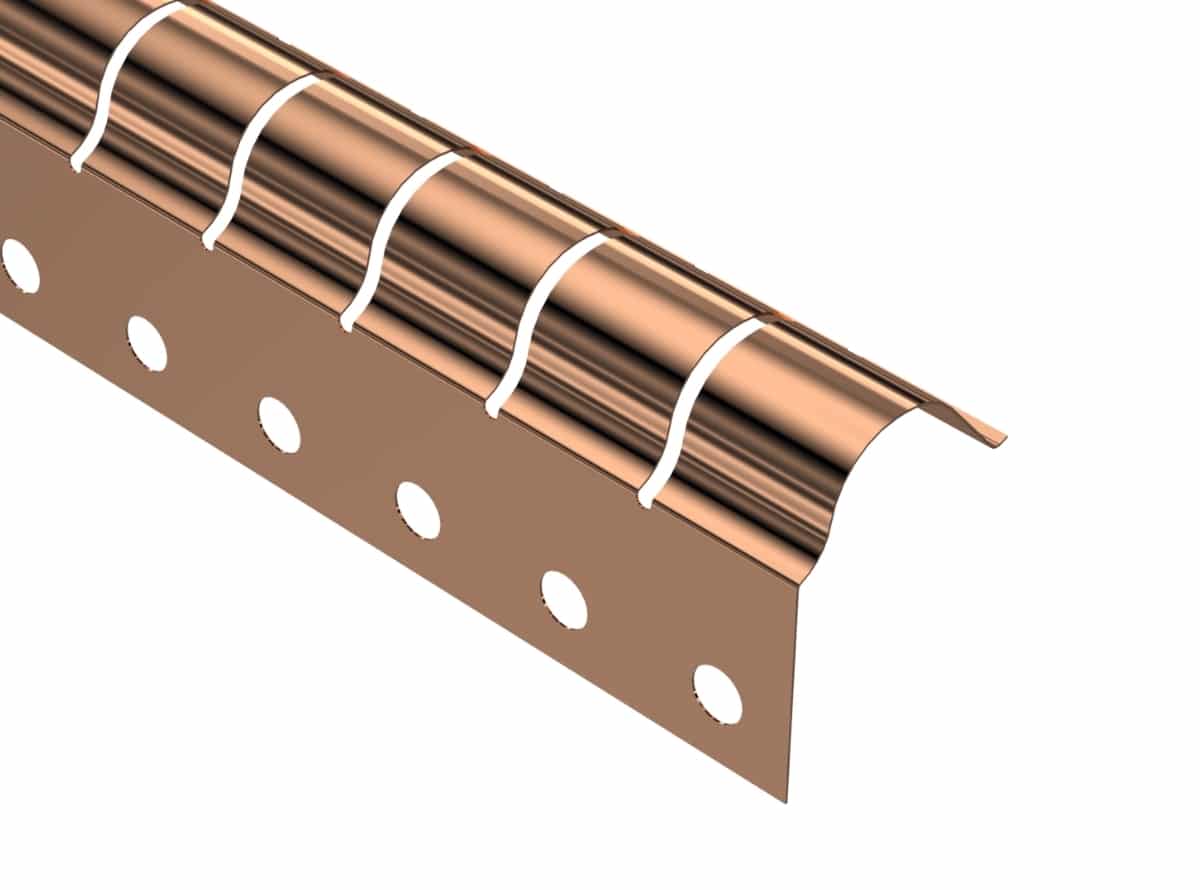

The FSV is an FS gasket that has the base bent at a right angle to the curve of the spring form,
with all the other features of the FS gasket maintained. Tape optional – please consult factory

Options

PP = plating code from plating code table below

X.XXX = Desired length

Imperial
Metric

Leader Tech Part Number	A (in)	B (in)	C (in)	D (in)	E (in)	F (in)	G (in)	T (in)	Max Length (in)	Fingers at Max Length	Adhesive
11-28FSV23-PP-X.XXX	0.110	0.280	0.240	0.060	0.188	0.170	0.018	0.0030	24	128	N
11-S-28FSV23-PP-X.XXX	0.110	0.280	0.240	0.060	0.188	0.170	0.018	0.0020	24	128	N
14-37FSV30-PP-X.XXX	0.140	0.370	0.320	0.060	0.250	0.228	0.022	0.0030	24	96	N
14-S-37FSV30-PP-X.XXX	0.140	0.370	0.320	0.060	0.250	0.228	0.022	0.0020	24	96	N
23-60FSV50-PP-X.XXX	0.230	0.600	0.500	0.080	0.375	0.343	0.032	0.0040	24	64	N
25-78FSV50-PP-X.XXX	0.250	0.780	0.500	0.140	0.375	0.335	0.040	0.0050	24	64	N
25-S-78FSV50-PP-X.XXX	0.250	0.780	0.500	0.140	0.375	0.335	0.040	0.0030	24	64	N
41-113FSV-PP-X.XXX	0.410	1.130	0.800	0.140	0.500	0.460	0.040	0.0070	24	48	N

Leader Tech Part Number	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	T (mm)	Max Length (mm)	Fingers at Max Length	Adhesive
11-28FSV23-PP-X.XXX	2.79	7.11	6.10	1.52	4.78	4.32	0.46	0.076	611	128	N
11-S-28FSV23-PP-X.XXX	2.79	7.11	6.10	1.52	4.78	4.32	0.46	0.051	611	128	N
14-37FSV30-PP-X.XXX	3.56	9.40	8.13	1.52	6.35	5.79	0.56	0.076	609	96	N
14-S-37FSV30-PP-X.XXX	3.56	9.40	8.13	1.52	6.35	5.79	0.56	0.051	609	96	N
23-60FSV50-PP-X.XXX	5.84	15.24	12.70	2.03	9.53	8.71	0.81	0.102	609	64	N
25-78FSV50-PP-X.XXX	6.35	19.81	12.70	3.56	9.53	8.51	0.127	0.127	609	64	N
25-S-78FSV50-PP-X.XXX	6.35	19.81	12.70	3.56	9.53	8.51	0.076	0.076	609	64	N
41-113FSV-PP-X.XXX	10.41	28.70	20.32	3.56	12.70	11.68	0.178	0.178	609	48	N

Plating Code	Plating	Specification
BD	As Heat treated	As Heat Treated with Nitrogen
AU	Gold	ASTM B488, TYPE I, CODE C, CLASS 1.25
AG	Silver, Bright	ASTM B700, TYPE 2, GRADE B, CLASS N
MAG	Silver, Matte	ASTM B700, TYPE 2, GRADE A, CLASS N
CDC	Cadmium Chromate, Clear	ASTM B766, CLASS 5, TYPE III
CDY	Cadmium Chromate, Yellow	ASTM B766, CLASS 5, TYPE II
NI	Electroless Nickel RoHS	ASTM B733, SC1, CLASS 1
SN	Tin, Bright	ASTM B545, CLASS A
ST	Tin, Matte	ASTM B545, CLASS A
SNPB	Tin Lead	ASTM B579, SC2
SU	Solderable Unplated	-
ZINC	Zinc, Clear	ASTM B633, SC1, TYPE III
ZNY	Zinc, Yellow	ASTM B633, SC1, TYPE II
