Beryllium Copper Fingerstock

Slot Mount

Home » Enclosure Shielding » Beryllium Copper Fingerstock » RH | Slot Mount

Slot Mount:

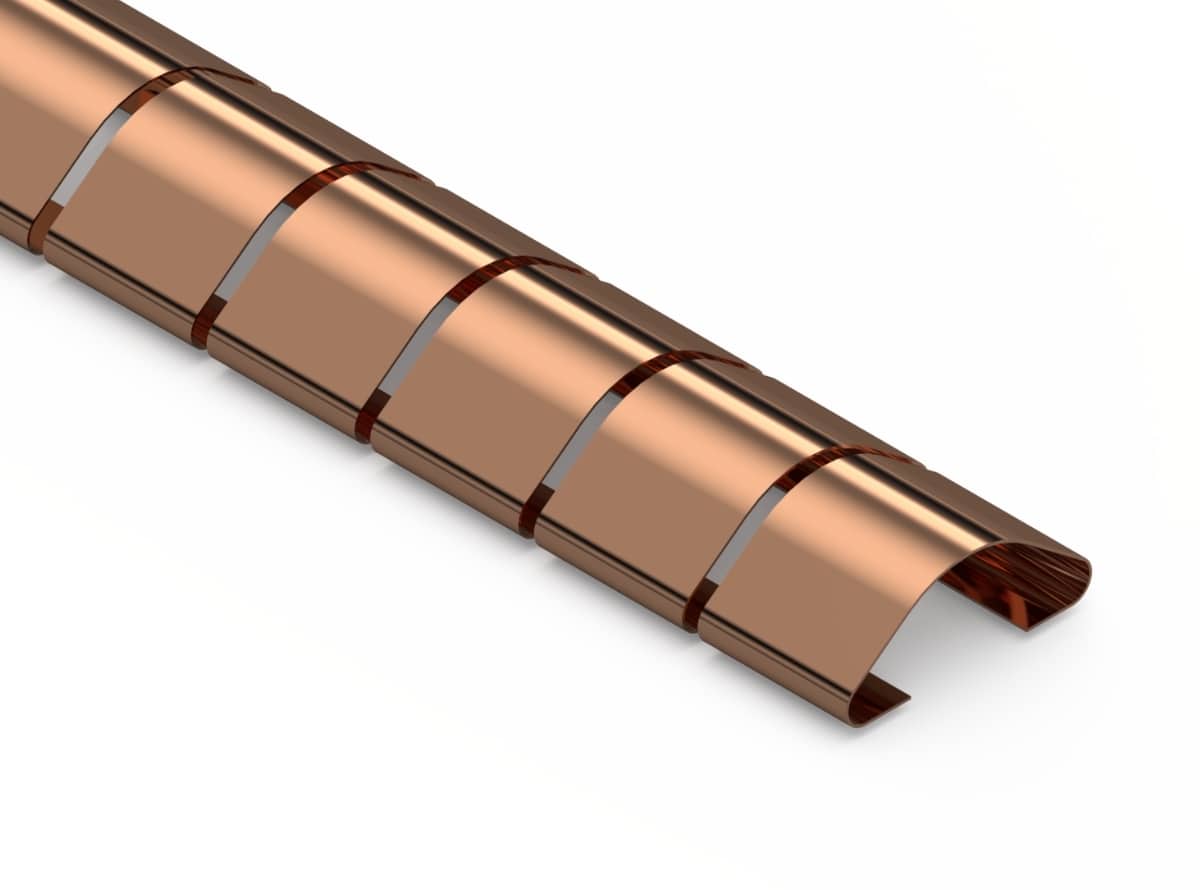

Slot mount gaskets are a standard in the electronic enclosure industry. These gaskets are used in shorter lengths as ESD contacts and longer lengths as EMI gaskets, which clip into slots or slide onto mounted tracks.

Options

PP = plating code from plating code table below

X.XXX = Desired length

Imperial
Metric

Leader Tech Part Number	A (in)	B (in)	C (in)	D (in)	F (in)	G (in)	N (in)	O (in)	P (in)	T (in)	Max Length (in)	Fingers at Max Length	Adhesive
11-28RH-PP-X.XXX	0.110	0.280	0.080	0.020	0.169	0.018	0.090	0.220	0.040	0.0030	16	86	N
11-S-28RH-PP-X.XXX	0.110	0.280	0.080	0.020	0.169	0.018	0.090	0.220	0.040	0.0020	16	86	N
11-32RH-PP-X.XXX	0.110	0.320	0.090	0.020	0.169	0.018	0.090	0.260	0.040	0.0030	16	86	N
11-S-32RH-PP-X.XXX	0.110	0.320	0.090	0.020	0.169	0.018	0.090	0.260	0.040	0.0020	16	86	N
13-30RH-PP-X.XXX	0.130	0.300	0.090	0.030	0.169	0.018	0.090	0.250	0.050	0.0040	16	86	N
13-37RH-PP-X.XXX	0.130	0.370	0.090	0.020	0.225	0.025	0.090	0.310	0.040	0.0030	16	64	N
13-S-37RH-PP-X.XXX	0.130	0.370	0.090	0.020	0.225	0.025	0.090	0.310	0.040	0.0020	16	64	N
22-60RH-PP-X.XXX	0.220	0.600	0.140	0.040	0.250	0.032	0.140	0.520	0.060	0.0050	16	57	N
22-S-60RH-PP-X.XXX	0.220	0.600	0.140	0.040	0.250	0.032	0.140	0.520	0.060	0.0030	16	57	N

Leader Tech Part Number	A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	G (mm)	N (mm)	O (mm)	P (mm)	T (mm)	Max Length (mm)	Fingers at Max Length	Adhesive
11-28RH-PP-X.XXX	2.79	7.11	2.03	0.51	4.29	0.46	2.29	5.59	1.02	0.076	408	86	N
11-S-28RH-PP-X.XXX	2.79	7.11	2.03	0.51	4.29	0.46	2.29	5.59	1.02	0.051	408	86	N
11-32RH-PP-X.XXX	2.79	8.13	2.29	0.51	4.29	0.46	2.29	6.60	1.02	0.076	408	86	N
11-S-32RH-PP-X.XXX	2.79	8.13	2.29	0.51	4.29	0.46	2.29	6.60	1.02	0.051	408	86	N
13-30RH-PP-X.XXX	3.30	7.62	2.29	0.76	4.29	0.46	2.29	6.35	1.27	0.102	408	86	N
13-37RH-PP-X.XXX	3.30	9.40	2.29	0.51	5.72	0.64	2.29	7.87	1.02	0.076	406	64	N
13-S-37RH-PP-X.XXX	3.30	9.40	2.29	0.51	5.72	0.64	2.29	7.87	1.02	0.051	406	64	N
22-60RH-PP-X.XXX	5.59	15.24	3.56	1.02	6.35	0.81	3.56	13.21	1.52	0.127	407	57	N
22-S-60RH-PP-X.XXX	5.59	15.24	3.56	1.02	6.35	0.81	3.56	13.21	1.52	0.076	407	57	N

Plating Code	Plating	Specification
BD	As Heat treated	As Heat Treated with Nitrogen
AU	Gold	ASTM B488, TYPE I, CODE C, CLASS 1.25
AG	Silver, Bright	ASTM B700, TYPE 2, GRADE B, CLASS N
MAG	Silver, Matte	ASTM B700, TYPE 2, GRADE A, CLASS N
CDC	Cadmium Chromate, Clear	ASTM B766, CLASS 5, TYPE III
CDY	Cadmium Chromate, Yellow	ASTM B766, CLASS 5, TYPE II
NI	Electroless Nickel RoHS	ASTM B733, SC1, CLASS 1
SN	Tin, Bright	ASTM B545, CLASS A
ST	Tin, Matte	ASTM B545, CLASS A
SNPB	Tin Lead	ASTM B579, SC2
SU	Solderable Unplated	-
ZINC	Zinc, Clear	ASTM B633, SC1, TYPE III
ZNY	Zinc, Yellow	ASTM B633, SC1, TYPE II
