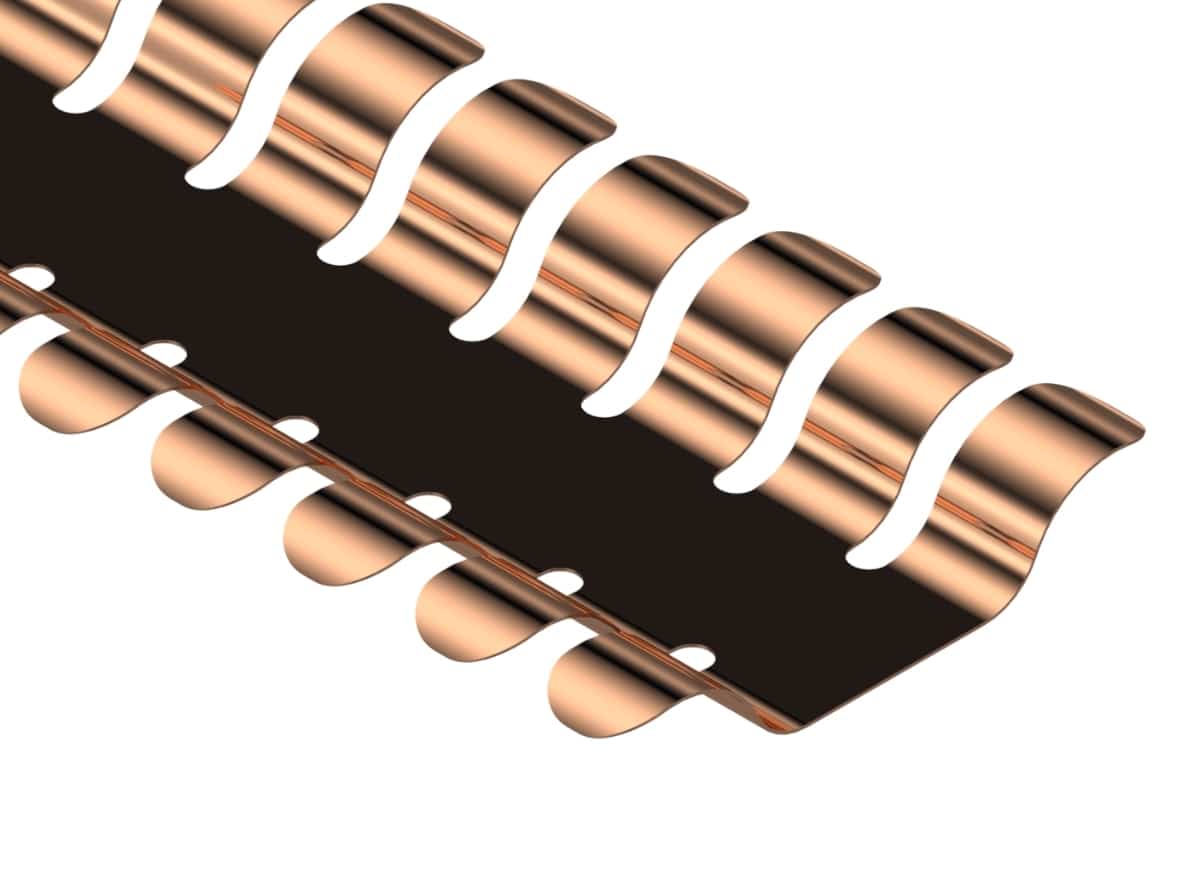

R2 | Contact:

The low profile series gaskets incorporate design features that allow for some of the lowest
compression forces in the industry, while achieving high performance shielding effectiveness. These gaskets are ideally suited for small aperture applications.

Options

PP = plating code from plating code table below

X.XXX = Desired length

Imperial
Metric

Leader Tech Part Number	A (in)	B (in)	C (in)	D (in)	F (in)	G (in)	T (in)	Max Length (in)	Fingers at Max Length	Adhesive
11-78R2-PP-X.XXX	0.130	0.780	0.200	N/A	0.140	0.047	0.0045	24	128	N

Leader Tech Part Number	A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	G (mm)	T (mm)	Max Length (mm)	Fingers at Max Length	Adhesive
11-78R2-PP-X.XXX	3.30	19.81	5.08	N/A	3.56	1.19	0.114	607	128	N

Plating Code	Plating	Specification
BD	As Heat treated	As Heat Treated with Nitrogen
AG	Silver, Bright	ASTM B700, TYPE 2, GRADE B, CLASS N
MAG	Silver, Matte	ASTM B700, TYPE 2, GRADE A, CLASS N
CDC	Cadmium Chromate, Clear	ASTM B766, CLASS 5, TYPE III
CDY	Cadmium Chromate, Yellow	ASTM B766, CLASS 5, TYPE II
NI	Nickel	ASTM B733, SC1, CLASS 1
SN	Tin, Bright	ASTM B545, CLASS A
ST	Tin, Matte	ASTM B545, CLASS A
SNPB	Tin Lead	ASTM B579, SC2
SU	Solderable Unplated	-
ZINC	Zinc, Clear	ASTM B633, SC1, TYPE III
ZNY	Zinc, Yellow	ASTM B633, SC1, TYPE II
