What are Two Piece Surface Mount Shields?

Two Piece Surface Mount Shields are PCB EMI/RFI shielding solutions consisting of a frame and removable cover. They provide electromagnetic shielding while allowing easy inspection, tuning, and repair access.

What are the advantages of two piece surface mount shields?

Two piece surface mount shields allow easy access to PCB components for inspection, tuning, testing, and repairs without removing the entire shielding structure from the board.

Are Two Piece Surface Mount Shields compatible with automated PCB assembly?

Yes. Two Piece Surface Mount Shields are designed for automated pick-and-place assembly processes and support efficient high-volume PCB manufacturing.

What materials are available for two piece EMI shields?

Two Piece Surface Mount Shields are available in materials such as pre-tin plated steel and Alloy 770, depending on the shielding and application requirements.

When should I use a two piece PCB shield instead of a one piece shield?

Two piece PCB shields are ideal when applications require repeated inspection, tuning, troubleshooting, or repair access after assembly.

What industries use two piece surface mount EMI shields?

Two piece surface mount EMI shields are commonly used in telecommunications, aerospace, medical devices, automotive electronics, industrial equipment, and consumer electronics.

LeaderTech

Two Piece Surface Mount Shields

Home » Board Level Shielding » Surface Mount Shields (SMS) » Two Piece Surface Mount Shields

Board Level Two Piece EMI Shields

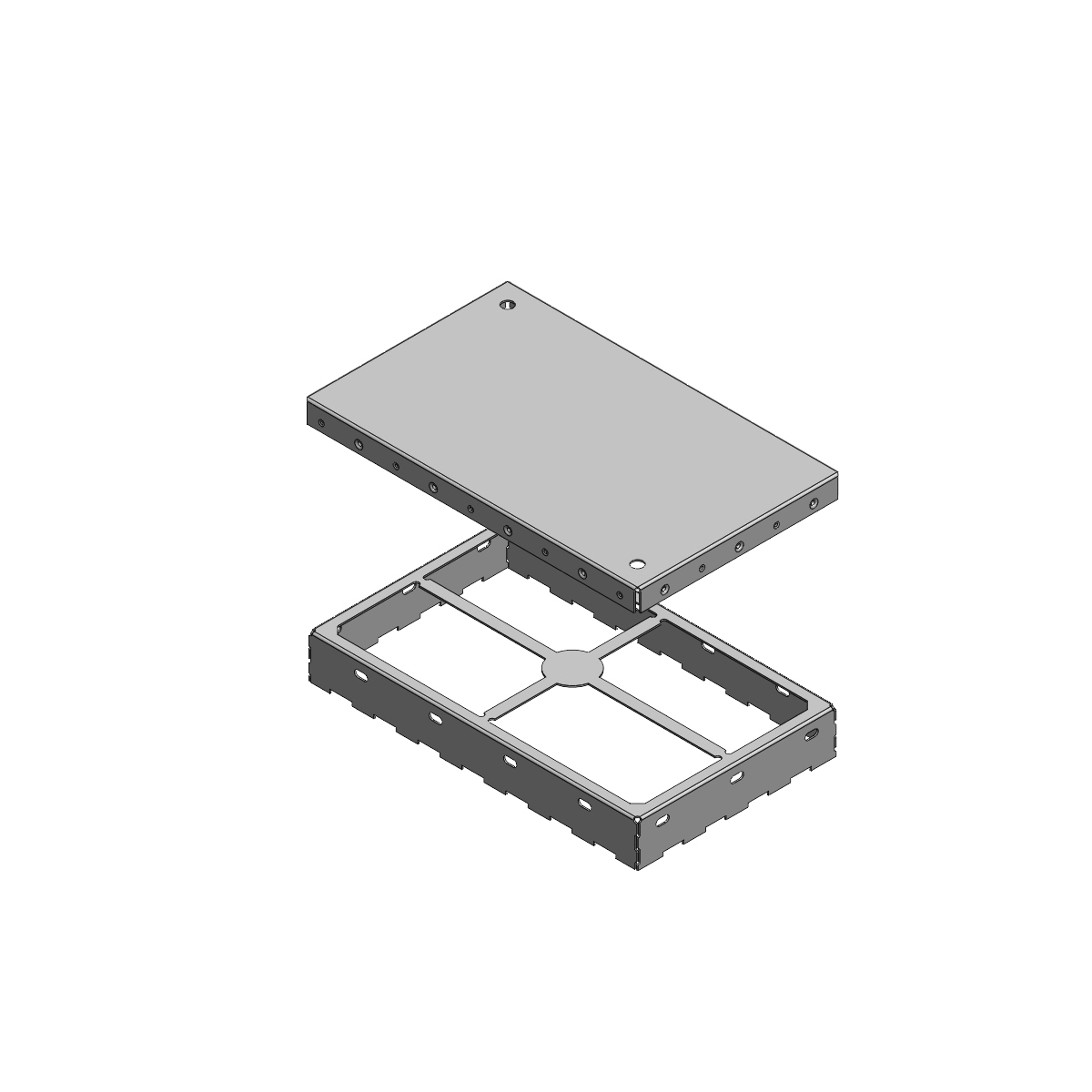

Two-Piece SMS Surface Mount PCB Shield Leader Tech SMS – Surface Mount Shields offer a highly reliable, cost effective, off-the-shelf solution for most surface mount shielding applications. Our SMS shields are supplied in tape & reel packaging and are suited for any volume application including automated pick and place assembly operations. Leader Tech has more sizes and heights of standard off-the-shelf Board Level Shielding than any other supplier. Our two piece SMS style PCB Shield can be specified for applications that require inspection, tuning or repair of shielded elements. If tuning or inspection is not required try our cost saving one piece SMS shields.

SMS Two Piece Features and Benefits

Low piece part price
In stock
No tooling or NRE costs
Largest standard selection in the industry
.008” Tin plated steel

.008” Alloy 770
Surface Mount
Vented and Unvented options
Automatic placement
Tape and Reel packaging

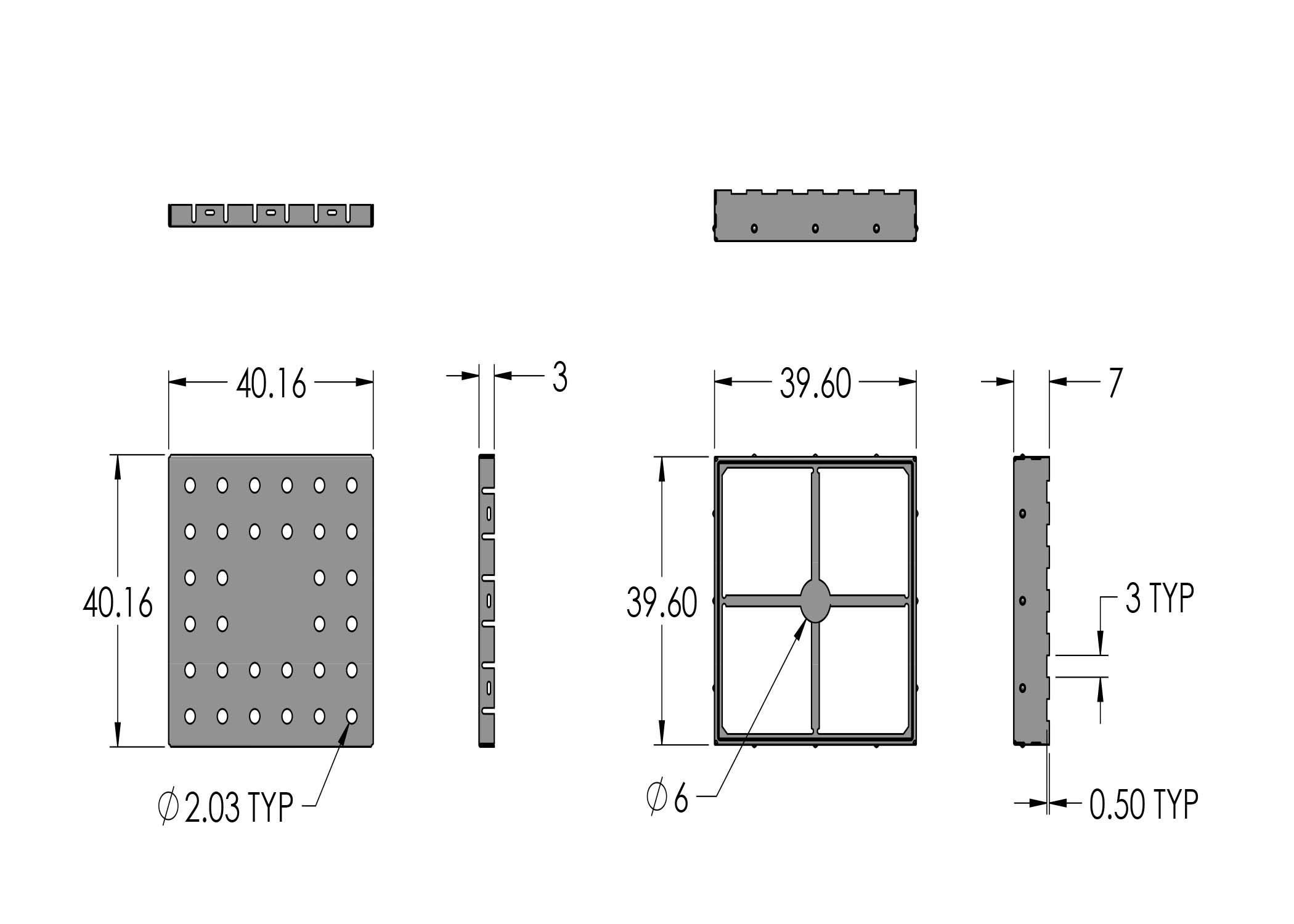

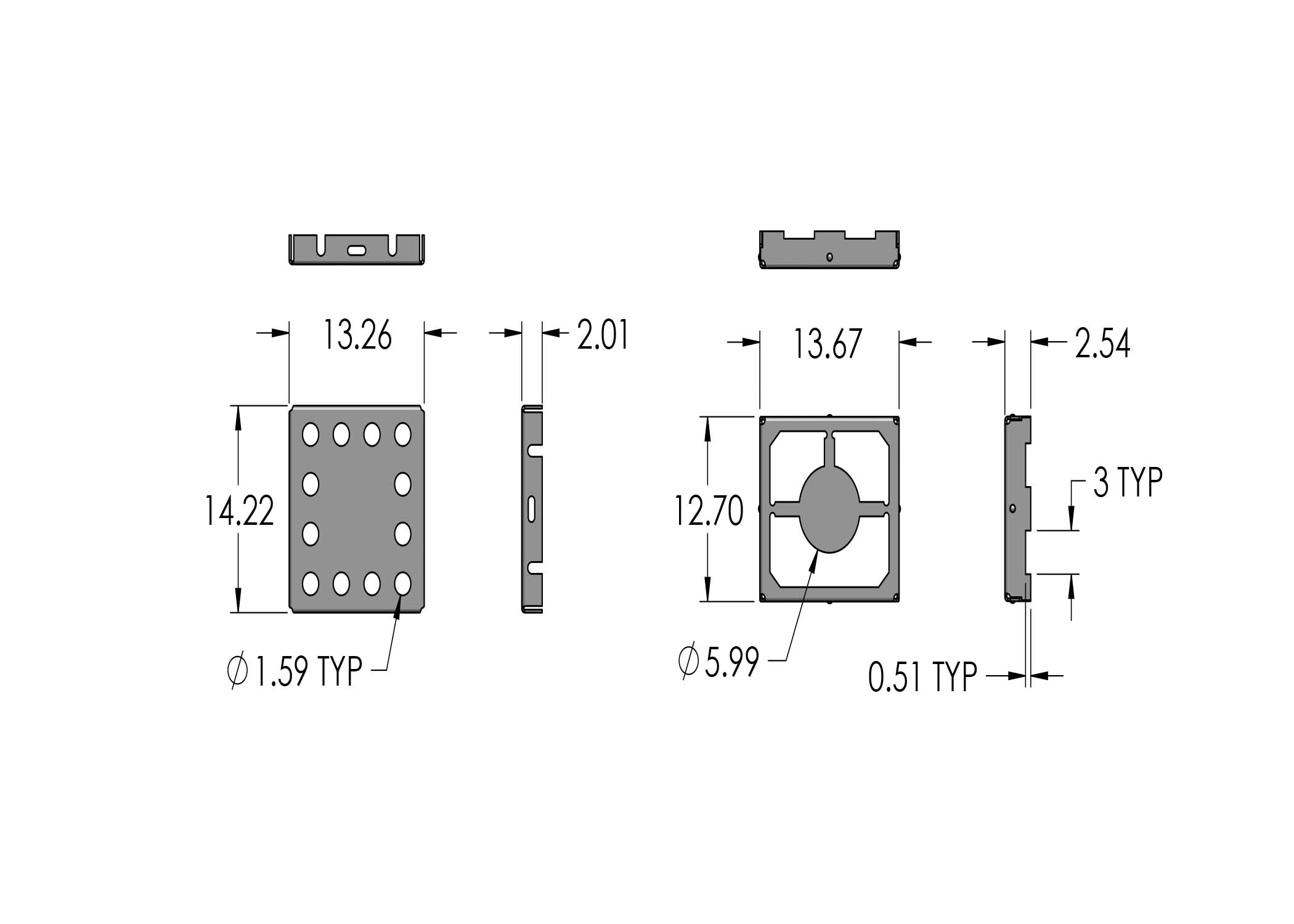

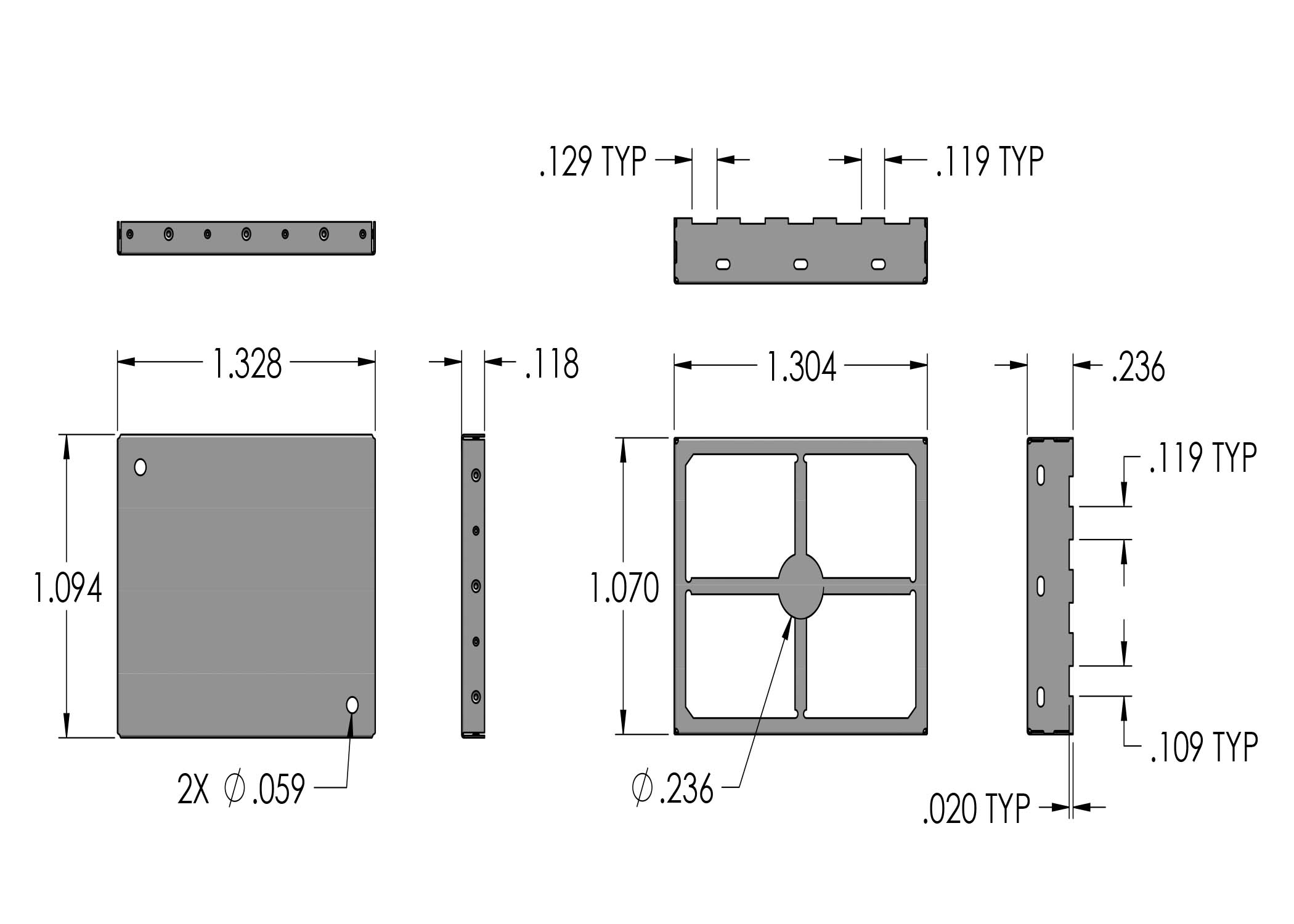

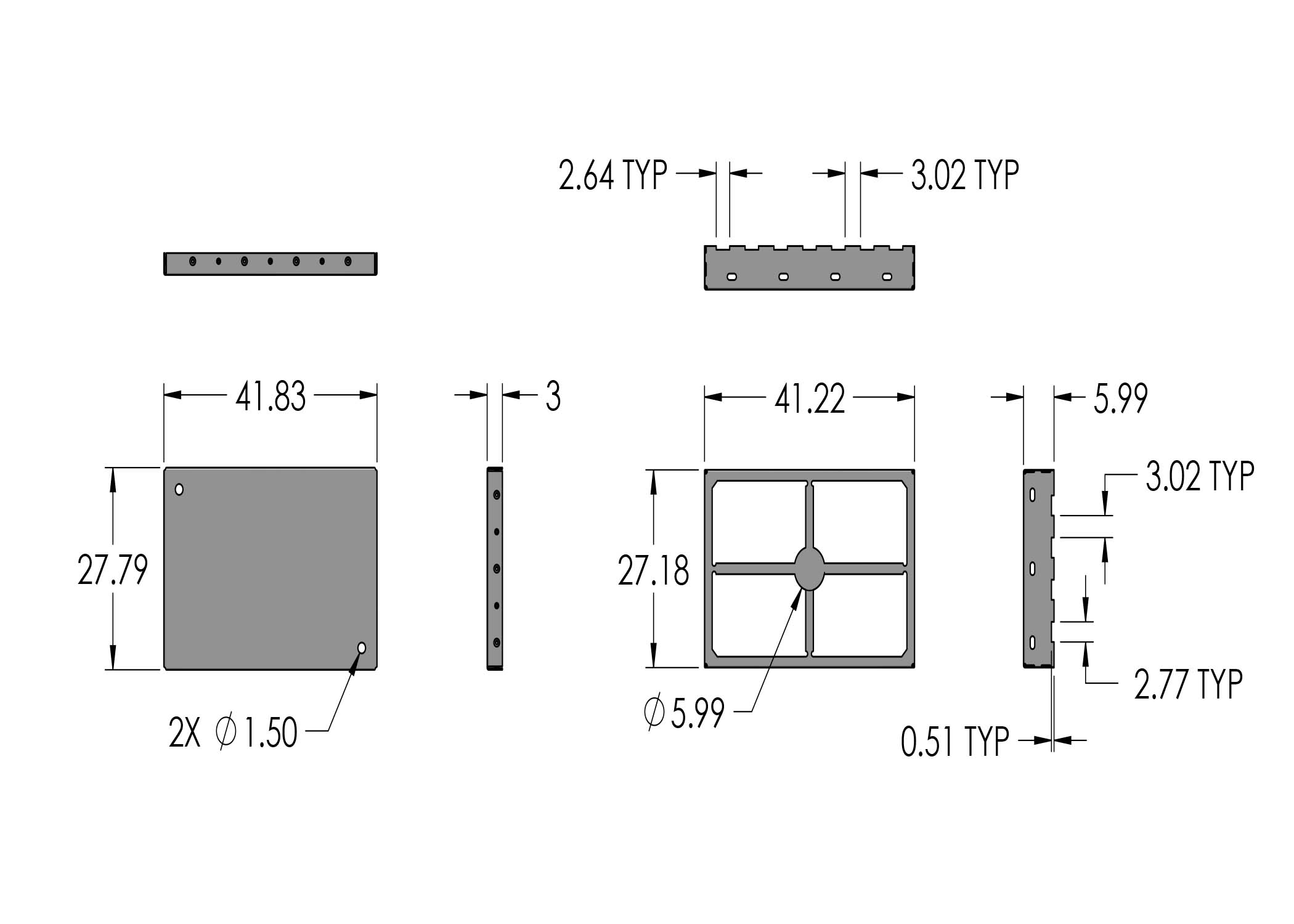

Leader Tech Part Number	ISO Projection View Url	Orthographic Projection View Url	Type	Shield Width (in)	Shield Length (in)	Shield Height (in)	Vented	Parts per Reel	Material	PDF Url
Leader Tech Part Number	ISO Projection View Url	Orthographic Projection View Url	Type	Shield Width (in)	Shield Length (in)	Shield Height (in)	Vented	Parts per Reel	Material	PDF Url
SMS-201			2-Piece Shield	0.500	0.538	0.100	Yes	1000	.008" Pre-Tin Matte Steel
SMS-201-N			2-Piece Shield	0.500	0.538	0.100	Yes	1000	.008" Alloy 770

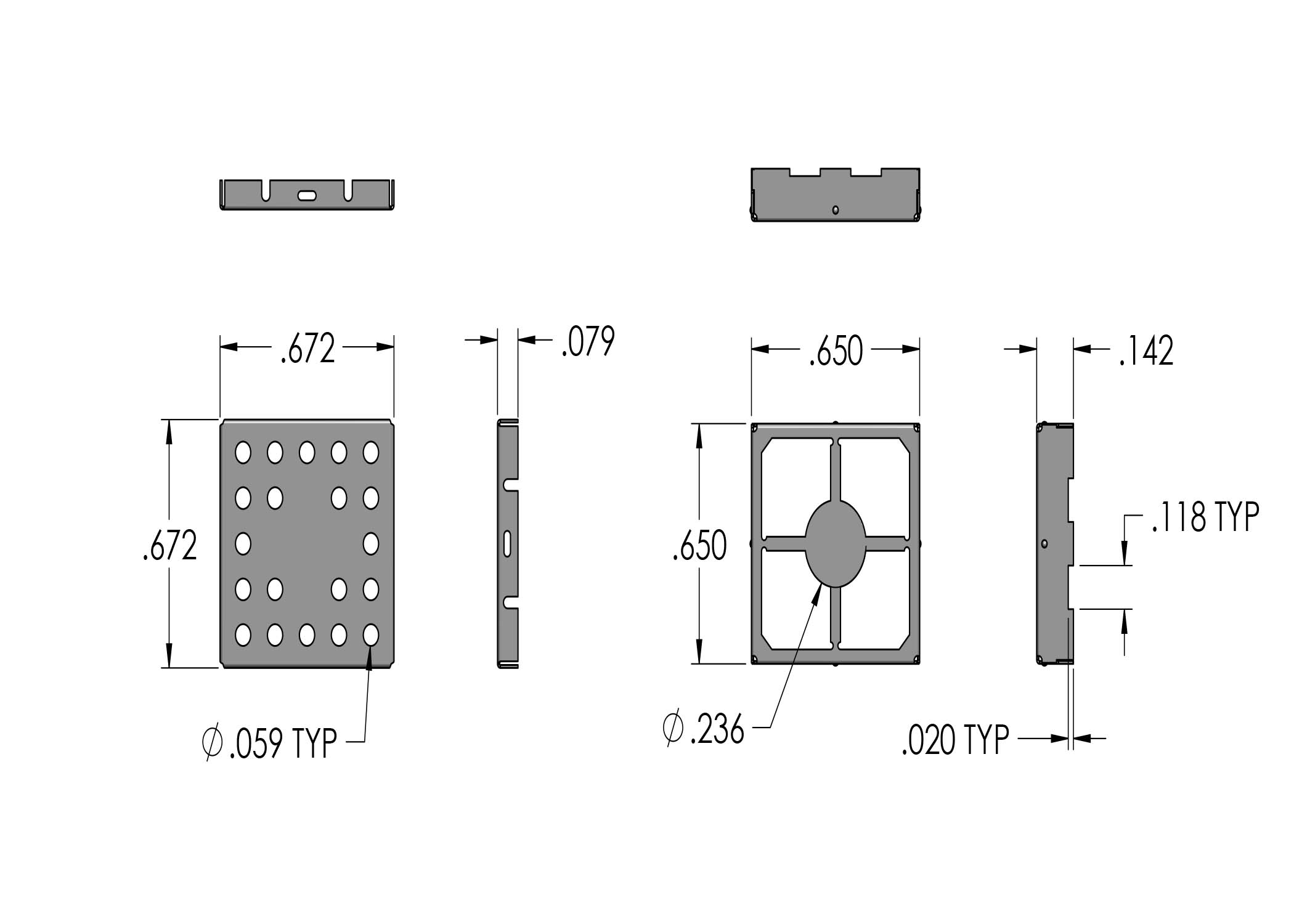

SMS-202			2-Piece Shield	0.650	0.650	0.142	Yes	700	.008" Pre-Tin Matte Steel
SMS-202-N			2-Piece Shield	0.650	0.650	0.142	Yes	700	.008" Alloy 770
SMS-203			2-Piece Shield	1.032	1.032	0.200	Yes	300	.010" Pre-Tin Bright Steel
SMS-203-M			2-Piece Shield	1.032	1.032	0.200	Yes	300	.008" Pre-Tin Matte Steel
SMS-203-N			2-Piece Shield	1.032	1.032	0.200	Yes	300	.008" Alloy 770

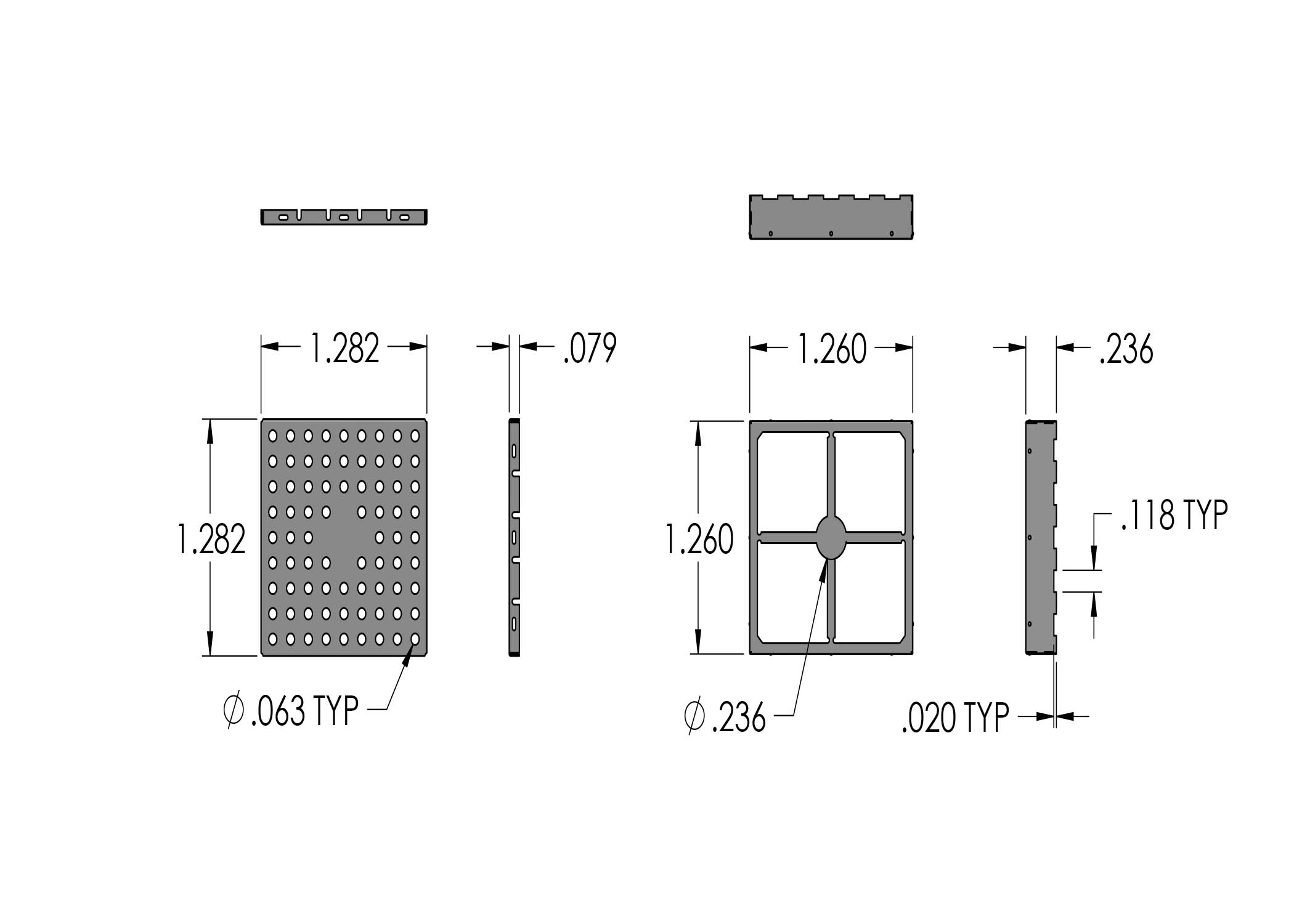

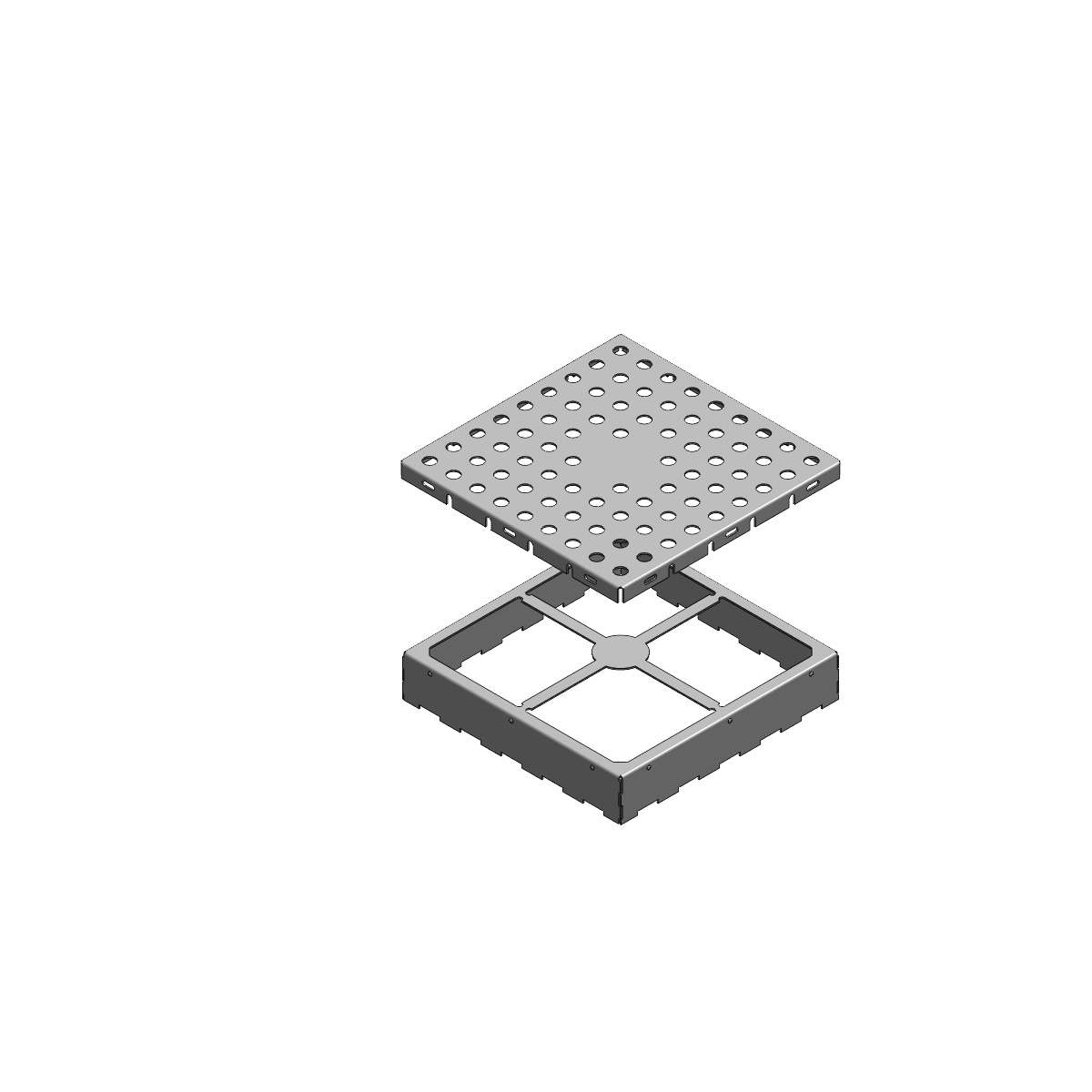

SMS-204			2-Piece Shield	1.260	1.260	0.236	Yes	225	.008" Pre-Tin Matte Steel
SMS-204-N			2-Piece Shield	1.260	1.260	0.236	Yes	225	.008" Alloy 770

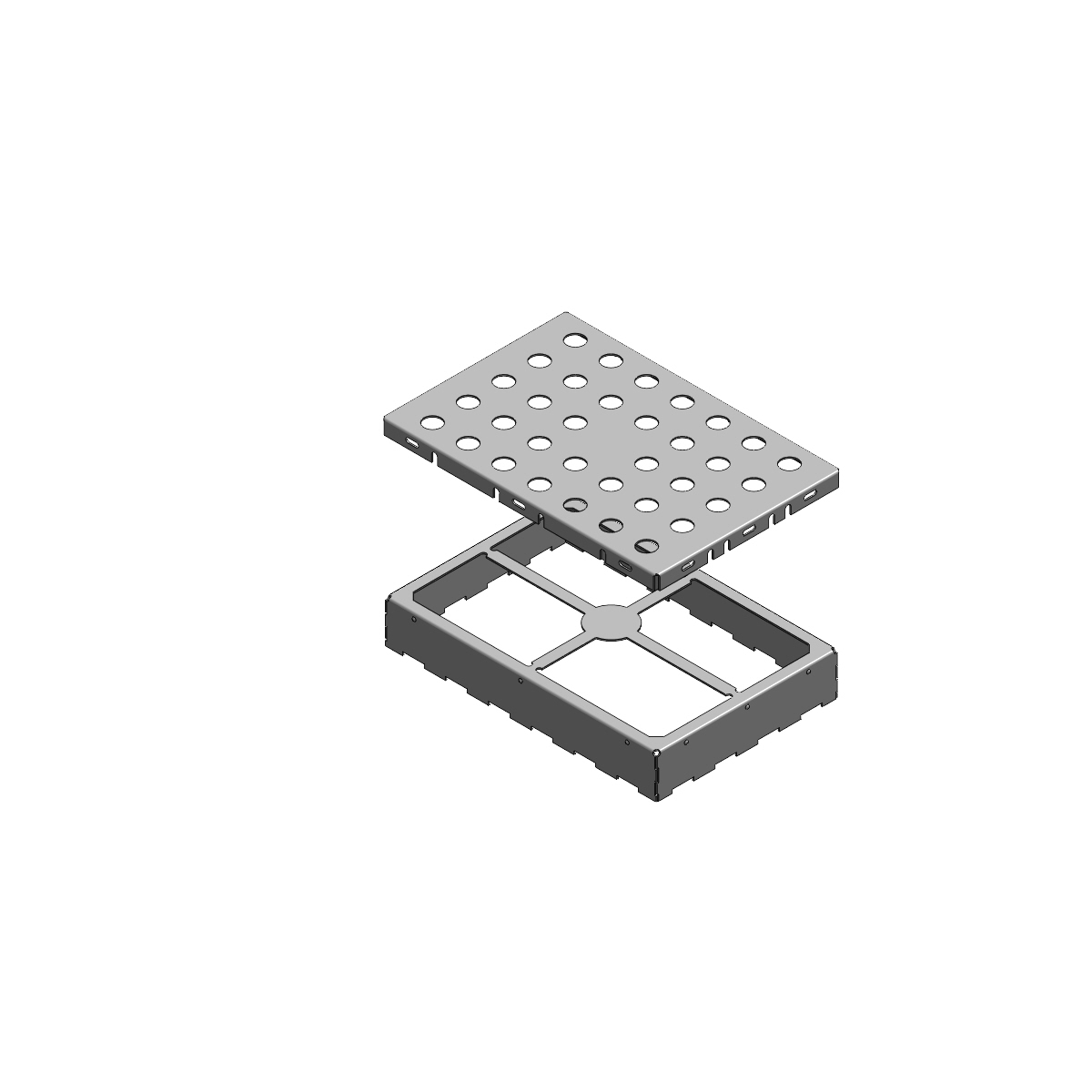

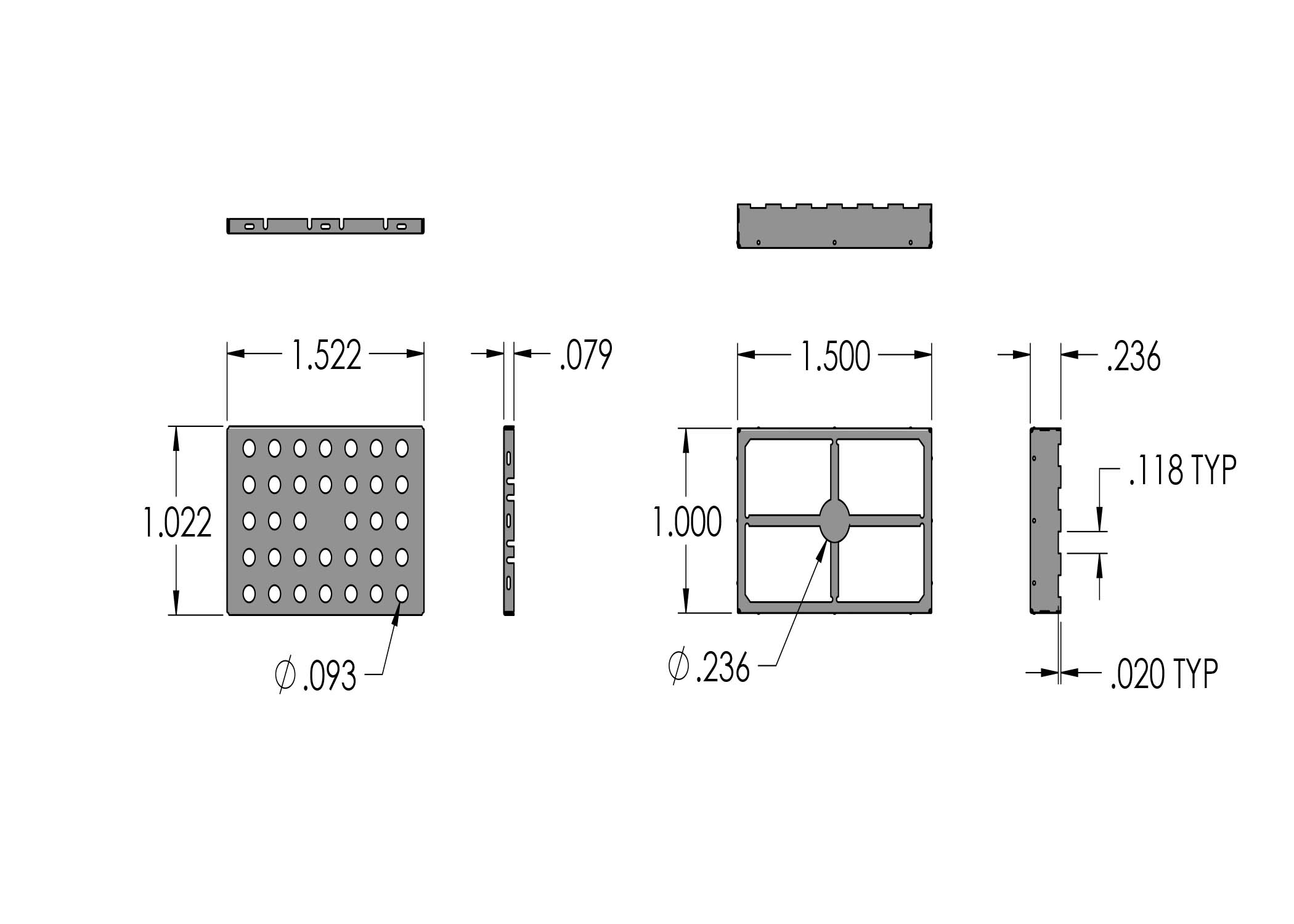

SMS-205			2-Piece Shield	1.000	1.500	0.236	Yes	250	.008" Pre-Tin Matte Steel
SMS-205-N			2-Piece Shield	1.000	1.500	0.236	Yes	250	.008" Alloy 770

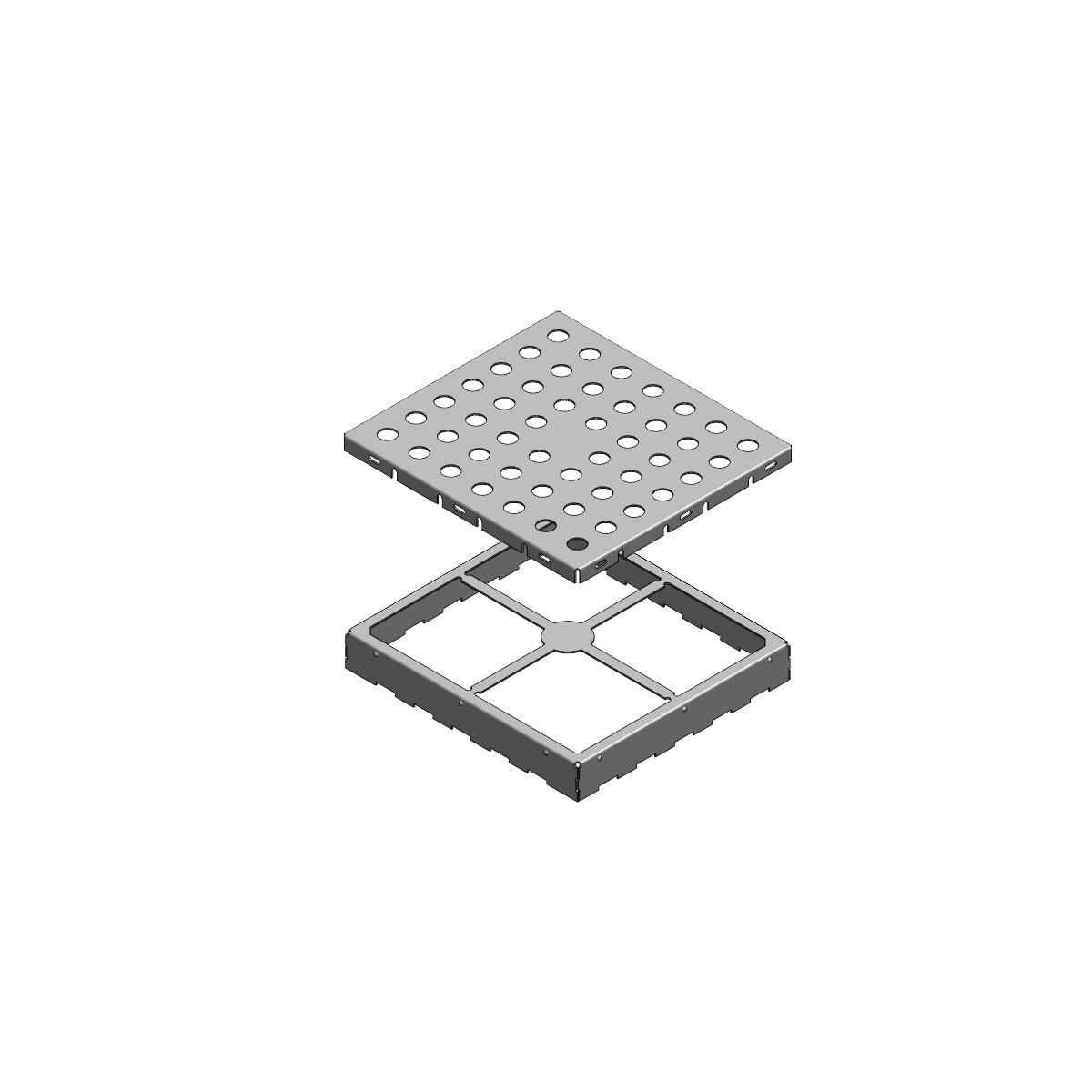

SMS-206			2-Piece Shield	1.326	1.450	0.200	Yes	300	.008" Pre-Tin Matte Steel
SMS-206-N			2-Piece Shield	1.326	1.450	0.200	Yes	300	.008" Alloy 770

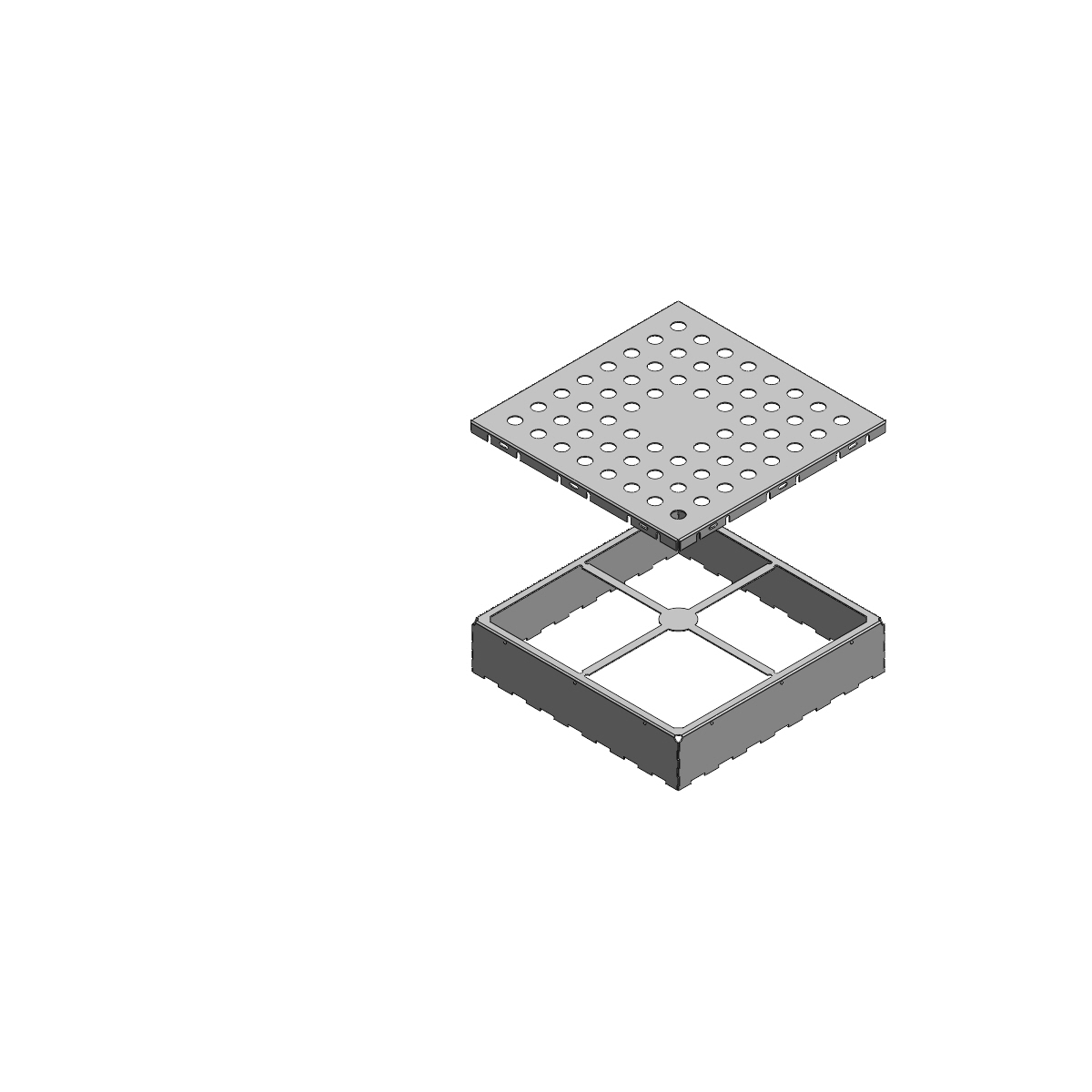

SMS-207			2-Piece Shield	1.747	1.747	0.384	Yes	120	.008" Pre-Tin Matte Steel
SMS-207-N			2-Piece Shield	1.747	1.747	0.384	Yes	120	.008" Alloy 770

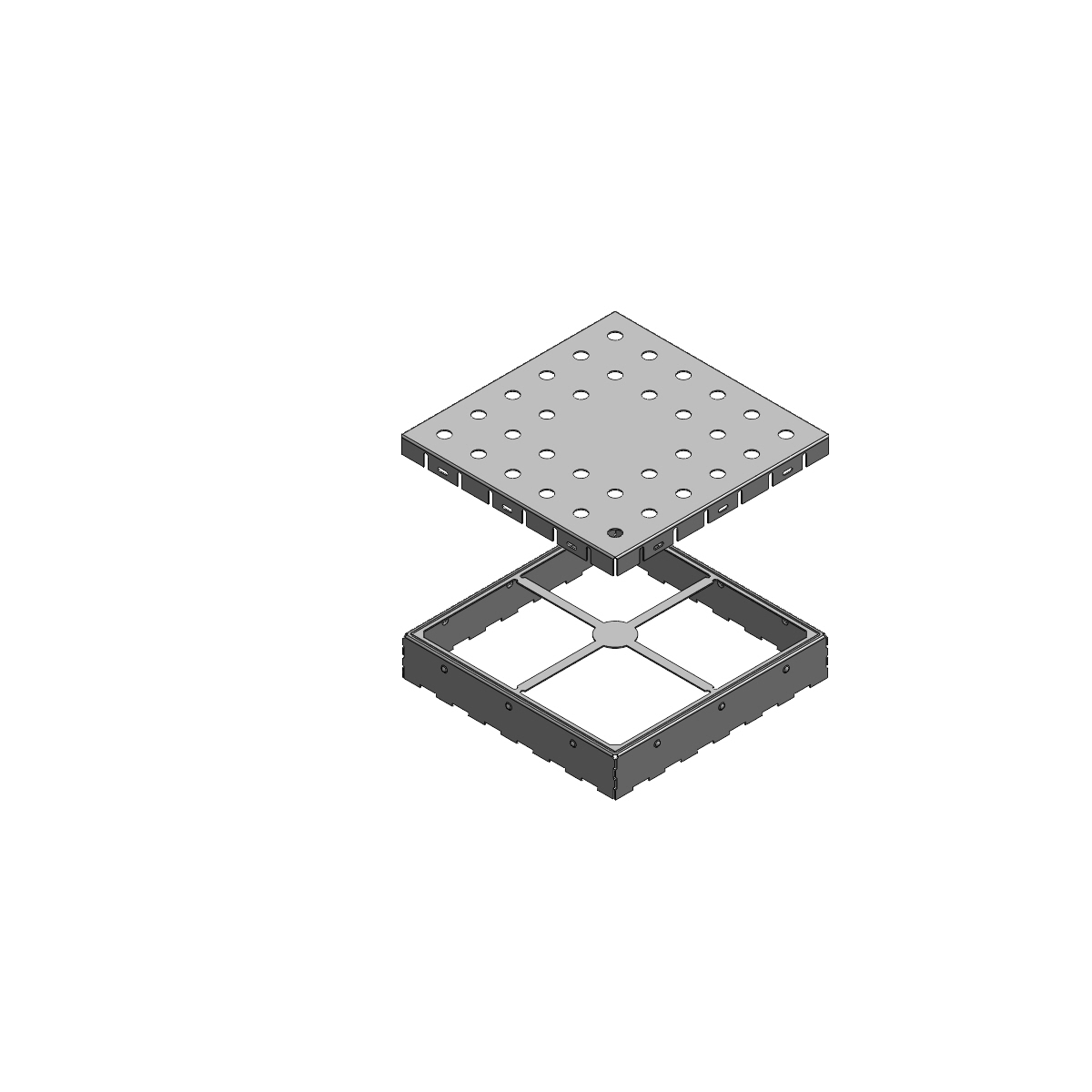

SMS-208			2-Piece Shield	1.559	1.559	0.276	Yes	150	.008" Pre-Tin Matte Steel
SMS-208-N			2-Piece Shield	1.559	1.559	0.276	Yes	150	.008" Alloy 770

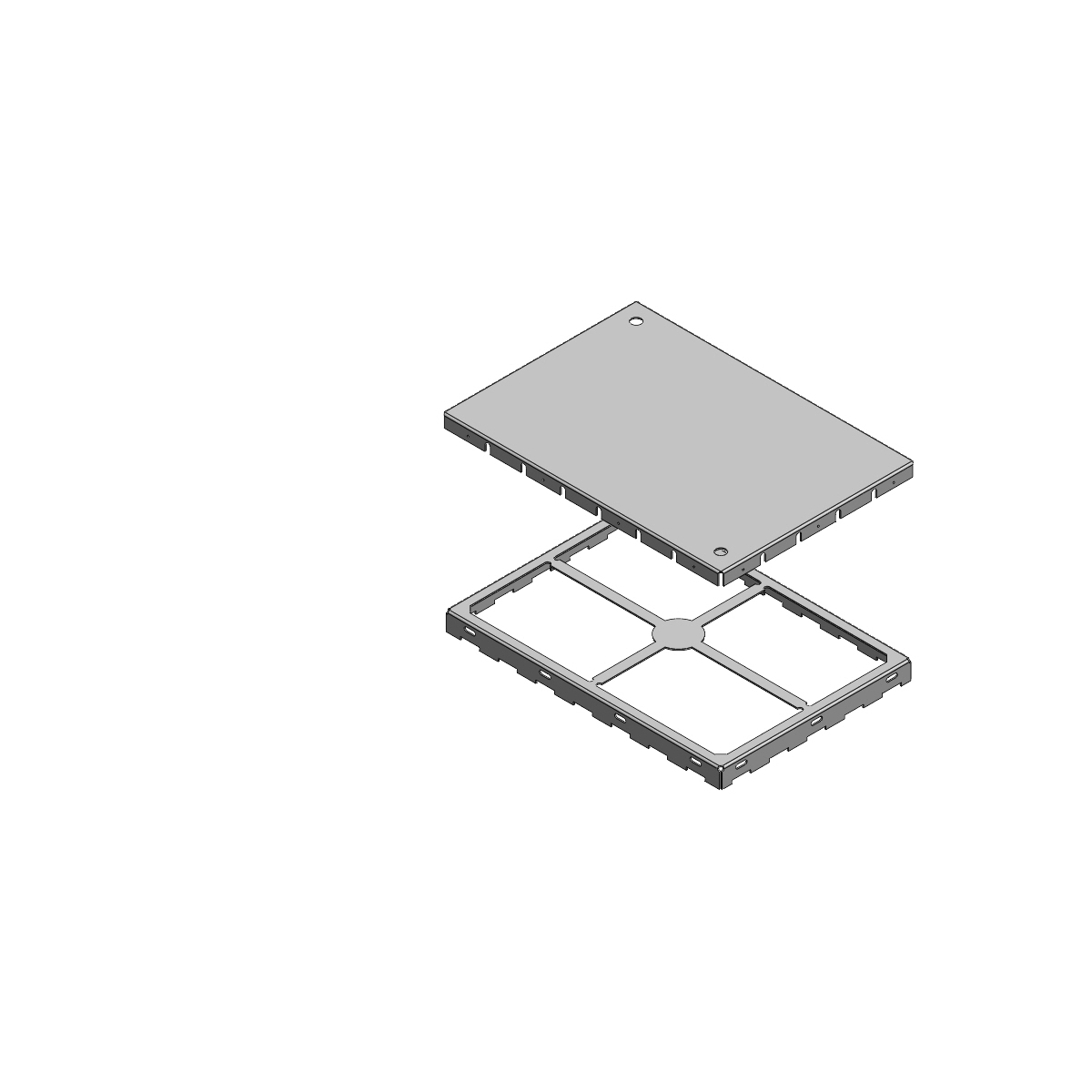

SMS-210			2-Piece Shield	1.201	1.732	0.118	Yes	370	.008" Pre-Tin Matte Steel
SMS-210-N			2-Piece Shield	1.201	1.732	0.118	Yes	370	.008" Alloy 770

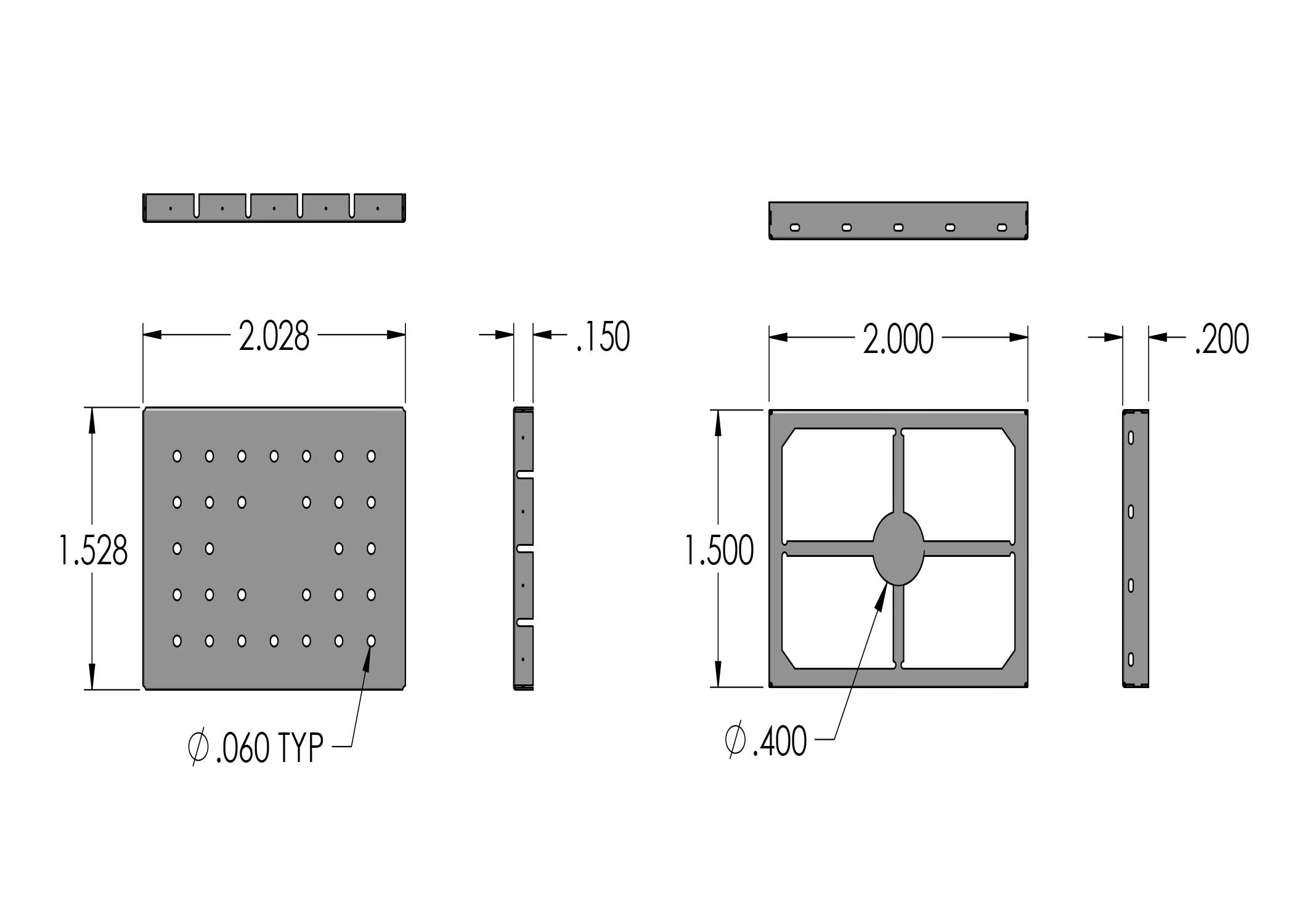

SMS-251			2-Piece Shield	1.500	2.000	0.200	Yes	250	.012" Pre-Tin Matte Steel
SMS-251-N			2-Piece Shield	1.500	2.000	0.200	Yes	250	.012" Alloy 770

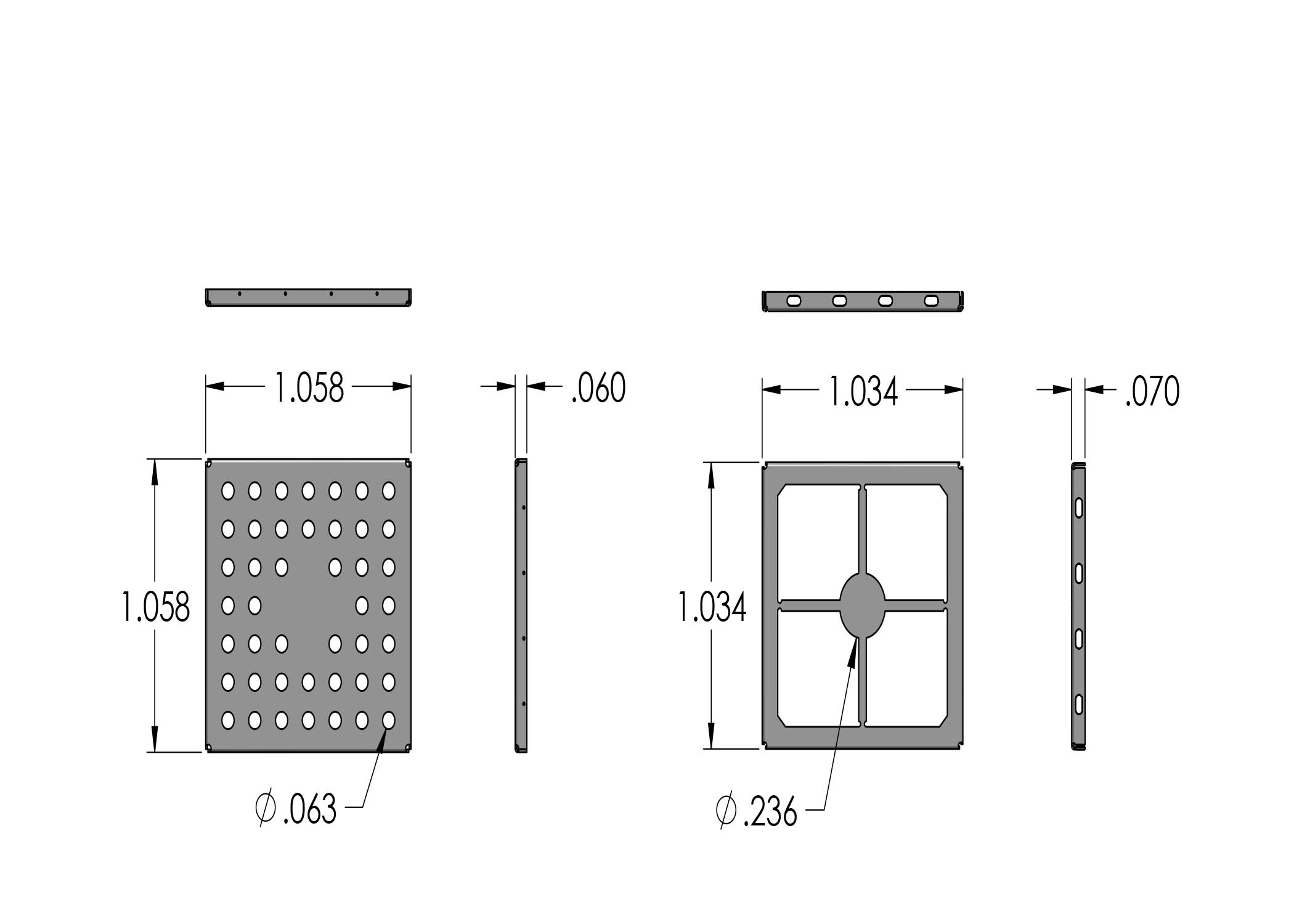

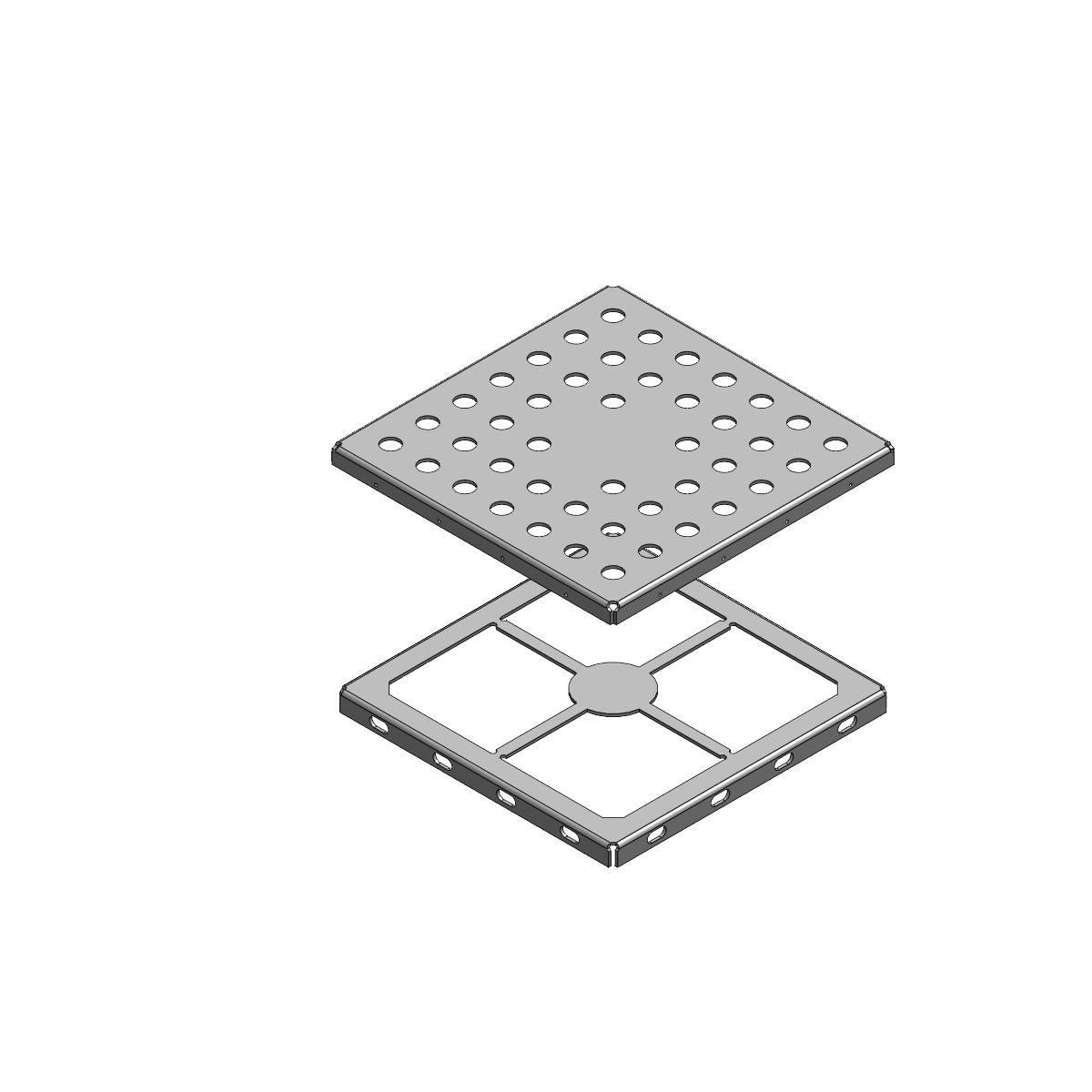

SMS-252			2-Piece Shield	1.034	1.034	0.070	Yes	300	.008" Pre-Tin Matte Steel
SMS-252-N			2-Piece Shield	1.034	1.034	0.070	Yes	300	.008" Alloy 770

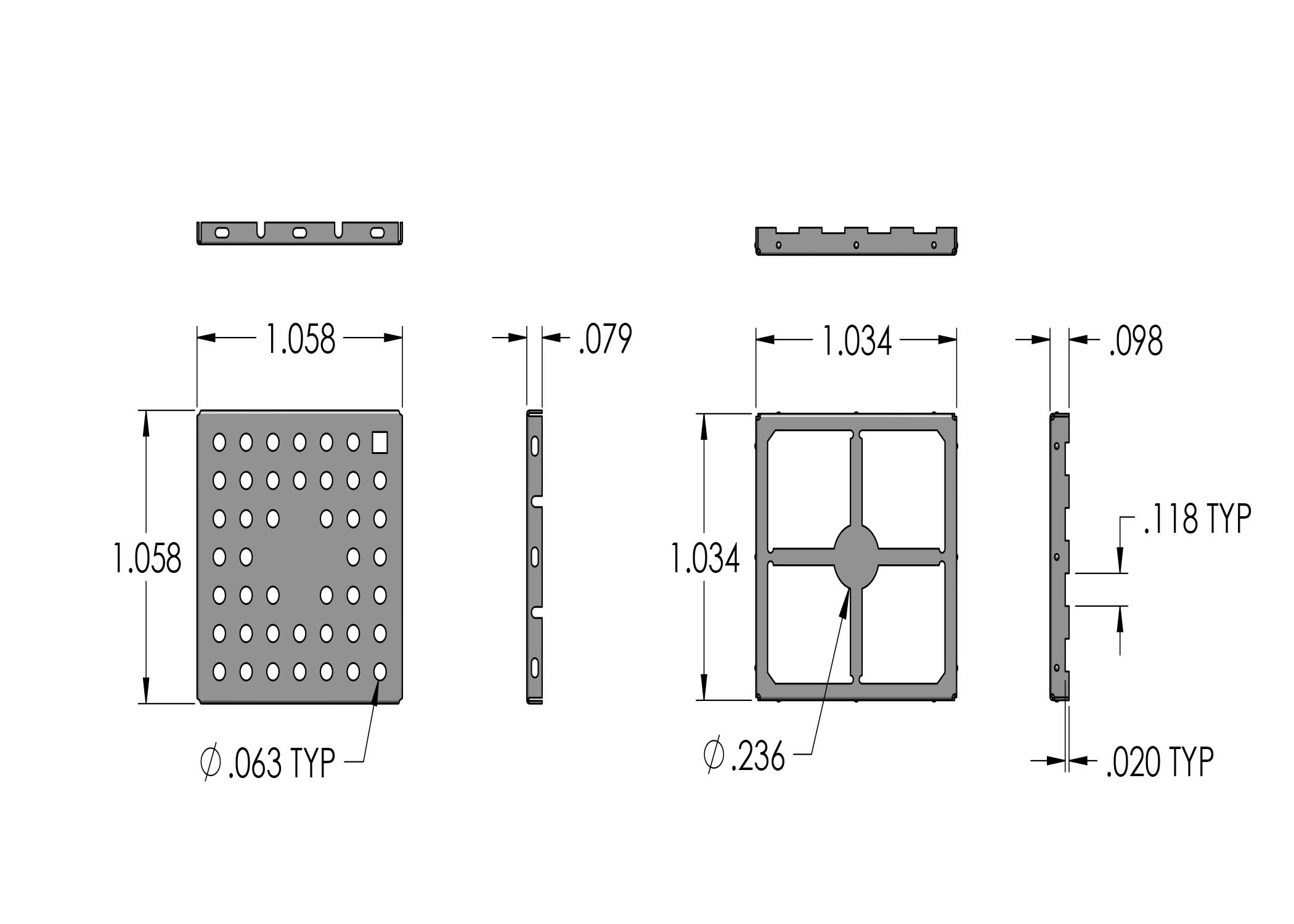

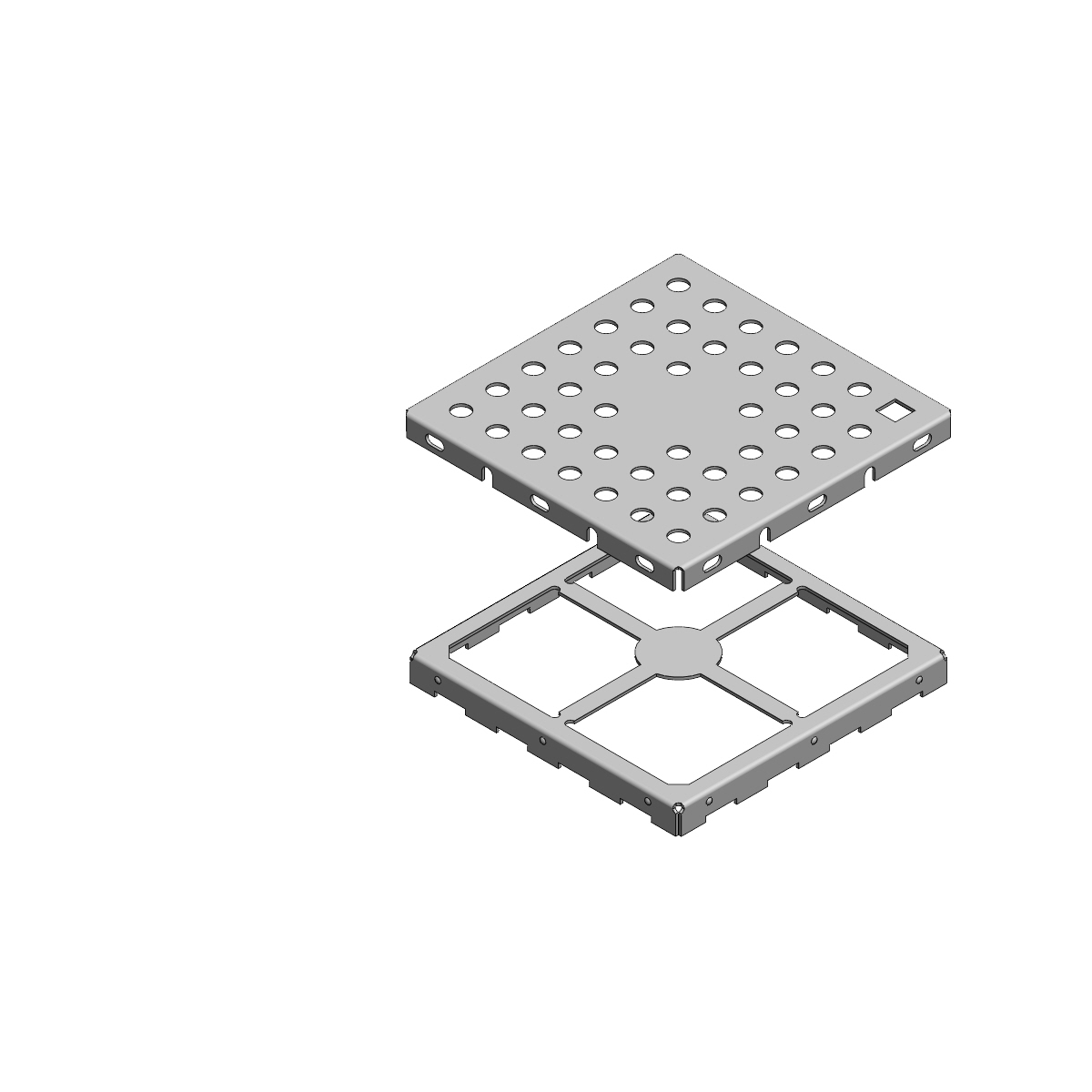

SMS-254			2-Piece Shield	1.034	1.034	0.098	Yes	600	.010" Pre-Tin Bright Steel
SMS-254-N			2-Piece Shield	1.034	1.034	0.098	Yes	600	.008" Alloy 770

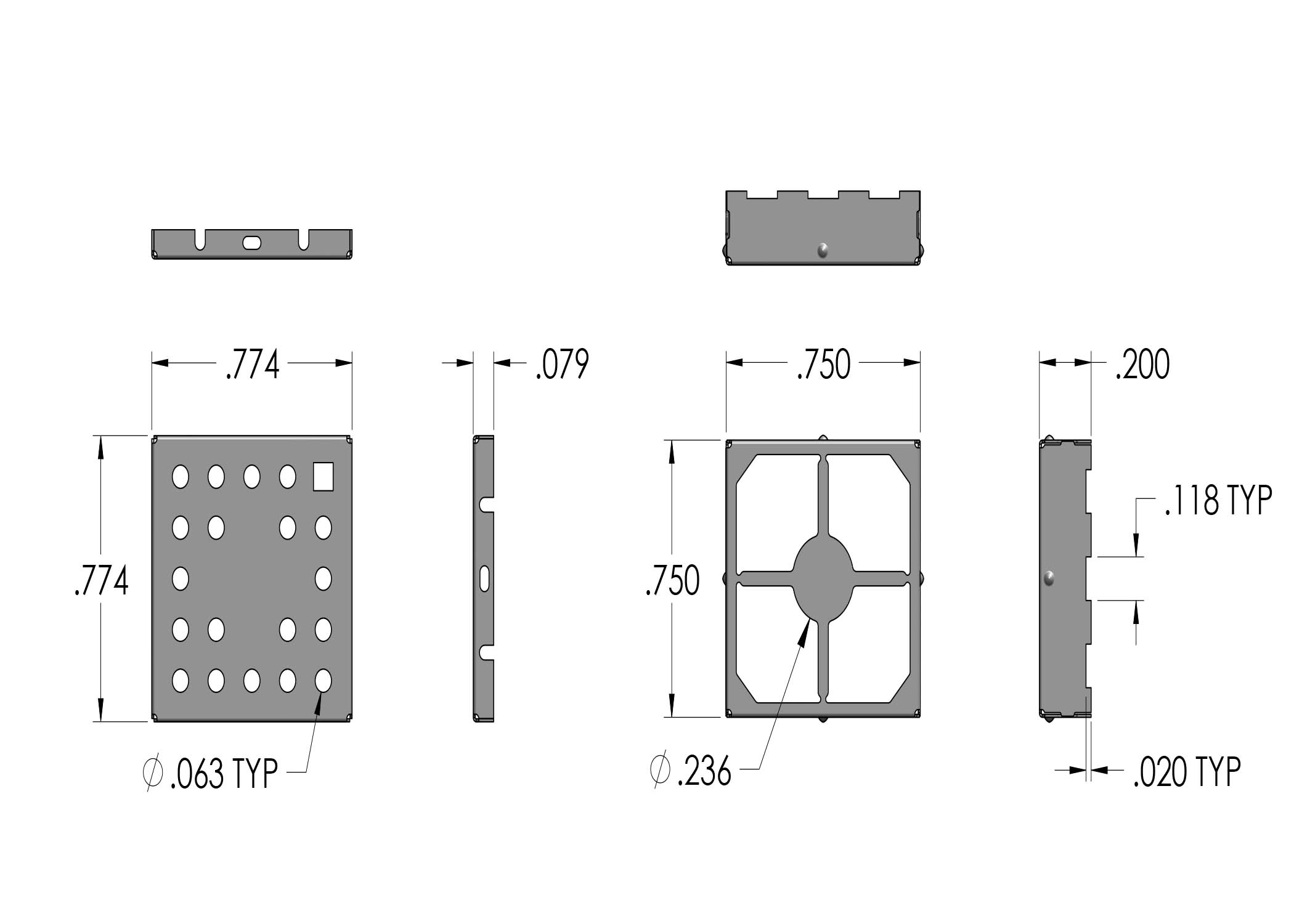

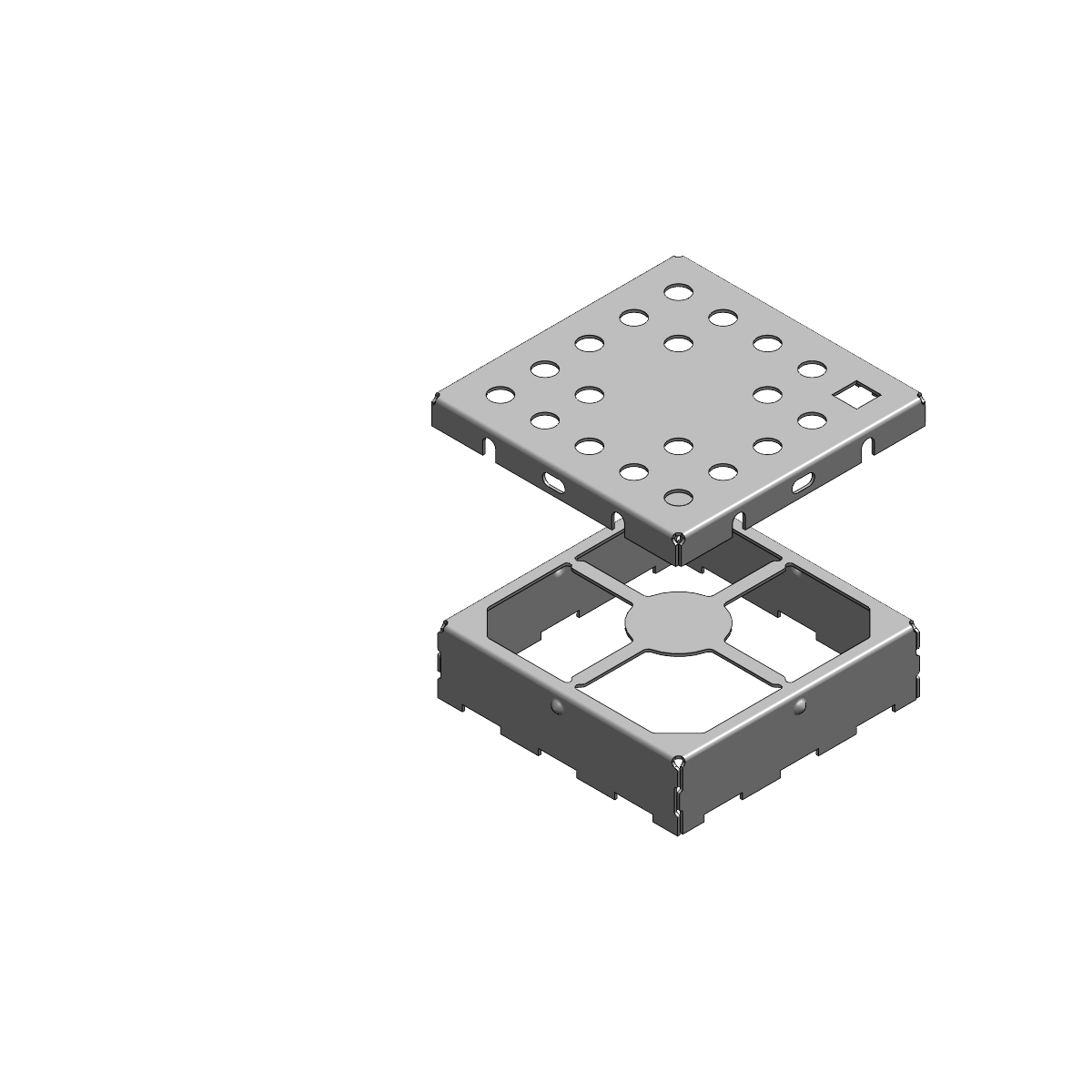

SMS-255			2-Piece Shield	0.750	0.750	0.200	Yes	300	.008" Pre-Tin Matte Steel
SMS-255-N			2-Piece Shield	0.750	0.750	0.200	Yes	300	.008" Alloy 770
SMS-269			2-Piece Shield	0.500	0.750	0.100	Yes	800	.008" Pre-Tin Matte Steel
SMS-269-N			2-Piece Shield	0.500	0.750	0.100	Yes	800	.008" Alloy 770

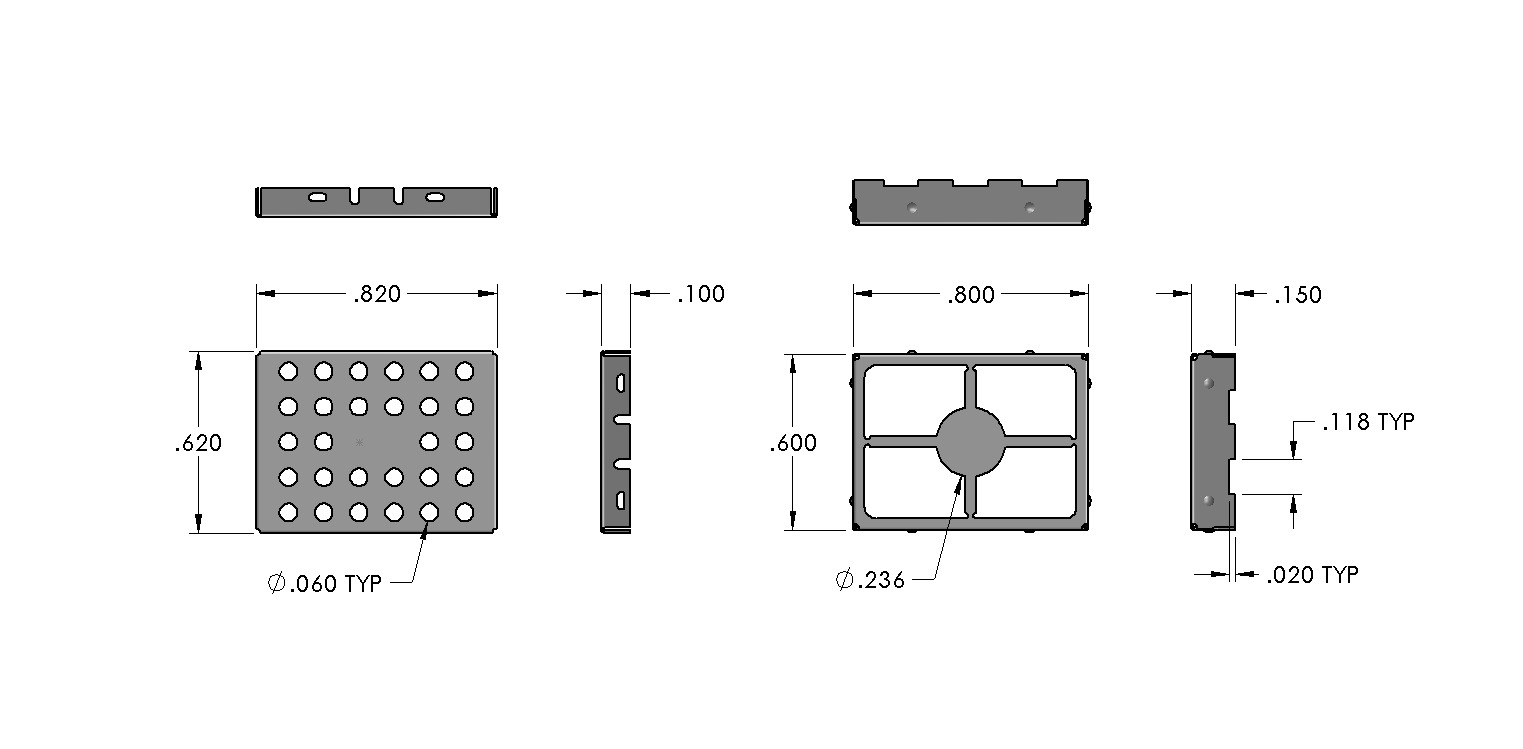

SMS-270			2-Piece Shield	0.600	0.800	0.150	Yes	450	.008" Pre-Tin Matte Steel
SMS-270-N			2-Piece Shield	0.600	0.800	0.150	Yes	450	.008" Alloy 770

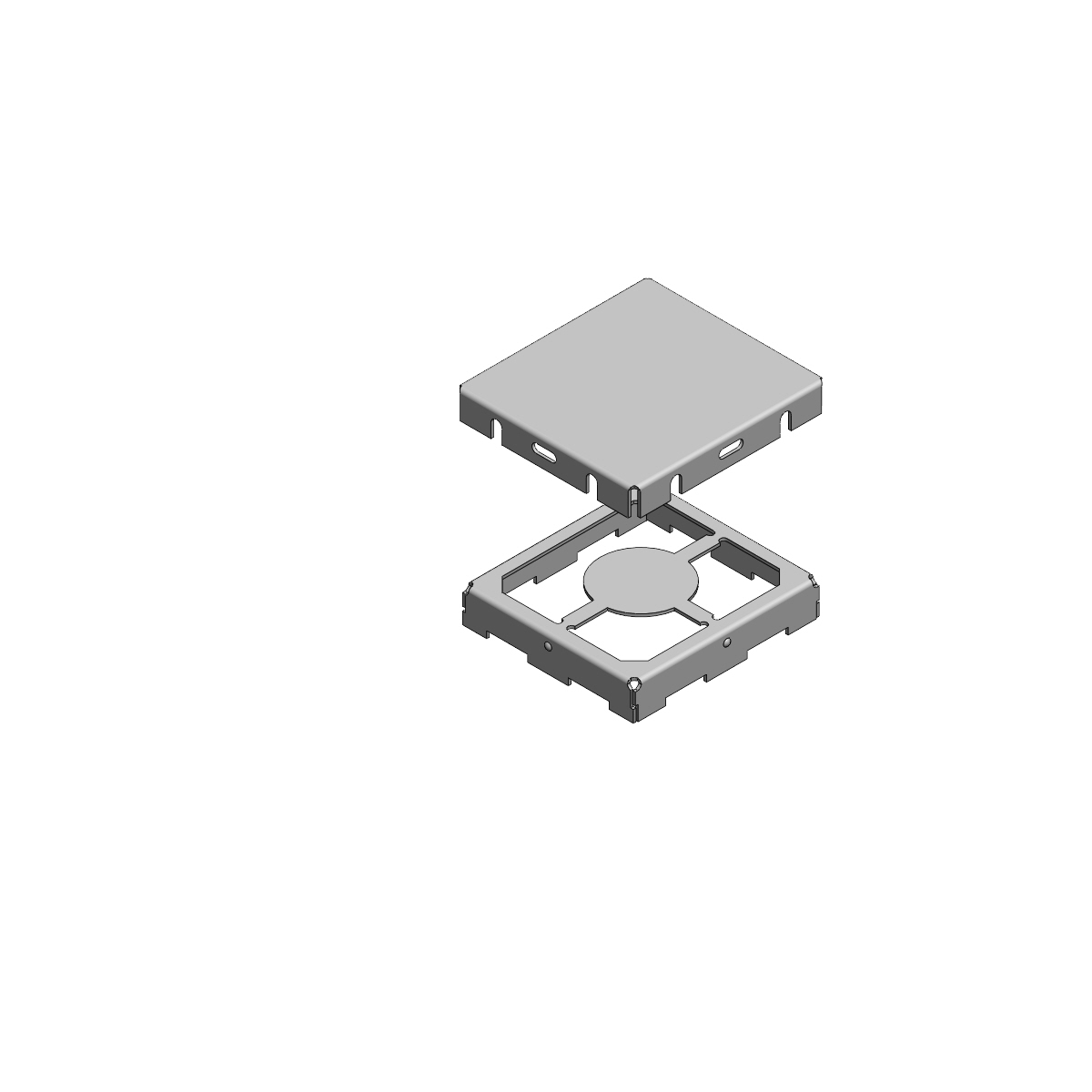

SMS-401			2-Piece Shield	0.500	0.538	0.100	No	1000	.008" Pre-Tin Matte Steel
SMS-401-N			2-Piece Shield	0.500	0.538	0.100	No	1000	.008" Alloy 770

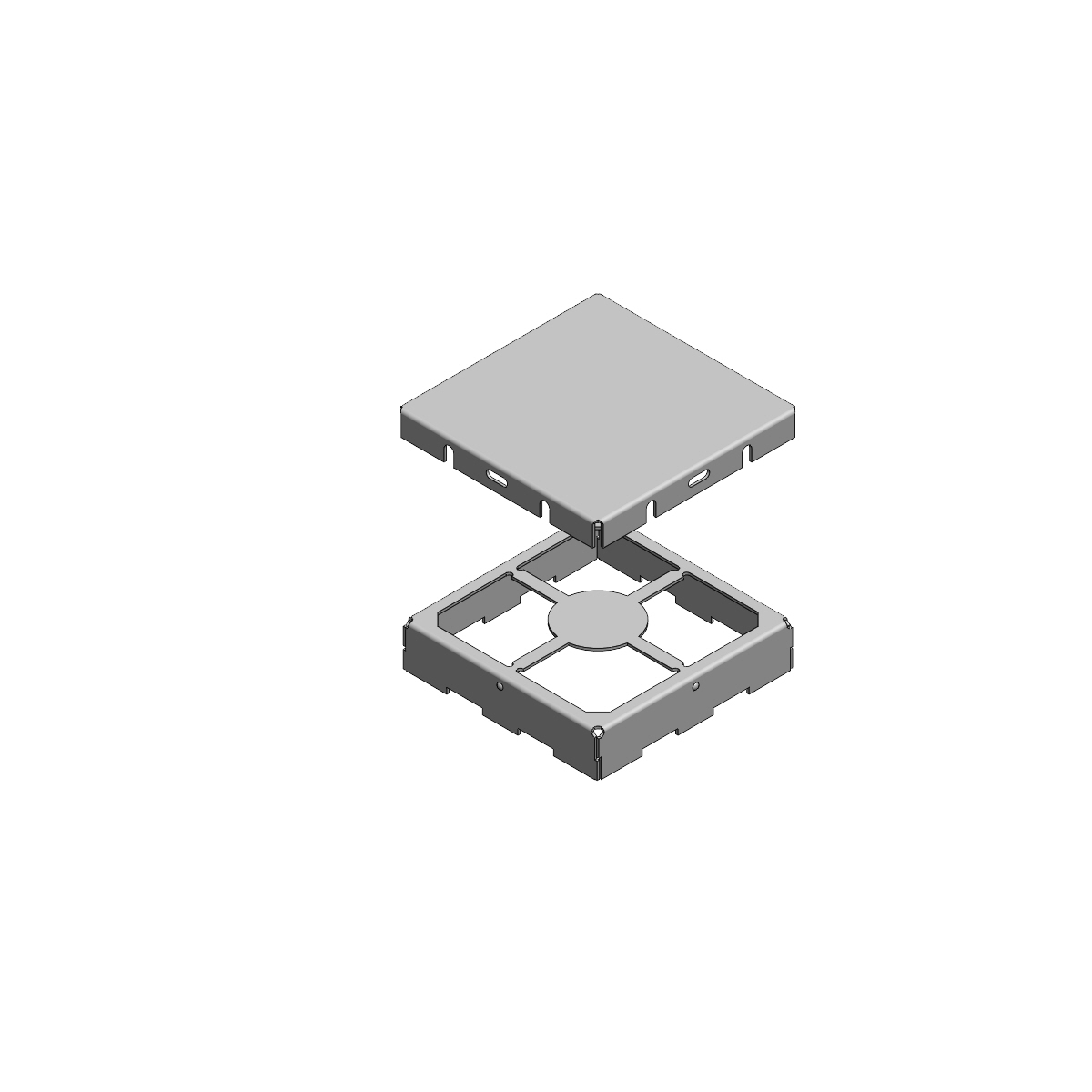

SMS-402			2-Piece Shield	0.650	0.650	0.142	No	700	.008" Pre-Tin Matte Steel
SMS-402-N			2-Piece Shield	0.650	0.650	0.142	No	700	.008" Alloy 770

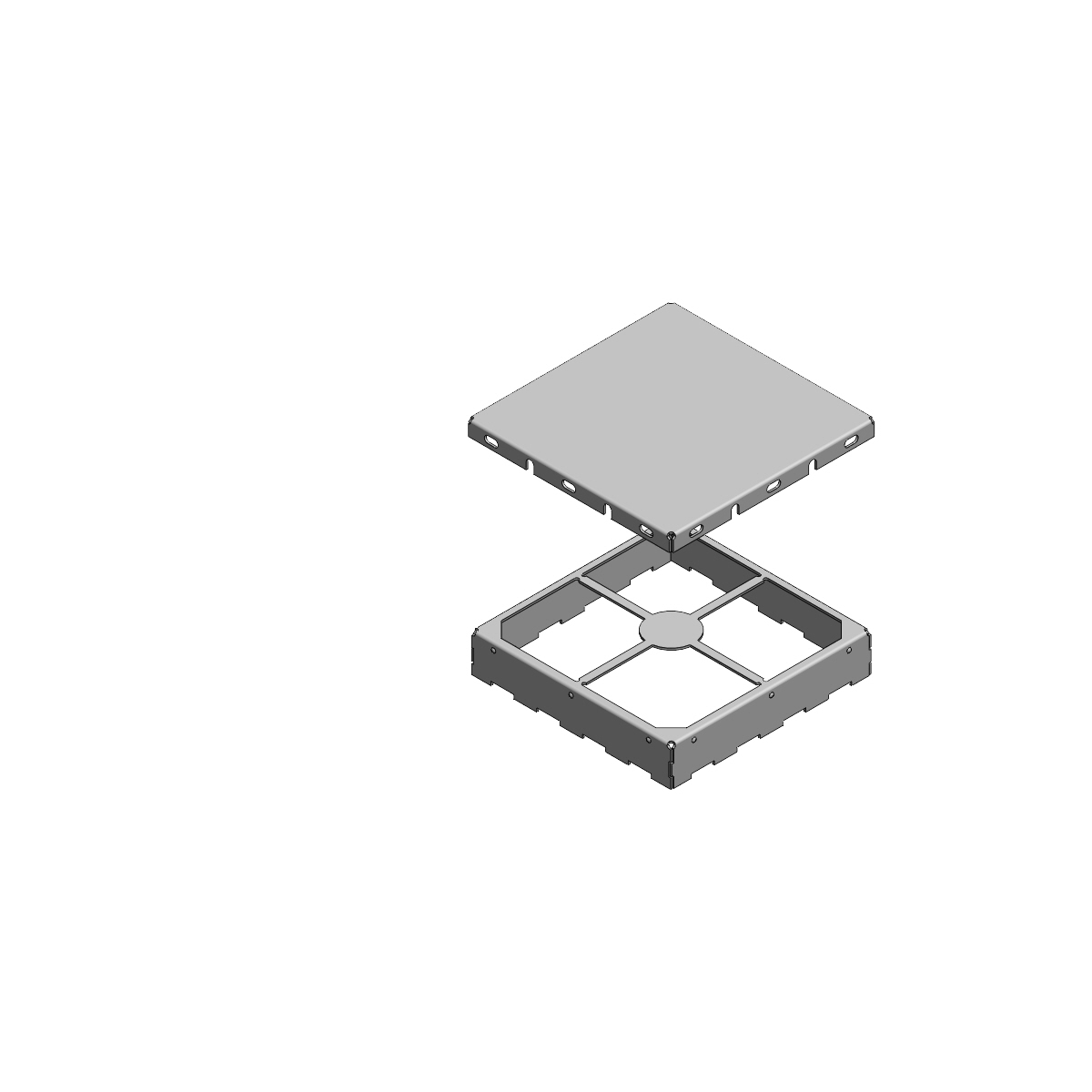

SMS-403			2-Piece Shield	1.032	1.032	0.200	No	300	.010" Pre-Tin Bright Steel
SMS-403-M			2-Piece Shield	1.032	1.032	0.200	No	300	.008" Pre-Tin Matte Steel
SMS-403-N			2-Piece Shield	1.032	1.032	0.200	No	300	.008" Alloy 770
SMS-404			2-Piece Shield	1.260	1.260	0.236	No	225	.008" Pre-Tin Matte Steel
SMS-404-N			2-Piece Shield	1.260	1.260	0.236	No	225	.008" Alloy 770

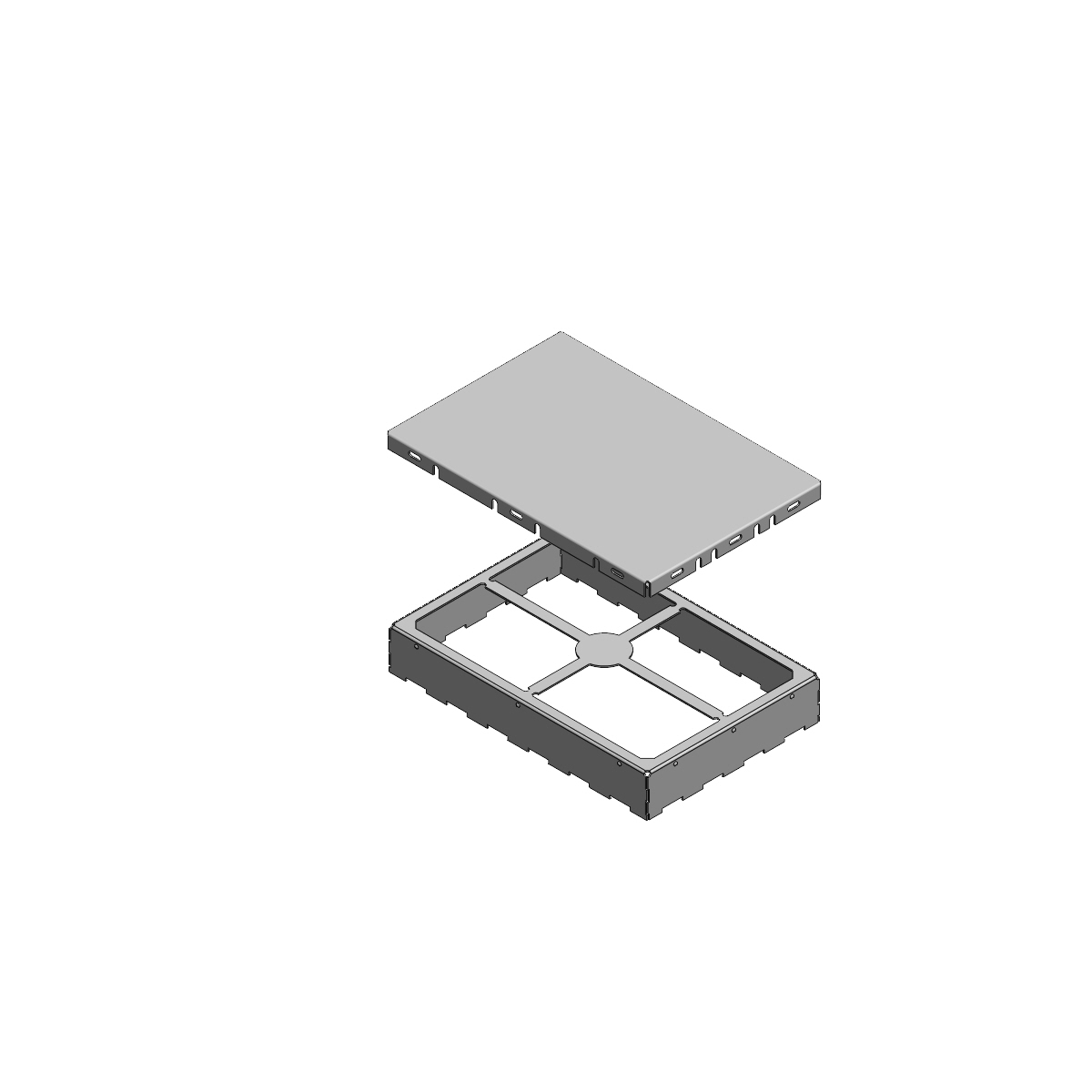

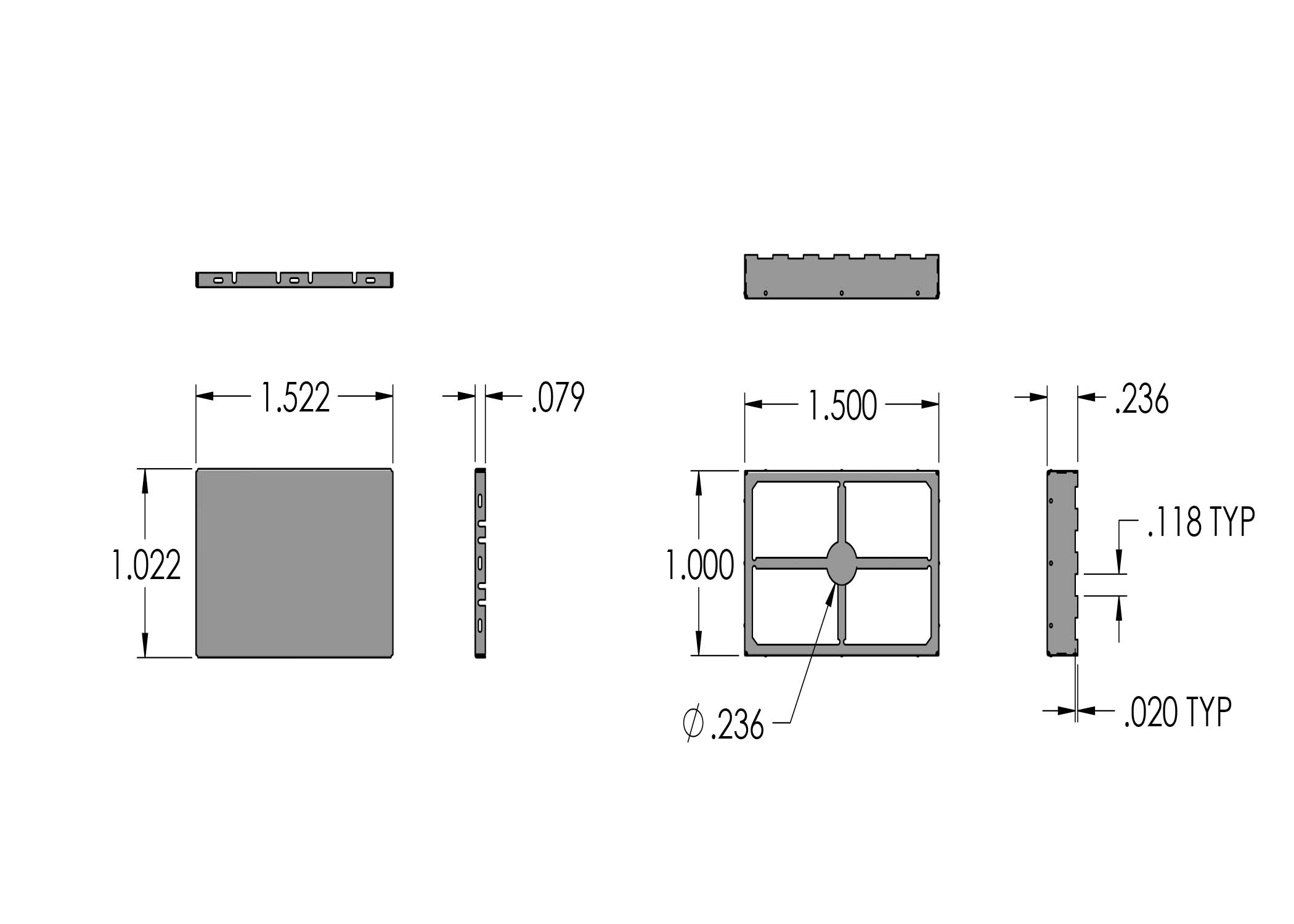

SMS-405			2-Piece Shield	1.000	1.500	0.236	No	250	.008" Pre-Tin Matte Steel
SMS-405-N			2-Piece Shield	1.000	1.500	0.236	No	250	.008" Alloy 770

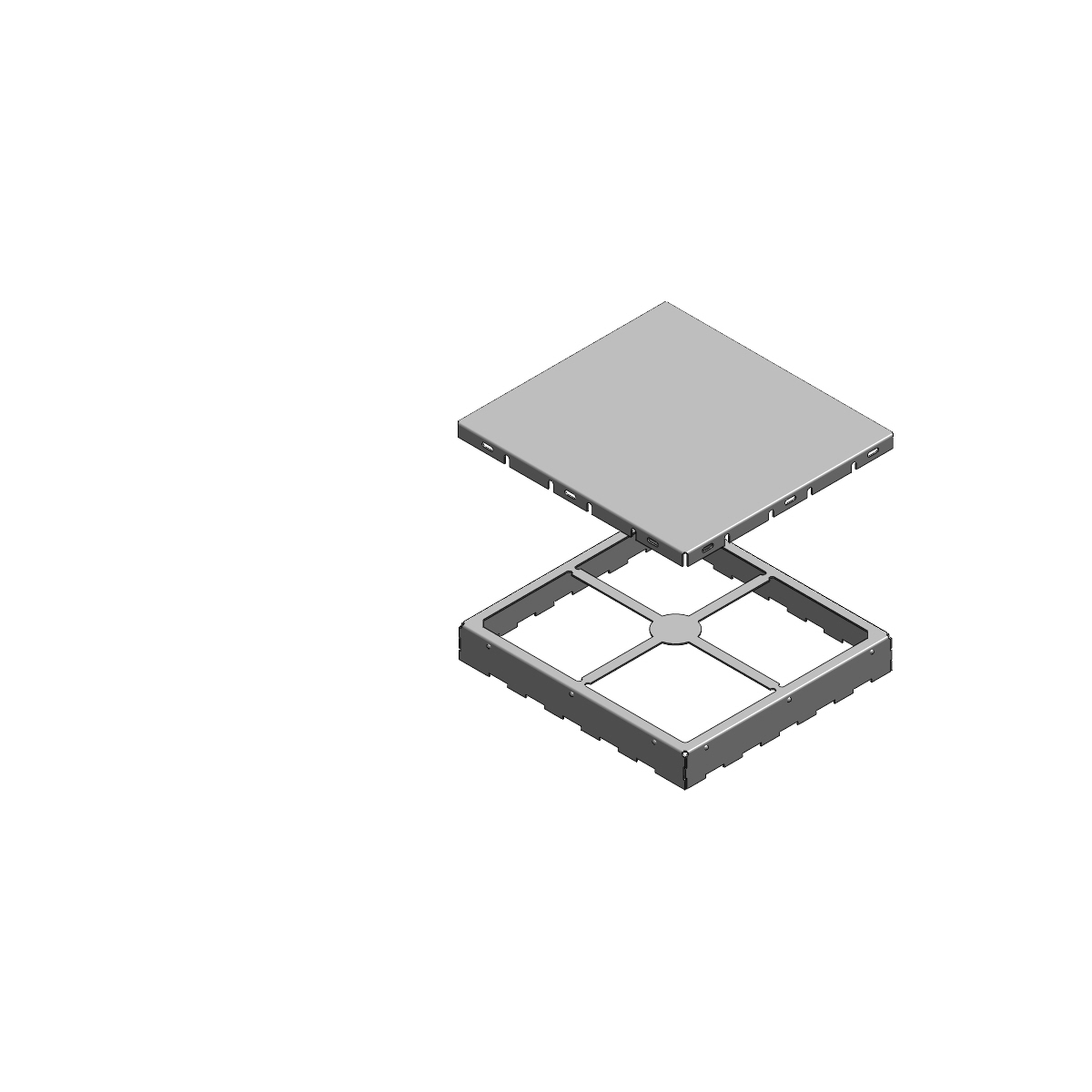

SMS-406			2-Piece Shield	1.326	1.450	0.200	No	300	.008" Pre-Tin Matte Steel
SMS-406-N			2-Piece Shield	1.326	1.450	0.200	No	300	.008" Alloy 770

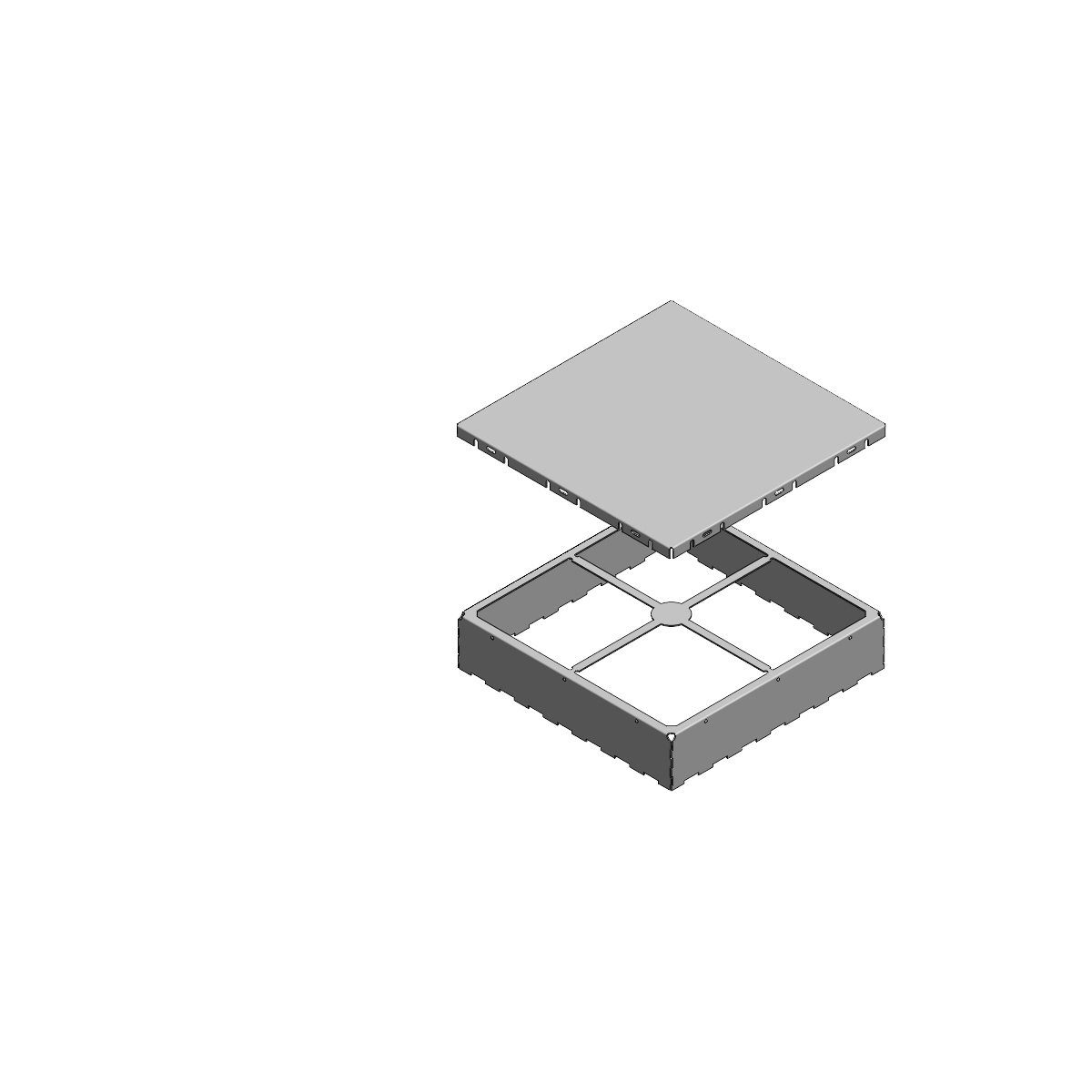

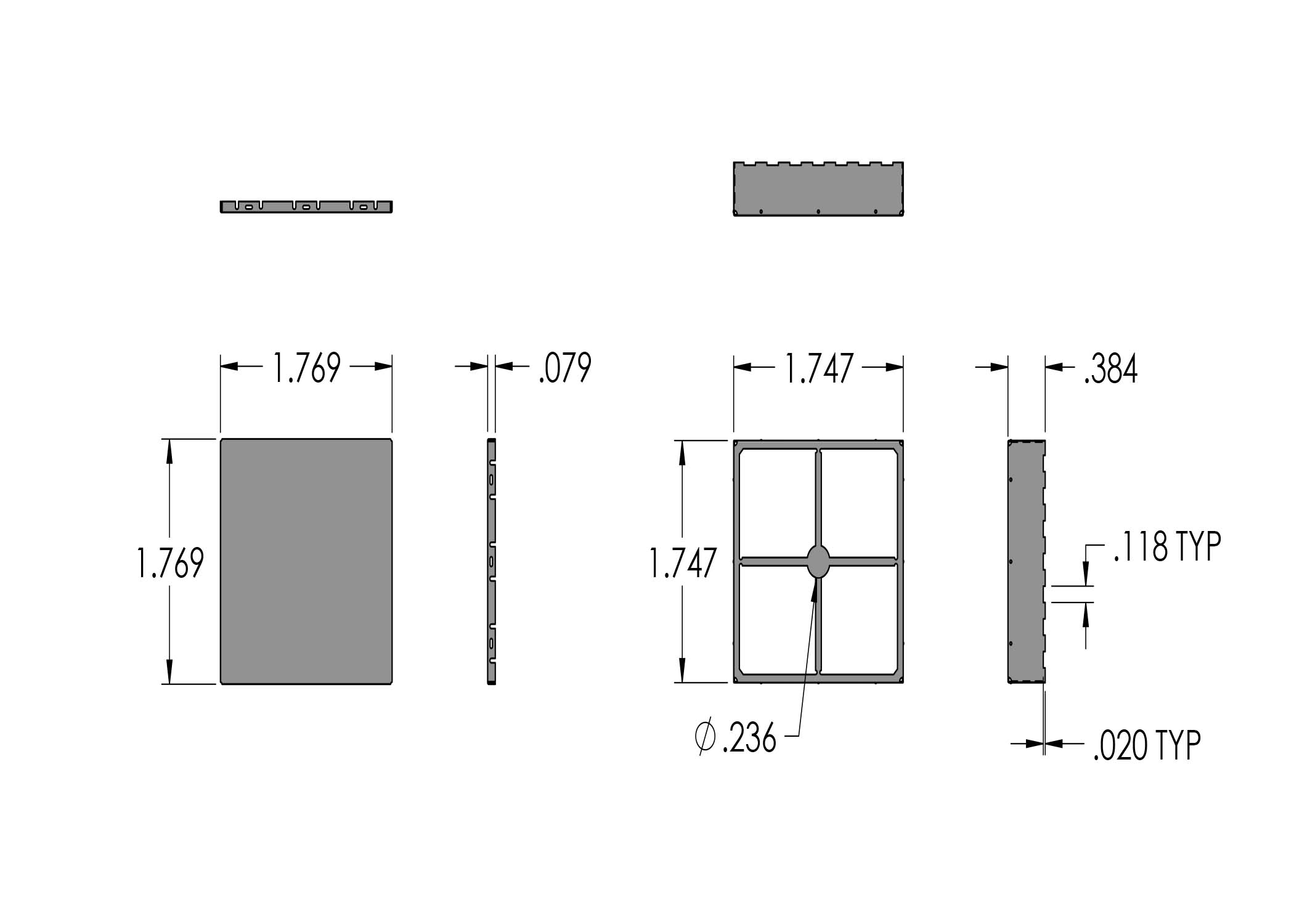

SMS-407			2-Piece Shield	1.747	1.747	0.384	No	120	.008" Pre-Tin Matte Steel
SMS-407-N			2-Piece Shield	1.747	1.747	0.384	No	120	.008" Alloy 770

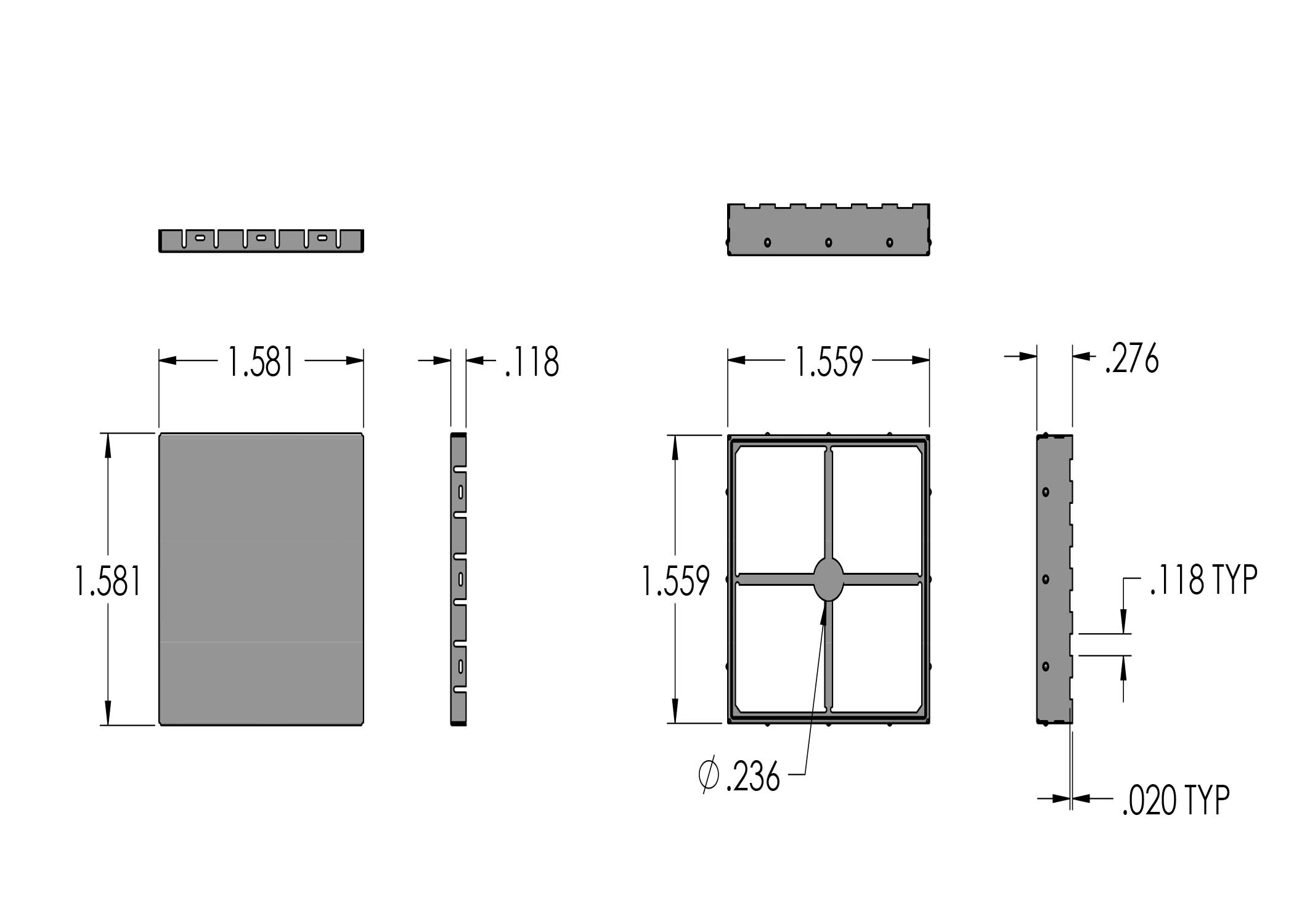

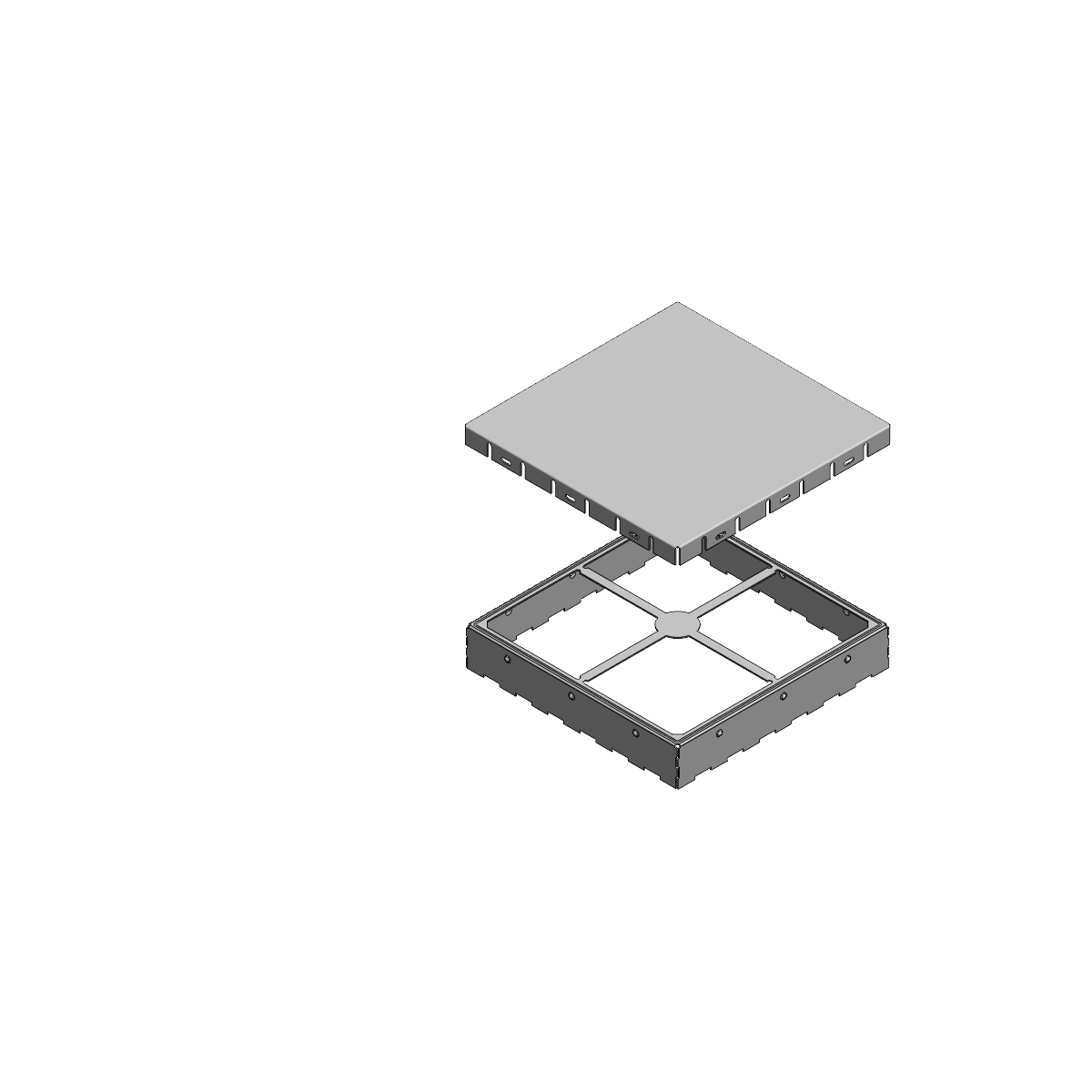

SMS-408			2-Piece Shield	1.559	1.559	0.276	No	150	.008" Pre-Tin Matte Steel
SMS-408-N			2-Piece Shield	1.559	1.559	0.276	No	150	.008" Alloy 770

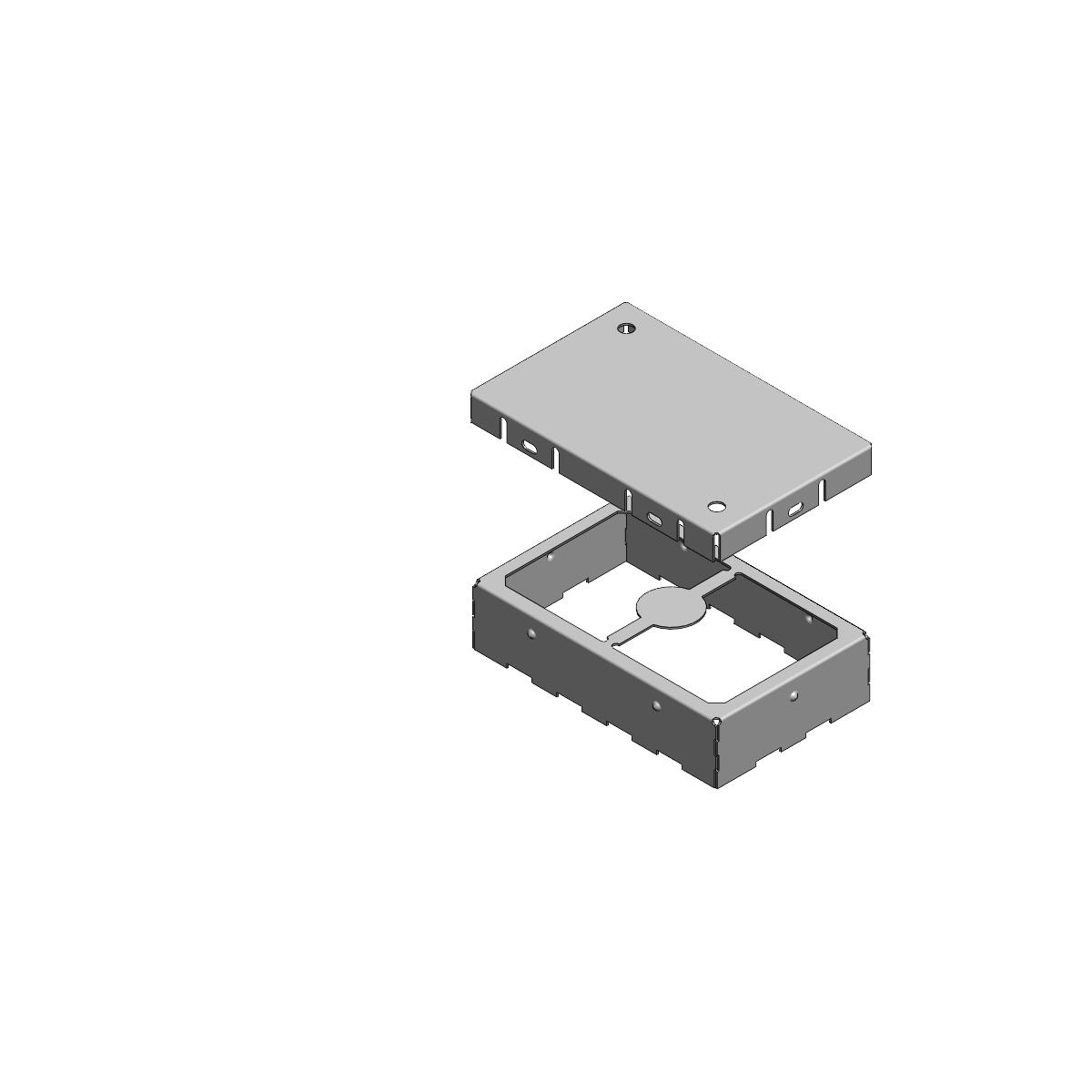

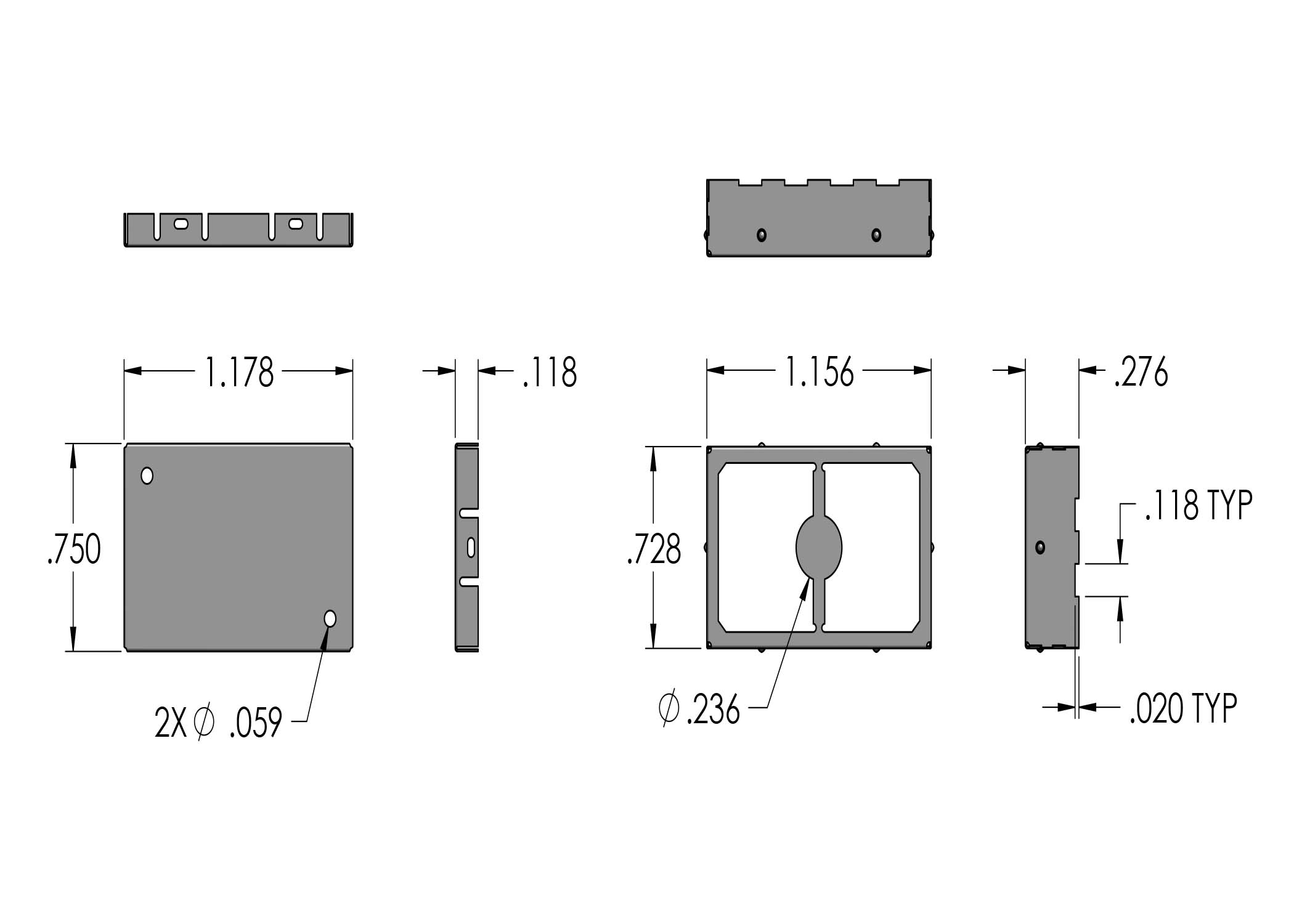

SMS-409			2-Piece Shield	0.728	1.156	0.276	No	325	.008" Pre-Tin Matte Steel
SMS-409-N			2-Piece Shield	0.728	1.156	0.276	No	325	.008" Alloy 770

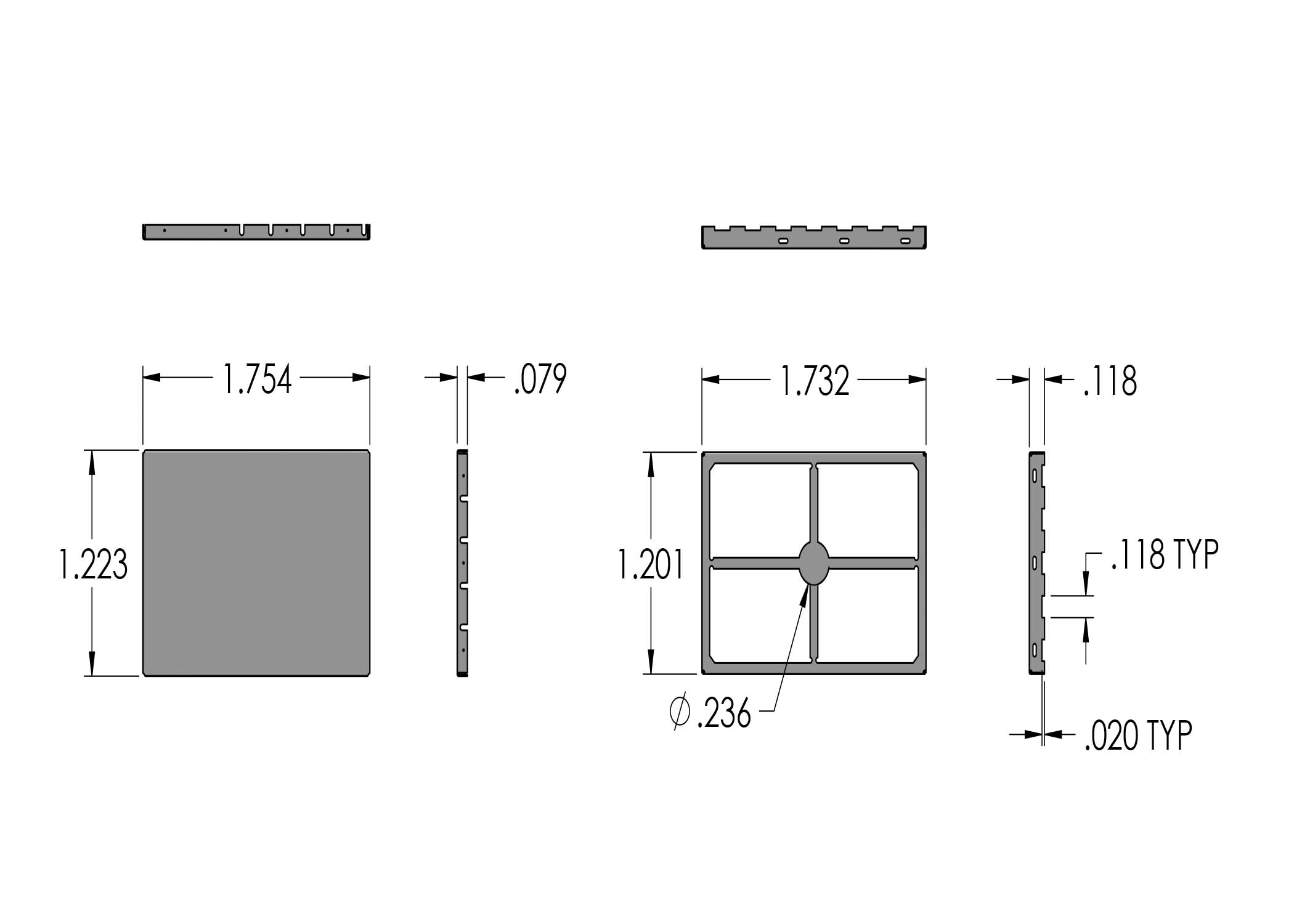

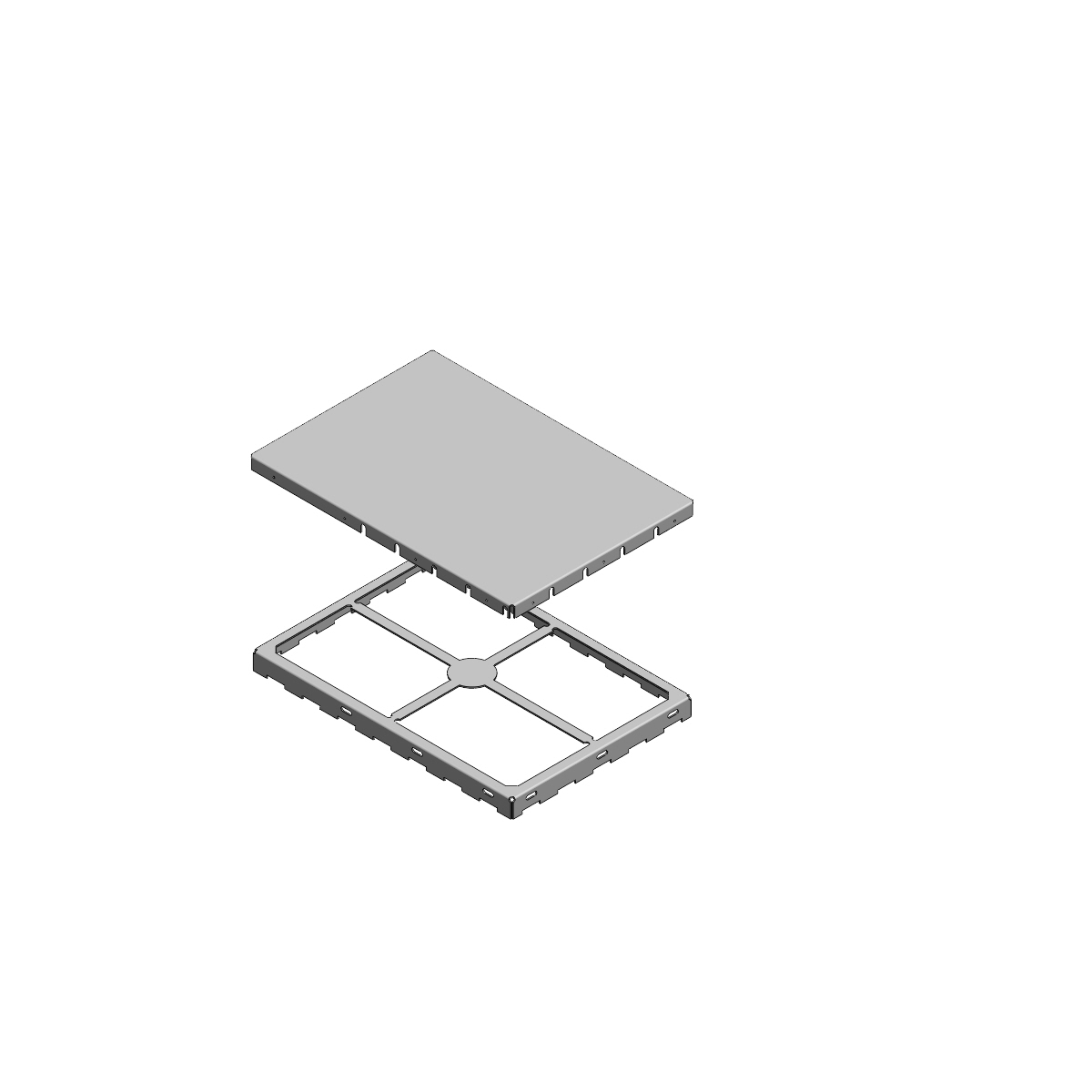

SMS-410			2-Piece Shield	1.201	1.732	0.118	No	370	.008" Pre-Tin Matte Steel
SMS-410-N			2-Piece Shield	1.201	1.732	0.118	No	370	.008" Alloy 770

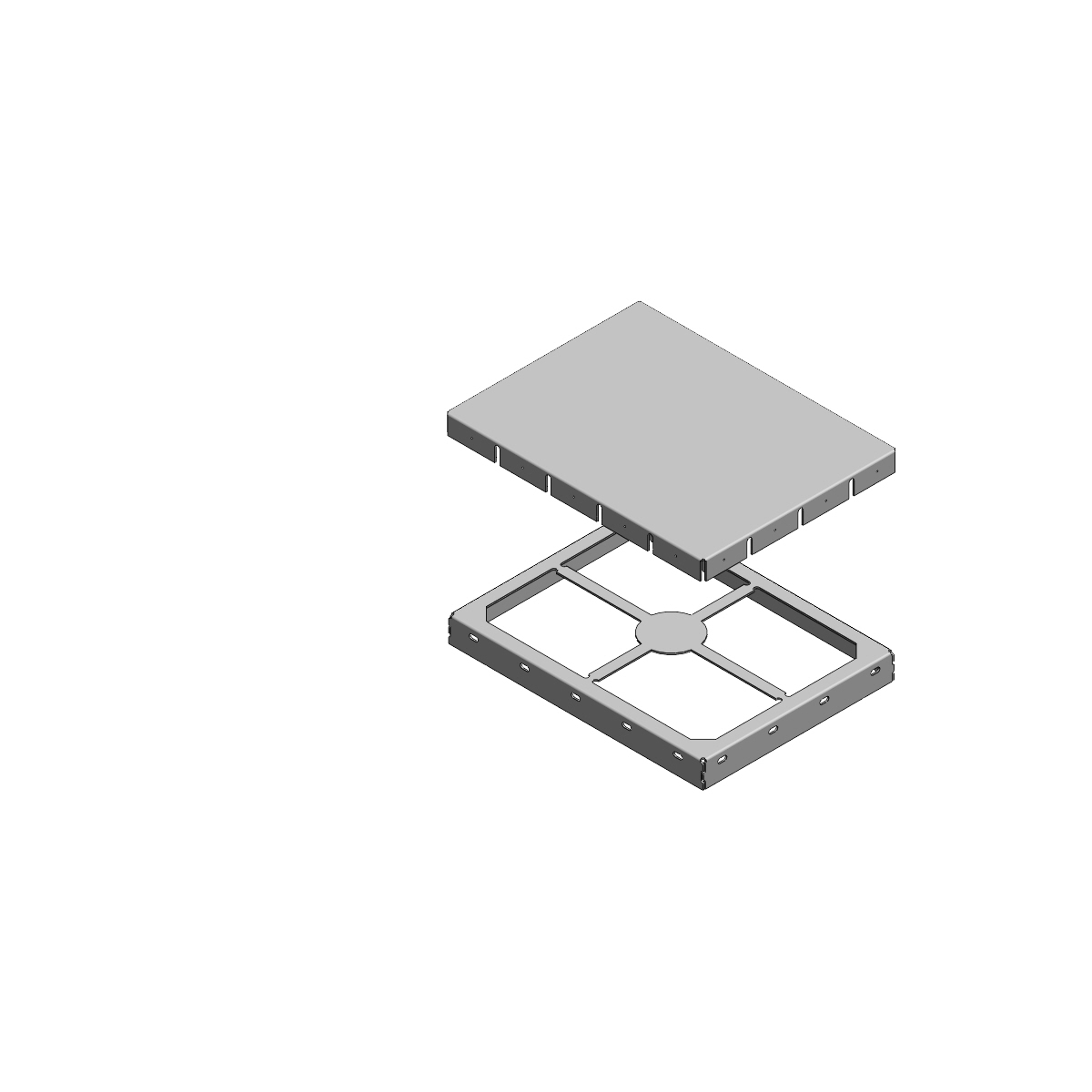

SMS-451			2-Piece Shield	1.500	2.000	0.200	No	250	.012" Pre-Tin Matte Steel
SMS-451-N			2-Piece Shield	1.500	2.000	0.200	No	250	.012" Alloy 770

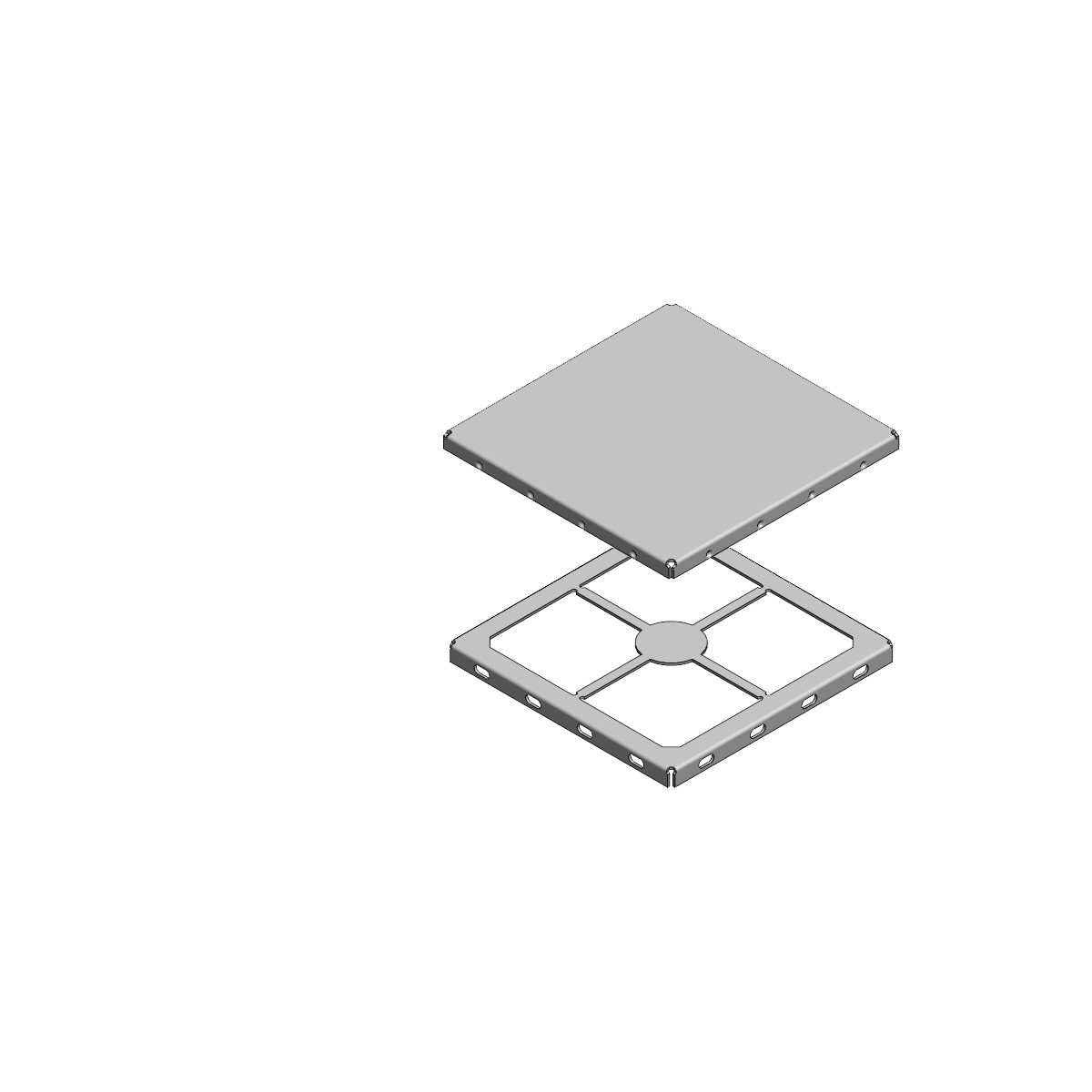

SMS-452			2-Piece Shield	1.034	1.034	0.070	No	300	.008" Pre-Tin Matte Steel
SMS-452-N			2-Piece Shield	1.034	1.034	0.070	No	300	.008" Alloy 770

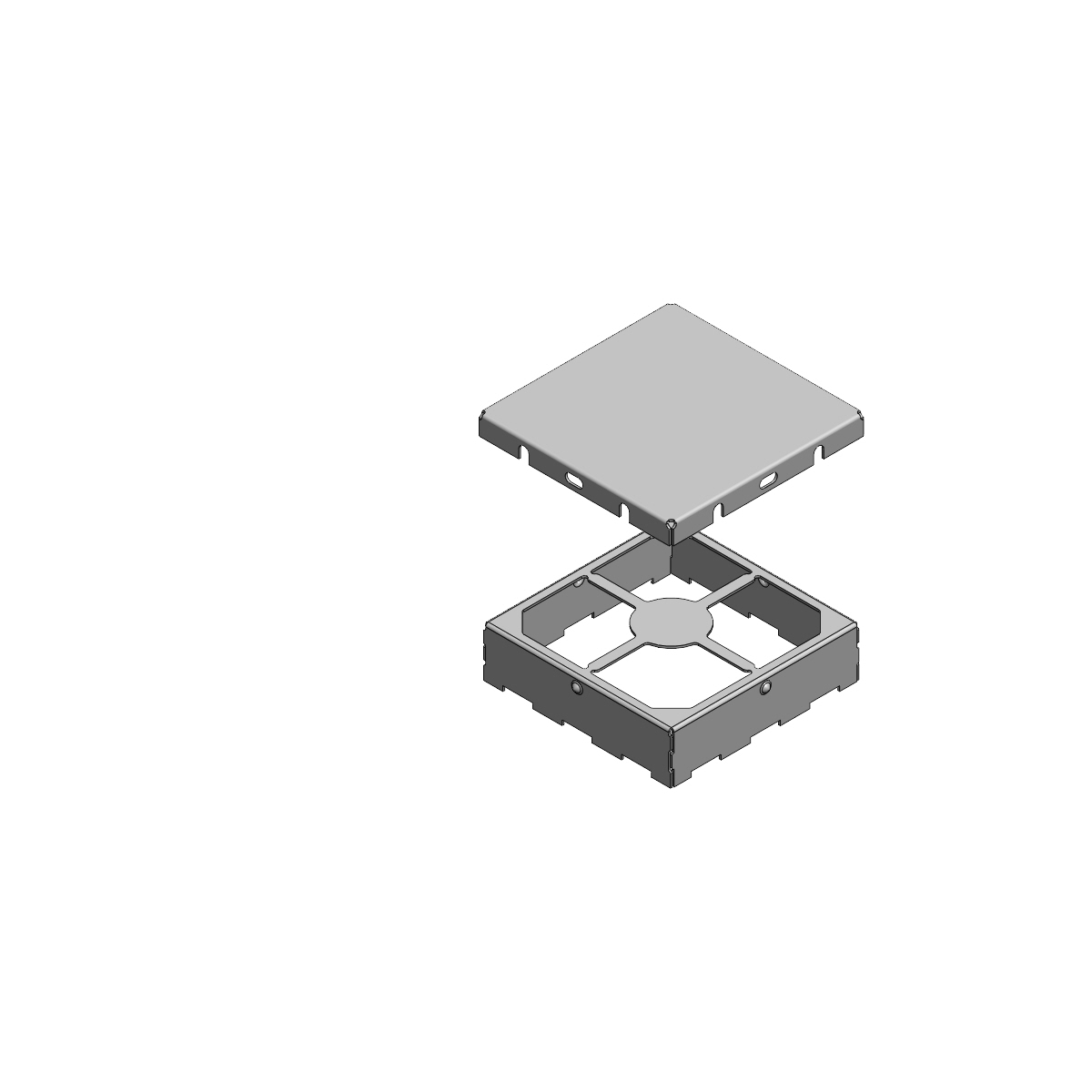

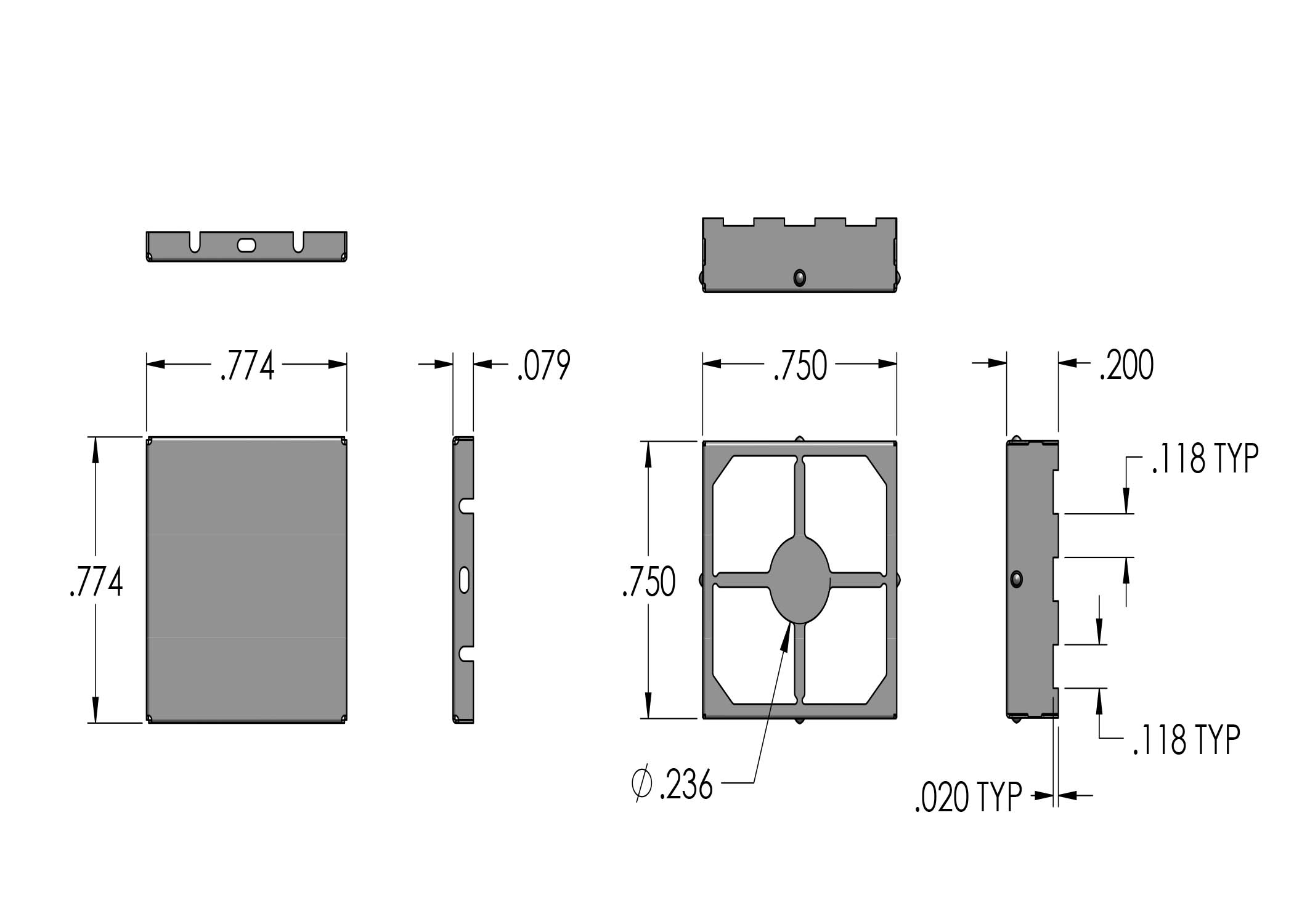

SMS-455			2-Piece Shield	0.750	0.750	0.200	No	300	0.008" Pre-Tin Matte Steel
SMS-455-N			2-Piece Shield	0.750	0.750	0.200	No	300	008" Alloy 770

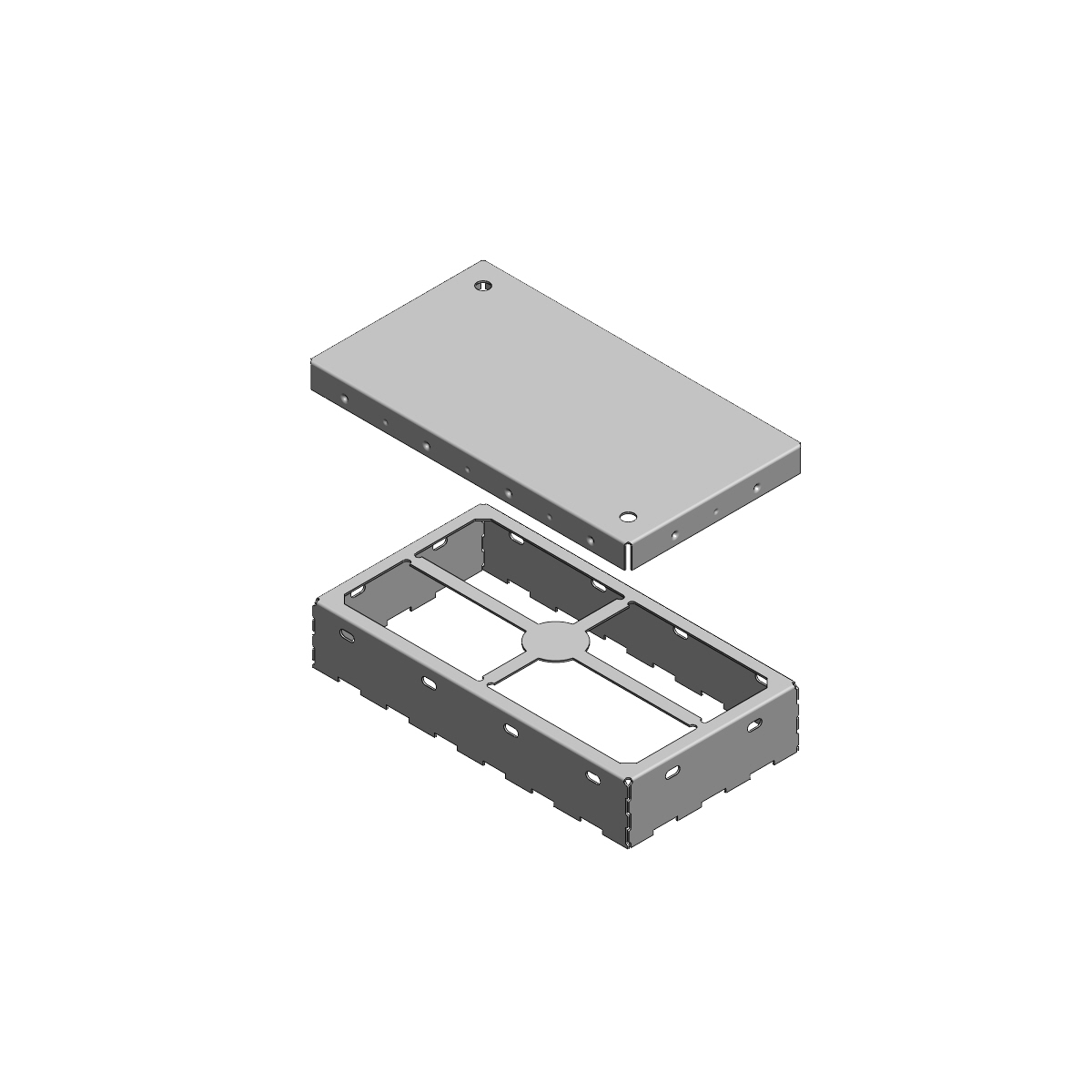

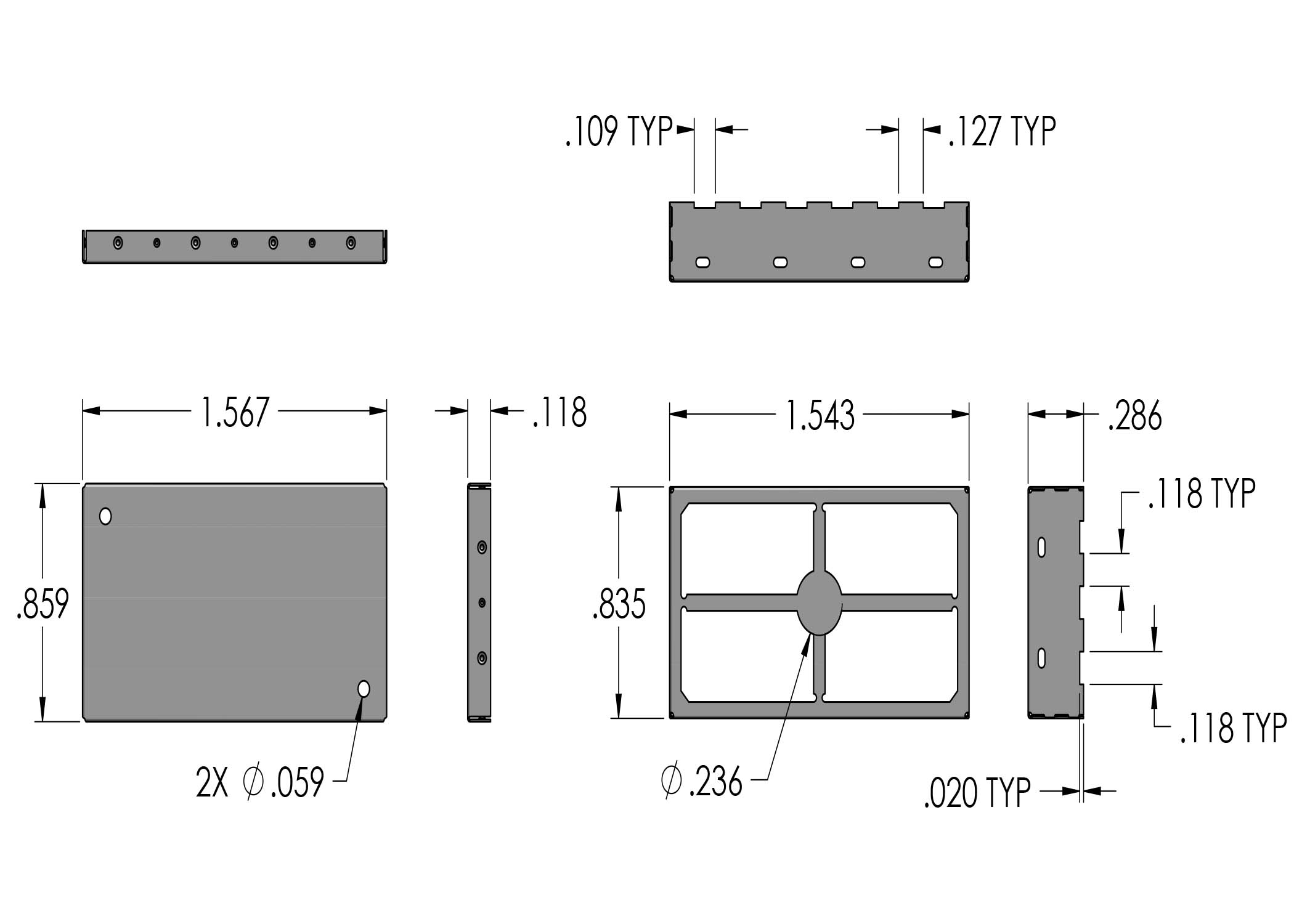

SMS-456			2-Piece Shield	0.835	1.543	0.286	No	280	.008" Pre-Tin Matte Steel
SMS-456-N			2-Piece Shield	0.835	1.543	0.286	No	280	.008" Alloy 770

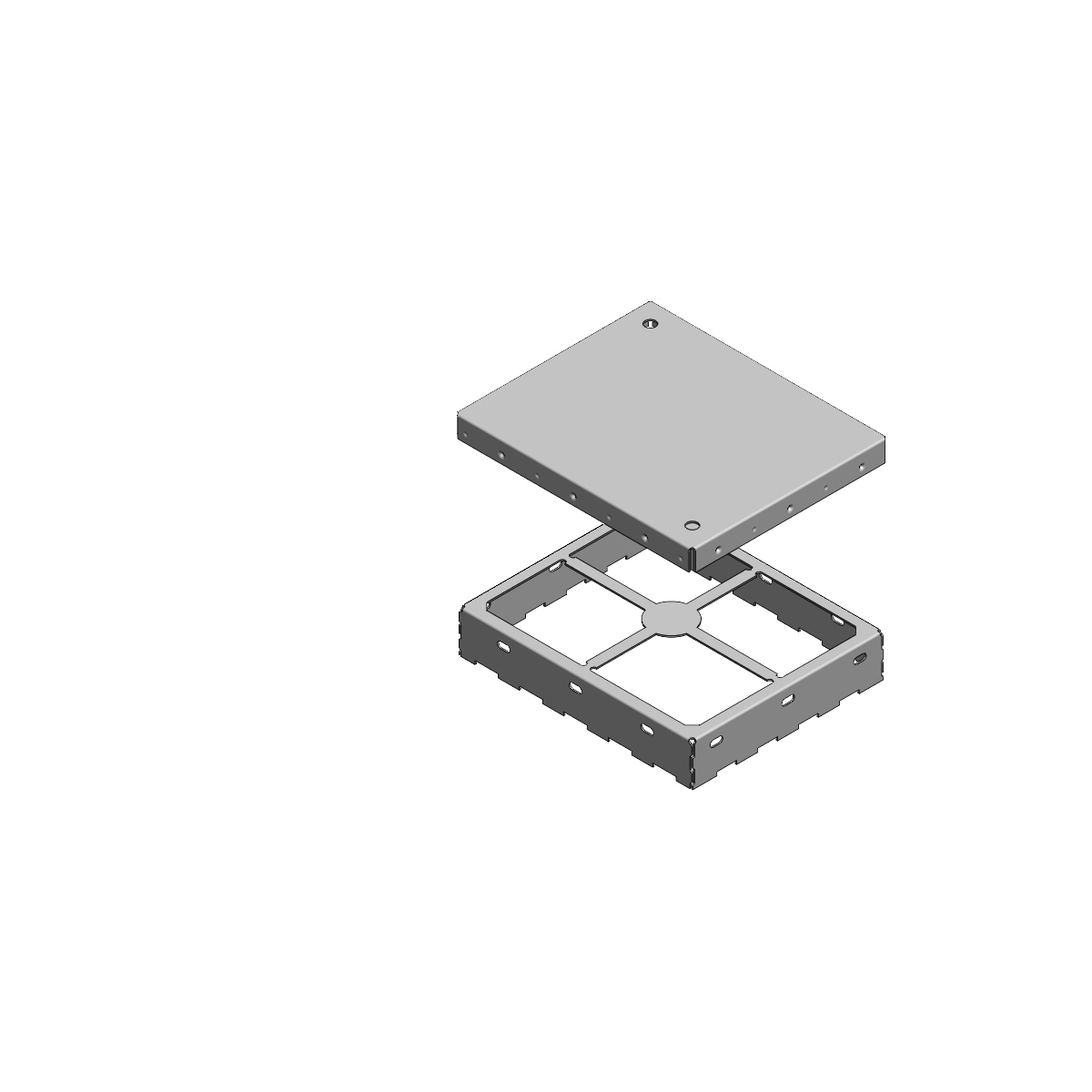

SMS-457			2-Piece Shield	1.070	1.304	0.236	No	210	.008" Pre-Tin Matte Steel
SMS-457-N			2-Piece Shield	1.070	1.304	0.236	No	210	.008" Alloy 770

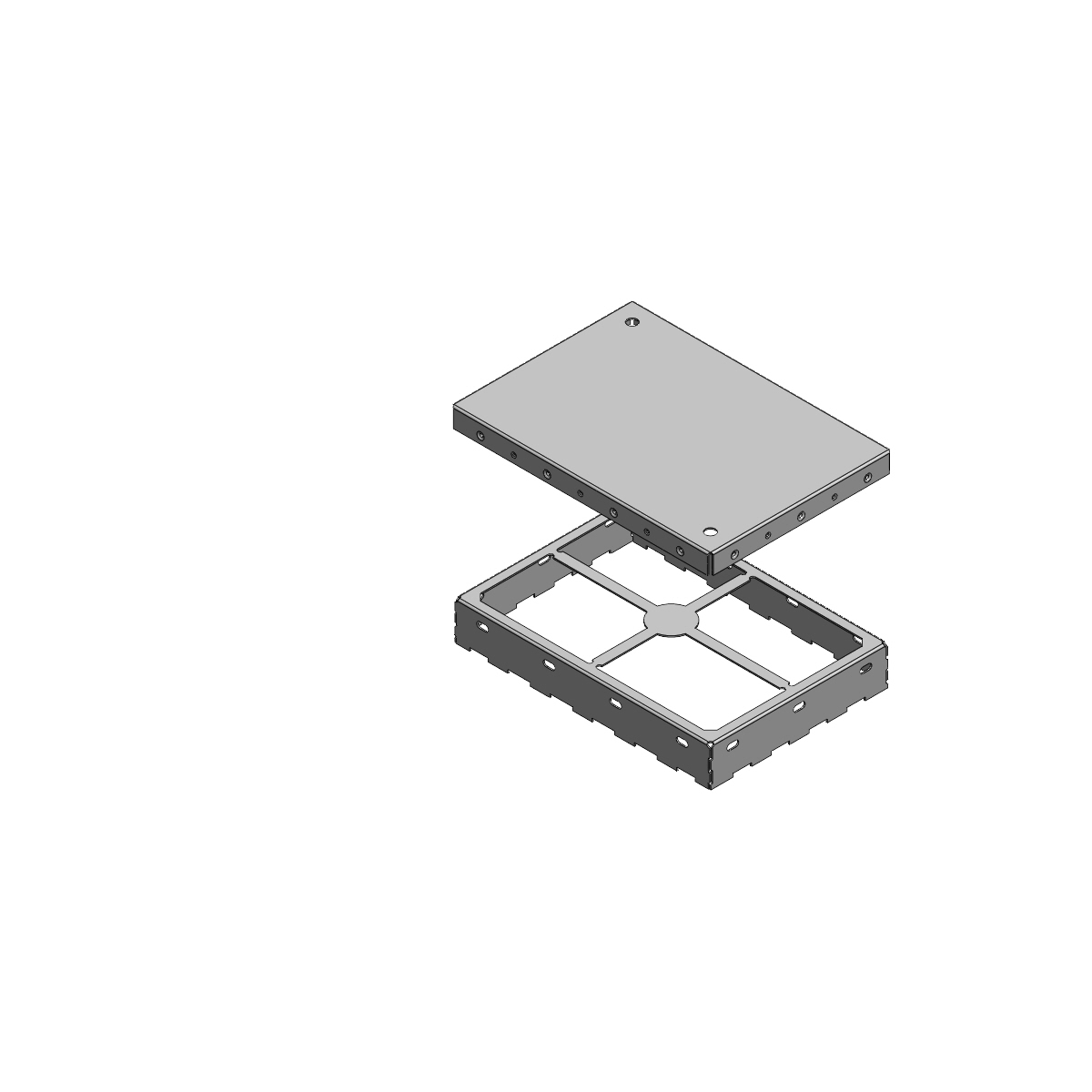

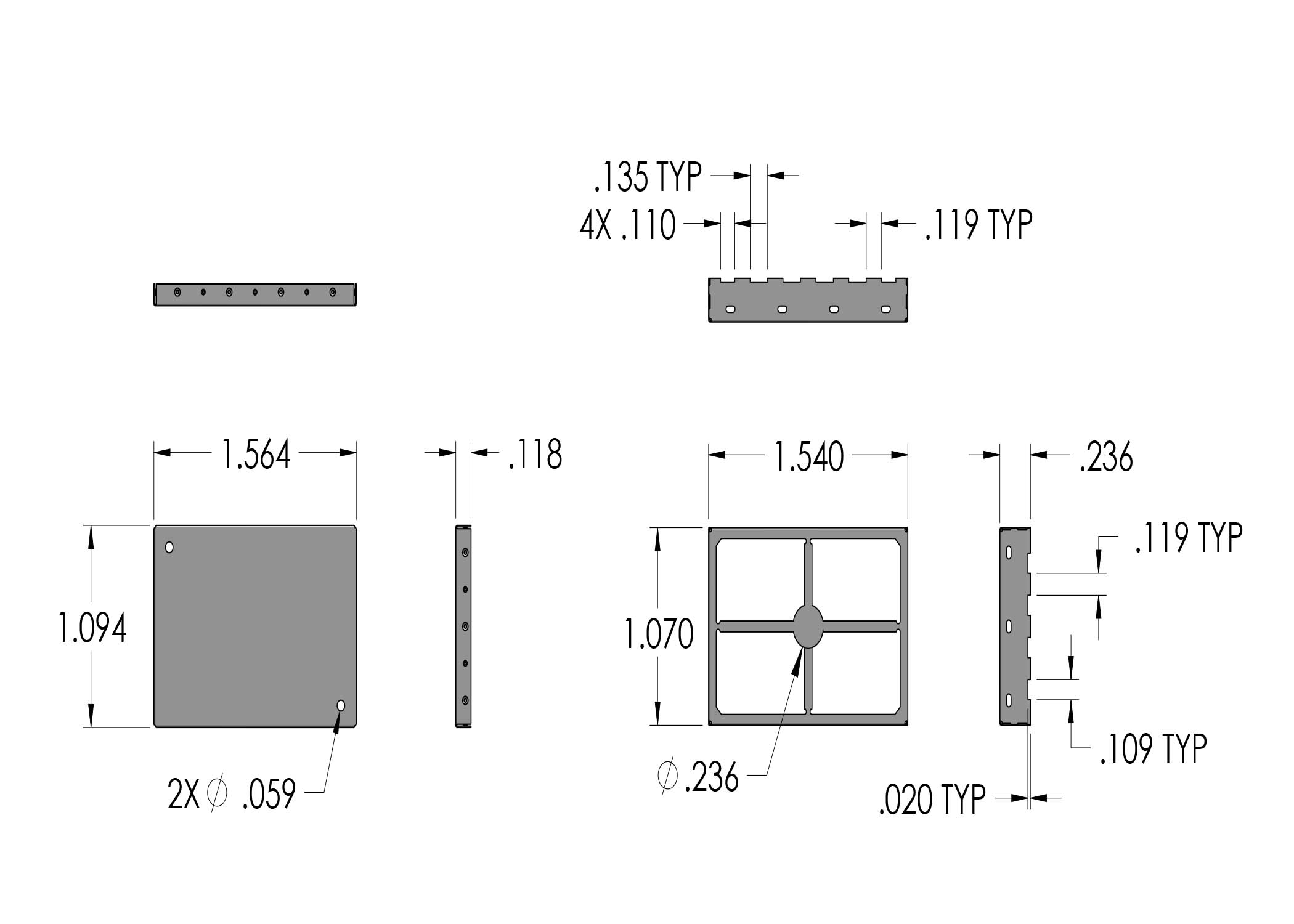

SMS-458			2-Piece Shield	1.070	1.540	0.236	No	240	.008" Pre-Tin Matte Steel
SMS-458-N			2-Piece Shield	1.070	1.540	0.236	No	240	.008" Alloy 770

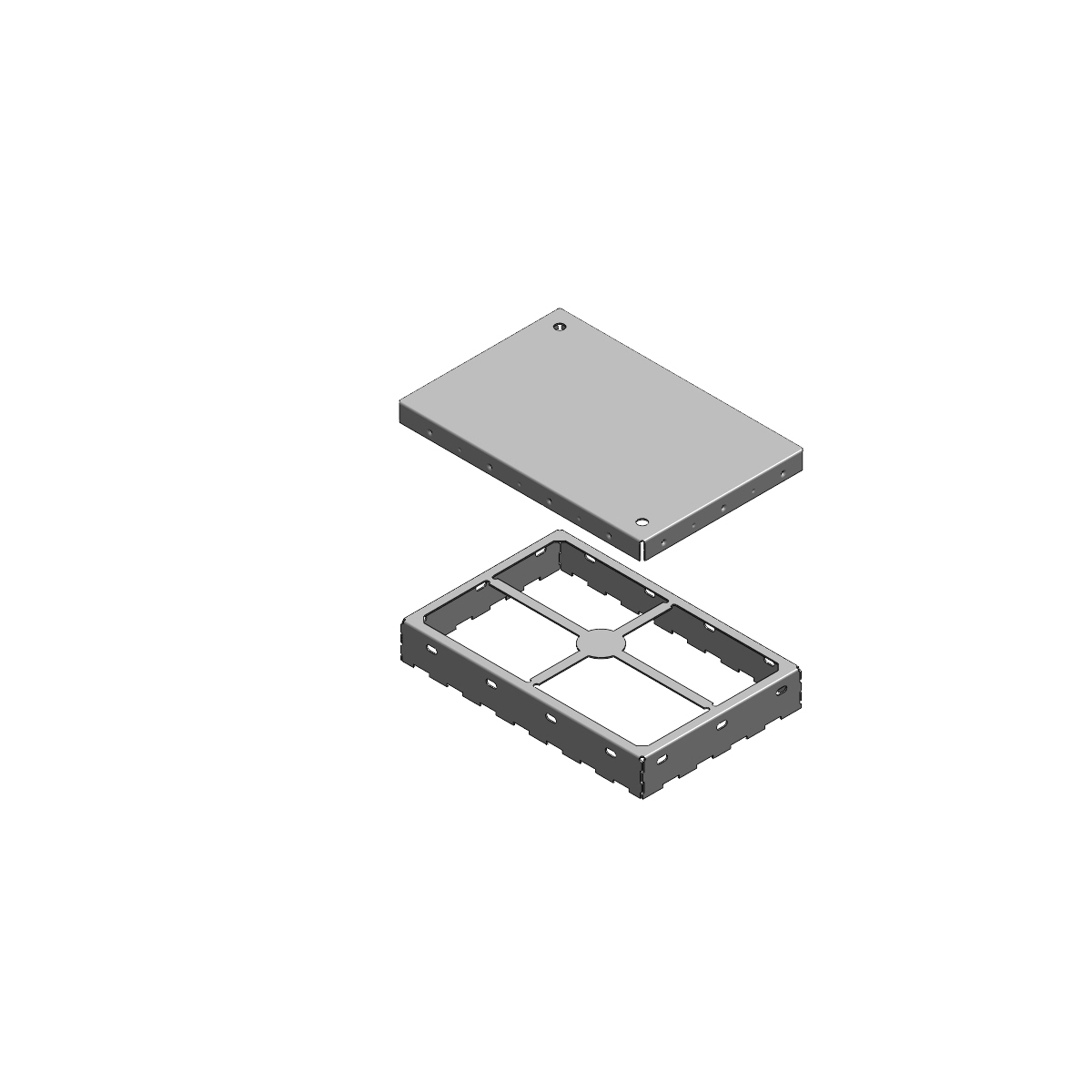

SMS-459			2-Piece Shield	1.070	1.623	0.236	No	230	.008" Pre-Tin Matte Steel
SMS-459-N			2-Piece Shield	1.070	1.623	0.236	No	230	.008" Alloy 770

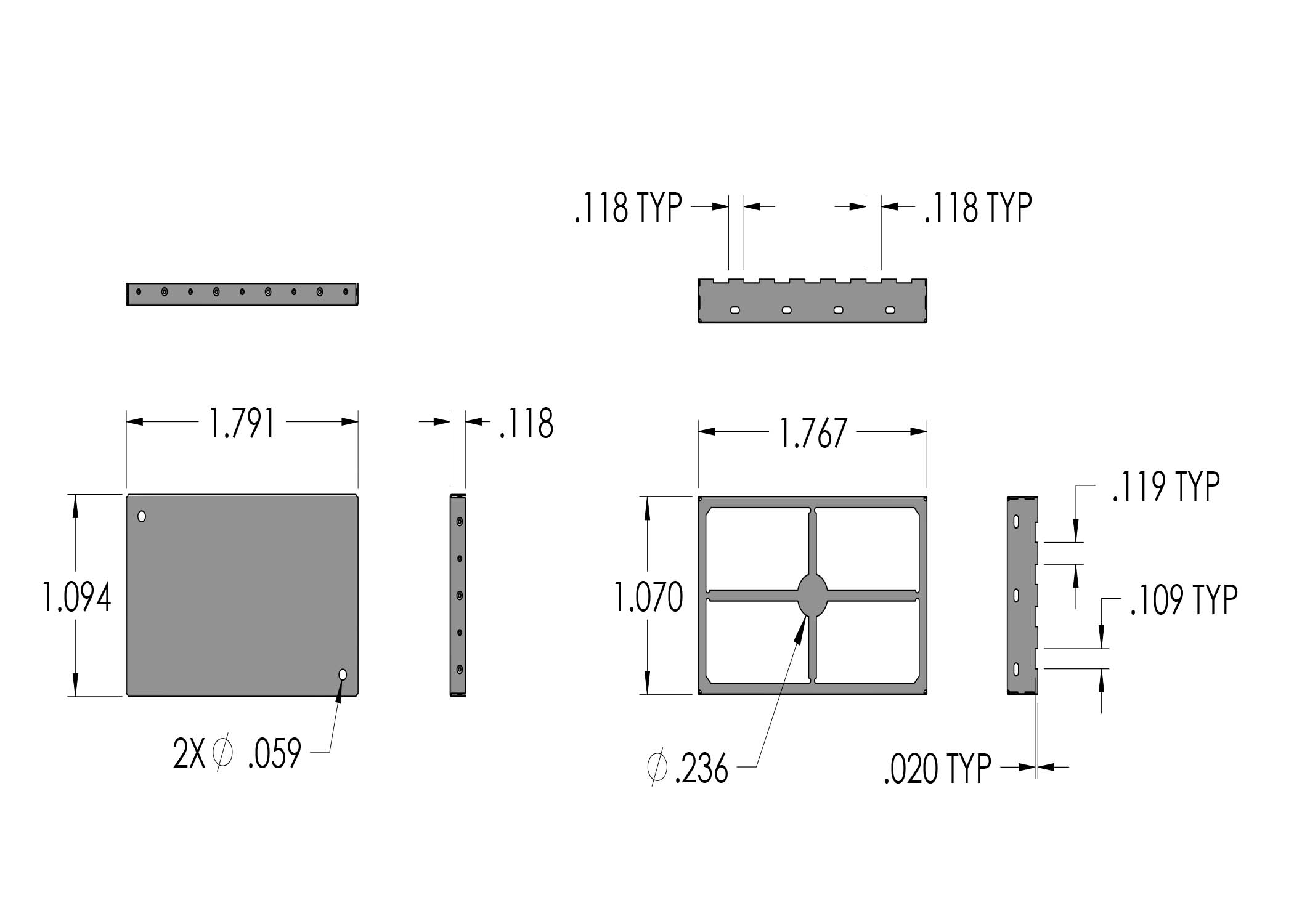

SMS-460			2-Piece Shield	1.070	1.767	0.236	No	230	.008" Pre-Tin Matte Steel
SMS-460-N			2-Piece Shield	1.070	1.767	0.236	No	230	.008" Alloy 770

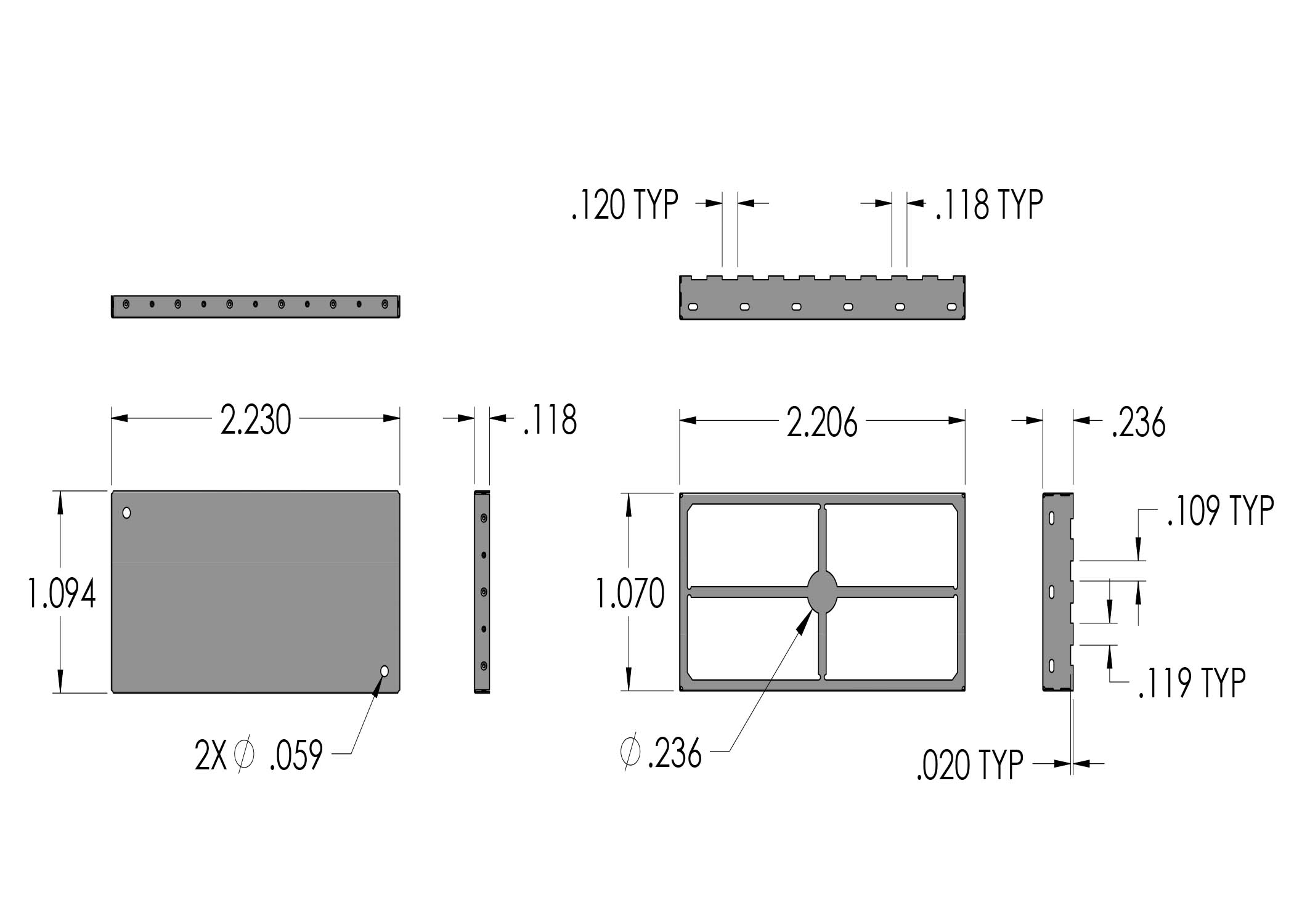

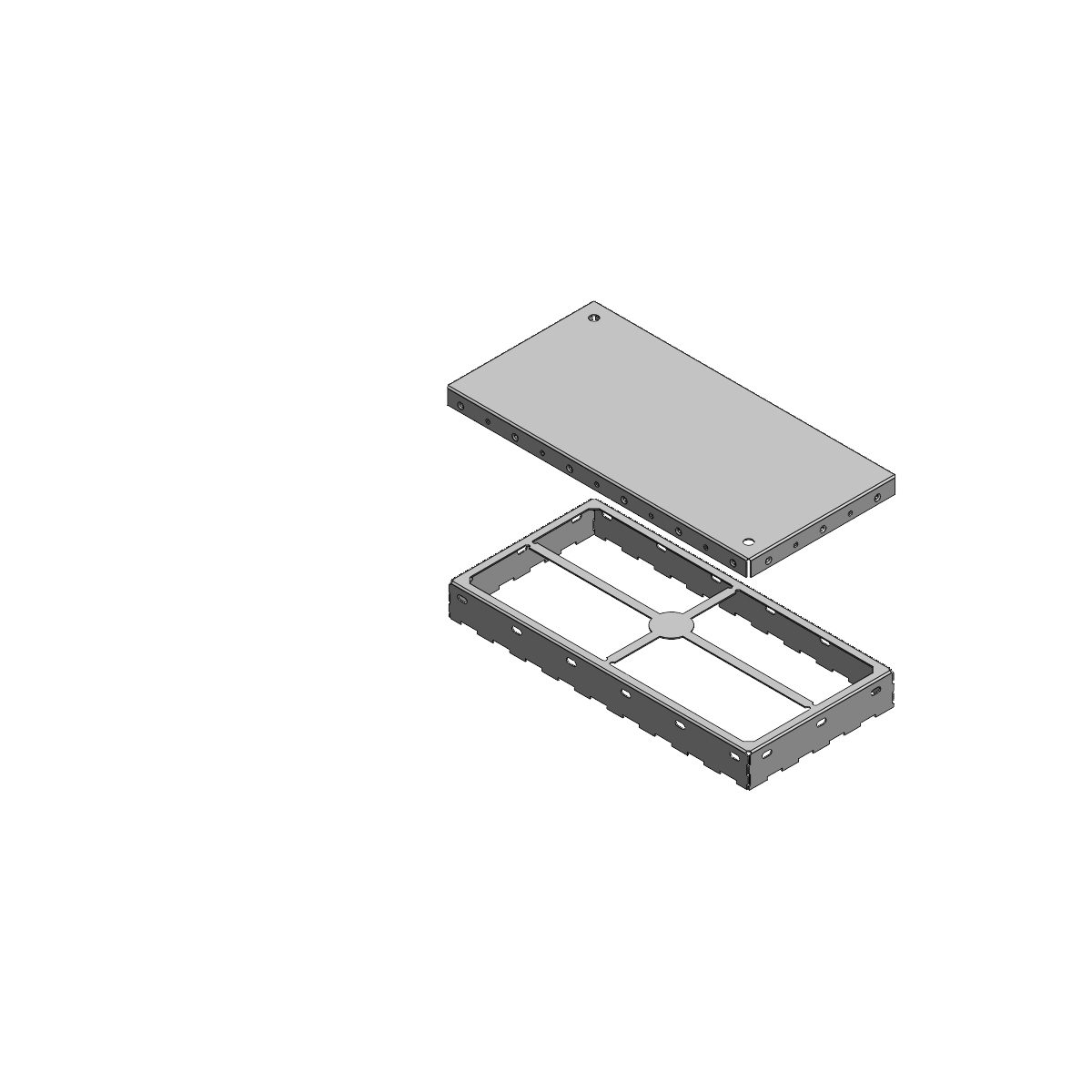

SMS-461			2-Piece Shield	1.070	2.206	0.236	No	200	.008" Pre-Tin Matte Steel
SMS-461-N			2-Piece Shield	1.070	2.206	0.236	No	200	.008" Alloy 770

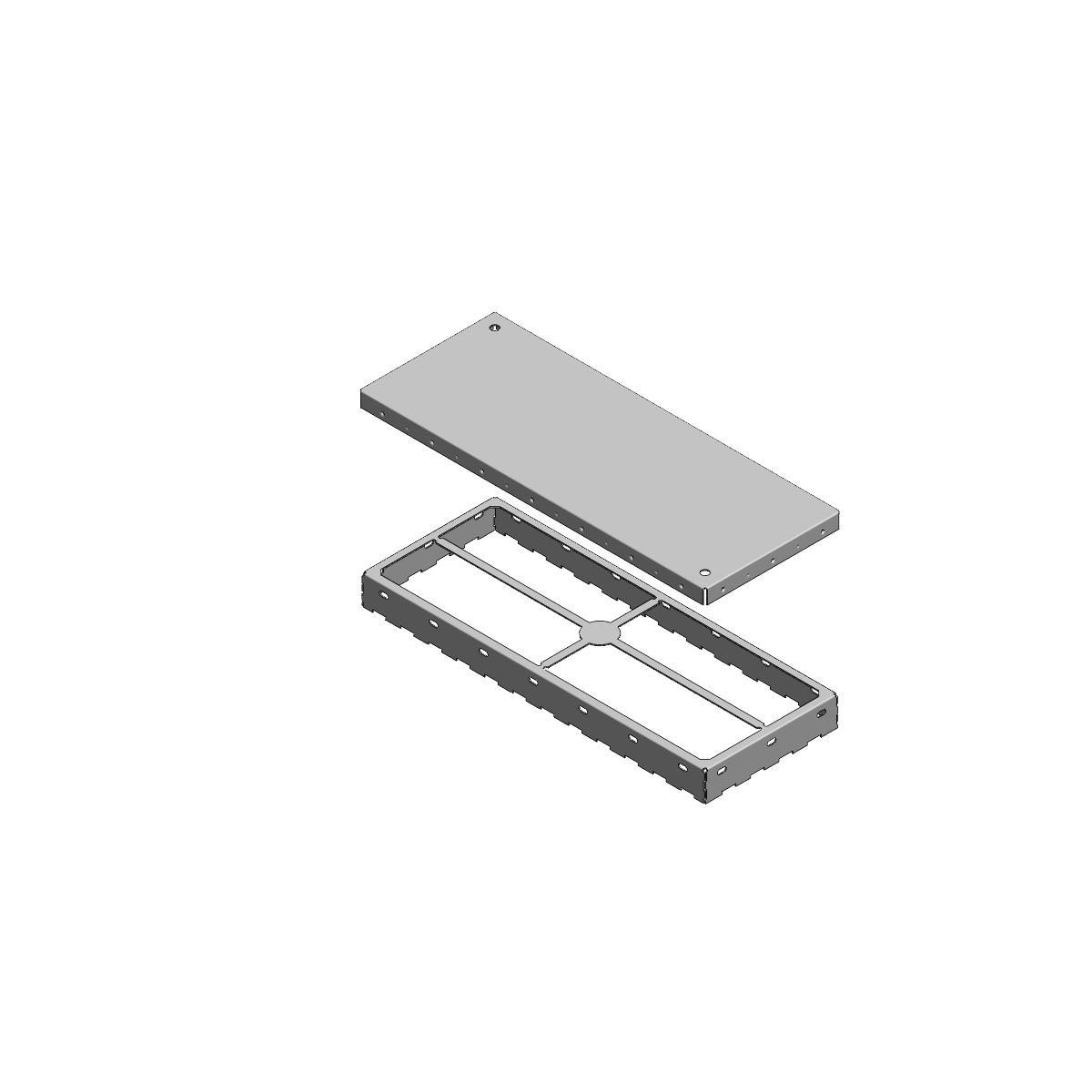

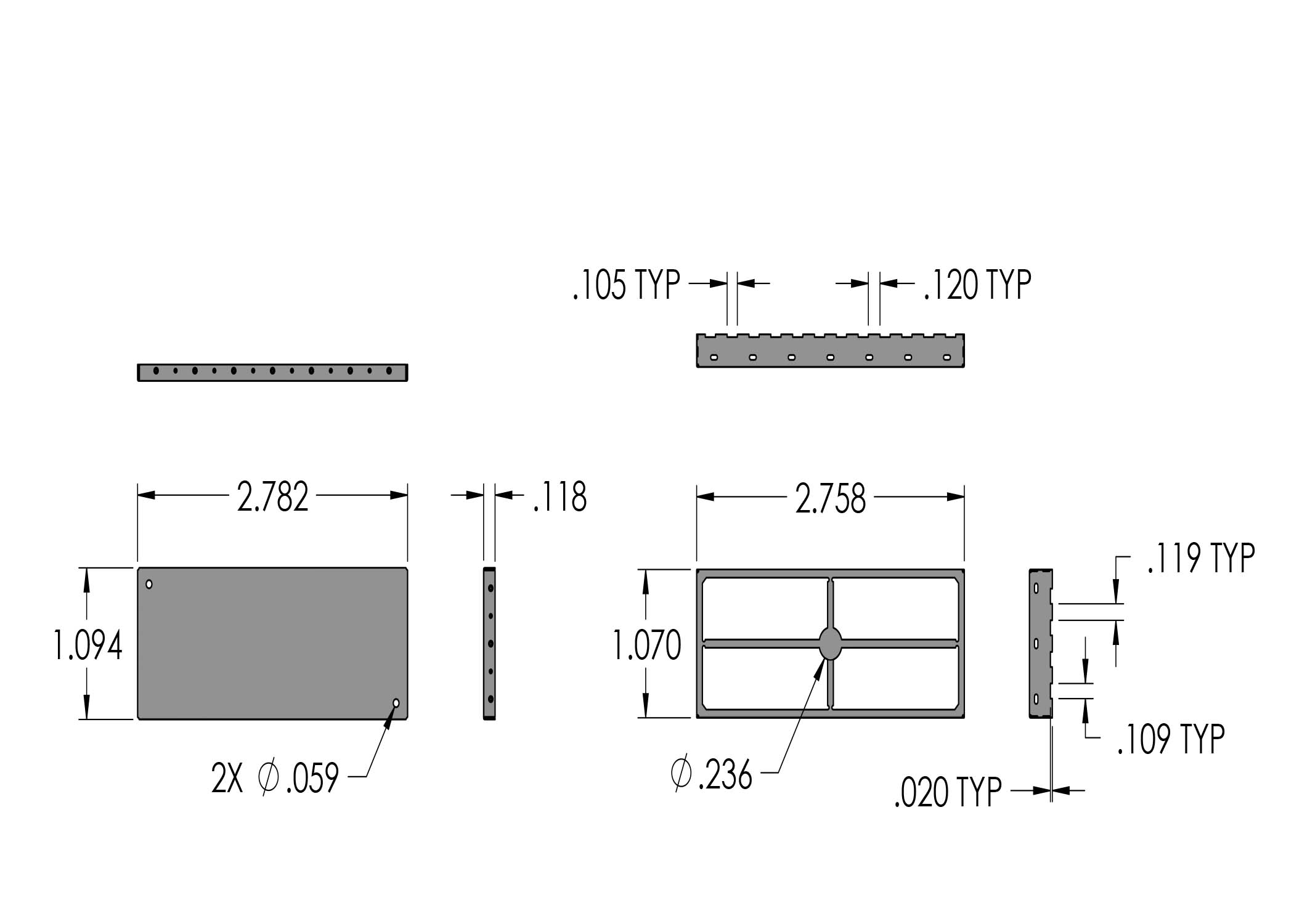

SMS-462			2-Piece Shield	1.070	2.758	0.236	No	250	.008" Pre-Tin Matte Steel
SMS-462-N			2-Piece Shield	1.070	2.758	0.236	No	250	.008" Alloy 770

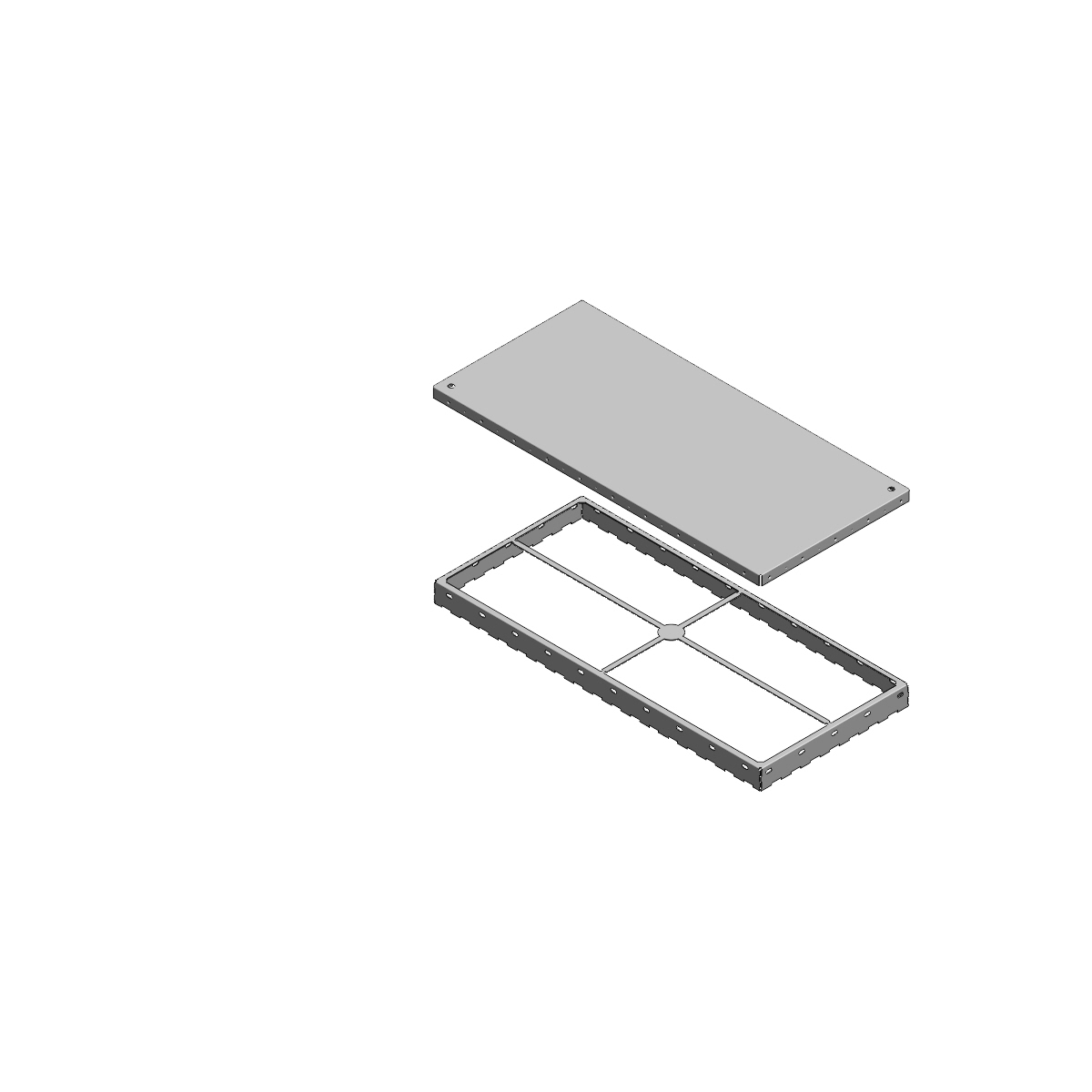

SMS-463			2-Piece Shield	1.805	3.979	0.236	No	130	.008" Pre-Tin Matte Steel
SMS-463-N			2-Piece Shield	1.805	3.979	0.236	No	130	.008" Alloy 770

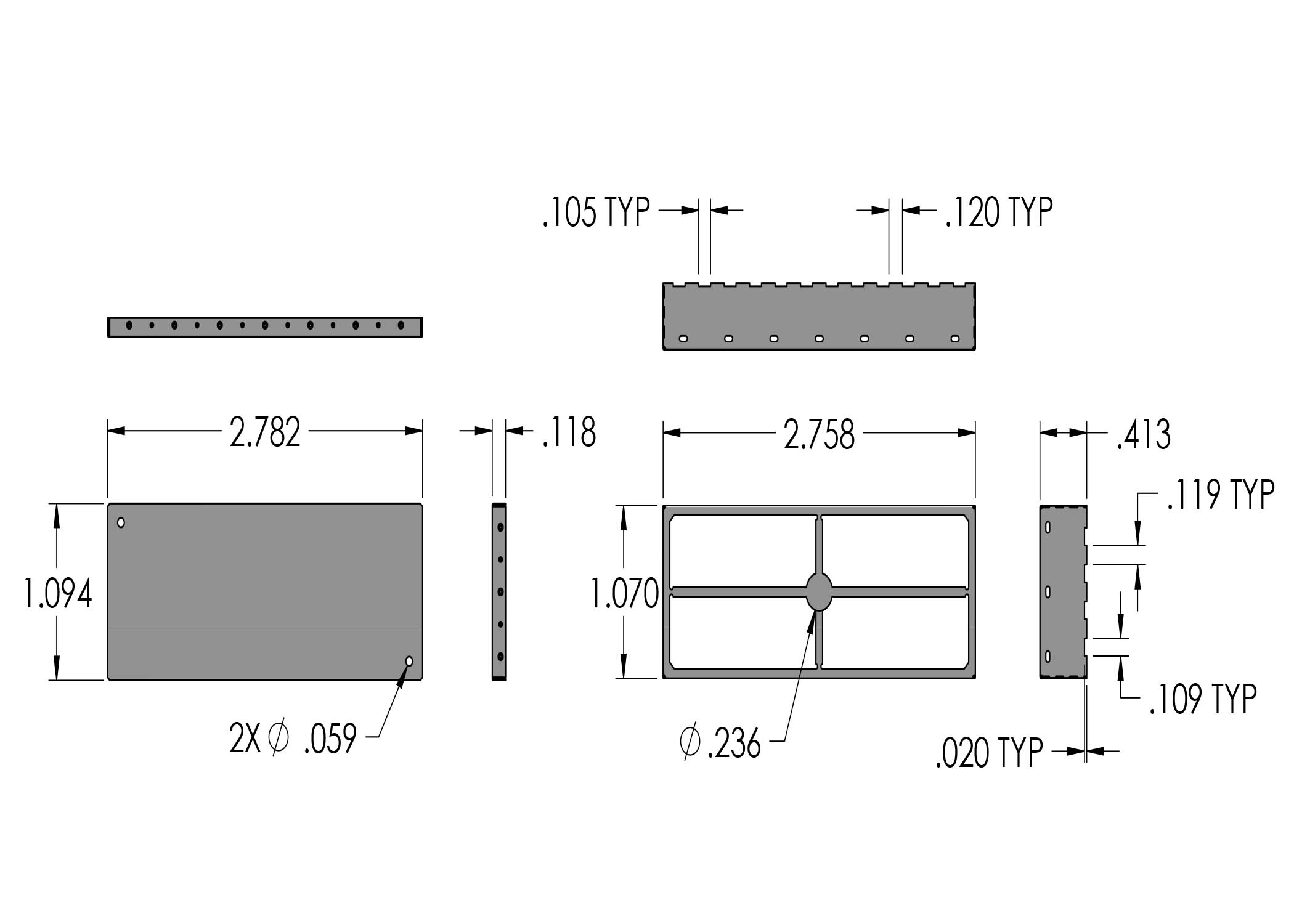

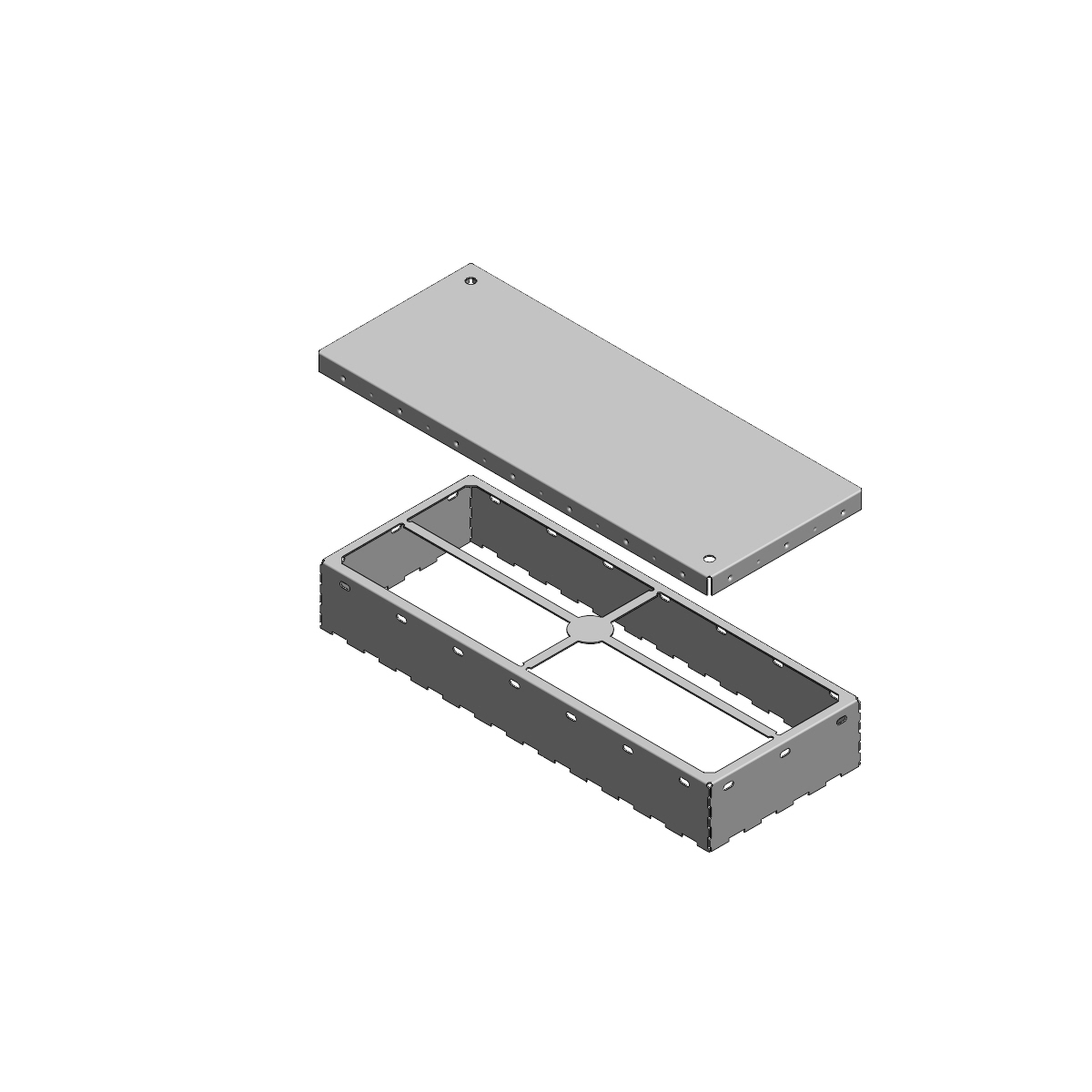

SMS-464			2-Piece Shield	1.070	2.758	0.413	No	125	.008" Pre-Tin Matte Steel
SMS-464-N			2-Piece Shield	1.070	2.758	0.413	No	125	.008" Alloy 770

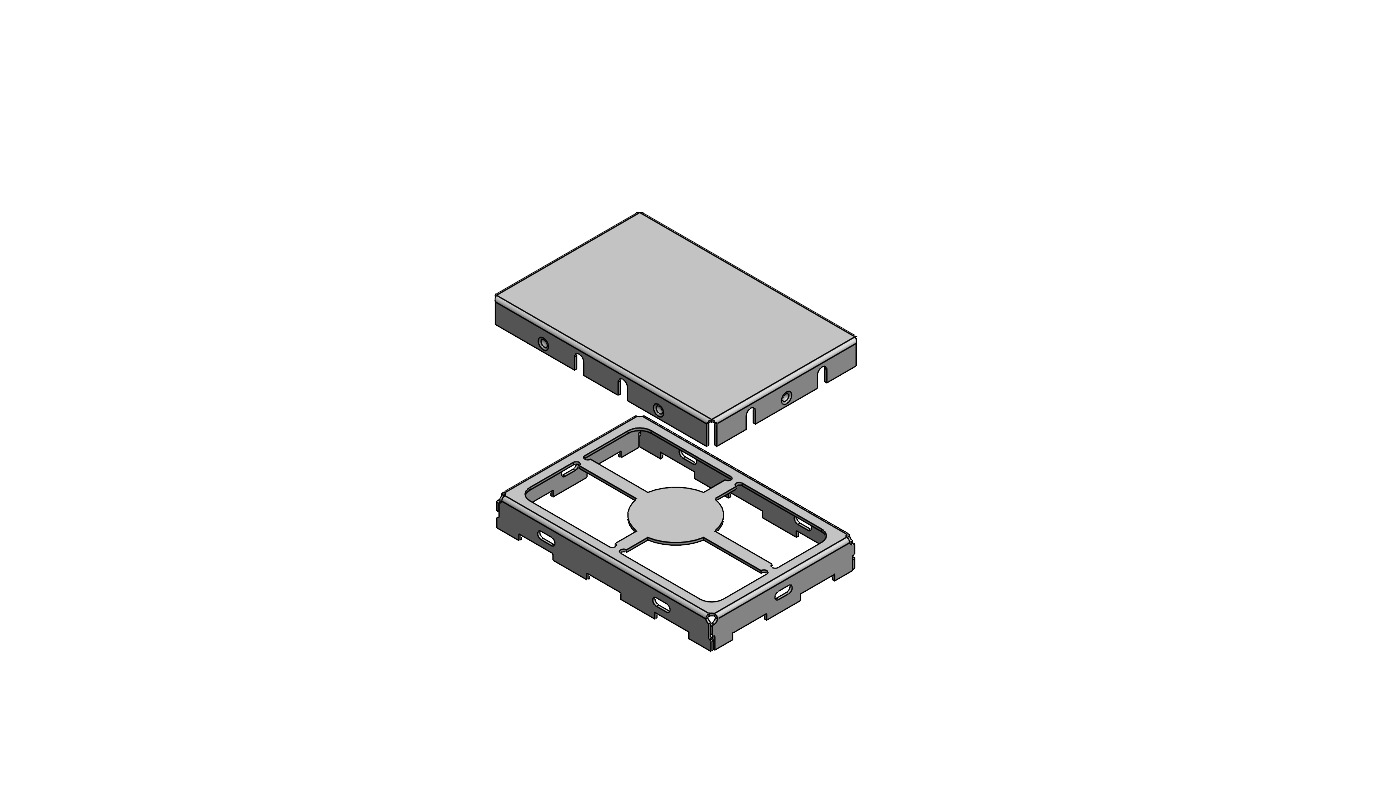

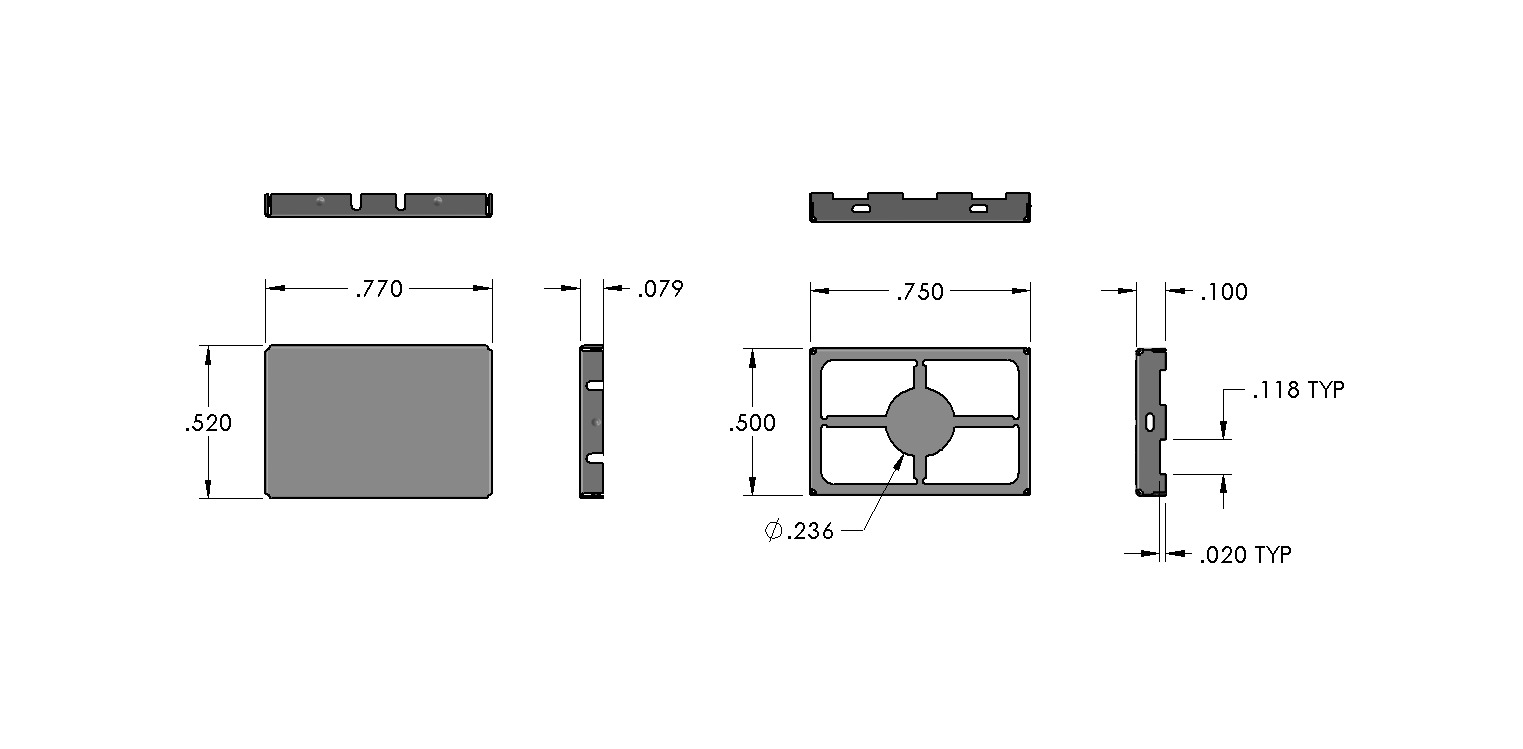

SMS-469			2-Piece Shield	0.500	0.750	0.100	No	800	.008" Pre-Tin Matte Steel
SMS-469-N			2-Piece Shield	0.500	0.750	0.100	No	800	.008" Alloy 770

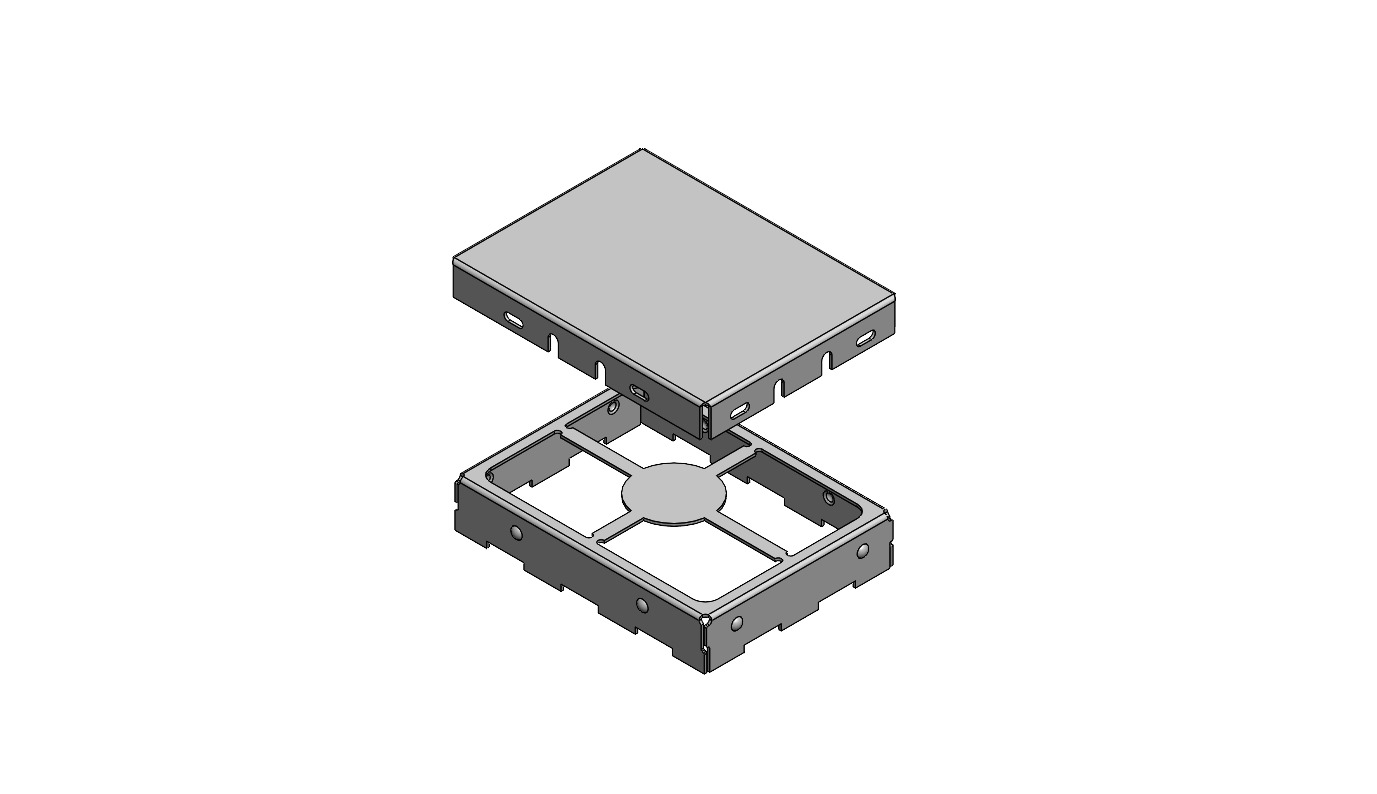

SMS-470			2-Piece Shield	0.600	0.800	0.150	No	450	.008" Pre-Tin Matte Steel
SMS-470-N			2-Piece Shield	0.600	0.800	0.150	No	450	.008" Alloy 770

Leader Tech Part Number	ISO Projection View Url	Orthographic Projection View Url	Type	Shield Width (mm)	Shield Length (mm)	Shield Height (mm)	Vented	Parts per Reel	Material	PDF Url
Leader Tech Part Number	ISO Projection View Url	Orthographic Projection View Url	Type	Shield Width (mm)	Shield Length (mm)	Shield Height (mm)	Vented	Parts per Reel	Material	PDF Url
SMS-201			2-Piece Shield	12.70	13.67	2.54	Yes	1000	.008" Pre-Tin Matte Steel
SMS-201-N			2-Piece Shield	12.70	13.67	2.54	Yes	1000	.008" Alloy 770

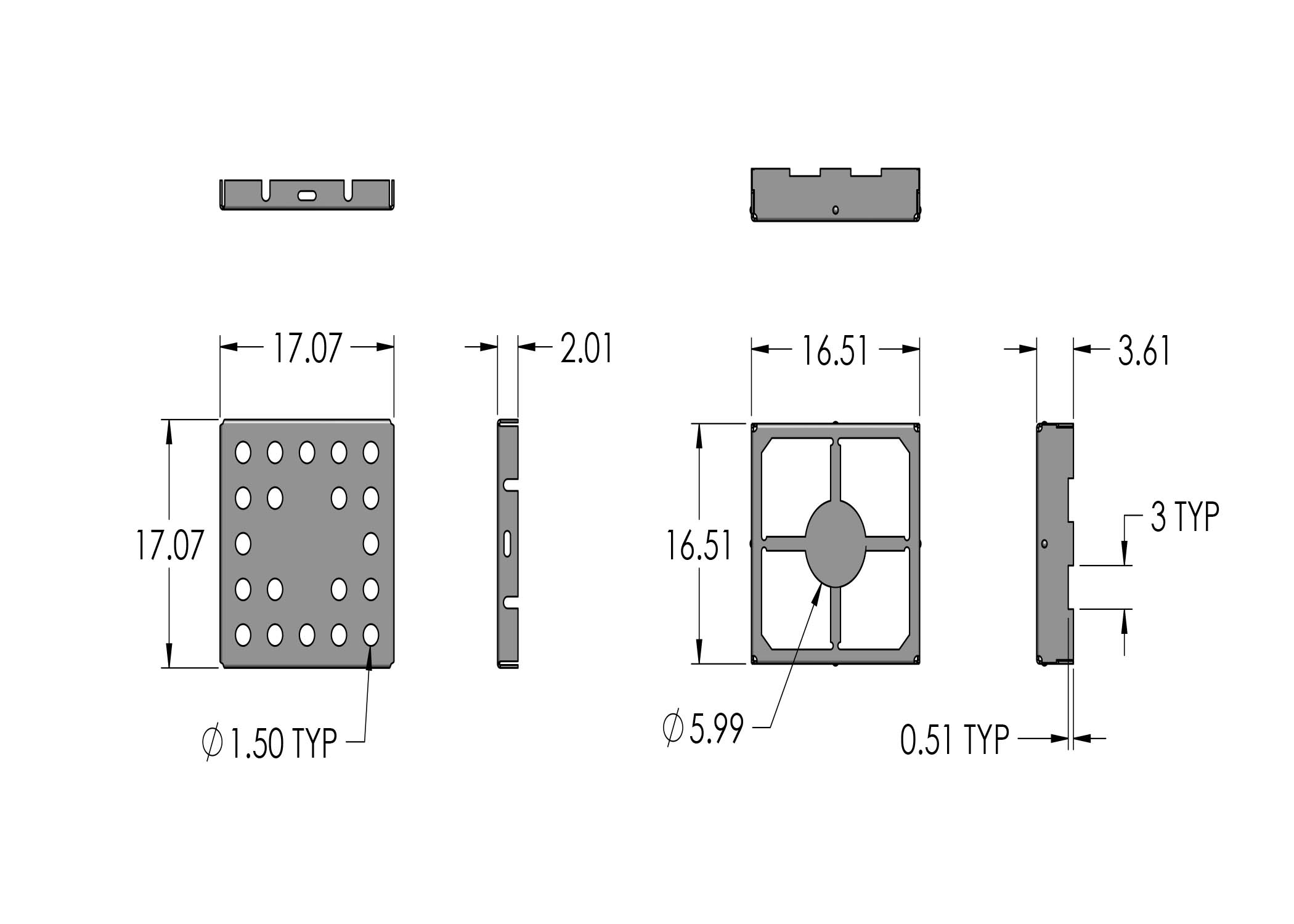

SMS-202			2-Piece Shield	16.51	16.51	3.61	Yes	700	.008" Pre-Tin Matte Steel
SMS-202-N			2-Piece Shield	16.51	16.51	3.61	Yes	700	.008" Alloy 770
SMS-203			2-Piece Shield	26.21	26.21	5.08	Yes	300	.010" Pre-Tin Bright Steel

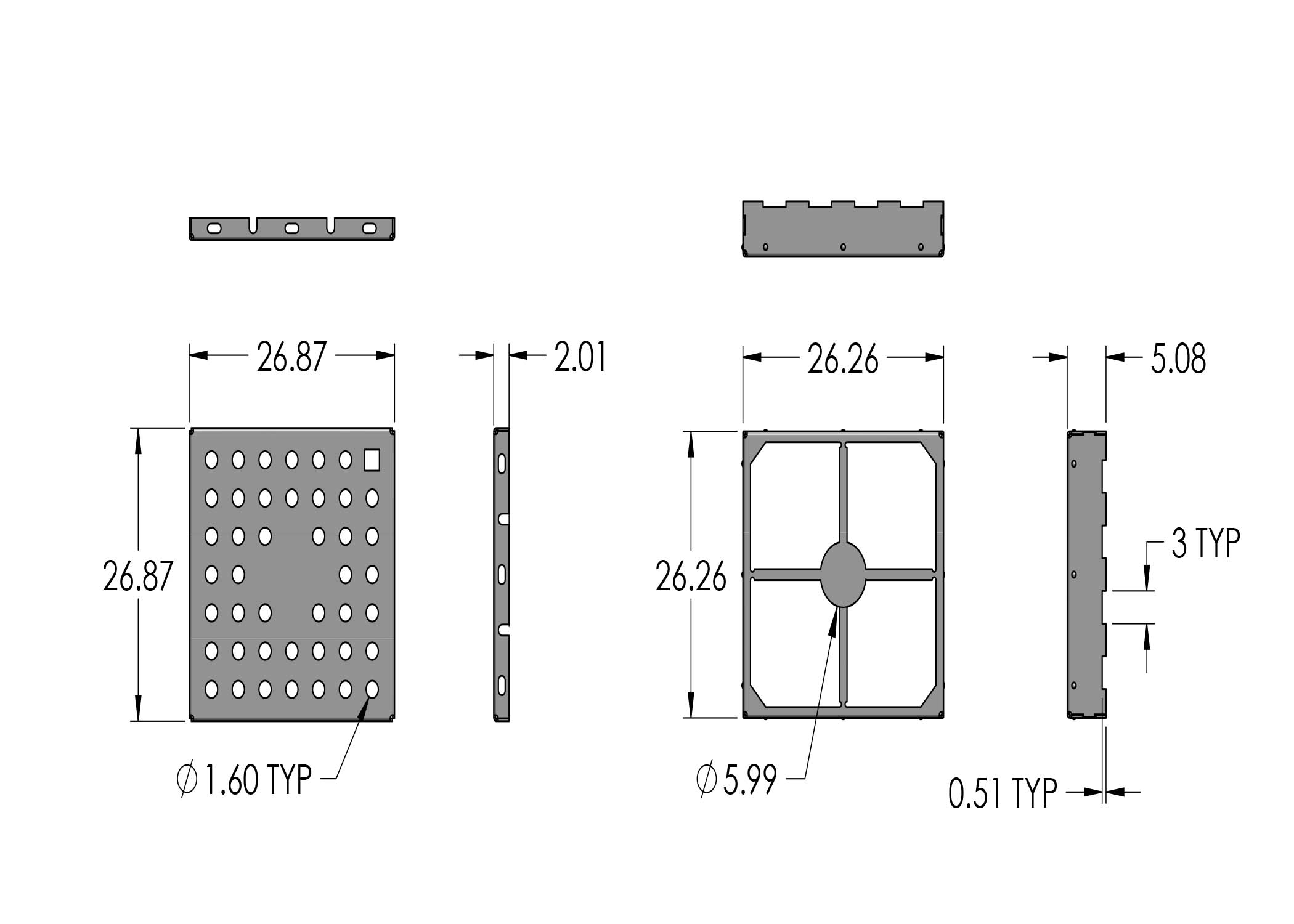

SMS-203-M			2-Piece Shield	26.21	26.21	5.08	Yes	300	.008" Pre-Tin Matte Steel
SMS-203-N			2-Piece Shield	26.21	26.21	5.08	Yes	300	.008" Alloy 770
SMS-204			2-Piece Shield	32.00	32.00	5.99	Yes	225	.008" Pre-Tin Matte Steel
SMS-204-N			2-Piece Shield	32.00	32.00	5.99	Yes	225	.008" Alloy 770

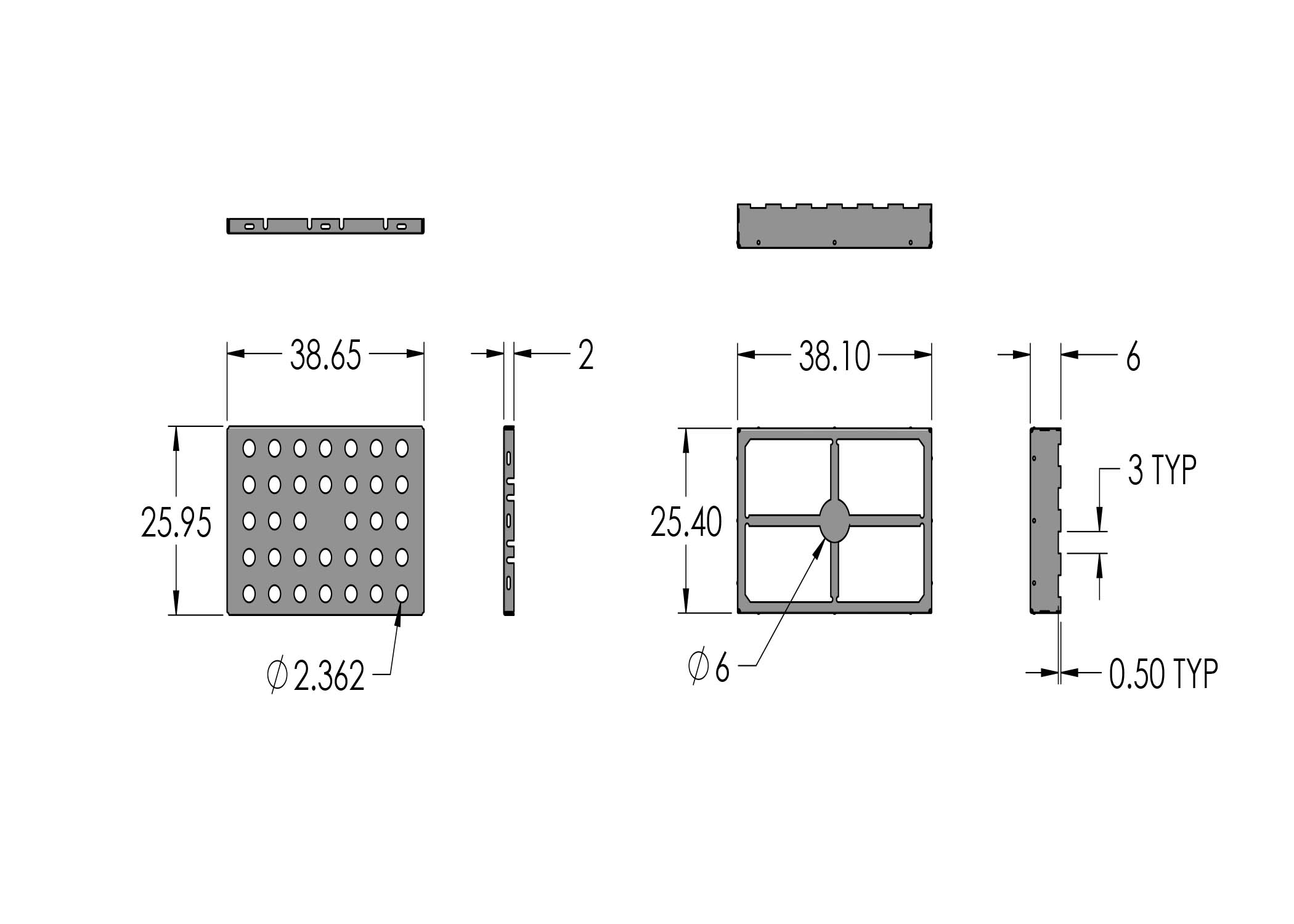

SMS-205			2-Piece Shield	25.40	38.10	5.99	Yes	250	.008" Pre-Tin Matte Steel
SMS-205-N			2-Piece Shield	25.40	38.10	5.99	Yes	250	.008" Alloy 770
SMS-206			2-Piece Shield	33.68	36.83	5.08	Yes	300	.008" Pre-Tin Matte Steel
SMS-206-N			2-Piece Shield	33.68	36.83	5.08	Yes	300	.008" Alloy 770

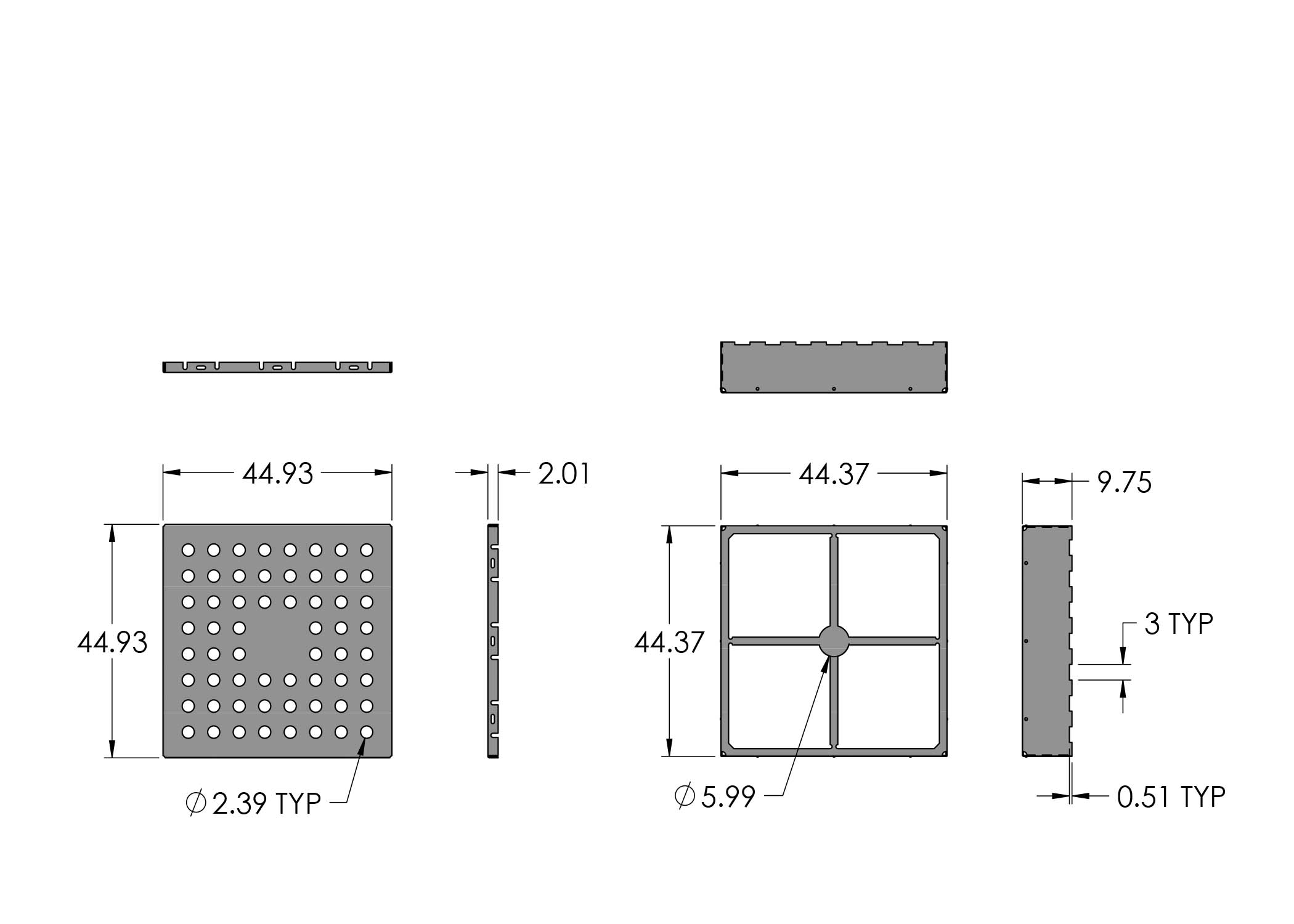

SMS-207			2-Piece Shield	44.37	44.37	9.75	Yes	120	.008" Pre-Tin Matte Steel
SMS-207-N			2-Piece Shield	44.37	44.37	9.75	Yes	120	.008" Alloy 770
SMS-208			2-Piece Shield	39.60	39.60	7.01	Yes	150	.008" Pre-Tin Matte Steel
SMS-208-N			2-Piece Shield	39.60	39.60	7.01	Yes	150	.008" Alloy 770

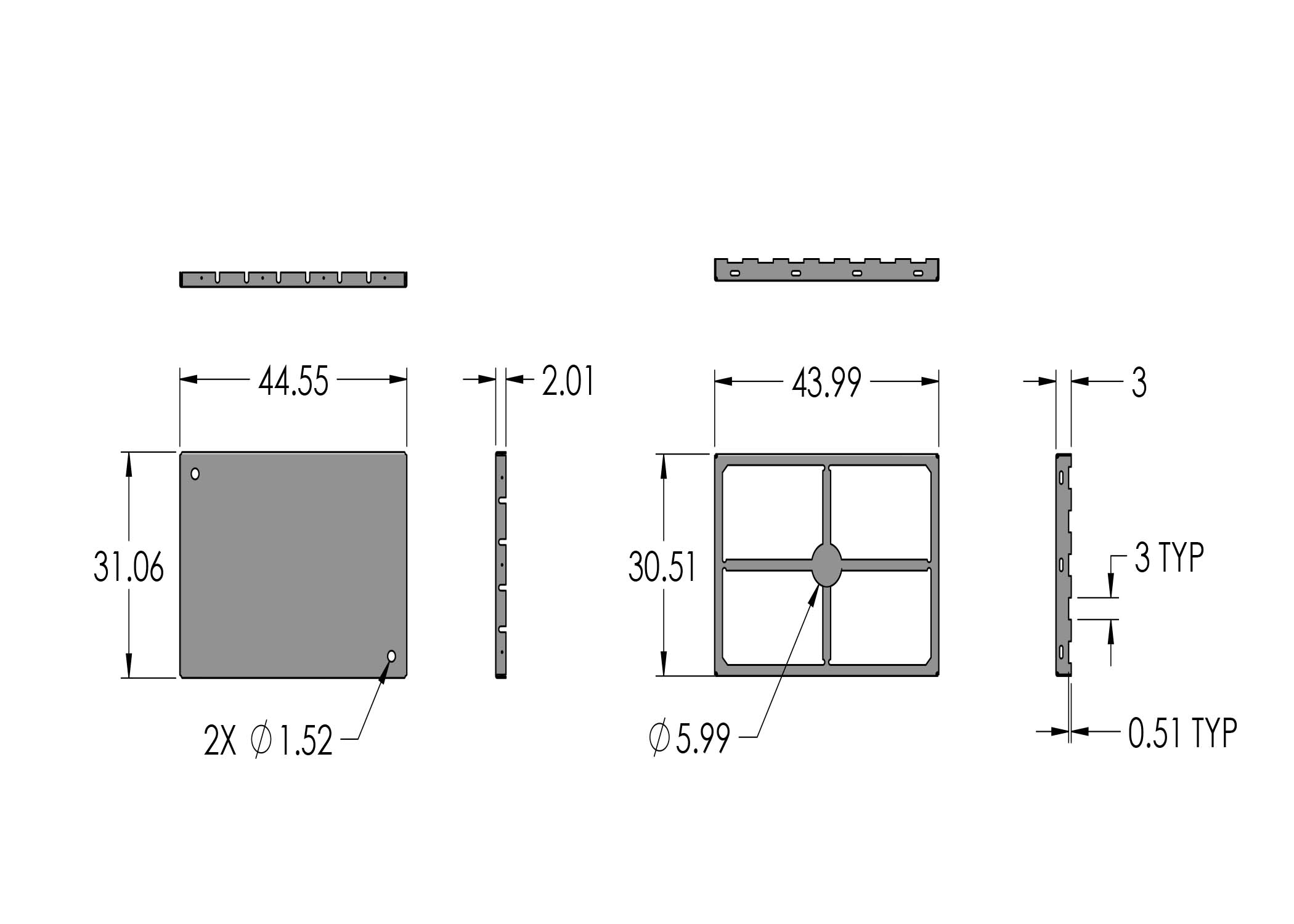

SMS-210			2-Piece Shield	30.51	43.99	3.00	Yes	370	.008" Pre-Tin Matte Steel
SMS-210-N			2-Piece Shield	30.51	43.99	3.00	Yes	370	.008" Alloy 770

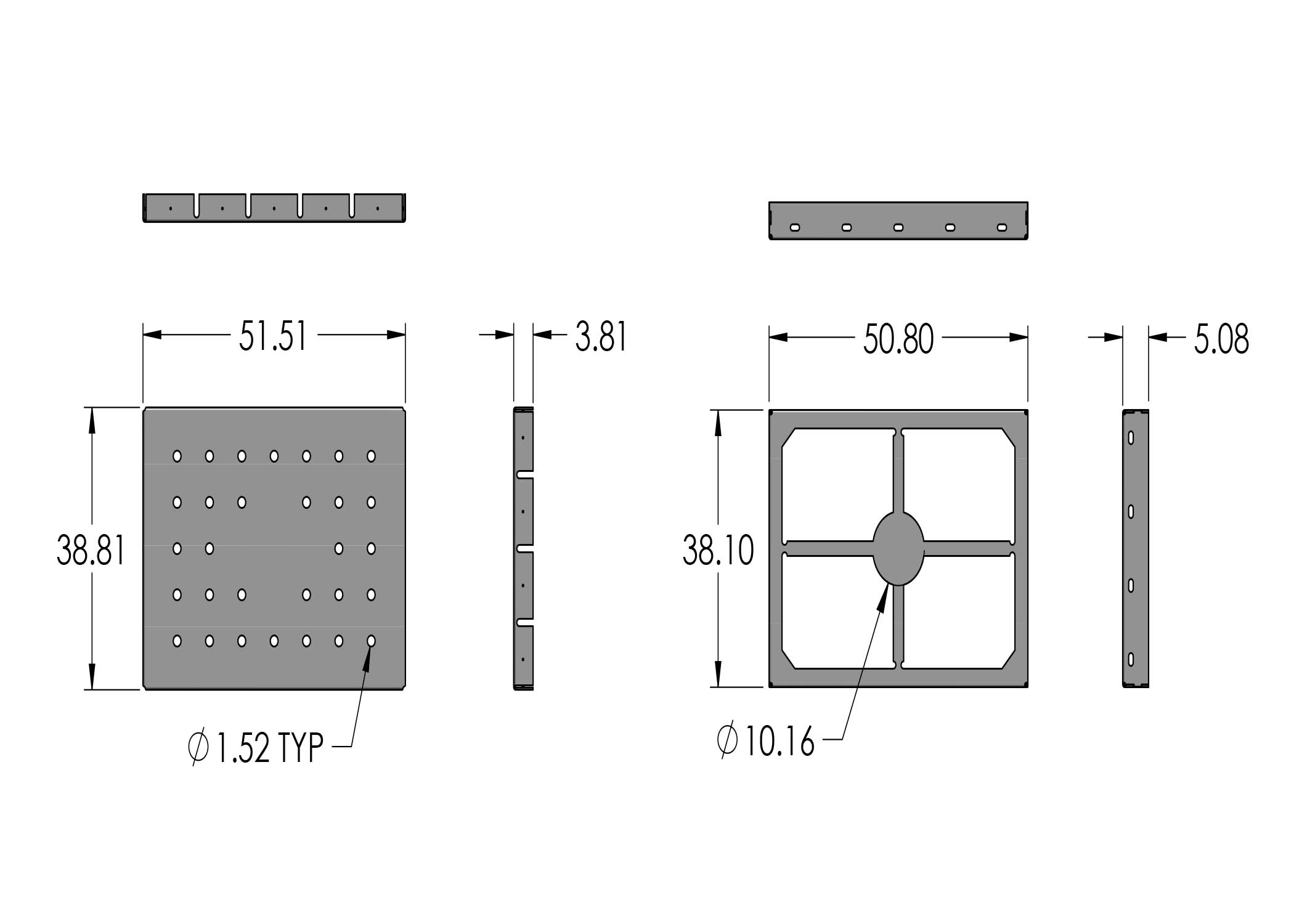

SMS-251			2-Piece Shield	38.10	50.80	5.08	Yes	250	.012" Pre-Tin Matte Steel
SMS-251-N			2-Piece Shield	38.10	50.80	5.08	Yes	250	.012" Alloy 770

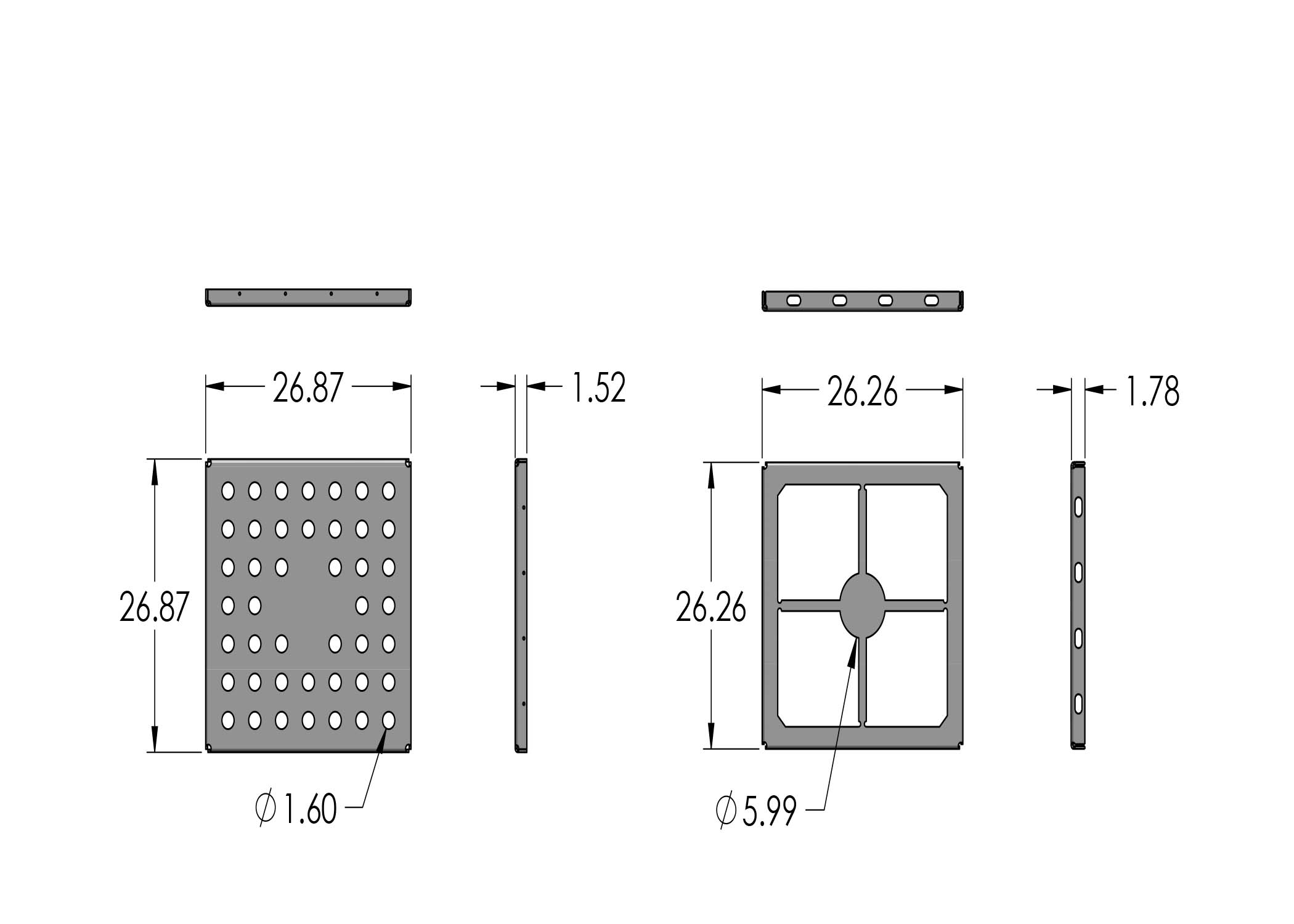

SMS-252			2-Piece Shield	26.26	26.26	1.78	Yes	300	.008" Pre-Tin Matte Steel
SMS-252-N			2-Piece Shield	26.26	26.26	1.78	Yes	300	.008" Alloy 770

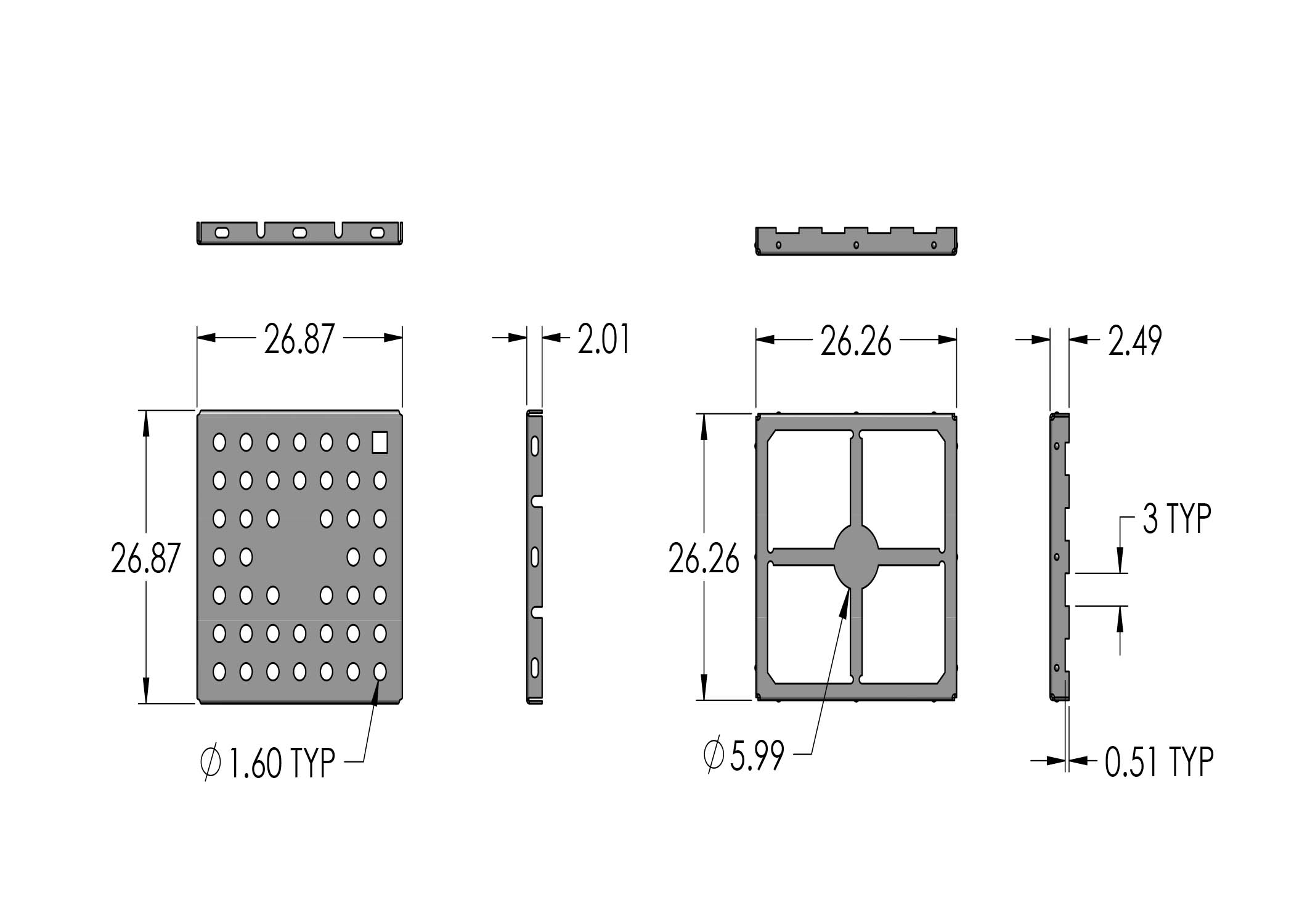

SMS-254			2-Piece Shield	26.26	26.26	2.49	Yes	600	.008" Pre-Tin Matte Steel
SMS-254-N			2-Piece Shield	26.26	26.26	2.49	Yes	600	.008" Alloy 770

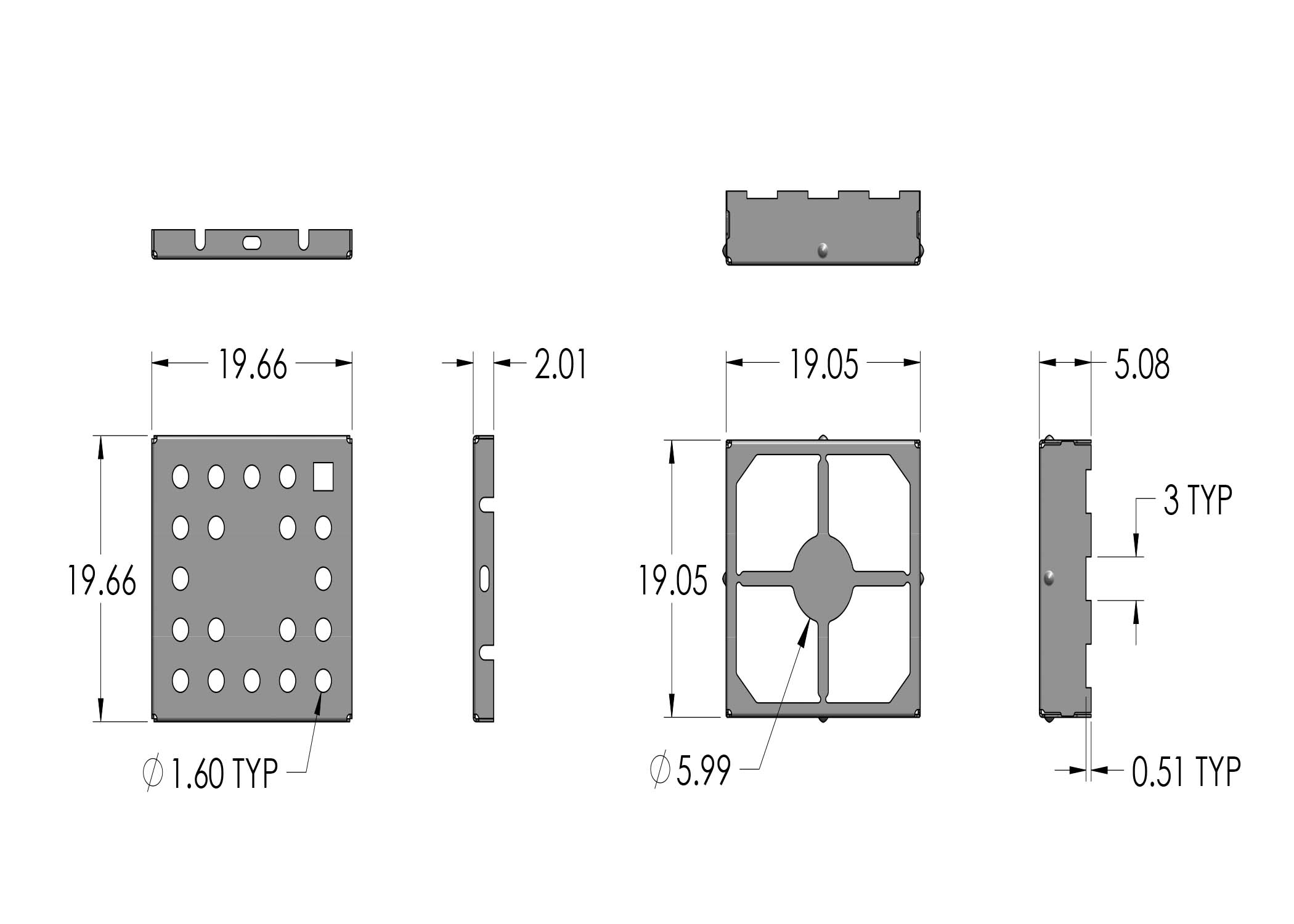

SMS-255			2-Piece Shield	19.05	19.05	5.08	Yes	300	.008" Pre-Tin Matte Steel
SMS-255-N			2-Piece Shield	19.05	19.05	5.08	Yes	300	.008" Alloy 770

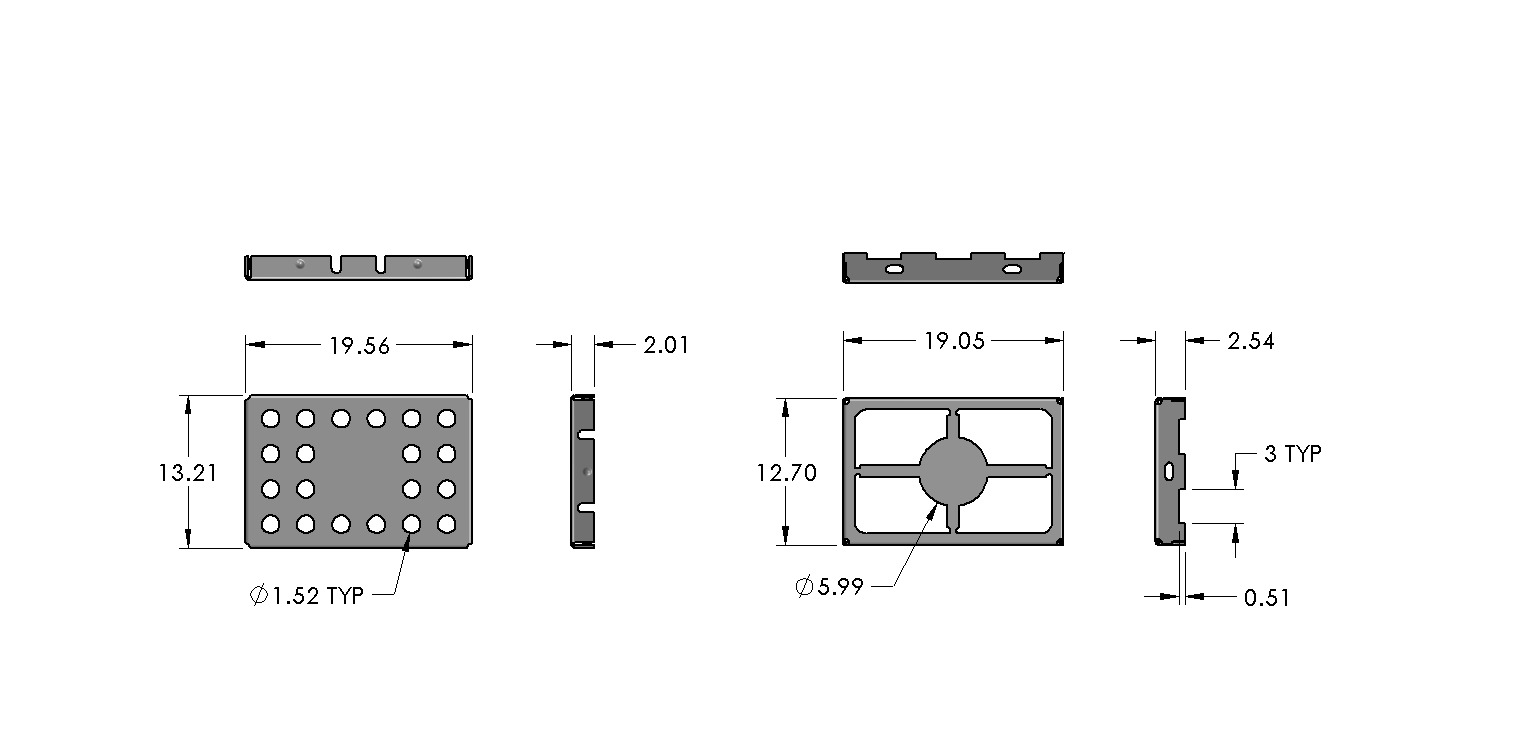

SMS-269			2-Piece Shield	12.70	19.05	2.54	Yes	800	.008" Pre-Tin Matte Steel
SMS-269-N			2-Piece Shield	12.70	19.05	2.54	Yes	800	.008" Alloy 770
SMS-270			2-Piece Shield	15.24	20.32	3.81	Yes	450	.008" Pre-Tin Matte Steel
SMS-270-N			2-Piece Shield	15.24	20.32	3.81	Yes	450	.008" Alloy 770

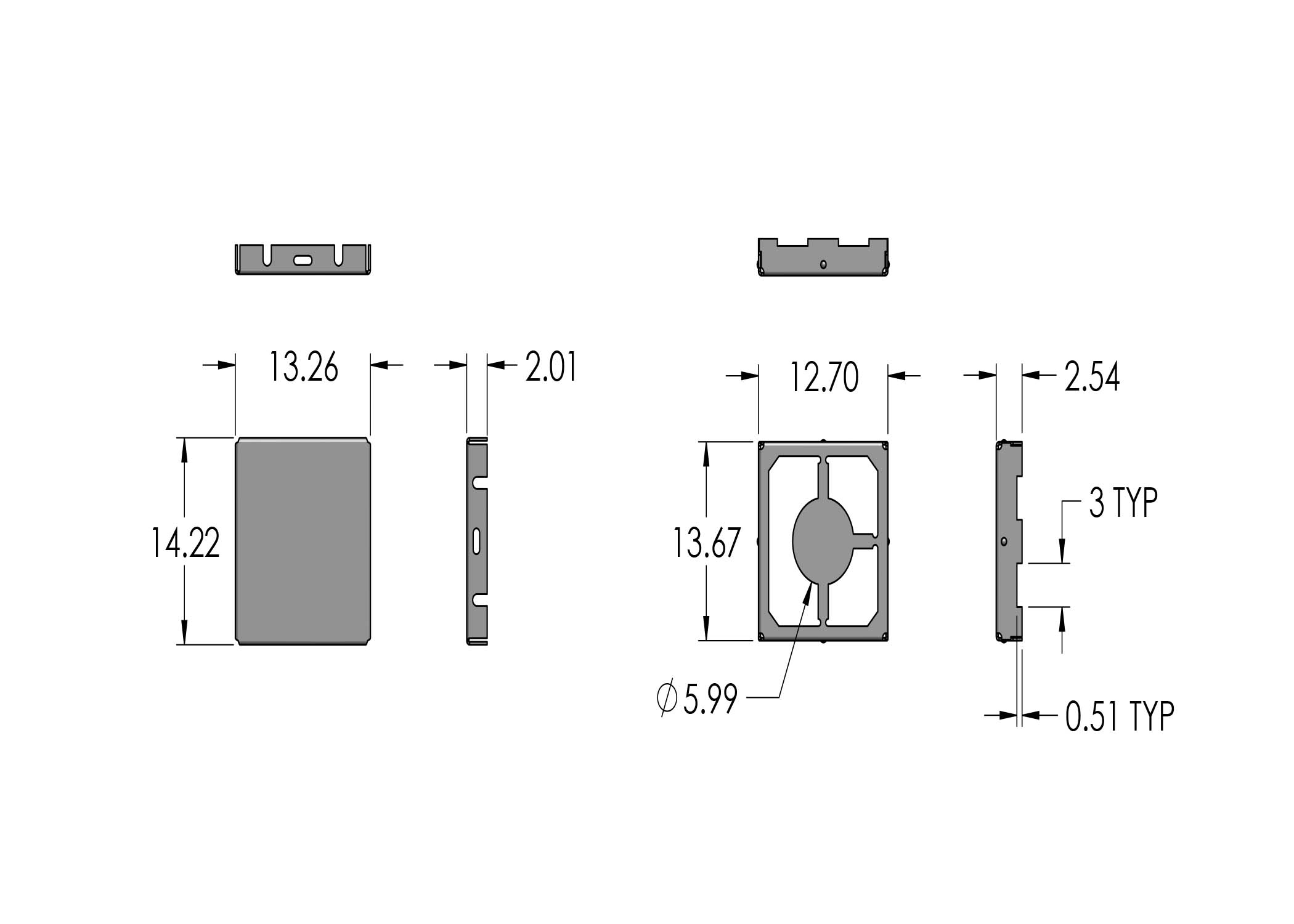

SMS-401			2-Piece Shield	12.70	13.67	2.54	No	1000	.008" Pre-Tin Matte Steel
SMS-401-N			2-Piece Shield	12.70	13.67	2.54	No	1000	.008" Alloy 770

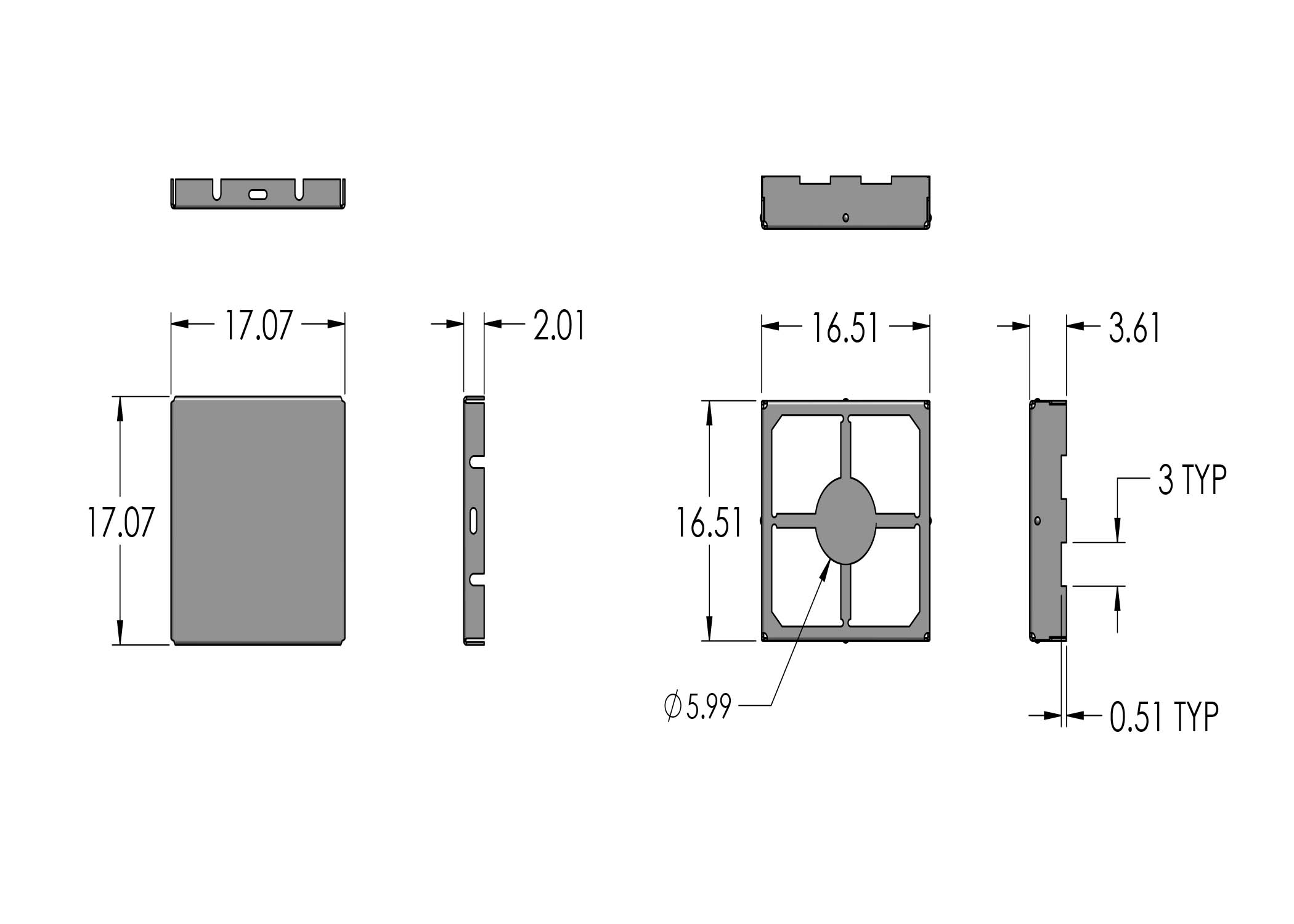

SMS-402			2-Piece Shield	16.51	16.51	3.61	No	700	.008" Pre-Tin Matte Steel
SMS-402-N			2-Piece Shield	16.51	16.51	3.61	No	700	.008" Alloy 770

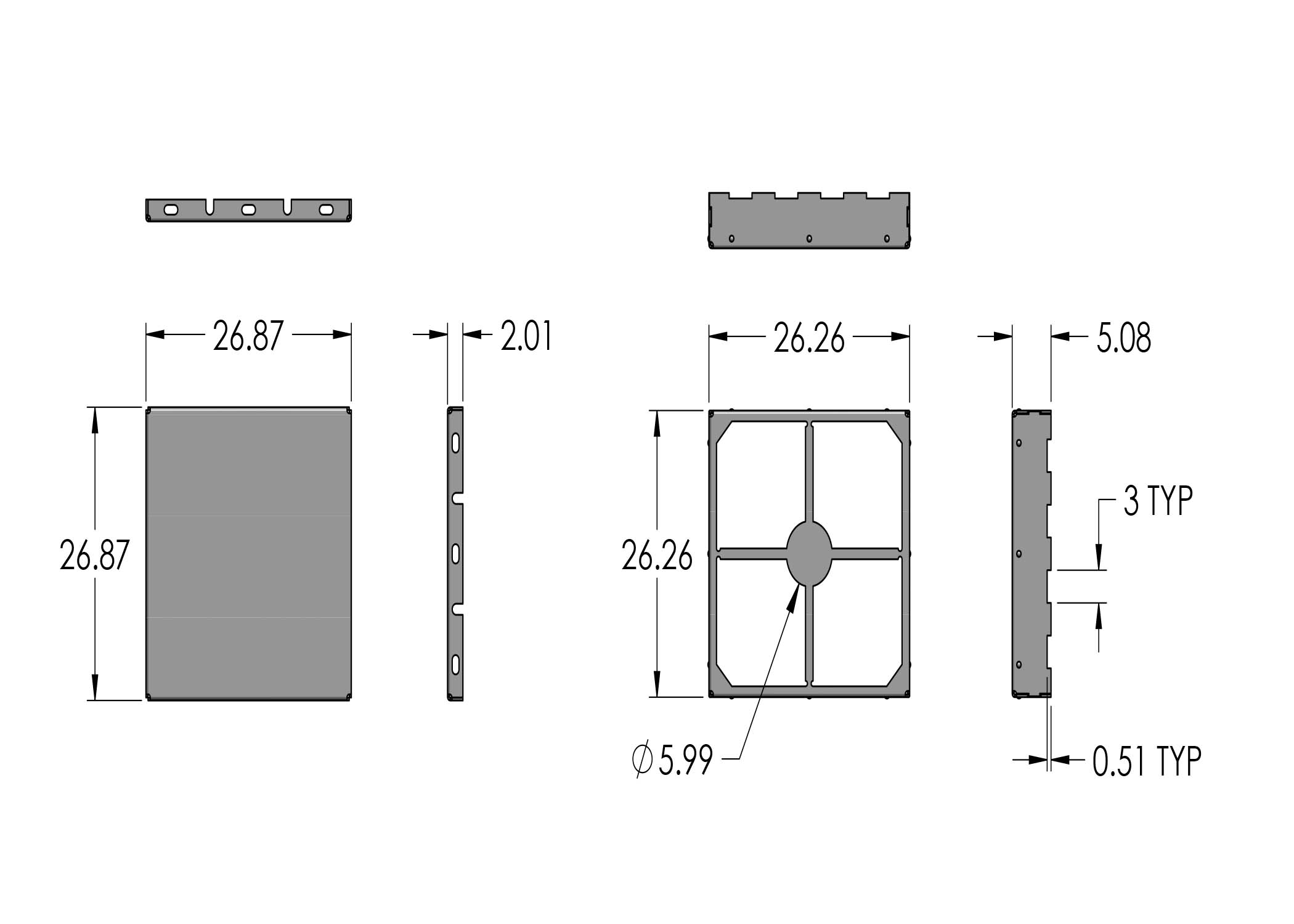

SMS-403			2-Piece Shield	26.21	26.21	5.08	No	300	.010" Pre-Tin Bright Steel
SMS-403-M			2-Piece Shield	26.21	26.21	5.08	No	300	.008" Pre-Tin Matte Steel
SMS-403-N			2-Piece Shield	26.21	26.21	5.08	No	300	.008" Alloy 770

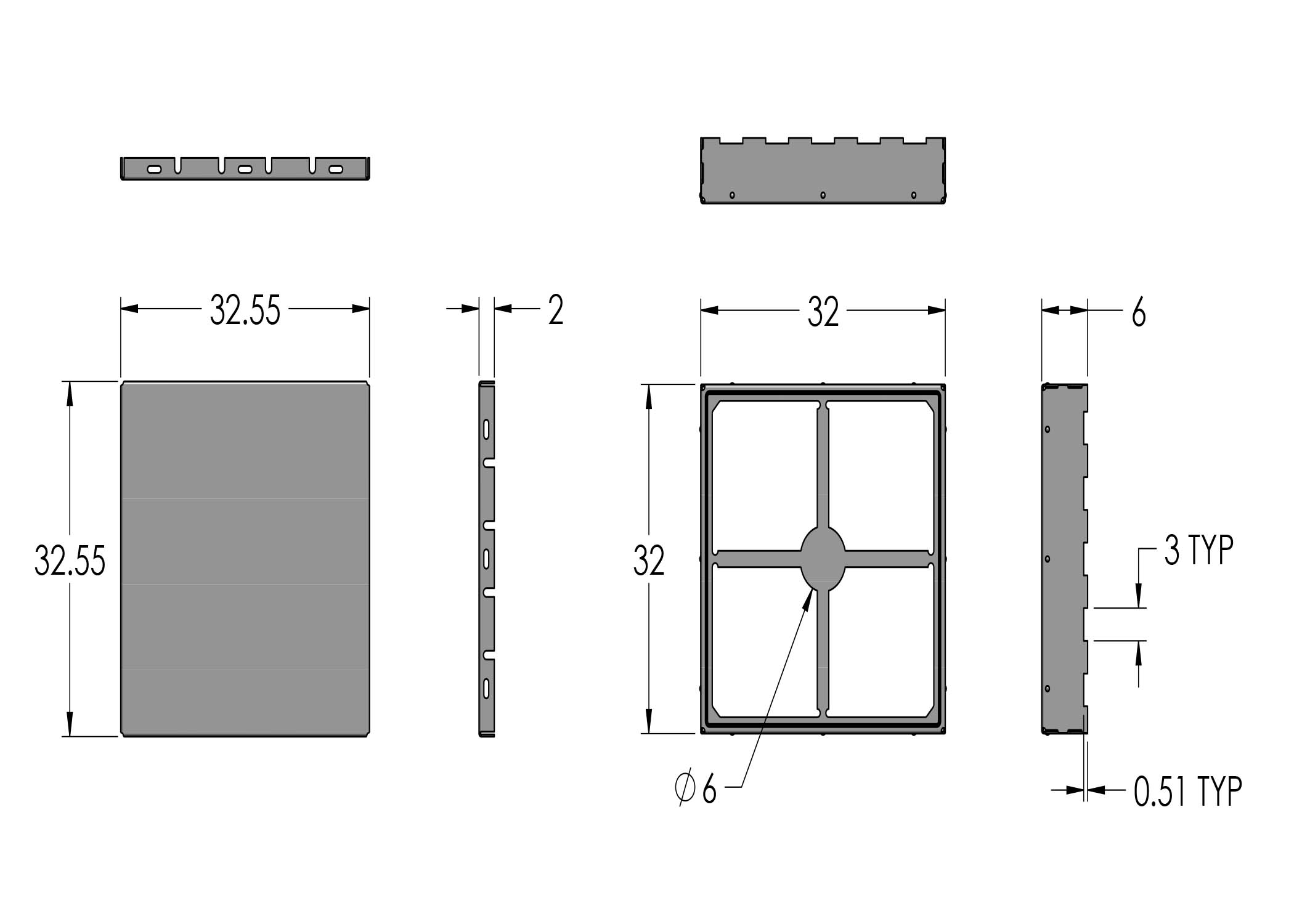

SMS-404			2-Piece Shield	32.00	32.00	5.99	No	225	.008" Pre-Tin Matte Steel
SMS-404-N			2-Piece Shield	32.00	32.00	5.99	No	225	.008" Alloy 770
SMS-405			2-Piece Shield	25.40	38.10	5.99	No	250	.008" Pre-Tin Matte Steel
SMS-405-N			2-Piece Shield	25.40	38.10	5.99	No	250	.008" Alloy 770

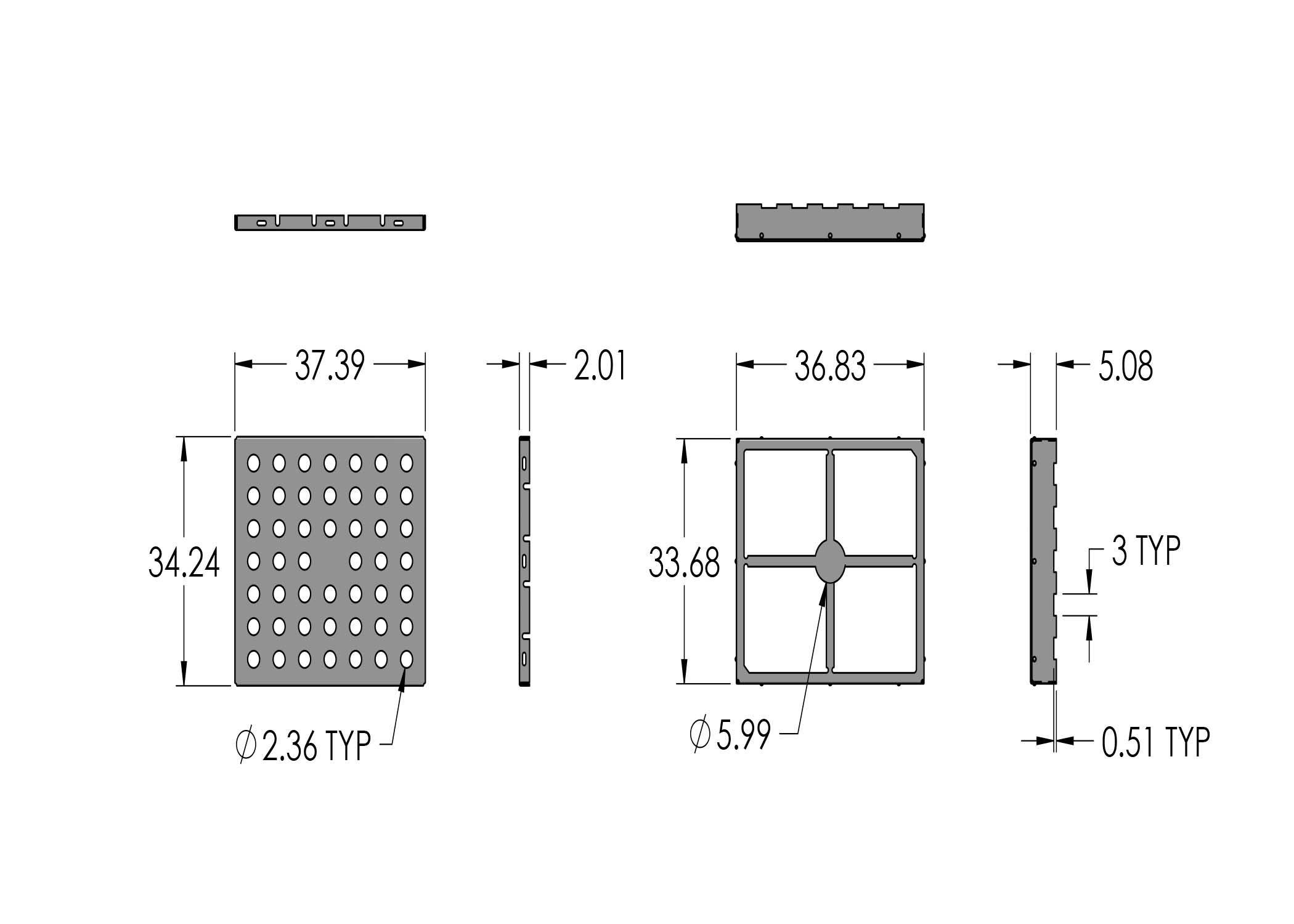

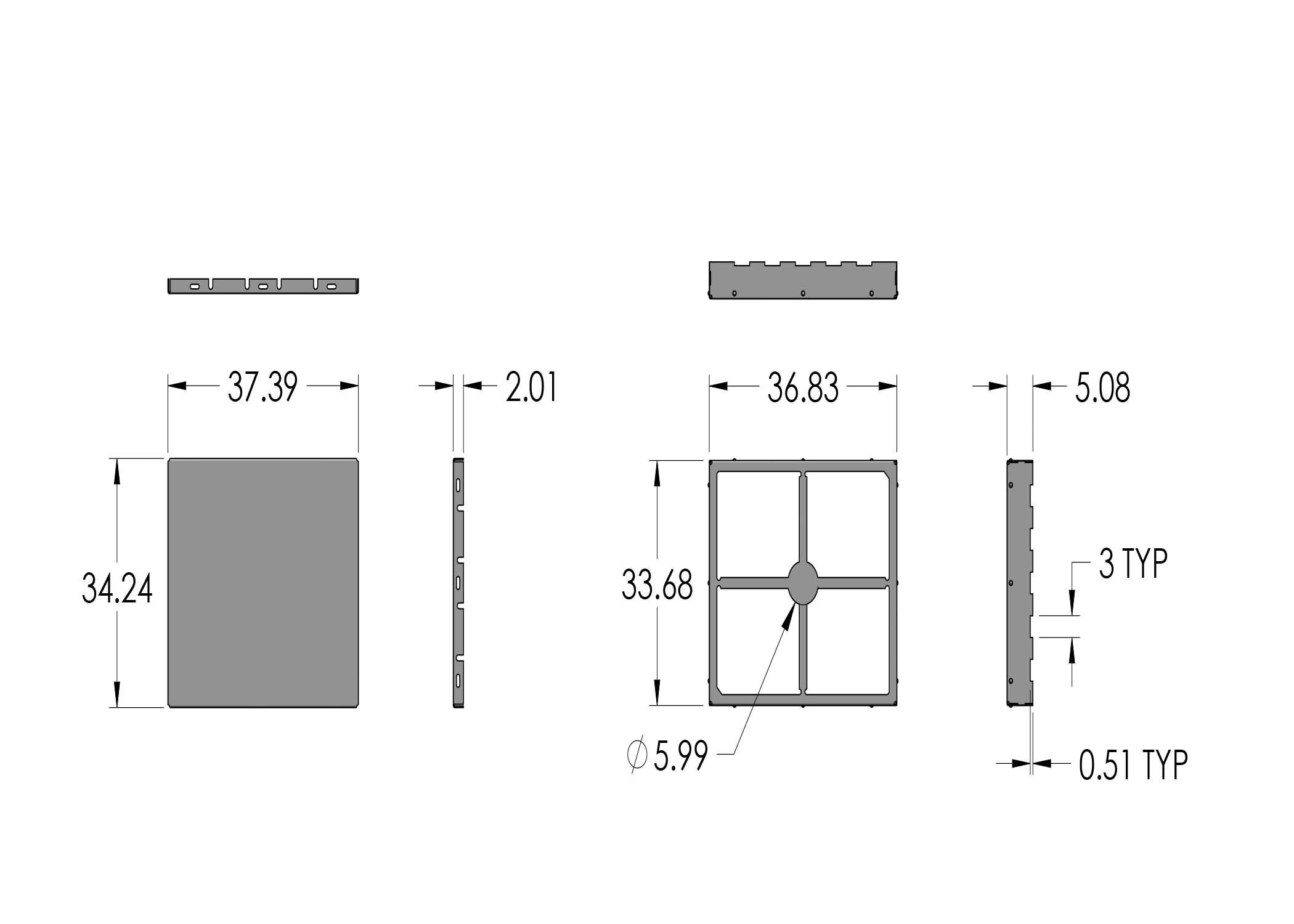

SMS-406			2-Piece Shield	33.68	36.83	5.08	No	300	.008" Pre-Tin Matte Steel
SMS-406-N			2-Piece Shield	33.68	36.83	5.08	No	300	.008" Alloy 770

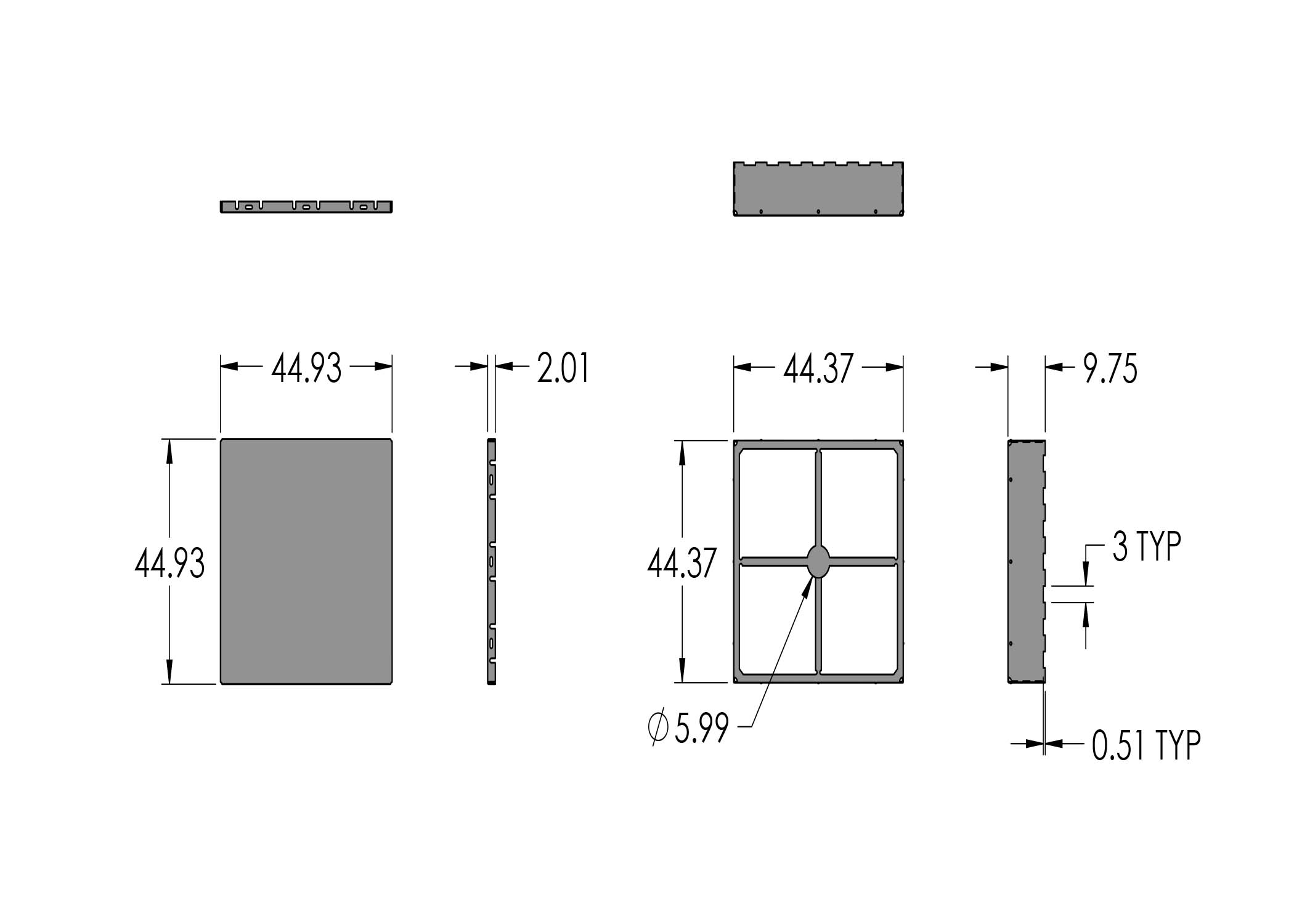

SMS-407			2-Piece Shield	44.37	44.37	9.75	No	120	.008" Pre-Tin Matte Steel
SMS-407-N			2-Piece Shield	44.37	44.37	9.75	No	120	.008" Alloy 770

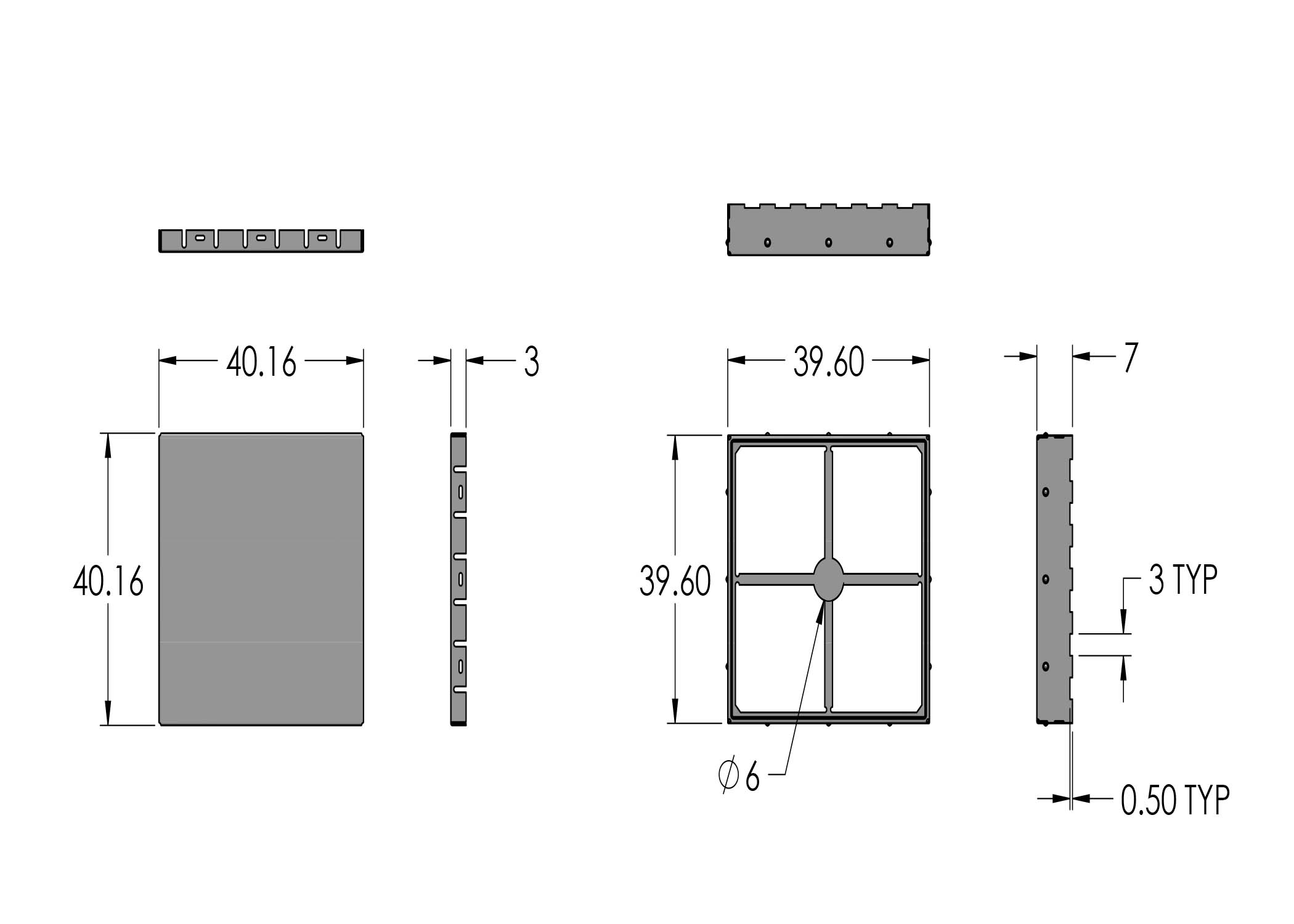

SMS-408			2-Piece Shield	39.60	39.60	7.01	No	150	.008" Pre-Tin Matte Steel
SMS-408-N			2-Piece Shield	39.60	39.60	7.01	No	150	.008" Alloy 770
SMS-409			2-Piece Shield	18.49	29.36	7.01	No	325	.008" Pre-Tin Matte Steel
SMS-409-N			2-Piece Shield	18.49	29.36	7.01	No	325	.008" Alloy 770

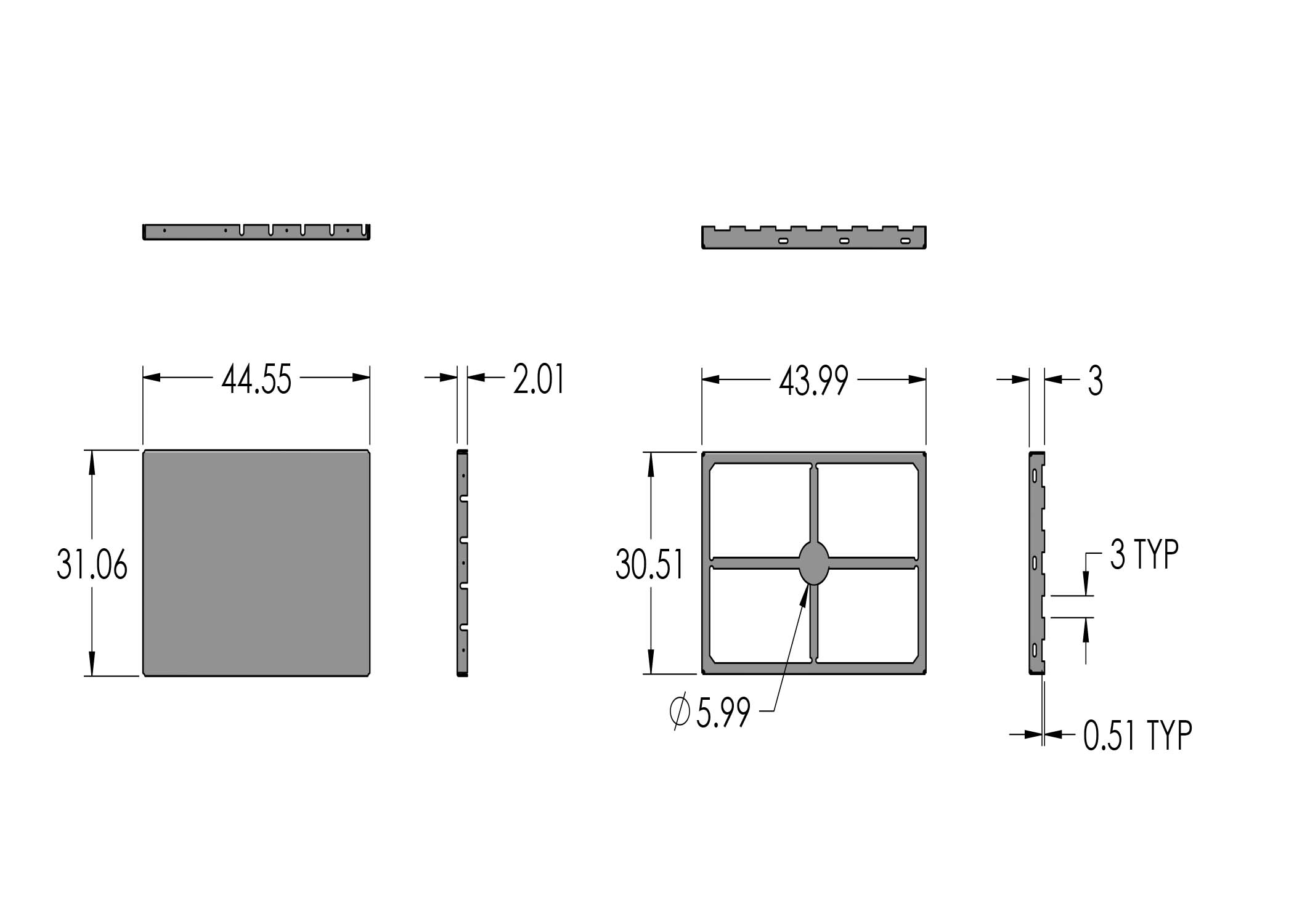

SMS-410			2-Piece Shield	30.51	43.99	3.00	No	370	.008" Pre-Tin Matte Steel
SMS-410-N			2-Piece Shield	30.51	43.99	3.00	No	370	.008" Alloy 770

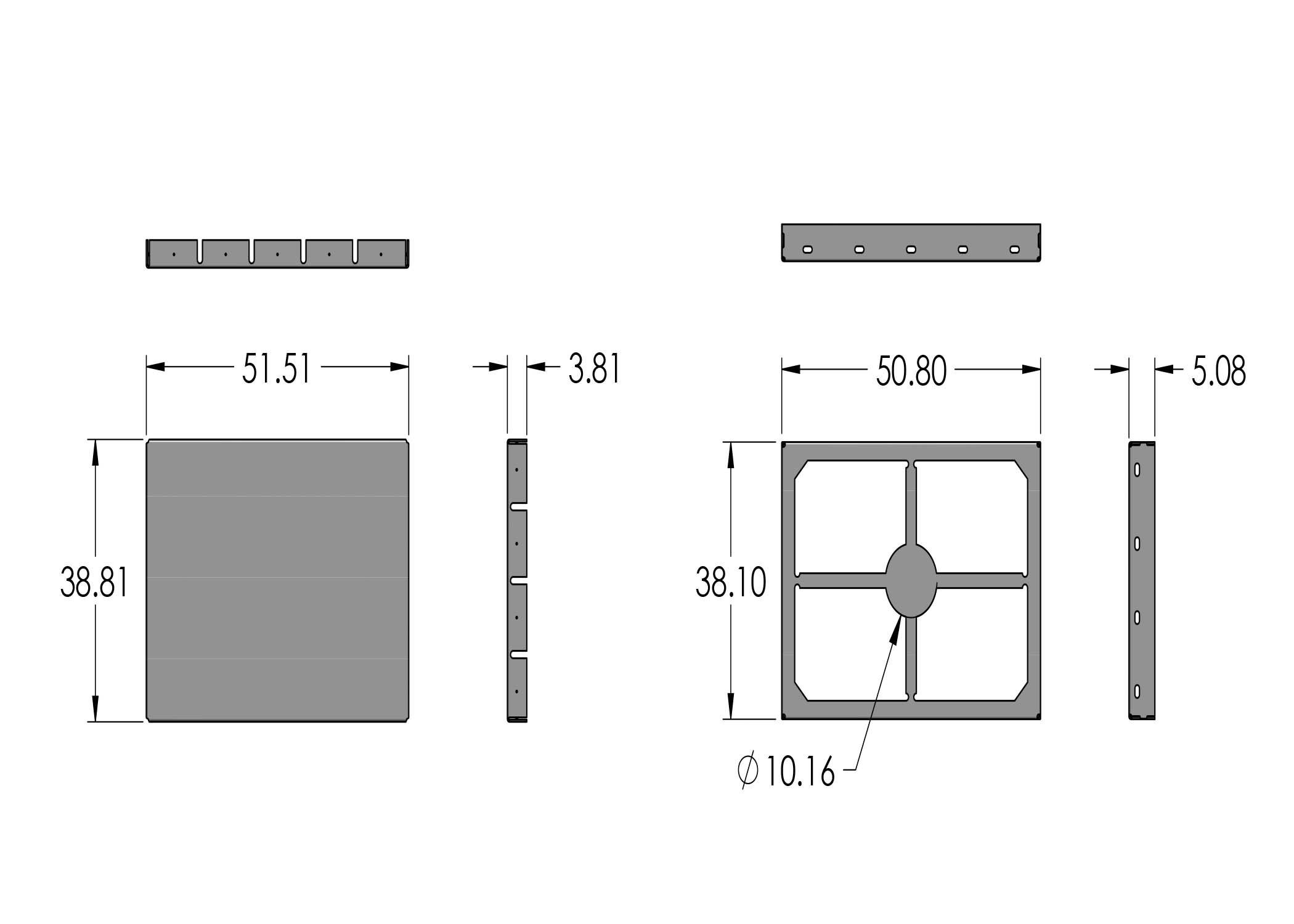

SMS-451			2-Piece Shield	38.10	50.80	5.08	No	250	.012" Pre-Tin Matte Steel
SMS-451-N			2-Piece Shield	38.10	50.80	5.08	No	250	.012" Alloy 770

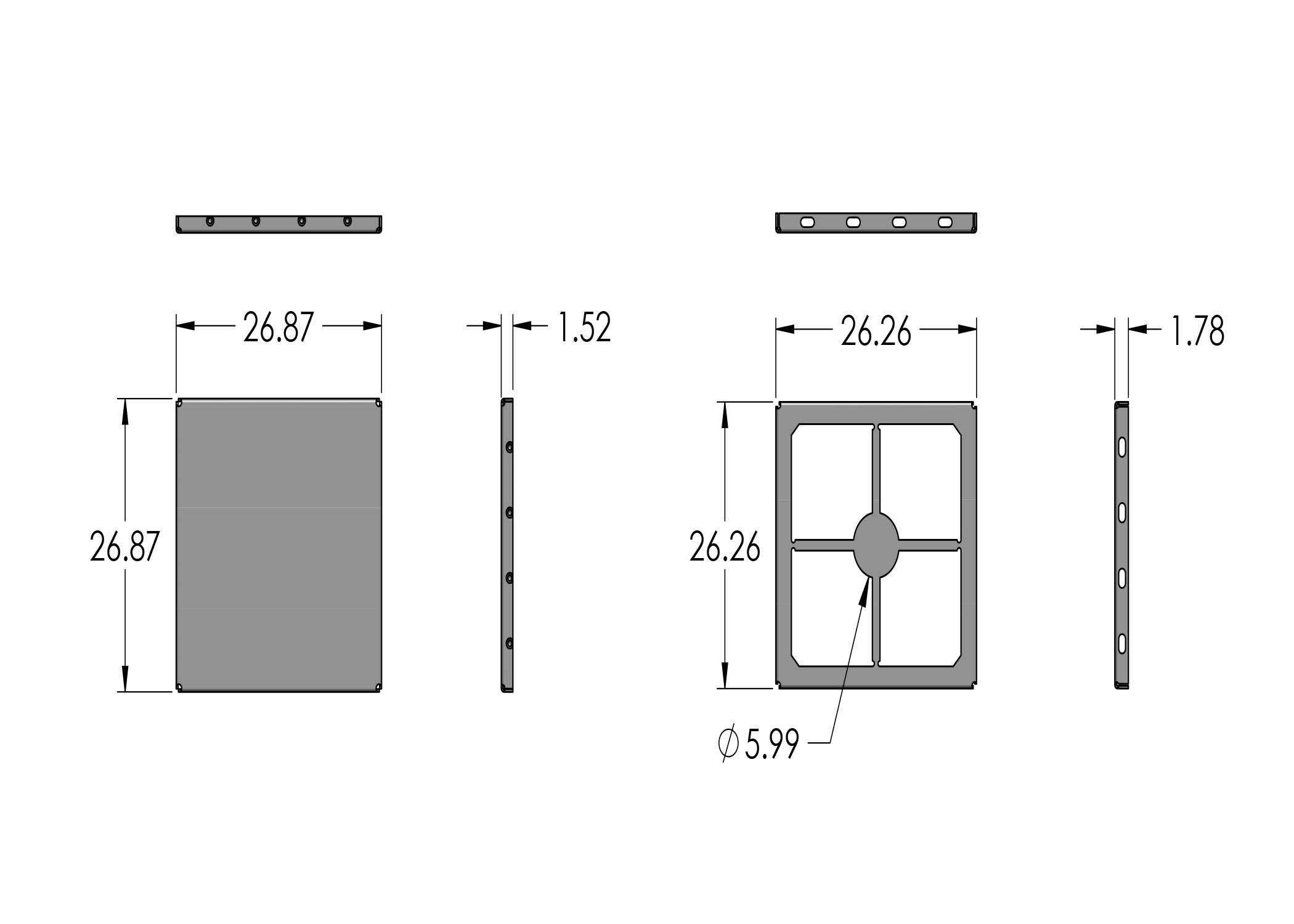

SMS-452			2-Piece Shield	26.26	26.26	1.78	No	300	.008" Pre-Tin Matte Steel
SMS-452-N			2-Piece Shield	26.26	26.26	1.78	No	300	.008" Alloy 770

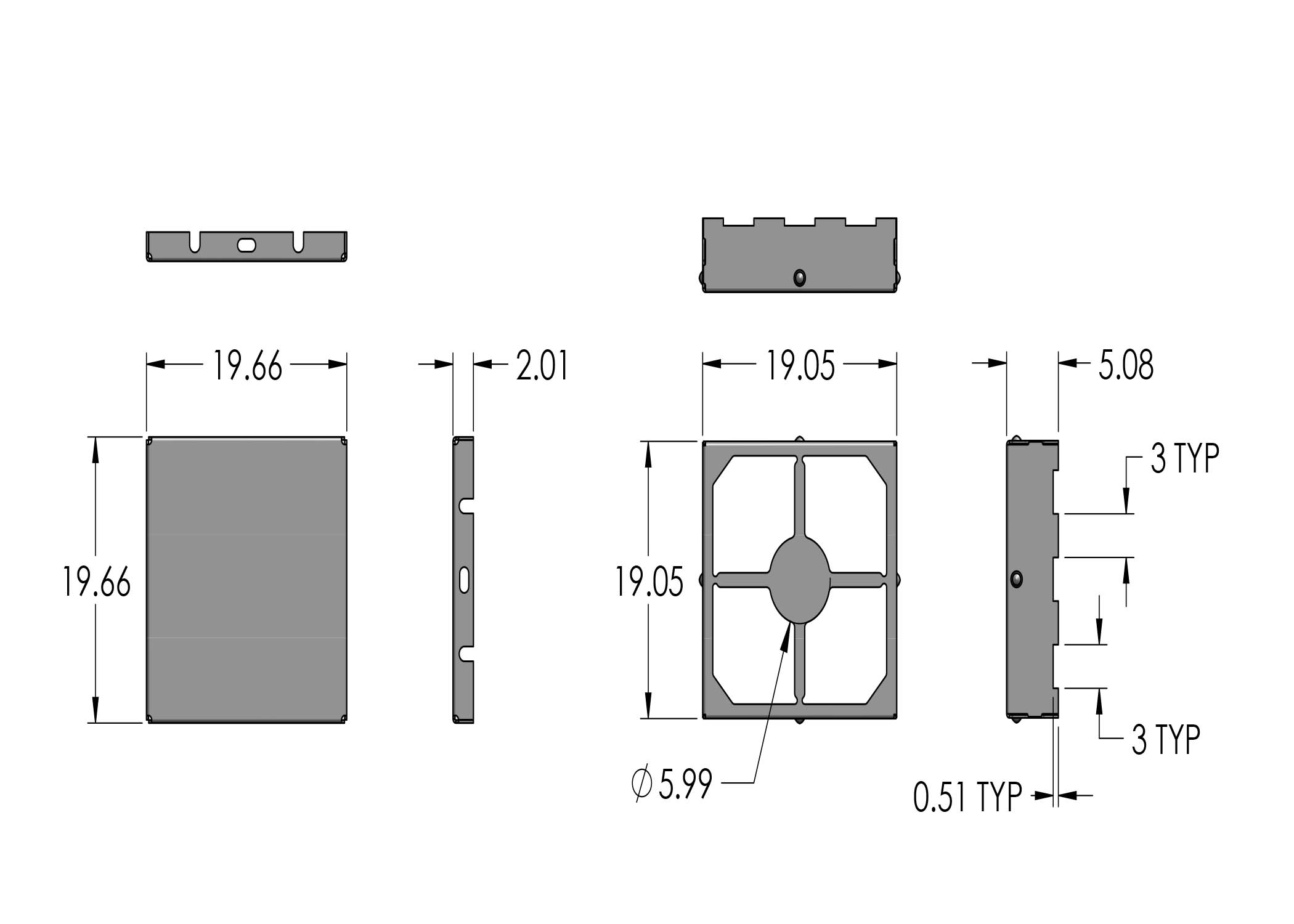

SMS-455			2-Piece Shield	19.05	19.05	5.08	No	300	.008" Pre-Tin Matte Steel
SMS-455-N			2-Piece Shield	19.05	19.05	5.08	No	300	.008" Alloy 770

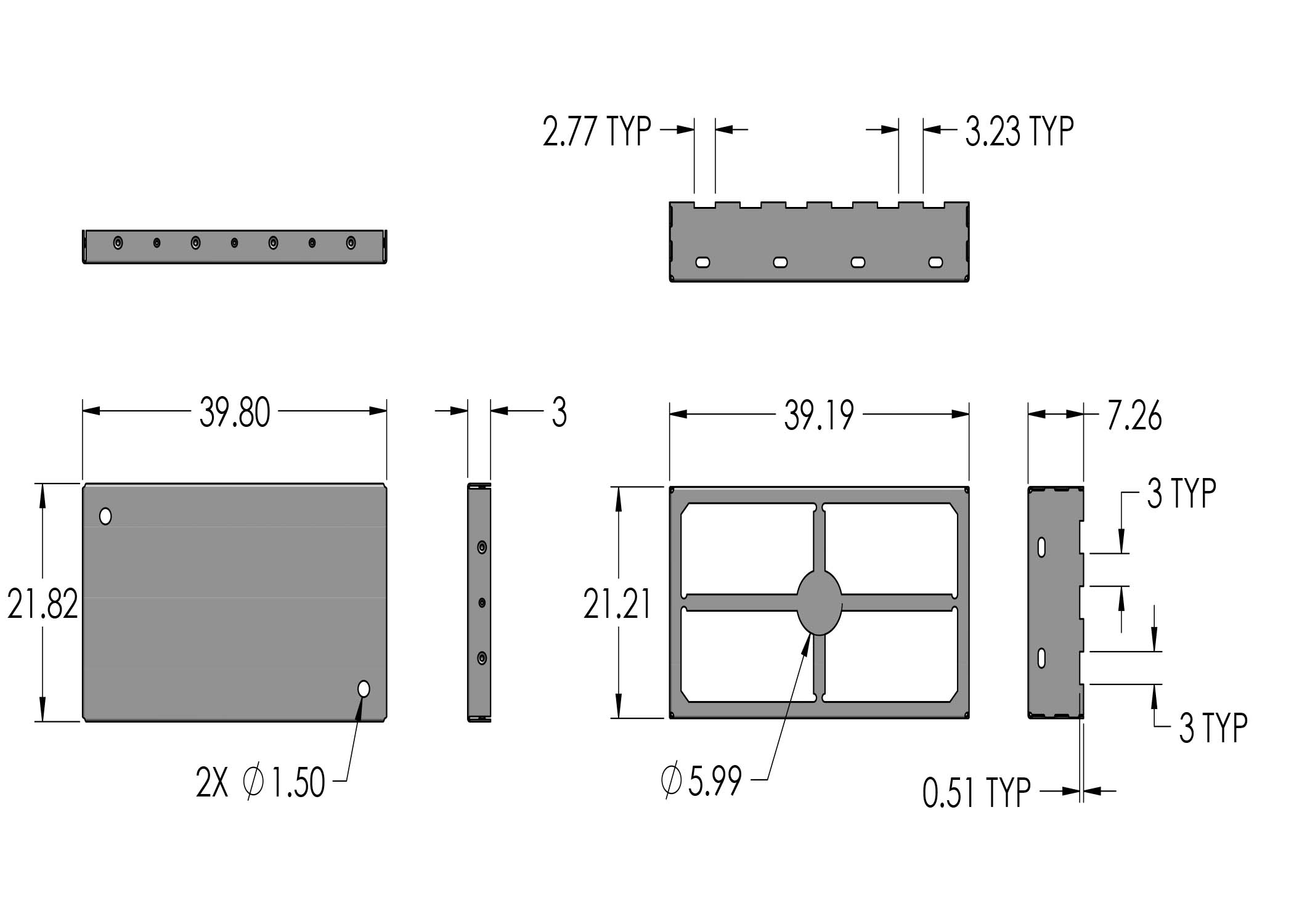

SMS-456			2-Piece Shield	21.21	39.19	7.26	No	280	.008" Pre-Tin Matte Steel
SMS-456-N			2-Piece Shield	21.21	39.19	7.26	No	280	.008" Alloy 770

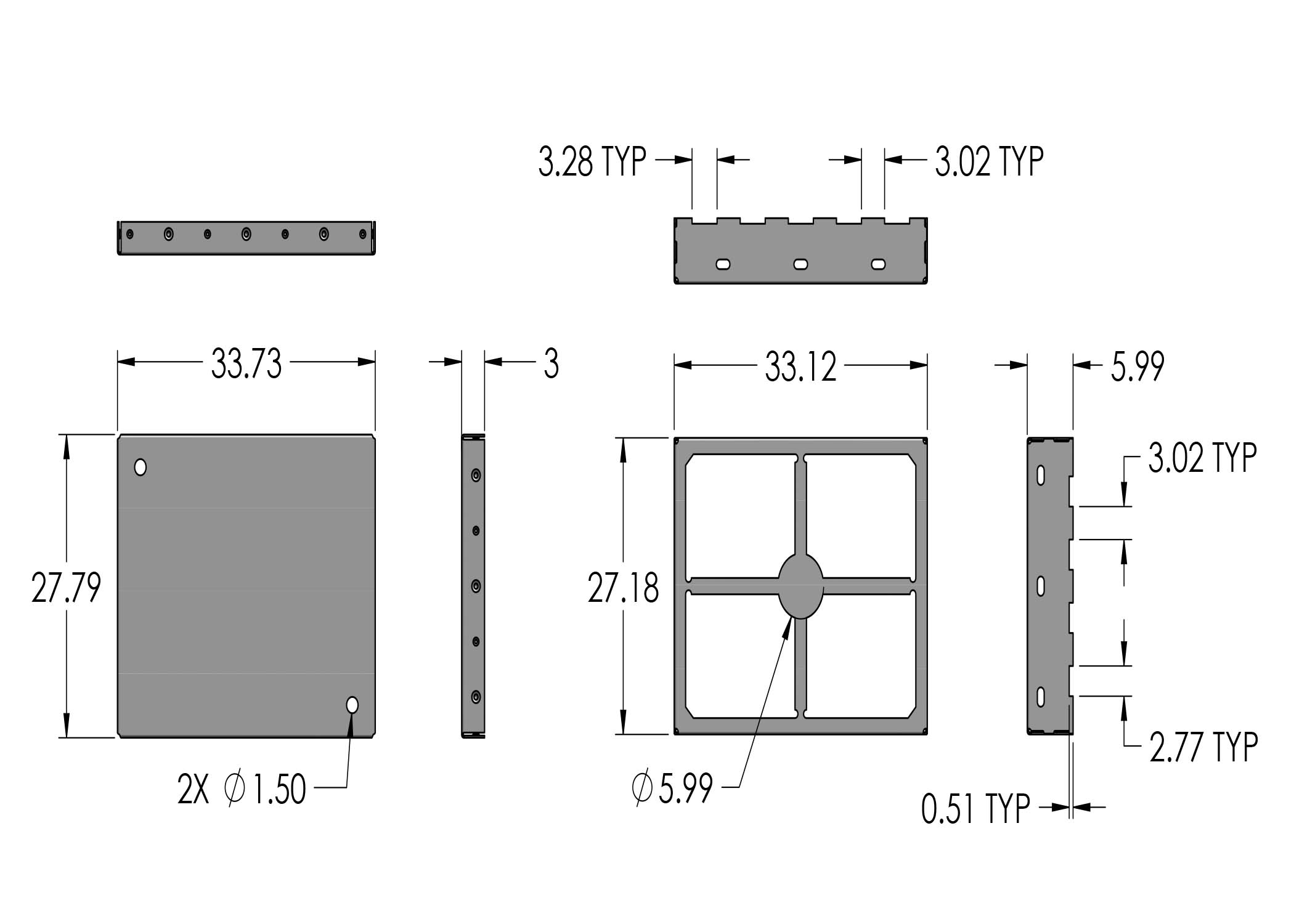

SMS-457			2-Piece Shield	27.18	33.12	5.99	No	210	.008" Pre-Tin Matte Steel
SMS-457-N			2-Piece Shield	27.18	33.12	5.99	No	210	.008" Alloy 770
SMS-458			2-Piece Shield	27.18	39.12	5.99	No	240	.008" Pre-Tin Matte Steel
SMS-458-N			2-Piece Shield	27.18	39.12	5.99	No	240	.008" Alloy 770
SMS-459			2-Piece Shield	27.18	41.22	5.99	No	230	.008" Pre-Tin Matte Steel
SMS-459-N			2-Piece Shield	27.18	41.22	5.99	No	230	.008" Alloy 770
SMS-460			2-Piece Shield	27.18	44.88	5.99	No	230	.008" Pre-Tin Matte Steel
SMS-460-N			2-Piece Shield	27.18	44.88	5.99	No	230	.008" Alloy 770

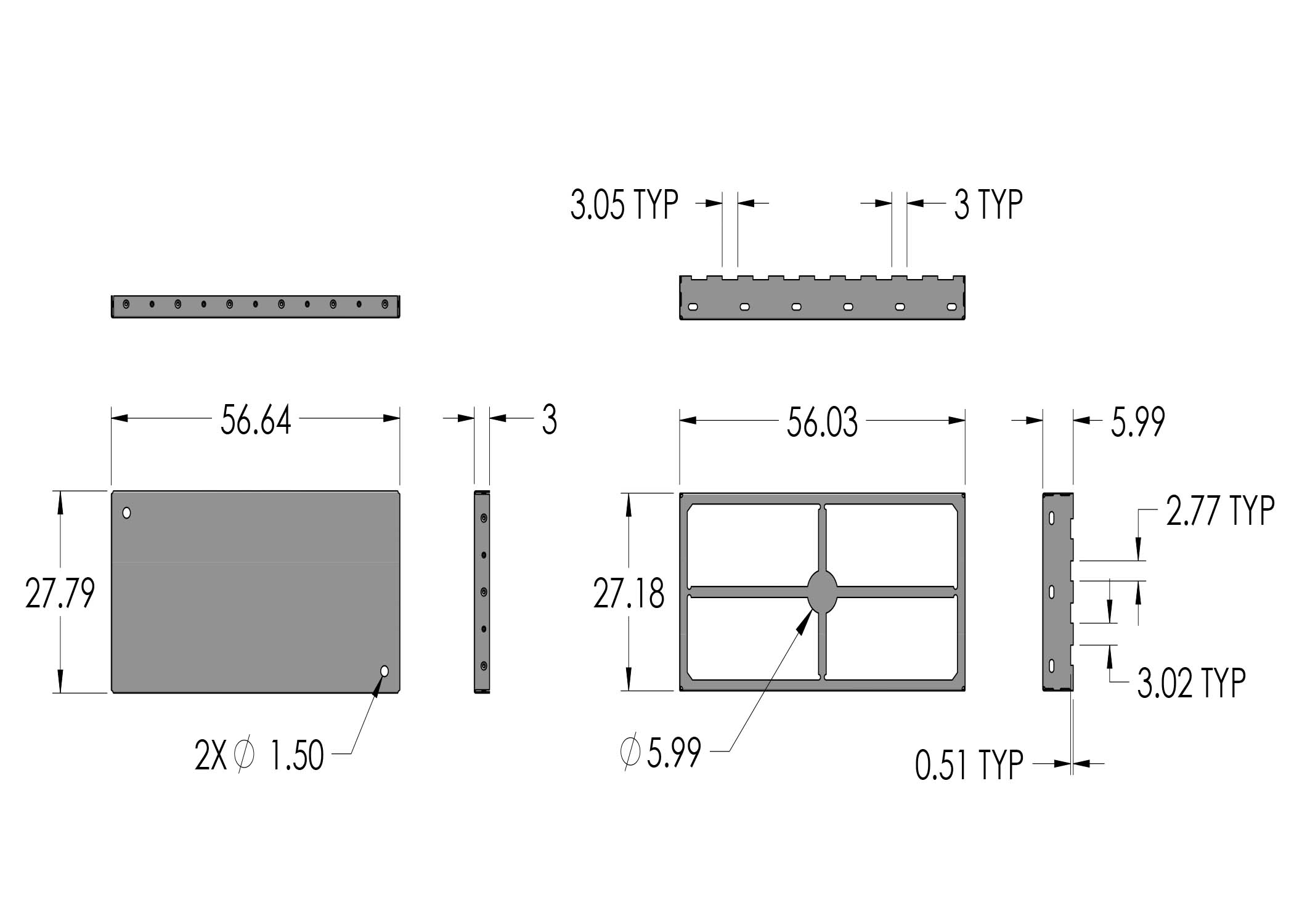

SMS-461			2-Piece Shield	27.18	56.03	5.99	No	200	.008" Pre-Tin Matte Steel
SMS-461-N			2-Piece Shield	27.18	56.03	5.99	No	200	.008" Alloy 770
SMS-462			2-Piece Shield	27.18	70.05	5.99	No	250	.008" Pre-Tin Matte Steel
SMS-462-N			2-Piece Shield	27.18	70.05	5.99	No	250	.008" Alloy 770

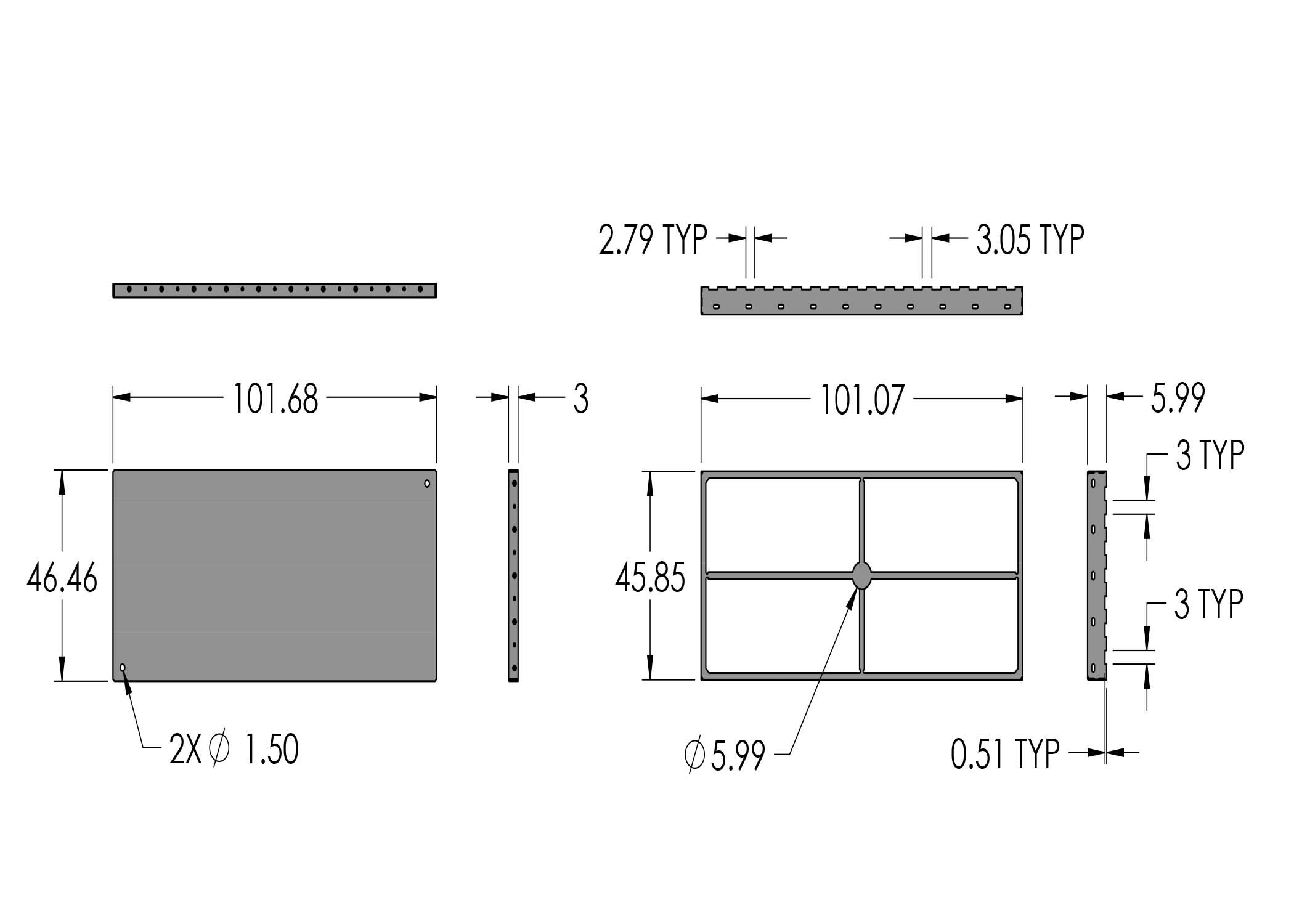

SMS-463			2-Piece Shield	45.85	101.07	5.99	No	130	.008" Pre-Tin Matte Steel
SMS-463-N			2-Piece Shield	45.85	101.07	5.99	No	130	.008" Alloy 770

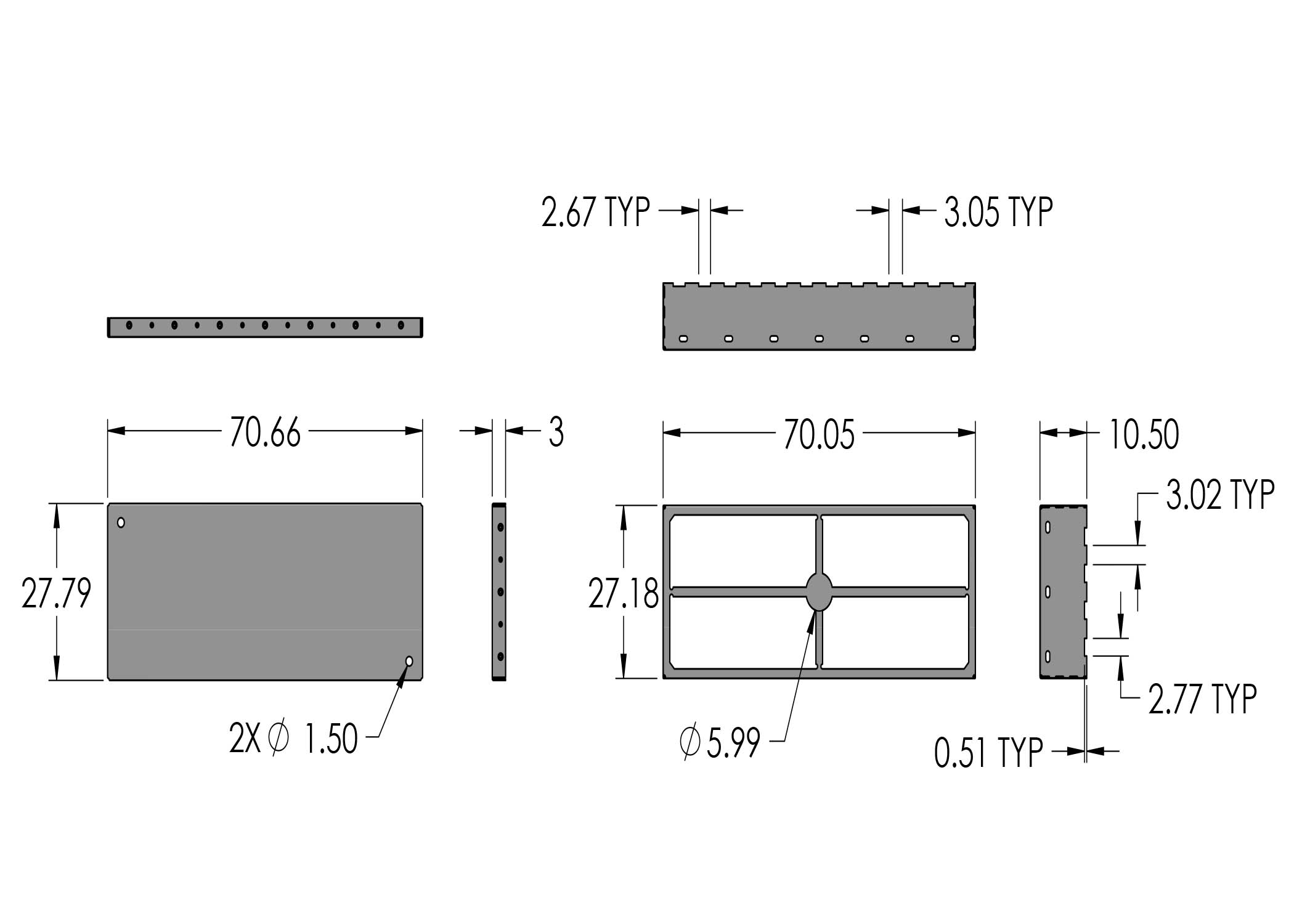

SMS-464			2-Piece Shield	27.18	70.05	10.49	No	125	.008" Pre-Tin Matte Steel
SMS-464-N			2-Piece Shield	27.18	70.05	10.49	No	125	.008" Alloy 770
SMS-469			2-Piece Shield	12.70	19.05	2.54	No	800	.008" Pre-Tin Matte Steel
SMS-469-N			2-Piece Shield	12.70	19.05	2.54	No	800	.008" Alloy 770

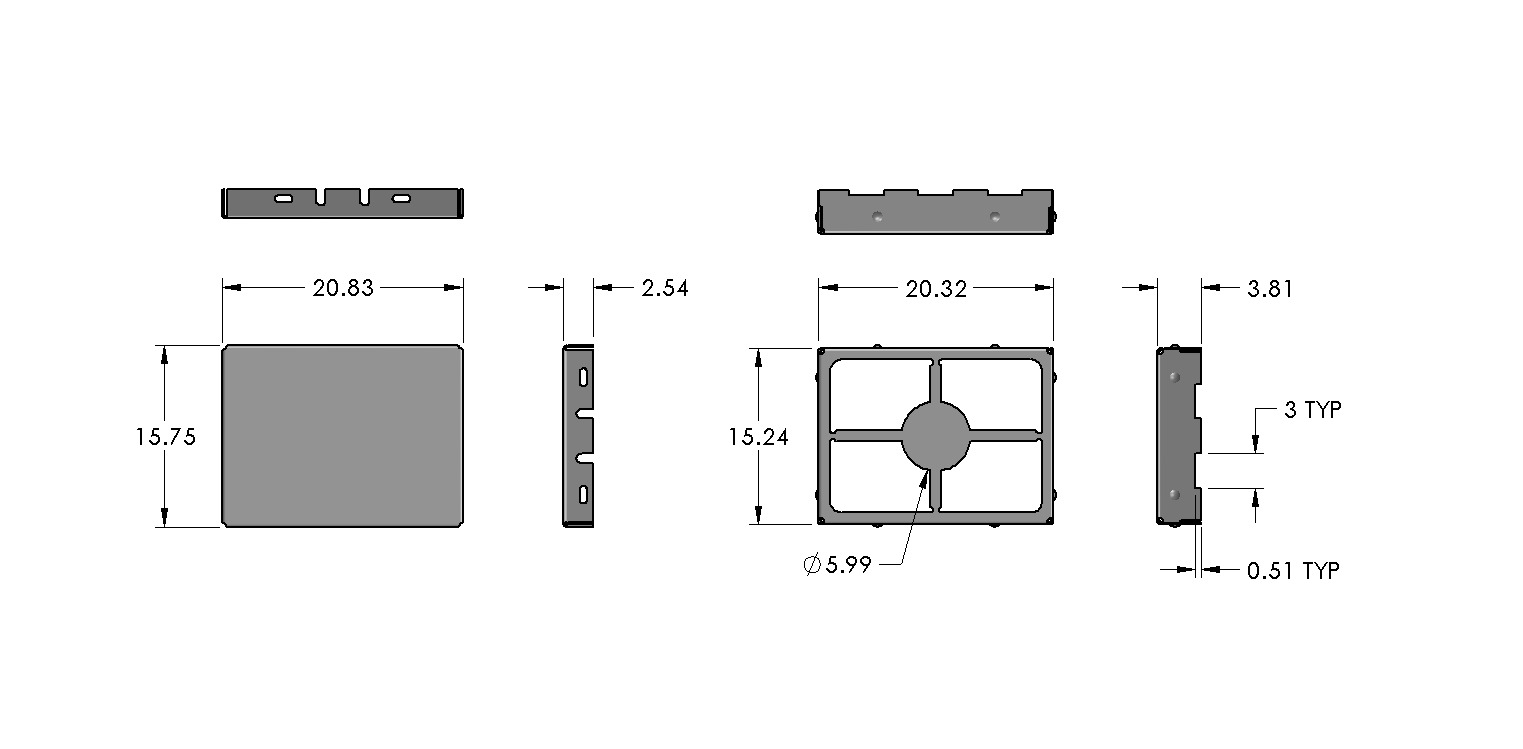

SMS-470			2-Piece Shield	15.24	20.32	3.81	No	450	.008" Pre-Tin Matte Steel
SMS-470-N			2-Piece Shield	15.24	20.32	3.81	No	450	.008" Alloy 770

Call Toll Free: 866.832.4364

813.855.6921

Call Toll Free: 866.832.4364

813.855.6921

Board Level Two Piece EMI Shields

SMS Two Piece Features and Benefits

Board Level Two Piece EMI Shields

SMS Two Piece Features and Benefits

Combo Gasket Frame Form

Rep Firm
