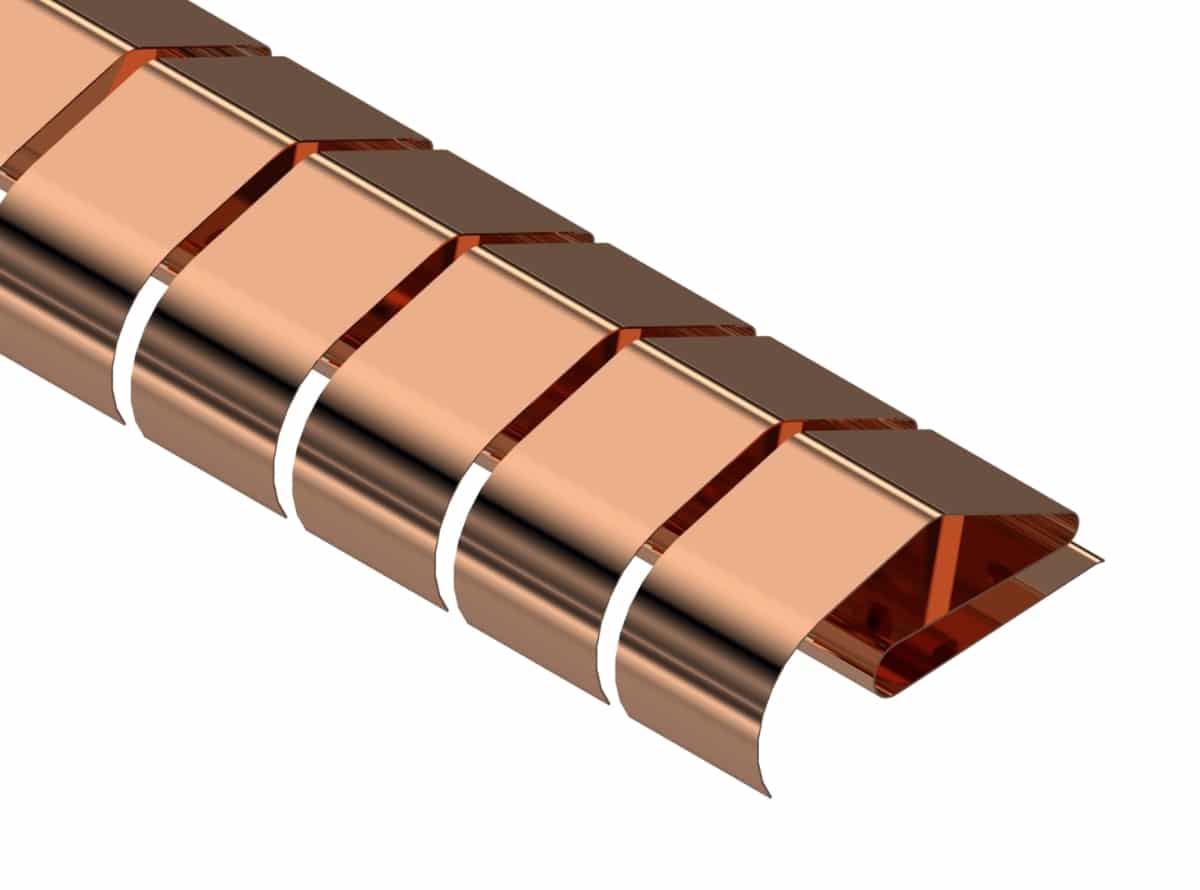

Home » Enclosure Shielding » Beryllium Copper Fingerstock » CPS | Clip-On
Perpendicular Shielding Gaskets
• Finger design allows for continuous contact across the
length of the strip
• “D” lance provides superior retention of gasket to the
mounting surface
• 0.08 D-clip is retained with .100 D-hole
PP = plating code from plating code table below
X.XXX = Desired length
Must be ordered in increments of 2 fingers.
Leader Tech Part Number | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | T (in) | Max Length (in) | Fingers at Max Length | Adhesive | Lance Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Leader Tech Part Number | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | T (in) | Max Length (in) | Fingers at Max Length | Adhesive | Lance Type |
25-55CPS-PP-X.XXX | 0.250 | 0.550 | 0.040 | N/A | N/A | 0.220 | 0.030 | 0.0040 | 24 | 96 | N | D |
Leader Tech Part Number | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | T (mm) | Max Length (mm) | Fingers at Max Length | Adhesive | Lance Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Leader Tech Part Number | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | T (mm) | Max Length (mm) | Fingers at Max Length | Adhesive | Lance Type |
25-55CPS-PP-X.XXX | 6.35 | 13.97 | 1.02 | N/A | N/A | 5.59 | 0.76 | 0.102 | 609 | 96 | N | D |
