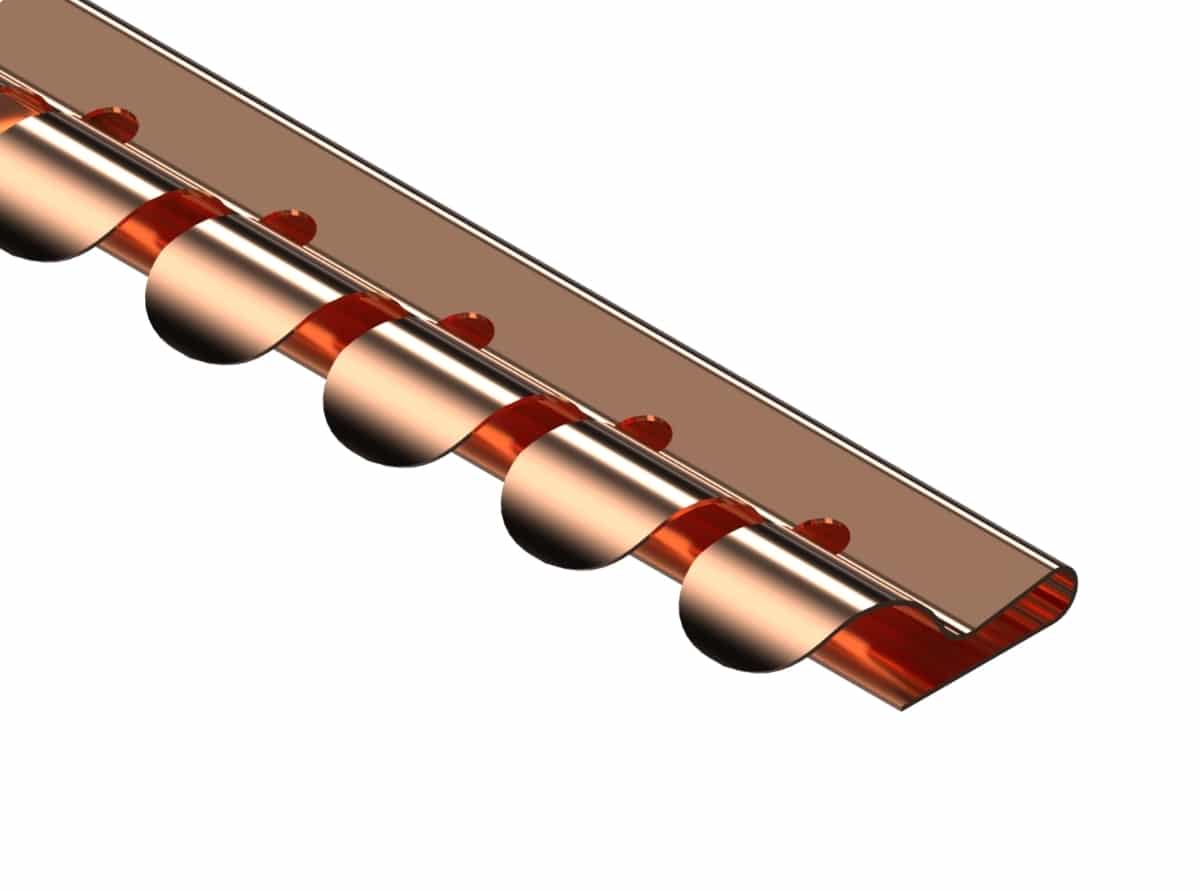

C | Clip-On:

The Clip-On Gaskets are used in enclosures, shielded cabinets, and on circuit cards as ESD contacts and EMI gaskets. For edge mount applications, close attention must be given to clip size, lance requirements, deflection parameters and finger configuration. Leader Tech provides application assistance in the development of specifications.

Options

PP = plating code from plating code table below

X.XXX = Desired length

Imperial
Metric

Leader Tech Part Number	A (in)	B (in)	C (in)	D (in)	E (in)	F (in)	G (in)	T (in)	Max Length (in)	Fingers at Max Length	Adhesive	Lance Type
7-21C-045-DL-PP-X.XXX	0.030	0.250	0.045	0.490	1.000	0.170	0.030	0.0030	16	80	N	D
10-30C-045-PP-X.XXX	0.100	0.300	0.045	N/A	N/A	0.140	0.047	0.0050	16	86	N	N/A
10-30C-045-DL-PP-X.XXX	0.100	0.300	0.045	0.500	1.000	0.140	0.047	0.0050	16	86	N	D
10-30C-050-PP-X.XXX	0.100	0.300	0.050	N/A	N/A	0.140	0.047	0.0050	16	86	N	N/A
10-30C-050-DL-PP-X.XXX	0.100	0.300	0.050	0.500	1.000	0.140	0.047	0.0050	16	86	N	D
10-30C-065-PP-X.XXX	0.100	0.300	0.065	N/A	N/A	0.140	0.047	0.0050	16	86	N	N/A
10-30C-065-DL-PP-X.XXX	0.100	0.300	0.065	0.500	1.000	0.140	0.047	0.0050	16	86	N	D
10-30C-070-PP-X.XXX	0.100	0.300	0.070	N/A	N/A	0.140	0.047	0.0050	16	86	N	N/A
10-30C-070-DL-PP-X.XXX	0.100	0.300	0.070	0.500	1.000	0.140	0.047	0.0050	16	86	N	D
11-45C-045-PP-X.XXX	0.110	0.450	0.045	N/A	N/A	0.140	0.047	0.0050	16	86	N	N/A
11-45C-045-DL-PP-X.XXX	0.110	0.450	0.045	0.500	1.000	0.140	0.047	0.0050	16	86	N	D
11-45C-050-PP-X.XXX	0.110	0.450	0.050	N/A	N/A	0.140	0.047	0.0050	16	86	N	N/A
11-45C-050-DL-PP-X.XXX	0.110	0.450	0.050	0.500	1.000	0.140	0.047	0.0050	16	86	N	D
11-45C-065-PP-X.XXX	0.110	0.450	0.065	N/A	N/A	0.140	0.047	0.0050	16	86	N	N/A
11-45C-065-DL-PP-X.XXX	0.110	0.450	0.065	0.500	1.000	0.140	0.047	0.0050	16	86	N	D
11-45C-070-PP-X.XXX	0.110	0.450	0.070	N/A	N/A	0.140	0.047	0.0050	16	86	N	N/A
11-45C-070-DL-PP-X.XXX	0.110	0.450	0.070	0.500	1.000	0.140	0.047	0.0050	16	86	N	D
25-109C-070-PP-X.XXX	0.250	1.090	0.070	N/A	N/A	0.340	0.035	0.0050	16	43	N	N/A
25-S-109C-070-PP-X.XXX	0.250	1.090	0.070	N/A	N/A	0.340	0.035	0.0030	16	43	N	N/A
25-109C-070-DL-PP-X.XXX	0.250	1.090	0.070	0.500	1.000	0.340	0.035	0.0050	16	43	N	D
25-S-109C-070-DL-PP-X.XXX	0.250	1.090	0.070	0.500	1.000	0.340	0.035	0.0030	16	43	N	D
25-109C-120-PP-X.XXX	0.250	1.090	0.120	N/A	N/A	0.340	0.035	0.0050	16	43	N	N/A
25-109C-130-PP-X.XXX	0.250	1.090	0.130	N/A	N/A	0.340	0.035	0.0050	16	43	N	N/A

Leader Tech Part Number	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	T (mm)	Max Length (mm)	Fingers at Max Length	Adhesive	Lance Type
7-21C-045-DL-PP-X.XXX	0.76	6.35	1.14	12.45	25.40	4.32	0.76	0.076	406	80	N	D
10-30C-045-PP-X.XXX	2.54	7.62	1.14	N/A	N/A	3.56	1.19	0.127	407	86	N	N/A
10-30C-045-DL-PP-X.XXX	2.54	7.62	1.14	12.70	25.40	3.56	1.19	0.127	407	86	N	D
10-30C-050-PP-X.XXX	2.54	7.62	1.27	N/A	N/A	3.56	1.19	0.127	407	86	N	N/A
10-30C-050-DL-PP-X.XXX	2.54	7.62	1.27	12.70	25.40	3.56	1.19	0.127	407	86	N	D
10-30C-065-PP-X.XXX	2.54	7.62	1.65	N/A	N/A	3.56	1.19	0.127	407	86	N	N/A
10-30C-065-DL-PP-X.XXX	2.54	7.62	1.65	12.70	25.40	3.56	1.19	0.127	407	86	N	D
10-30C-070-PP-X.XXX	2.54	7.62	1.78	N/A	N/A	3.56	1.19	0.127	407	86	N	N/A
10-30C-070-DL-PP-X.XXX	2.54	7.62	1.78	12.70	25.40	3.56	1.19	0.127	407	86	N	D
11-45C-045-PP-X.XXX	2.79	11.43	1.78	N/A	N/A	3.56	1.19	0.127	407	86	N	N/A
11-45C-045-DL-PP-X.XXX	2.79	11.43	1.78	12.70	25.40	3.56	1.19	0.127	407	86	N	D
11-45C-050-PP-X.XXX	2.79	11.43	1.78	N/A	N/A	3.56	1.19	0.127	407	86	N	N/A
11-45C-050-DL-PP-X.XXX	2.79	11.43	1.78	12.70	25.40	3.56	1.19	0.127	407	86	N	D
11-45C-065-PP-X.XXX	2.79	11.43	1.78	N/A	N/A	3.56	1.19	0.127	407	86	N	N/A
11-45C-065-DL-PP-X.XXX	2.79	11.43	1.78	12.70	25.40	3.56	1.19	0.127	407	86	N	D
11-45C-070-PP-X.XXX	2.79	11.43	1.78	N/A	N/A	3.56	1.19	0.127	407	86	N	N/A
11-45C-070-DL-PP-X.XXX	2.79	11.43	1.78	12.70	25.40	3.56	1.19	0.127	407	86	N	D
25-109C-070-PP-X.XXX	6.35	27.69	1.78	N/A	N/A	8.64	0.89	0.127	409	43	N	N/A
25-S-109C-070-PP-X.XXX	6.35	27.69	1.78	N/A	N/A	8.64	0.89	0.076	409	43	N	N/A
25-109C-070-DL-PP-X.XXX	6.35	27.69	1.78	12.70	25.40	8.64	0.89	0.127	409	43	N	D
25-S-109C-070-DL-PP-X.XXX	6.35	27.69	1.78	12.70	25.40	8.64	0.89	0.076	409	43	N	D
25-109C-120-PP-X.XXX	6.35	27.69	3.05	N/A	N/A	8.64	0.89	0.127	409	43	N	N/A
25-109C-130-PP-X.XXX	6.35	27.69	3.30	N/A	N/A	8.64	0.89	0.127	409	43	N	N/A

Plating Code	Plating	Specification
BD	As Heat treated	As Heat Treated with Nitrogen
AU	Gold	ASTM B488, TYPE I, CODE C, CLASS 1.25
AG	Silver, Bright	ASTM B700, TYPE 2, GRADE B, CLASS N
MAG	Silver, Matte	ASTM B700, TYPE 2, GRADE A, CLASS N
CDC	Cadmium Chromate, Clear	ASTM B766, CLASS 5, TYPE III
CDY	Cadmium Chromate, Yellow	ASTM B766, CLASS 5, TYPE II
NI	Electroless Nickel RoHS	ASTM B733, SC1, CLASS 1
SN	Tin, Bright	ASTM B545, CLASS A
ST	Tin, Matte	ASTM B545, CLASS A
SNPB	Tin Lead	ASTM B579, SC2
SU	Solderable Unplated	-
ZINC	Zinc, Clear	ASTM B633, SC1, TYPE III
ZNY	Zinc, Yellow	ASTM B633, SC1, TYPE II
