Thermal Grease/Gel Series
Home » Thermal Product Solutions » Thermal Grease
Thermal Grease/Gel Series

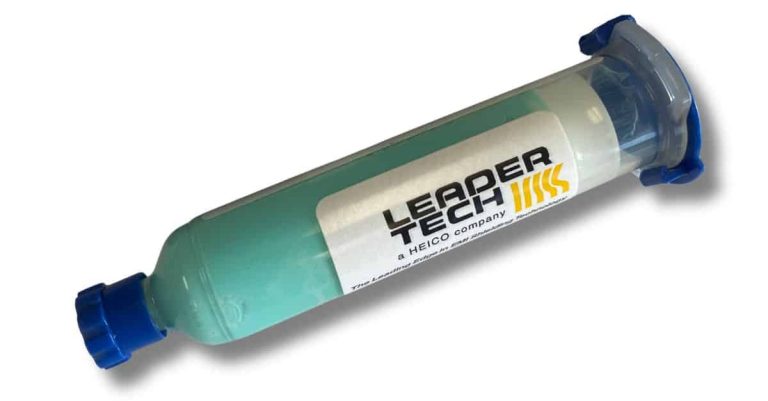

Thermal greases are known for their ability to cover a surface completely and eliminate essentially all air gaps between two surfaces, providing a highly efficient heat transfer. They are typically applied using a syringe, either manually or using an automatic dispensing process for high precision and mass production
- Imperial
- Metric
| Leader tech Part Number | Thermal Conductivity (W/m·K) | Thermal Resistance (°C·in2/W @ 20 psi) | Color | Viscosity (mPa·s@25°C) | Temperature Range (°F) | Density (lbm/in3) | Solubility in Water (% @ 200°C, 24hr max) | Curing Temperature (°F) | Curing Time, (min) | Volatilitze Point (ppm @ 220°C, 24 hr Max) | Volume Resistivity (Ω·cm min) | Breakdown Voltage (kV min) | RoHS Compliant | Shelf Life (months @ 25°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Leader tech Part Number | Thermal Conductivity (W/m·K) | Thermal Resistance (°C·in2/W @ 20 psi) | Color | Viscosity (mPa·s@25°C) | Temperature Range (°F) | Density (lbm/in3) | Solubility in Water (% @ 200°C, 24hr max) | Curing Temperature (°F) | Curing Time, (min) | Volatilitze Point (ppm @ 220°C, 24 hr Max) | Volume Resistivity (Ω·cm min) | Breakdown Voltage (kV min) | RoHS Compliant | Shelf Life (months @ 25°C) |
| TGZ10 | 1.00 +/- 0.20 | 0.25 | BLUE | 5,000,000 | -58 - 392 | 2.4 ± 0.2 | 0.3 | 266 | 60 | 300 | 1.0x1014 | 8 | Yes | 6 |
| TGZ30 | 3.00 +/- 0.25 | 0.08 | PINK | 3,000,000 | -58 - 392 | 3.2 ± 0.2 | 0.2 | 266 | 60 | 200 | 1.0x1014 | 8 | Yes | 6 |
| TGZ50 | 5.00 +/- 0.20 | 0.04 | GREY | 3,000,000 | -58 - 392 | 3.2 ± 0.2 | 0.2 | 266 | 60 | 200 | 1.0x1014 | 2.5 | Yes | 6 |
Leader tech Part Number:
Thermal Conductivity (W/m·K):
Thermal Resistance (°C·in2/W @ 20 psi):
Color:
Viscosity (mPa·s@25°C):
Temperature Range (°F):
Density (lbm/in3):
Solubility in Water (% @ 200°C, 24hr max):
Curing Temperature (°F):
Curing Time, (min):
Volatilitze Point (ppm @ 220°C, 24 hr Max):
Volume Resistivity (Ω·cm min):
Breakdown Voltage (kV min):
RoHS Compliant:
Shelf Life (months @ 25°C):
| Leader Tech Part Number | Thermal Conductivity (W/m·K) | Thermal Resistance (°C·in2/W @ 20 psi) | Color | Viscosity (mPa·s@25°C) | Temperature Range (°C) | Density (g/cc) | Solubility in Water , % @ 200°C, 24hr max | Curing Temperature (°C) | Curing Time, min | Volatilitze Point, ppm @ 220°C, 24 hr Max | Volume Resistivity, Ω·cm min | Breakdown Voltage, kV min | RoHS Compliant | Shelf Life, (@25 °C ) months @ 25°C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Leader Tech Part Number | Thermal Conductivity (W/m·K) | Thermal Resistance (°C·in2/W @ 20 psi) | Color | Viscosity (mPa·s@25°C) | Temperature Range (°C) | Density (g/cc) | Solubility in Water , % @ 200°C, 24hr max | Curing Temperature (°C) | Curing Time, min | Volatilitze Point, ppm @ 220°C, 24 hr Max | Volume Resistivity, Ω·cm min | Breakdown Voltage, kV min | RoHS Compliant | Shelf Life, (@25 °C ) months @ 25°C |
| Test Method | ASTM D5470 | ASTM D5470 | Visual | Rheometer DHR-2 | - | ASTM D792 | SH/T0324-92 | - | - | GB269-85 | Q/SC004-06 GB1410-89 | Q/SC004-06 GB1410-89 | - | - |
| TGZ10 | 1.00 +/- 0.20 | 0.25 | BLUE | 5,000,000 | -50 - 200 | 66.43 ± 5.54 | 0.3 | 130 | 60 | 300 | 1.0x1014 | 8 | Yes | 6 |
| TGZ30 | 3.00 +/- 0.25 | 0.08 | PINK | 3,000,000 | -50 - 200 | 88.58 ± 5.54 | 0.2 | 130 | 60 | 200 | 1.0x1014 | 8 | Yes | 6 |
| TGZ50 | 5.00 +/- 0.20 | 0.04 | GREY | 3,000,000 | -50 - 200 | 88.58 ± 5.55 | 0.2 | 130 | 60 | 200 | 1.0x1014 | 2.5 | Yes | 6 |
Leader Tech Part Number:
Thermal Conductivity (W/m·K):
Thermal Resistance (°C·in2/W @ 20 psi):
Color:
Viscosity (mPa·s@25°C):
Temperature Range (°C):
Density (g/cc):
Solubility in Water , % @ 200°C, 24hr max:
Curing Temperature (°C):
Curing Time, min:
Volatilitze Point, ppm @ 220°C, 24 hr Max:
Volume Resistivity, Ω·cm min:
Breakdown Voltage, kV min:
RoHS Compliant:
Shelf Life, (@25 °C ) months @ 25°C:
