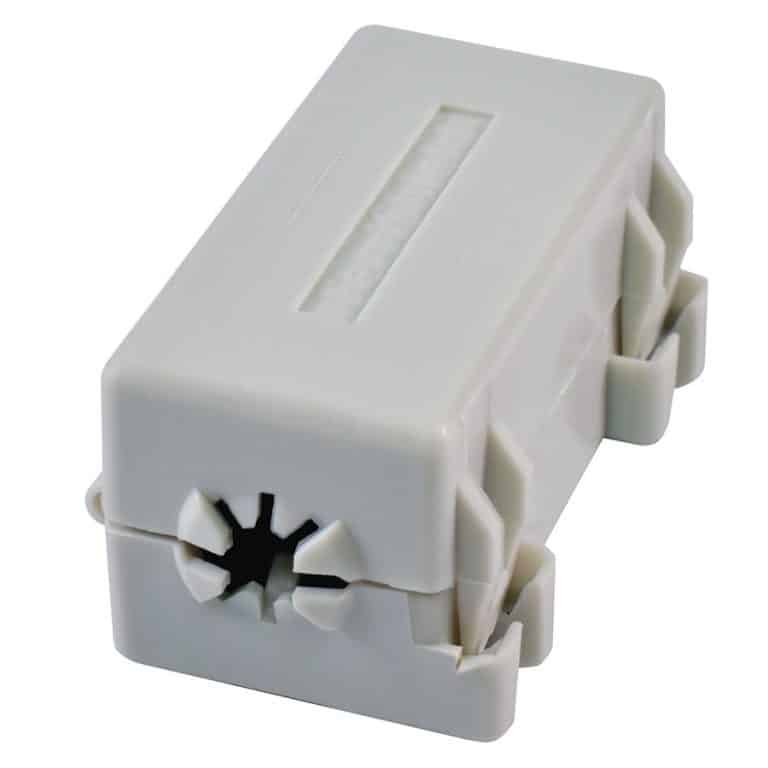

Cable Sleeve Snap:

WITH VARIABLE DIAMETER END PORTS.
Specifically sized to fit the range of common USB I/O cable diameters; variable
diameter end ports allow for different types of cable insulation covers measuring
.125” to .179” (3,2 – 4,5mm).

Imperial
Metric

Leader Tech Part Number	Material	A(in)	B(in)	C(in)	D(in)	E(in)	F(in)	Color	Impedance in OHMS	Maximum recommended cable size (in)
USB28B2034	28	.585	1.250	0.585	.250	0.12	.680	Grey	220 @ 100MHz	.125-.170 dia.
USB28B2034K	28	.585	1.250	0.585	.250	0.12	.680	Black	220 @ 100MHz	.125-.170 dia.

Leader Tech Part Number	Material	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	Color	Impedance in OHMS	Maximum recommended cable size (mm)
USB28B2034	28	14.9	31.8	14.9	6.4	3	17.3	Grey	220 @ 100MHz	3.2-4.3 dia.
USB28B2034K	28	14.9	31.8	14.9	6.4	3	17.3	Black	220 @ 100MHz	3.2-4.3 dia.
