Adhesive Mount Fingerstock Gasket for EMI Shielding

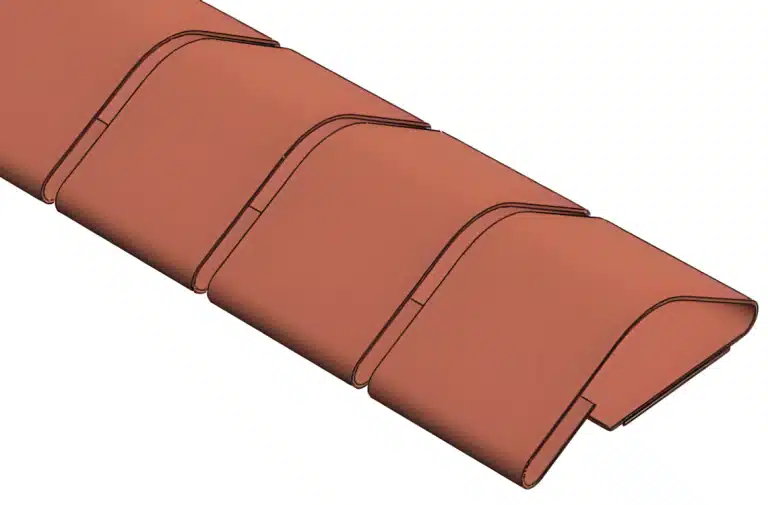

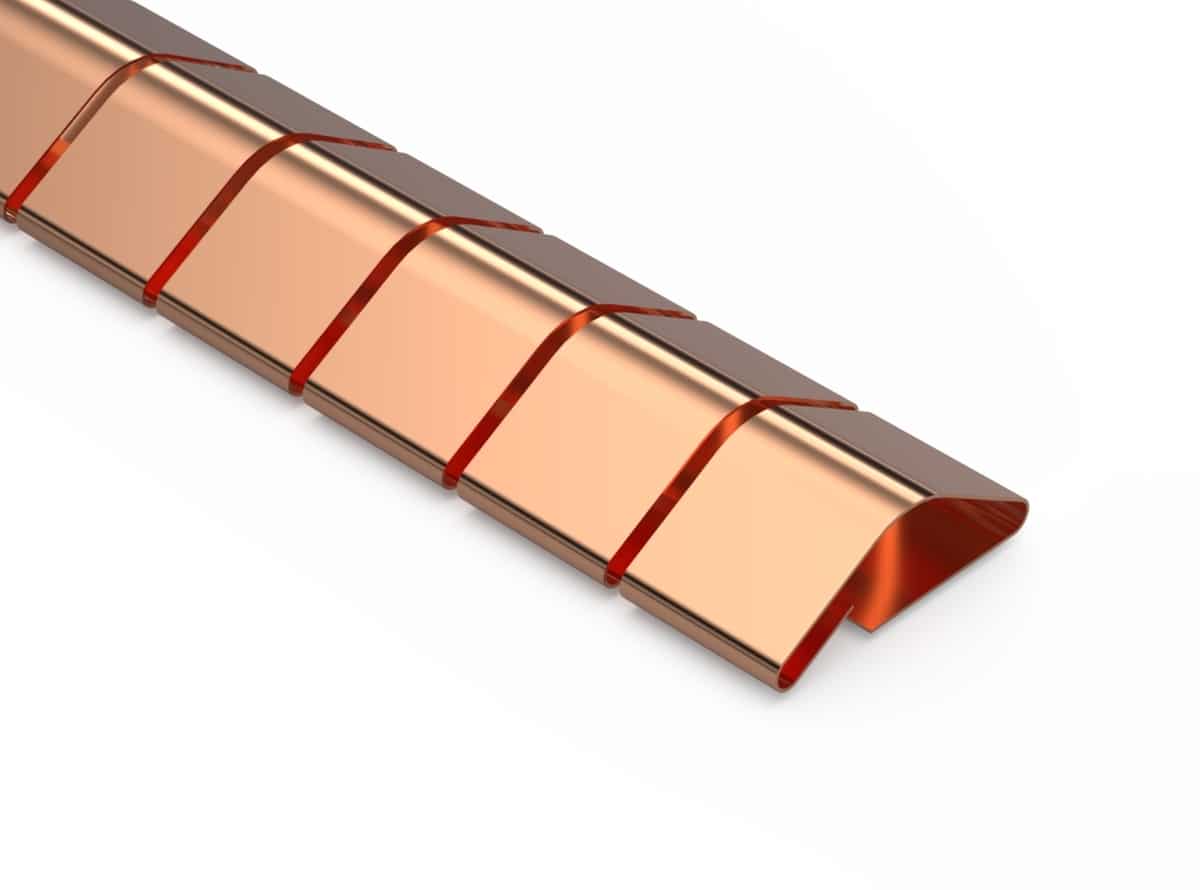

Adhesive Mount Fingerstock Gaskets provide reliable EMI/RFI shielding and grounding for electronic enclosures, shielded cabinets, access panels, and MRI chamber doors. Manufactured from high-performance beryllium copper, these conductive gaskets maintain excellent electrical contact while supporting both compression and wiping applications.
The integrated pressure-sensitive adhesive (PSA) backing simplifies installation and reduces assembly time. Available in profile heights ranging from 0.11 inches (2.8 mm) to 0.32 inches (8.1 mm), these fingerstock gaskets are designed to deliver long-term shielding performance and durability in demanding electronic environments.
Leader Tech Adhesive Mount Series Gaskets are available in multiple lengths, finishes, and configurations to meet specific EMI shielding requirements.
Options
PP = plating code from plating code table below
X.XXX = Desired length
| Leader Tech Part Number | A (in) | B (in) | C (in) | F (in) | G (in) | T (in) | Max Length (in) | Fingers at Max Length | Adhesive |
|---|---|---|---|---|---|---|---|---|---|
| Leader Tech Part Number | A (in) | B (in) | C (in) | F (in) | G (in) | T (in) | Max Length (in) | Fingers at Max Length | Adhesive |
| 11-32AH-PP-X.XXX | 0.11 | 0.32 | 0.20 | 0.170 | 0.017 | 0.0030 | 16 | 86 | Y |
| 11-S-32AH-PP-X.XXX | 0.11 | 0.32 | 0.20 | 0.170 | 0.017 | 0.0020 | 16 | 86 | Y |
| 13-37AH-PP-X.XXX | 0.13 | 0.37 | 0.21 | 0.225 | 0.025 | 0.0030 | 16 | 64 | Y |
| 13-S-37AH-PP-X.XXX | 0.13 | 0.37 | 0.21 | 0.225 | 0.025 | 0.0020 | 16 | 64 | Y |
| 14-38AH-PP-X.XXX | 0.14 | 0.38 | 0.20 | 0.343 | 0.032 | 0.0040 | 16 | 43 | Y |
| 22-60AH-PP-X.XXX | 0.22 | 0.60 | 0.28 | 0.344 | 0.031 | 0.0050 | 16 | 43 | Y |
| 22-S-60AH-PP-X.XXX | 0.22 | 0.60 | 0.28 | 0.344 | 0.031 | 0.0030 | 16 | 43 | Y |
| 32-78AH-PP-X.XXX | 0.32 | 0.78 | 0.45 | 0.344 | 0.031 | 0.0040 | 16 | 43 | Y |
| 32-S-78AH-PP-X.XXX | 0.32 | 0.78 | 0.45 | 0.344 | 0.031 | 0.0030 | 16 | 43 | Y |
| Leader Tech Part Number | A (mm) | B (mm) | C (mm) | F (mm) | G (mm) | T (mm) | Max Length (mm) | Fingers at Max Length | Adhesive |
|---|---|---|---|---|---|---|---|---|---|
| Leader Tech Part Number | A (mm) | B (mm) | C (mm) | F (mm) | G (mm) | T (mm) | Max Length (mm) | Fingers at Max Length | Adhesive |
| 11-32AH-PP-X.XXX | 2.79 | 8.13 | 5.08 | 4.32 | 0.43 | 0.0076 | 408 | 86 | Y |
| 11-S-32AH-PP-X.XXX | 2.79 | 8.13 | 5.08 | 4.32 | 0.43 | 0.0051 | 408 | 86 | Y |
| 13-37AH-PP-X.XXX | 3.30 | 9.40 | 5.33 | 5.72 | 0.64 | 0.076 | 406 | 64 | Y |
| 13-S-37AH-PP-X.XXX | 3.30 | 9.40 | 5.33 | 5.72 | 0.64 | 0.051 | 406 | 64 | Y |
| 14-38AH-PP-X.XXX | 3.56 | 9.65 | 5.08 | 8.71 | 0.81 | 0.102 | 409 | 43 | Y |
| 22-60AH-PP-X.XXX | 5.59 | 15.24 | 7.11 | 8.74 | 0.79 | 0.127 | 409 | 43 | Y |
| 22-S-60AH-PP-X.XXX | 5.59 | 15.24 | 7.11 | 8.74 | 0.79 | 0.076 | 409 | 43 | Y |
| 32-78AH-PP-X.XXX | 8.13 | 19.81 | 11.43 | 8.74 | 0.79 | 0.102 | 409 | 43 | Y |
| 32-S-78AH-PP-X.XXX | 8.13 | 19.81 | 11.43 | 8.74 | 0.79 | 0.076 | 409 | 43 | Y |
| Plating Code | Plating | Specification |
|---|---|---|
| BD | As Heat treated | As Heat Treated with Nitrogen |
| AU | Gold | ASTM B488, TYPE I, CODE C, CLASS 1.25 PRECEDED BY AN UNDERCOAT OF AT LEAST .000047" OF COPPER PER SAE-AMS2418 AND AT LEAST .000047" OF NICKEL PER SAE-AMS-QQ-N-290 |
| AG | Silver, Bright | ASTM B700, TYPE 2, GRADE B, CLASS N .0001" MIN PRECEDED BY A NICKEL UNDERCOAT AT LEAST .000039" THICK PER SAE-AMS-QQ-N-290 |
| MAG | Silver, Matte | ASTM B700, TYPE 2, GRADE A, CLASS N .0001" MIN PRECEDED BY A NICKEL UNDERCOAT AT LEAST .000039" THICK PER SAE-AMS-QQ-N-290 |
| CDC | Cadmium Chromate, Clear | ASTM B766, CLASS 5, TYPE III |
| CDY | Cadmium Chromate, Yellow | ASTM B766, CLASS 5, TYPE II |
| NI | Electroless Nickel RoHS | ASTM B733, TYPE IV, SC1, CLASS 1 |
| SN | Tin, Bright | ASTM B545, CLASS A PRECEDED BY A NICKEL UNDERCOAT AT LEAST .00005" THICK PER SAE-AMS-QQ-N-290 |
| ST | Tin, Matte | ASTM B545, CLASS A PRECEDED BY A NICKEL UNDERCOAT AT LEAST .00005" THICK PER SAE-AMS-QQ-N-290 |
| SNPB | Tin Lead | ASTM B 579, SC2 PRECEDED BY AN UNDERCOAT OF AT LEAST .000098" OF COPPER PER SAE-AMS2418 AND AT LEAST .000098" OF NICKEL PER SAE-AMS-QQ-N-290 |
| SU | Solderable Unplated | - |
| ZNC | Zinc, Clear | ASTM B633, SC1, TYPE III |
| ZNY | Zinc, Yellow | ASTM B633, SC1, TYPE II |
