Conductive Foam Shielding:

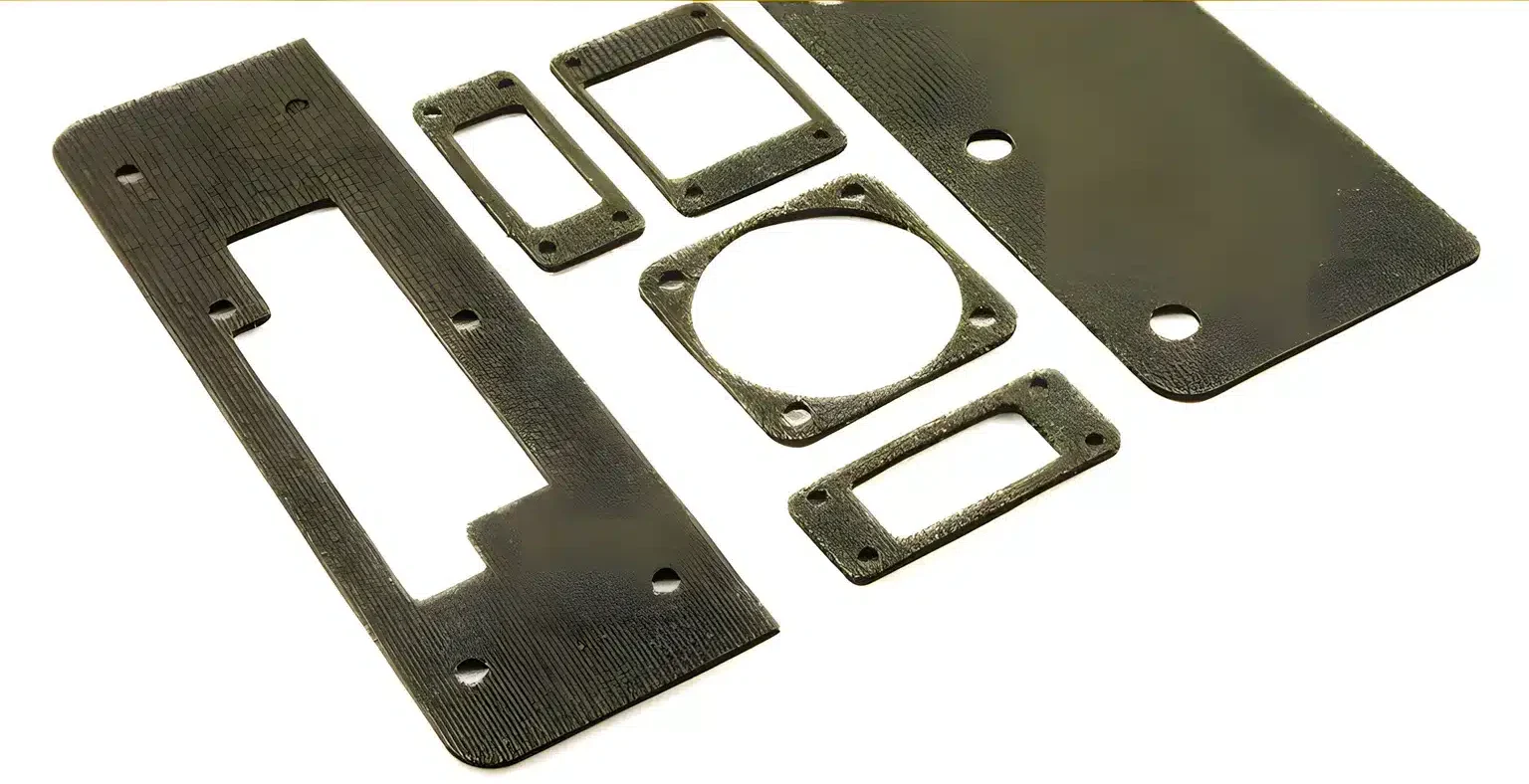

CFS Conductive Foam Shielding Material consists of resilient Nickel-Copper polyurethane foam which is layered between two pieces of conductive polyester fabric. This CFS Conductive Foam is ideal for applications that require low compression forces but excellent shielding effectiveness.

Overview

Options:

Applications Intricate die cuts forms I/O panels Backplanes Connectors Access panels

Series Spec

Performance Operating Temperatures: -40F – +156F (-40C – +70C)
Surface Resistivity: Shielding Effectiveness: 60dB Typical 10MHz – 3GHz
Flammability: UL94-HBF Unless otherwise noted UL94-V1*
Typical Compression Load: 2.1 PSI at recommended 30% compression

Imperial
Metric

Leader Tech Part Number	Height (in)	Width (in)	Length (in)	Adhesive
Leader Tech Part Number	Height (in)	Width (in)	Length (in)	Adhesive
CFS1919060	0.060	19	19	Conductive PSA
CFS1919060-NTP	0.060	19	19	No
CFS1919098	0.098	19	19	Conductive PSA
CFS1919098-NTP	0.098	19	19	No
CFS1919138	0.138	19	19	Conductive PSA
CFS1919138-NTP	0.138	19	19	No
CFS2222060	0.060	22	22	Conductive PSA
CFS2222060-V1-NTP*	0.060	22	22	No

Leader Tech Part Number	Height (mm)	Width (mm)	Length (mm)	Adhesive
Leader Tech Part Number	Height (mm)	Width (mm)	Length (mm)	Adhesive
CFS1919060	1.47	482.6	482.6	Conductive PSA
CFS1919060-NTP	1.47	482.6	482.6	No
CFS1919098	2.40	482.6	482.6	Conductive PSA
CFS1919098-NTP	2.40	482.6	482.6	No
CFS1919138	3.38	482.6	482.6	Conductive PSA
CFS1919138-NTP	3.38	482.6	482.6	No
CFS2222060	1.47	558.8	558.8	Conductive PSA
CFS2222060-V1-NTP*	1.47	558.8	558.8	No
