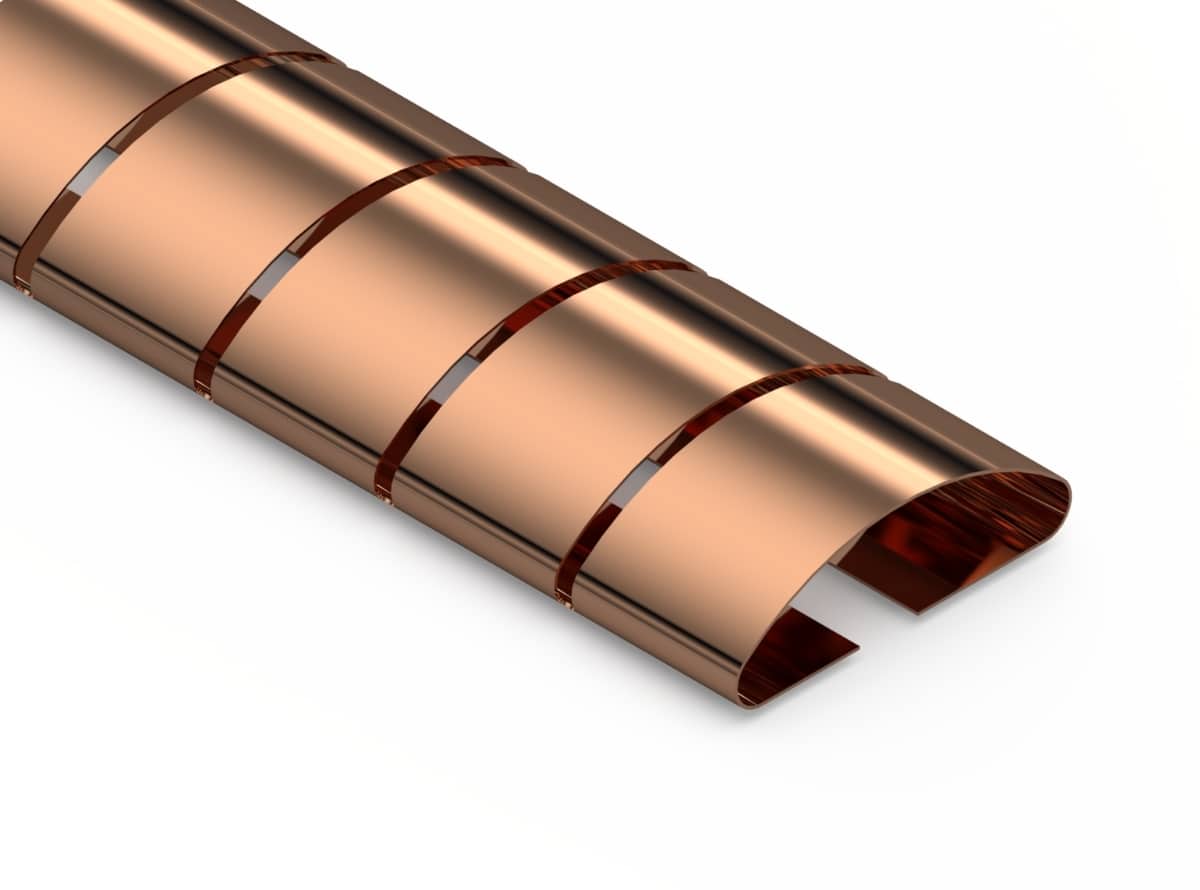

The Dome Top Gaskets are known for their large surface area for electrical contact and smooth wiping action. Also available in a solid top profile allowing for omni-directional wiping. Together with the Slot Mount Series, the Dome Top Gaskets are a mainstay in the enclosure/chassis industries. Commonly mounted with adhesive tape.
PP = plating code from plating code table below
X.XXX = Desired length
Leader Tech Part Number | A (in) | B (in) | F (in) | G (in) | T (in) | Max Length (in) | Fingers at Max Length | Adhesive |
---|---|---|---|---|---|---|---|---|
Leader Tech Part Number | A (in) | B (in) | F (in) | G (in) | T (in) | Max Length (in) | Fingers at Max Length | Adhesive |
11-35DT-PP-X.XXX | 0.110 | 0.350 | 0.169 | 0.018 | 0.0030 | 16 | 86 | Y |
11-S-35DT-PP-X.XXX | 0.110 | 0.350 | 0.169 | 0.018 | 0.0020 | 16 | 86 | Y |
14-45DT-PP-X.XXX | 0.140 | 0.450 | 0.228 | 0.022 | 0.0030 | 16 | 64 | Y |
14-S-45DT-PP-X.XXX | 0.140 | 0.450 | 0.228 | 0.022 | 0.0020 | 16 | 64 | Y |
22-62DT-PP-X.XXX | 0.220 | 0.620 | 0.345 | 0.030 | 0.0040 | 16 | 43 | Y |
22-S-62DT-PP-X.XXX | 0.220 | 0.620 | 0.345 | 0.030 | 0.0030 | 16 | 43 | Y |
Leader Tech Part Number | A (mm) | B (mm) | F (mm) | G (mm) | T (mm) | Max Length (mm) | Fingers at Max Length | Adhesive |
---|---|---|---|---|---|---|---|---|
Leader Tech Part Number | A (mm) | B (mm) | F (mm) | G (mm) | T (mm) | Max Length (mm) | Fingers at Max Length | Adhesive |
11-35DT-PP-X.XXX | 2.79 | 8.89 | 4.29 | 0.46 | 0.076 | 408 | 86 | Y |
11-S-35DT-PP-X.XXX | 2.79 | 8.89 | 4.29 | 0.46 | 0.051 | 408 | 86 | Y |
14-45DT-PP-X.XXX | 3.56 | 11.43 | 5.79 | 0.56 | 0.076 | 406 | 64 | Y |
14-S-45DT-PP-X.XXX | 3.56 | 11.43 | 5.79 | 0.56 | 0.051 | 406 | 64 | Y |
22-62DT-PP-X.XXX | 5.59 | 15.75 | 8.76 | 0.76 | 0.102 | 409 | 43 | Y |
22-S-62DT-PP-X.XXX | 5.59 | 15.75 | 8.76 | 0.76 | 0.076 | 409 | 43 | Y |
Plating Code | Plating | Specification |
---|---|---|
BD | As Heat treated | As Heat Treated with Nitrogen |
AU | Gold | ASTM B488, TYPE I, CODE C, CLASS 1.25 |
AG | Silver, Bright | ASTM B700, TYPE 2, GRADE B, CLASS N |
MAG | Silver, Matte | ASTM B700, TYPE 2, GRADE A, CLASS N |
CDC | Cadmium Chromate, Clear | ASTM B766, CLASS 5, TYPE III |
CDY | Cadmium Chromate, Yellow | ASTM B766, CLASS 5, TYPE II |
NI | Electroless Nickel RoHS | ASTM B733, SC1, CLASS 1 |
SN | Tin, Bright | ASTM B545, CLASS A |
ST | Tin, Matte | ASTM B545, CLASS A |
SNPB | Tin Lead | ASTM B579, SC2 |
SU | Solderable Unplated | - |
ZINC | Zinc, Clear | ASTM B633, SC1, TYPE III |
ZNY | Zinc, Yellow | ASTM B633, SC1, TYPE II |
