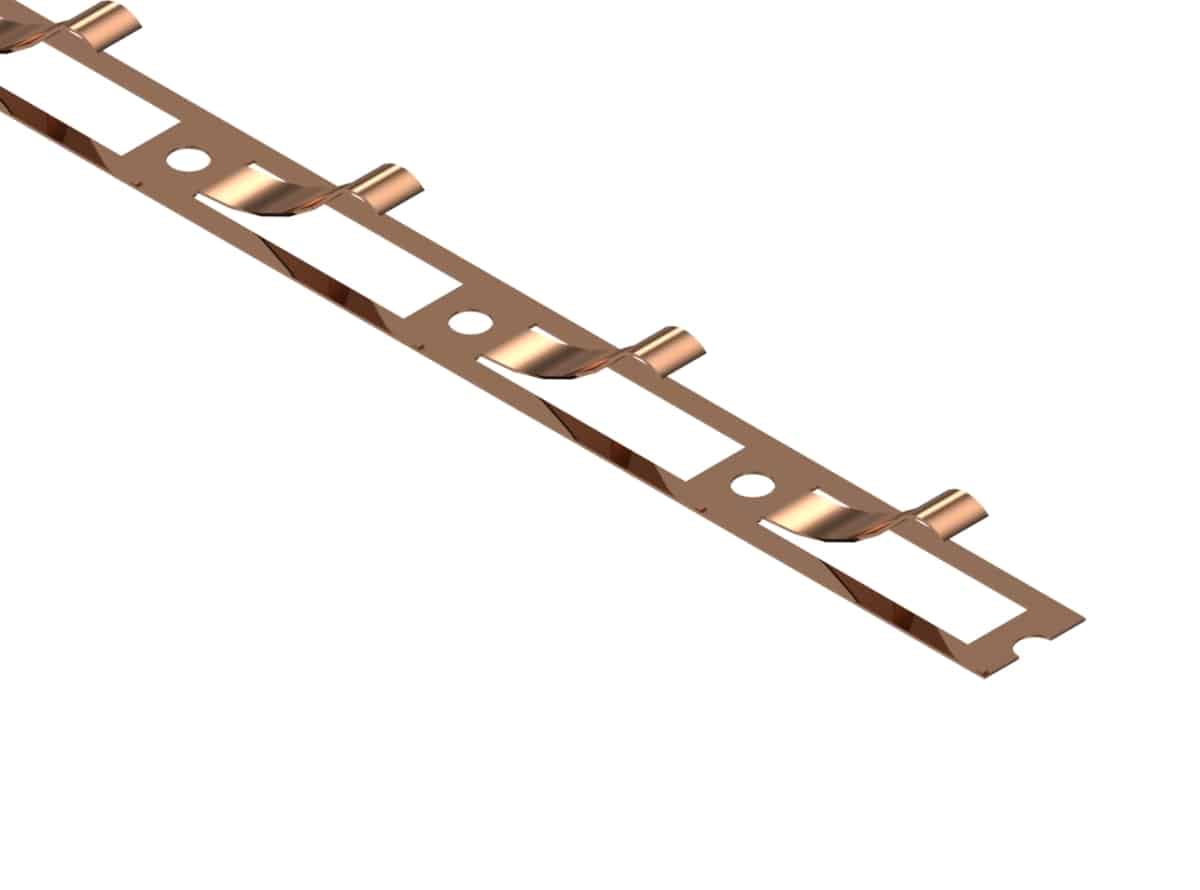

The low profile series gaskets incorporate design features that allow for some of the lowest
compression forces in the industry, while achieving high performance shielding effectiveness. These gaskets are ideally suited for small aperture applications.
PP = plating code from plating code table below
X.XXX = Desired length
|Leader Tech Part Number||A (in)||B (in)||C (in)||F (in)||P (in)||T (in)||Max Length (in)||Fingers at Max Length||Adhesive|
|Leader Tech Part Number||A (mm)||B (mm)||C (mm)||F (mm)||P (mm)||T (mm)||Max Length (mm)||Fingers at Max Length||Adhesive|
|BD||As Heat treated||As Heat Treated with Nitrogen|
|AG||Silver, Bright||ASTM B700, TYPE 2, GRADE B, CLASS N|
|MAG||Silver, Matte||ASTM B700, TYPE 2, GRADE A, CLASS N|
|CDC||Cadmium Chromate, Clear||ASTM B766, CLASS 5, TYPE III|
|CDY||Cadmium Chromate, Yellow||ASTM B766, CLASS 5, TYPE II|
|NI||Nickel||ASTM B733, SC1, CLASS 1|
|SN||Tin, Bright||ASTM B545, CLASS A|
|ST||Tin, Matte||ASTM B545, CLASS A|
|SNPB||Tin Lead||ASTM B579, SC2|
|ZINC||Zinc, Clear||ASTM B633, SC1, TYPE III|
|ZNY||Zinc, Yellow||ASTM B633, SC1, TYPE II|
