What is a Rectangle D Cross Section conductive gasket?

A Rectangle D Cross Section conductive gasket is a molded conductive elastomer sealing solution designed for EMI/RFI shielding and environmental protection in rectangular connector and electronic enclosure applications.

What applications use Rectangle D Cross Section conductive gaskets?

Rectangle D Cross Section conductive gaskets are commonly used in aerospace electronics, military systems, telecommunications equipment, RF devices, medical electronics, and industrial electronic enclosures.

What are the benefits of D profile conductive gaskets?

D profile conductive gaskets provide reliable EMI shielding, strong environmental sealing, flexible installation options, corrosion resistance, and long-term conductive performance.

What conductive elastomer materials are available?

Available conductive elastomer materials include silicone and fluorosilicone compounds with conductive fillers such as silver/copper, silver/aluminum, silver/nickel, silver/glass, and nickel-coated graphite.

Can Rectangle D Cross Section gaskets be used without a groove?

Yes. TechSIL Rectangle D Cross Section conductive gaskets can be installed with or without a groove depending on the application and sealing requirements.

Are custom Rectangle D Cross Section gasket sizes available?

Yes. Leader Tech offers custom sizes, conductive compounds, and molded gasket configurations for specialized EMI shielding and sealing applications.

LeaderTech

Rectangle D Cross Section

Home » Effective Enclosure Shielding Solutions » Conductive Elastomers » Rectangle D Cross Section

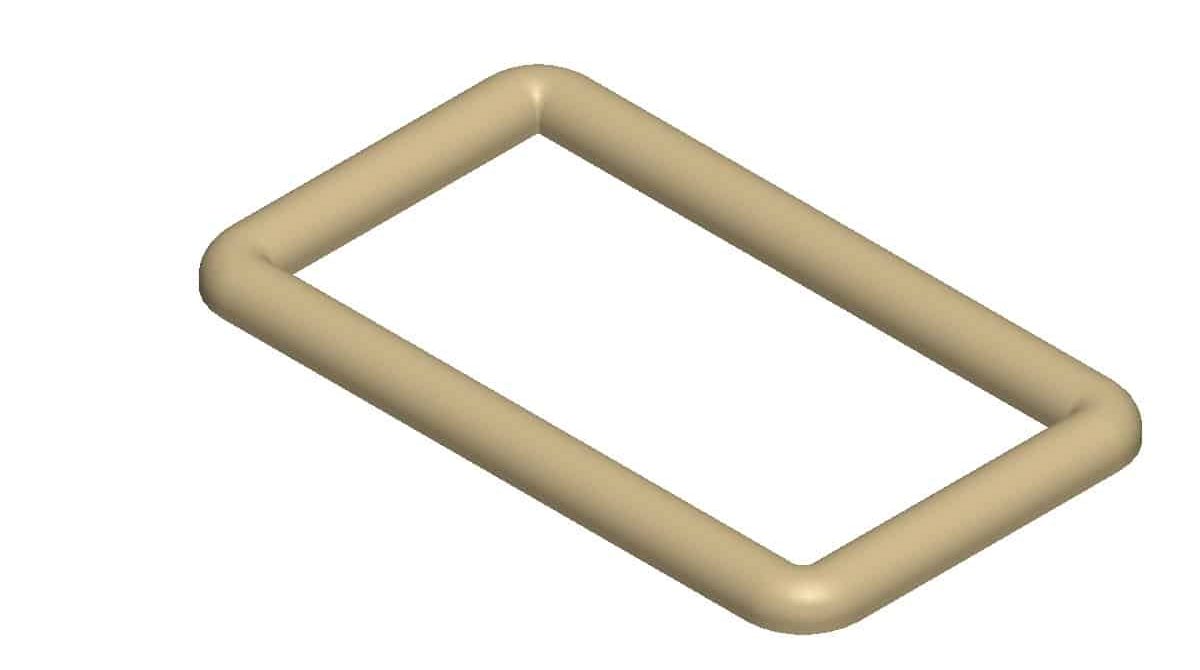

TechSIL Conductive Elastomer Rectangle D Cross Section

TechSIL EMI/RFI Shielding Conductive Elastomer “D” Profile Molded Rectangular Gaskets come in five different sizes and are ideal for use with rectangular connectors.

They come with a .127” foot print and a height of .083. These “D” Profile Molded Rectangular Gaskets can be molded out of all sixteen standard compounds. These Rectangular gaskets can be used with or without a groove.

Additional sizes and compounds are available upon request.

Leader Tech Part Number		MIL-DTL-83528 Part Number	Elastomer	Filler	L (in)	W (in)	D (in)	T (in)
Leader Tech Part Number	Orthographic Projection Views	MIL-DTL-83528 Part Number	Elastomer	Filler	L (in)	W (in)	D (in)	T (in)
5306-0001-10		M83528/006A001	Silicone	Ag/Cu	0.988	0.290	0.083	0.127
5306-0001-20		M83528/006B001	Silicone	Ag/Al	0.988	0.290	0.083	0.127
5306-0001-25		M83528/006H001	Silicone	Ag	0.988	0.290	0.083	0.127
5306-0001-30		M83528/006C001	Fluorosilicone	Ag/Cu	0.988	0.290	0.083	0.127
5306-0001-35		M83528/006F001	Fluorosilicone	Ag	0.988	0.290	0.083	0.127
5306-0001-40		M83528/006D001	Fluorosilicone	Ag/Al	0.988	0.290	0.083	0.127
5306-0001-45		M83528/006K001	Silicone	Ag/Cu	0.988	0.290	0.083	0.127
5306-0001-50		M83528/006M001	Silicone	Ag/G	0.988	0.290	0.083	0.127
5306-0001-55		M83528/006E001	Silicone	Ag	0.988	0.290	0.083	0.127
5306-0001-60		N/A	Silicone	Ni/C	0.988	0.290	0.083	0.127
5306-0001-65		M83528/006L001	Silicone	Ag/Ni	0.988	0.290	0.083	0.127
5306-0001-90		N/A	Fluorosilicone	Ni/C	0.988	0.290	0.083	0.127
5306-0002-10		M83528/006A002	Silicone	Ag/Cu	0.988	0.490	0.083	0.127
5306-0002-20		M83528/006B002	Silicone	Ag/Al	0.988	0.490	0.083	0.127
5306-0002-25		M83528/006H002	Silicone	Ag	0.988	0.490	0.083	0.127
5306-0002-30		M83528/006C002	Fluorosilicone	Ag/Cu	0.988	0.490	0.083	0.127
5306-0002-35		M83528/006F002	Fluorosilicone	Ag	0.988	0.490	0.083	0.127
5306-0002-40		M83528/006D002	Fluorosilicone	Ag/Al	0.988	0.490	0.083	0.127
5306-0002-45		M83528/006K002	Silicone	Ag/Cu	0.988	0.490	0.083	0.127
5306-0002-50		M83528/006M002	Silicone	Ag/G	0.988	0.490	0.083	0.127
5306-0002-55		M83528/006E002	Silicone	Ag	0.988	0.490	0.083	0.127
5306-0002-60		N/A	Silicone	Ni/C	0.988	0.490	0.083	0.127
5306-0002-65		M83528/006L002	Silicone	Ag/Ni	0.988	0.490	0.083	0.127
5306-0002-90		N/A	Fluorosilicone	Ni/C	0.988	0.490	0.083	0.127
5306-0003-10		M83528/006A003	Silicone	Ag/Cu	1.248	0.624	0.083	0.127
5306-0003-20		M83528/006B003	Silicone	Ag/Al	1.248	0.624	0.083	0.127
5306-0003-25		M83528/006H003	Silicone	Ag	1.248	0.624	0.083	0.127
5306-0003-30		M83528/006C003	Fluorosilicone	Ag/Cu	1.248	0.624	0.083	0.127
5306-0003-35		M83528/006F003	Fluorosilicone	Ag	1.248	0.624	0.083	0.127
5306-0003-40		M83528/006D003	Fluorosilicone	Ag/Al	1.248	0.624	0.083	0.127
5306-0003-45		M83528/006K003	Silicone	Ag/Cu	1.248	0.624	0.083	0.127
5306-0003-50		M83528/006M003	Silicone	Ag/G	1.248	0.624	0.083	0.127
5306-0003-55		M83528/006E003	Silicone	Ag	1.248	0.624	0.083	0.127
5306-0003-60		N/A	Silicone	Ni/C	1.248	0.624	0.083	0.127
5306-0003-65		M83528/006L003	Silicone	Ag/Ni	1.248	0.624	0.083	0.127
5306-0003-90		N/A	Fluorosilicone	Ni/C	1.248	0.624	0.083	0.127
5306-0004-10		M83528/006A004	Silicone	Ag/Cu	3.000	0.830	0.083	0.127
5306-0004-20		M83528/006B004	Silicone	Ag/Al	3.000	0.830	0.083	0.127
5306-0004-25		M83528/006H004	Silicone	Ag	3.000	0.830	0.083	0.127
5306-0004-30		M83528/006C004	Fluorosilicone	Ag/Cu	3.000	0.830	0.083	0.127
5306-0004-35		M83528/006F004	Fluorosilicone	Ag	3.000	0.830	0.083	0.127
5306-0004-40		M83528/006D004	Fluorosilicone	Ag/Al	3.000	0.830	0.083	0.127
5306-0004-45		M83528/006K004	Silicone	Ag/Cu	3.000	0.830	0.083	0.127
5306-0004-50		M83528/006M004	Silicone	Ag/G	3.000	0.830	0.083	0.127
5306-0004-55		M83528/006E004	Silicone	Ag	3.000	0.830	0.083	0.127
5306-0004-60		N/A	Silicone	Ni/C	3.000	0.830	0.083	0.127
5306-0004-65		M83528/006L004	Silicone	Ag/Ni	3.000	0.830	0.083	0.127
5306-0004-90		N/A	Fluorosilicone	Ni/C	3.000	0.830	0.083	0.127
5306-0005-10		M83528/006A005	Silicone	Ag/Cu	5.280	1.340	0.083	0.127
5306-0005-20		M83528/006B005	Silicone	Ag/Al	5.280	1.340	0.083	0.127
5306-0005-25		M83528/006H005	Silicone	Ag	5.280	1.340	0.083	0.127
5306-0005-30		M83528/006C005	Fluorosilicone	Ag/Cu	5.280	1.340	0.083	0.127
5306-0005-35		M83528/006F005	Fluorosilicone	Ag	5.280	1.340	0.083	0.127
5306-0005-40		M83528/006D005	Fluorosilicone	Ag/Al	5.280	1.340	0.083	0.127
5306-0005-45		M83528/006K005	Silicone	Ag/Cu	5.280	1.340	0.083	0.127
5306-0005-50		M83528/006M005	Silicone	Ag/G	5.280	1.340	0.083	0.127
5306-0005-55		M83528/006E005	Silicone	Ag	5.280	1.340	0.083	0.127
5306-0005-60		N/A	Silicone	Ni/C	5.280	1.340	0.083	0.127
5306-0005-65		M83528/006L005	Silicone	Ag/Ni	5.280	1.340	0.083	0.127
5306-0005-90		N/A	Fluorosilicone	Ni/C	5.280	1.340	0.083	0.127

Leader Tech Part Number		MIL-DTL-83528 Part Number	Elastomer	Filler	L (mm)	W (mm)	D (mm)	T (mm)
Leader Tech Part Number	Orthographic Projection Views	MIL-DTL-83528 Part Number	Elastomer	Filler	L (mm)	W (mm)	D (mm)	T (mm)
5306-0001-10		M83528/006A001	Silicone	Ag/Cu	25.10	7.37	2.11	3.23
5306-0001-20		M83528/006B001	Silicone	Ag/Al	25.10	7.37	2.11	3.23
5306-0001-25		M83528/006H001	Silicone	Ag	25.10	7.37	2.11	3.23
5306-0001-30		M83528/006C001	Fluorosilicone	Ag/Cu	25.10	7.37	2.11	3.23
5306-0001-35		M83528/006F001	Fluorosilicone	Ag	25.10	7.37	2.11	3.23
5306-0001-40		M83528/006D001	Fluorosilicone	Ag/Al	25.10	7.37	2.11	3.23
5306-0001-45		M83528/006K001	Silicone	Ag/Cu	25.10	7.37	2.11	3.23
5306-0001-50		M83528/006M001	Silicone	Ag/G	25.10	7.37	2.11	3.23
5306-0001-55		M83528/006E001	Silicone	Ag	25.10	7.37	2.11	3.23
5306-0001-60		N/A	Silicone	Ni/C	25.10	7.37	2.11	3.23
5306-0001-65		M83528/006L001	Silicone	Ag/Ni	25.10	7.37	2.11	3.23
5306-0001-90		N/A	Fluorosilicone	Ni/C	25.10	7.37	2.11	3.23
5306-0002-10		M83528/006A002	Silicone	Ag/Cu	25.10	12.45	2.11	3.23
5306-0002-20		M83528/006B002	Silicone	Ag/Al	25.10	12.45	2.11	3.23
5306-0002-25		M83528/006H002	Silicone	Ag	25.10	12.45	2.11	3.23
5306-0002-30		M83528/006C002	Fluorosilicone	Ag/Cu	25.10	12.45	2.11	3.23
5306-0002-35		M83528/006F002	Fluorosilicone	Ag	25.10	12.45	2.11	3.23
5306-0002-40		M83528/006D002	Fluorosilicone	Ag/Al	25.10	12.45	2.11	3.23
5306-0002-45		M83528/006K002	Silicone	Ag/Cu	25.10	12.45	2.11	3.23
5306-0002-50		M83528/006M002	Silicone	Ag/G	25.10	12.45	2.11	3.23
5306-0002-55		M83528/006E002	Silicone	Ag	25.10	12.45	2.11	3.23
5306-0002-60		N/A	Silicone	Ni/C	25.10	12.45	2.11	3.23
5306-0002-65		M83528/006L002	Silicone	Ag/Ni	25.10	12.45	2.11	3.23
5306-0002-90		N/A	Fluorosilicone	Ni/C	25.10	12.45	2.11	3.23
5306-0003-10		M83528/006A003	Silicone	Ag/Cu	31.70	15.85	2.11	3.23
5306-0003-20		M83528/006B003	Silicone	Ag/Al	31.70	15.85	2.11	3.23
5306-0003-25		M83528/006H003	Silicone	Ag	31.70	15.85	2.11	3.23
5306-0003-30		M83528/006C003	Fluorosilicone	Ag/Cu	31.70	15.85	2.11	3.23
5306-0003-35		M83528/006F003	Fluorosilicone	Ag	31.70	15.85	2.11	3.23
5306-0003-40		M83528/006D003	Fluorosilicone	Ag/Al	31.70	15.85	2.11	3.23
5306-0003-45		M83528/006K003	Silicone	Ag/Cu	31.70	15.85	2.11	3.23
5306-0003-50		M83528/006M003	Silicone	Ag/G	31.70	15.85	2.11	3.23
5306-0003-55		M83528/006E003	Silicone	Ag	31.70	15.85	2.11	3.23
5306-0003-60		N/A	Silicone	Ni/C	31.70	15.85	2.11	3.23
5306-0003-65		M83528/006L003	Silicone	Ag/Ni	31.70	15.85	2.11	3.23
5306-0003-90		N/A	Fluorosilicone	Ni/C	31.70	15.85	2.11	3.23
5306-0004-10		M83528/006A004	Silicone	Ag/Cu	76.20	21.08	2.11	3.23
5306-0004-20		M83528/006B004	Silicone	Ag/Al	76.20	21.08	2.11	3.23
5306-0004-25		M83528/006H004	Silicone	Ag	76.20	21.08	2.11	3.23
5306-0004-30		M83528/006C004	Fluorosilicone	Ag/Cu	76.20	21.08	2.11	3.23
5306-0004-35		M83528/006F004	Fluorosilicone	Ag	76.20	21.08	2.11	3.23
5306-0004-40		M83528/006D004	Fluorosilicone	Ag/Al	76.20	21.08	2.11	3.23
5306-0004-45		M83528/006K004	Silicone	Ag/Cu	76.20	21.08	2.11	3.23
5306-0004-50		M83528/006M004	Silicone	Ag/G	76.20	21.08	2.11	3.23
5306-0004-55		M83528/006E004	Silicone	Ag	76.20	21.08	2.11	3.23
5306-0004-60		N/A	Silicone	Ni/C	76.20	21.08	2.11	3.23
5306-0004-65		M83528/006L004	Silicone	Ag/Ni	76.20	21.08	2.11	3.23
5306-0004-90		N/A	Fluorosilicone	Ni/C	76.20	21.08	2.11	3.23
5306-0005-10		M83528/006A005	Silicone	Ag/Cu	134.11	34.04	2.11	3.23
5306-0005-20		M83528/006B005	Silicone	Ag/Al	134.11	34.04	2.11	3.23
5306-0005-25		M83528/006H005	Silicone	Ag	134.11	34.04	2.11	3.23
5306-0005-30		M83528/006C005	Fluorosilicone	Ag/Cu	134.11	34.04	2.11	3.23
5306-0005-35		M83528/006F005	Fluorosilicone	Ag	134.11	34.04	2.11	3.23
5306-0005-40		M83528/006D005	Fluorosilicone	Ag/Al	134.11	34.04	2.11	3.23
5306-0005-45		M83528/006K005	Silicone	Ag/Cu	134.11	34.04	2.11	3.23
5306-0005-50		M83528/006M005	Silicone	Ag/G	134.11	34.04	2.11	3.23
5306-0005-55		M83528/006E005	Silicone	Ag	134.11	34.04	2.11	3.23
5306-0005-60		N/A	Silicone	Ni/C	134.11	34.04	2.11	3.23
5306-0005-65		M83528/006L005	Silicone	Ag/Ni	134.11	34.04	2.11	3.23
5306-0005-90		N/A	Fluorosilicone	Ni/C	134.11	34.04	2.11	3.23

LTE Material Number	LTE-10	LTE-15	LTE-20	LTE-30	LTE-35	LTE-40-45D	LTE-40-50D	LTE-40	LTE-45	LTE-50	LTE-55	LTE-60-40D	LTE-60*	LTE-65	LTE-80	LTE-90	LTE-105	LTE-110
Elastomer Type	SIL	SIL	SIL	FSIL	FSIL	FSIL	FSIL	FSIL	SIL	SIL	SIL	SIL	SIL	SIL	FSIL	FSIL	SIL	FSIL
Filler Material	Ag/Cu	Ag/Cu	Ag/Al	Ag/Cu	Ag	Ag/Al	Ag/Al	Ag/Al	Ag/Cu	Ag/Glass	Ag	Ni/C	Ni/C	Ag/Ni	Ag/Ni	Ni/C	Ni/Al	Ni/Al
MIL-DTL-83528 Material Type	A	G	B	C	F	-	-	D	K	M	E	-	-	L	-	-	-	-
Electrical Properties
Volume Resistivity, Max (Ohm-cm)	0.004	0.007	0.008	0.010	0.002	0.015	0.015	0.012	0.005	0.006	0.002	0.100	0.100	0.005	0.006	0.100	0.150	0.250
Shielding Effectiveness 20MHz-10GHz, Min (dB)	110	110	100	110	110	90	90	90	110	100	110	100	100	100	90	100	-	100
Physical Properties
Specific Gravity, ±13%	3.50	4.75	2.00	4.00	4.00	1.90	1.90	2.00	3.50	1.90	3.50	1.90	1.90	4.00	4.10	2.20	2.20	2.05
Hardness, ±7 (Shore A)	65	80	65	75	75	45	50	70	85	200	65	40	55*	75	75	70	68	72
Tensile Strength, Min (PSI)	200	600	200	180	250	100	100	180	400	100/300	300	125	150	200	300	150	150	150
Elongation, Min/Max (%)	100/300	20/ꚙ	100/300	100/300	100/300	60/260	60/260	60/260	100/300	30	200/500	100/300	50/250	100/300	70/300	60/250	100/-	50/-
Tear Strength, Min (PSI)	25	70	30	35	40	100	100	35	40	30	50	20	20	30	45	40	40	35
Compression Set, Max (%)	32	NA	32	35	60	35	35	30	35	160	45	40	35	32	40	25	30	30
Operating Temperature, Min/Max (°C)	-55/125	-45/125	-55/160	-55/125	-65/160	-55/160	-55/160	-55/160	-45/125	-55/160	-55/160	-55/160	-55/160	-55/160	-55/125	-55/160	-55/125	-55/125
Outgassing Properties
Total Mass Loss (TML)	0.25%	0.10%	0.31%	0.09%	0.21%	-	-	0.32%	0.21%	0.23%	0.15%	-	0.29%	0.21%	0.11%	0.27%	0.26%	0.27%
Collected Volatile Condensable Materials (CVCM)	0.06%	0.04%	0.07%	<0.01%	<0.01%	-	-	0.03%	0.05%	0.08%	0.06%	-	0.13%	0.06%	0.02%	0.03%	0.07%	0.05%
Water Vapor Regained (WVR)	0.01%	0.01%	0.03%	0.02%	0.03%	-	-	0.02%	0.01%	0.01%	0.01%	-	0.01%	0.01%	0.02%	0.04%	0.01%	0.02%
Electrical Stability
After Heat Aging, Max (Ω-cm)	0.010	0.010	0.010	0.015	0.010	0.015	0.015	0.015	0.010	0.015	0.010	0.150	0.200	0.010	0.015	0.200	-	-
After Break, Max (Ω-cm)	0.008	NA	0.015	0.015	0.010	0.025	0.025	0.015	0.010	0.009	0.010	0.250	0.100	0.010	N/A	0.100	-	-
During Vibration, Max (Ω-cm)	0.006	0.010	0.012	0.015	0.010	0.015	0.015	0.015	0.010	0.009	0.010	0.150	0.100	0.010	0.015	0.100	-	-
After Vibration, Max (Ω-cm)	0.004	0.007	0.008	0.010	0.002	0.012	0.012	0.012	0.005	0.006	0.002	0.100	0.100	0.005	0.006	0.100	-	-
After Exposure to EMP, Max (Ω-cm)	0.010	0.010	0.010	0.015	0.010	0.015	0.015	0.015	0.010	0.015	0.010	0.150	0.100	0.010	0.010	0.100	-	-
Compression/Deflection, Min (%)	3.5	2.5	3.5	3.5	3.5	3.5	3.5	3.5	2.5	3.5	2.5	3.0	8.0	3.5	3.5	5.0	-	-
Fluid Immersion, Survivable/Nonsurvivable (SUR/NS)	NS	NS	NS	SUR	SUR	SUR	SUR	SUR	NS	NS	NS	SUR	NS	NS	SUR	SUR	-	SUR
*Extruded material will have a harness of 70±7 Shore A

Total Mass Loss (TML): In general, the material is considered acceptable if the total mass loss (TML) is less than 1% and the volatile condensable mass (VCM) is less than
0.1% of the initial sample mass.
Collected Volatile Condensable Materials (CVCM): If the CVCM exceeds 0.1%, the material fails.
Water Vapor Regained (WVR): If the difference between the TML and the WVR does not exceed 1.0% (and the CVCM does not exceed 0.10%), the material passes the test.

Call Toll Free: 866.832.4364

813.855.6921

Call Toll Free: 866.832.4364

813.855.6921

TechSIL Conductive Elastomer Rectangle D Cross Section

TechSIL Conductive Elastomer Rectangle D Cross Section

Combo Gasket Frame Form

Rep Firm
